Description
From pipe to a female port

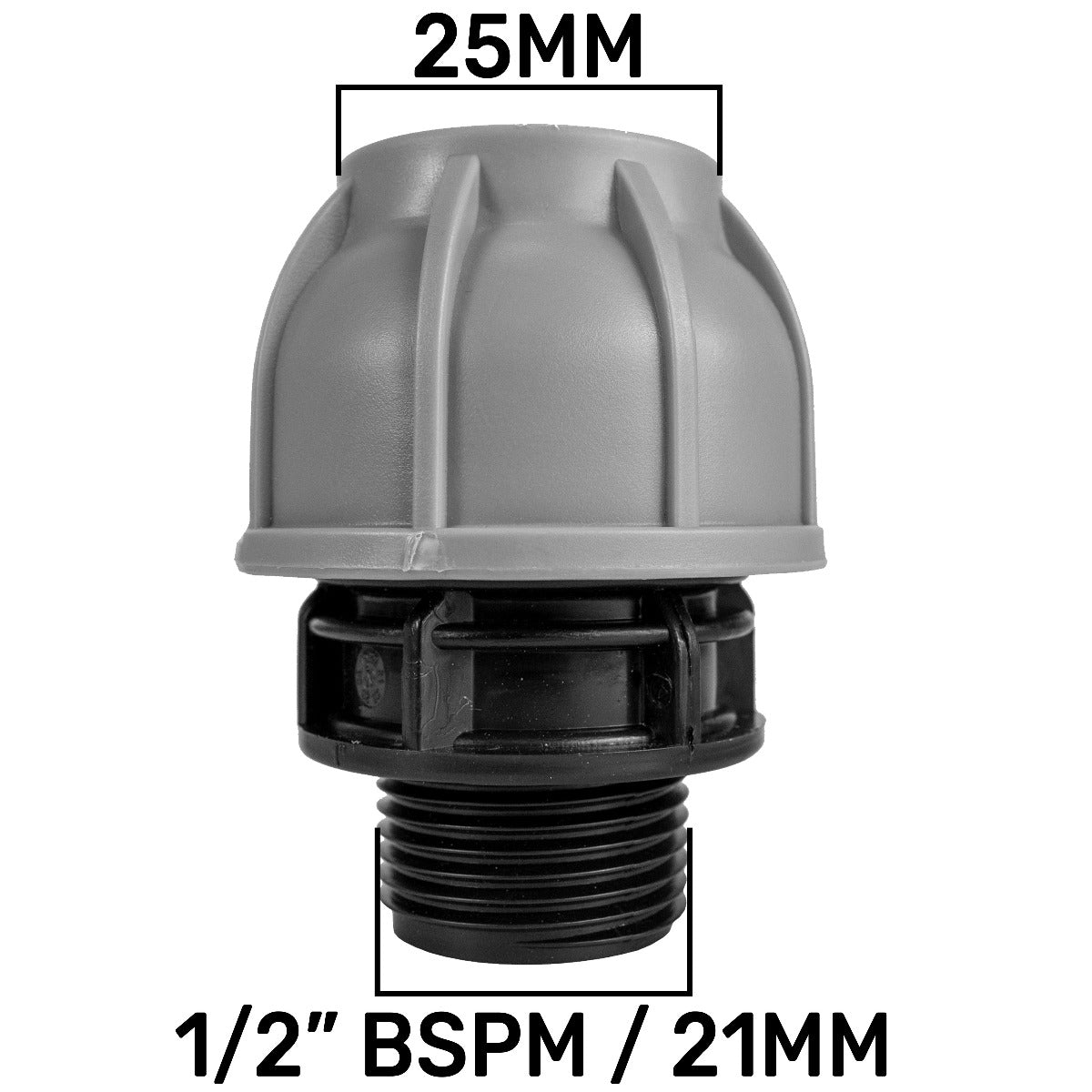

Bring 25mm MDPE pipe to a compatible female-threaded fitting with this straight adapter. Its grey compression end receives the pipe, and the ½-inch BSP male thread projects from the black body into the mating female socket.
One adapter is supplied. The installation shows the connection between a pipe and a separate valve; the pipe, valve and support clip are not included.
Check the pipe, then the port
25mm identifies the pipe outside diameter. Check the exterior of the MDPE pipe rather than its internal bore or the width of the grey nut.
½-inch BSP identifies the external male thread. It needs a matching female-threaded component. Its outside thread diameter is about 21mm; BSP is a nominal sizing system, so ½-inch is not a direct 12.7mm measurement across the thread.
Match the thread form and sealing requirements too. If either connection differs, compare the MDPE straight joiners and threaded adapters for a suitable pairing.
Make room for a supported joint
Keep access to the compression nut and avoid loading the plastic threaded end.
Prepare the MDPE end
Isolate and depressurise the supply. Prepare a clean, square end on suitable 25mm OD MDPE pipe and check whether a separate pipe liner is needed.
Align the threaded end
Follow the mating components’ sealing and tightening guidance. Start the male thread squarely in the female port and avoid forcing or overtightening the plastic spigot.
Support and inspect
Support adjoining pipework and fittings without strain on the adapter. Assess the PN10 designation against the complete system and service conditions, then restore the supply gradually and inspect both connections.
Choose the connection type
Does this screw onto a male-threaded tap?
No. This adapter has an external male thread and needs a compatible ½-inch BSP female port. For a male-threaded component, choose an appropriate female adapter.
Can I use this instead of a 25mm equal coupling?
They do different jobs. This adapter connects one plain MDPE pipe end to a threaded component. An equal compression coupling joins two matching plain pipe ends.
Product information & technical details
| SKU | MDPESTR25-12BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| MDPE size | 25mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Connection | 25mm outside-diameter MDPE compression socket × ½-inch BSP male thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One adapter. Pipe, valve, support clip and any separate pipe liners or thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
