Description
Connect 25mm pipe to a male thread

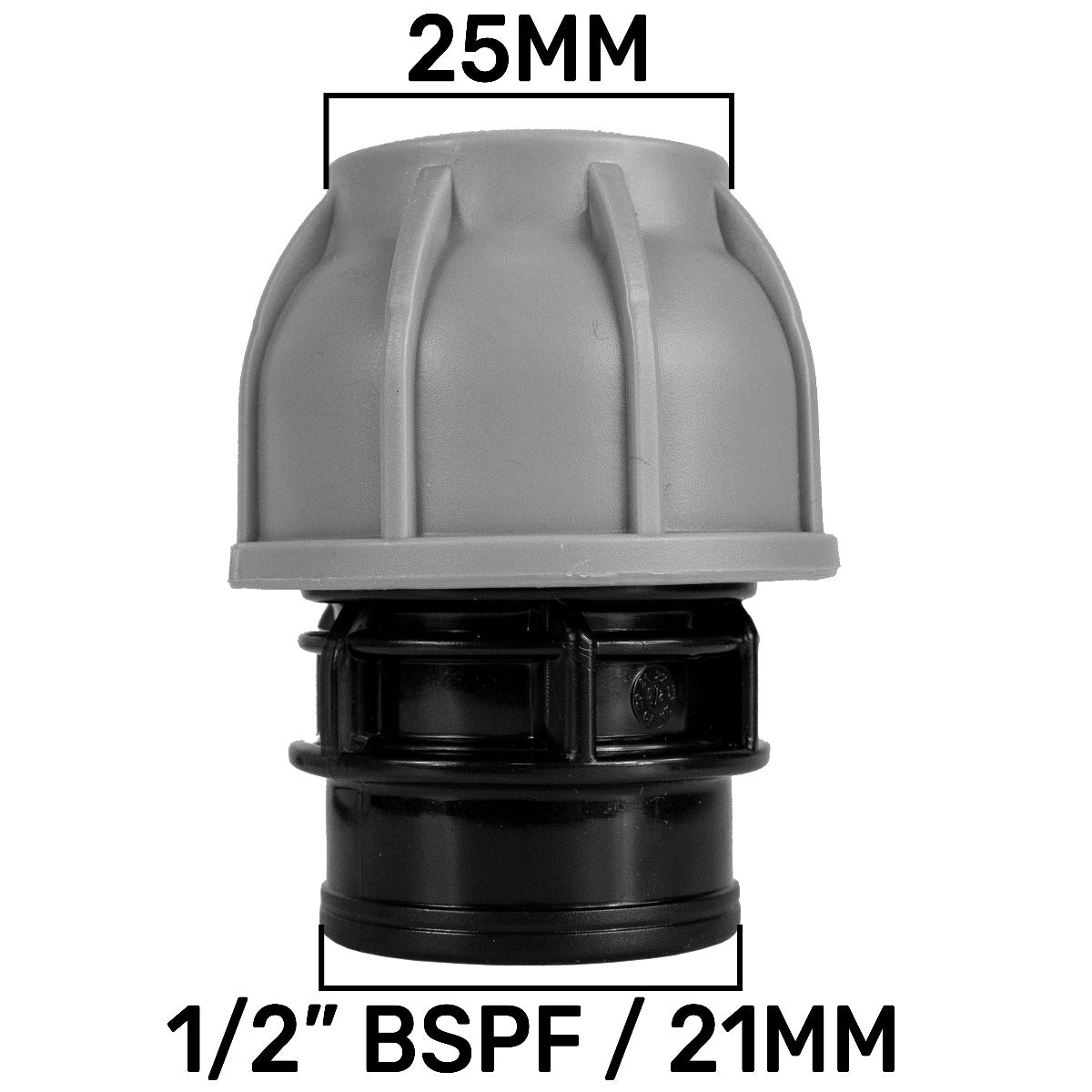

Use this straight adapter where a 25mm MDPE pipe run meets a compatible ½-inch BSP male connection. The pipe enters the grey compression end, while the male thread screws into the female socket inside the black body.
One fitting makes that pipe-to-thread transition. The illustrated pipe, valve and support clip show the connection in context and are not included.
Match both ends before ordering
The compression side takes 25mm outside-diameter MDPE pipe. Measure across the pipe exterior, not the bore or the grey nut.
The other end is ½-inch BSP female. It needs a matching male-threaded component. A ½-inch BSP male thread measures about 21mm across its outer crests; the nominal ½-inch size is not a 12.7mm physical thread diameter.
Check the thread form and sealing requirements as well as the nominal size. If your pipe or threaded part differs, compare the MDPE straight joiners and threaded adapters for the right combination.
Prepare the pipe and threaded joint
Keep access to the compression nut and support the adjoining components.
Prepare the pipe
Isolate and depressurise the supply. Prepare a clean, square end on suitable 25mm OD MDPE pipe, and check whether the assembly requires a separate pipe liner.
Align the male thread
Use the sealing arrangement specified for the mating fittings. Start the thread squarely, follow tightening guidance and avoid forcing or overtightening the plastic female socket.
Support and inspect
Keep loads off the adapter by supporting adjoining pipework and fittings. Assess the PN10 designation against the whole system and service conditions, then restore the supply gradually and check both joints.
Check the connection you need
Will the female socket fit a ¾-inch BSP male thread?
No. This socket is ½-inch BSP female. Choose an adapter with the correct threaded size as well as the correct pipe diameter.
Can I join two plain 25mm pipes with this?
No. This fitting has one pipe compression socket and one threaded socket. For two plain 25mm MDPE pipe ends, use a suitable 25mm equal compression coupling.
Product information & technical details
| SKU | MDPESTR25-12BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Female |
| MDPE size | 25mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Connection | 25mm outside-diameter MDPE compression socket × ½-inch BSP female thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One adapter. Pipe, valve, support clip and any separate pipe liners or thread-sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
