Description
Give your 20mm pipe a threaded connection

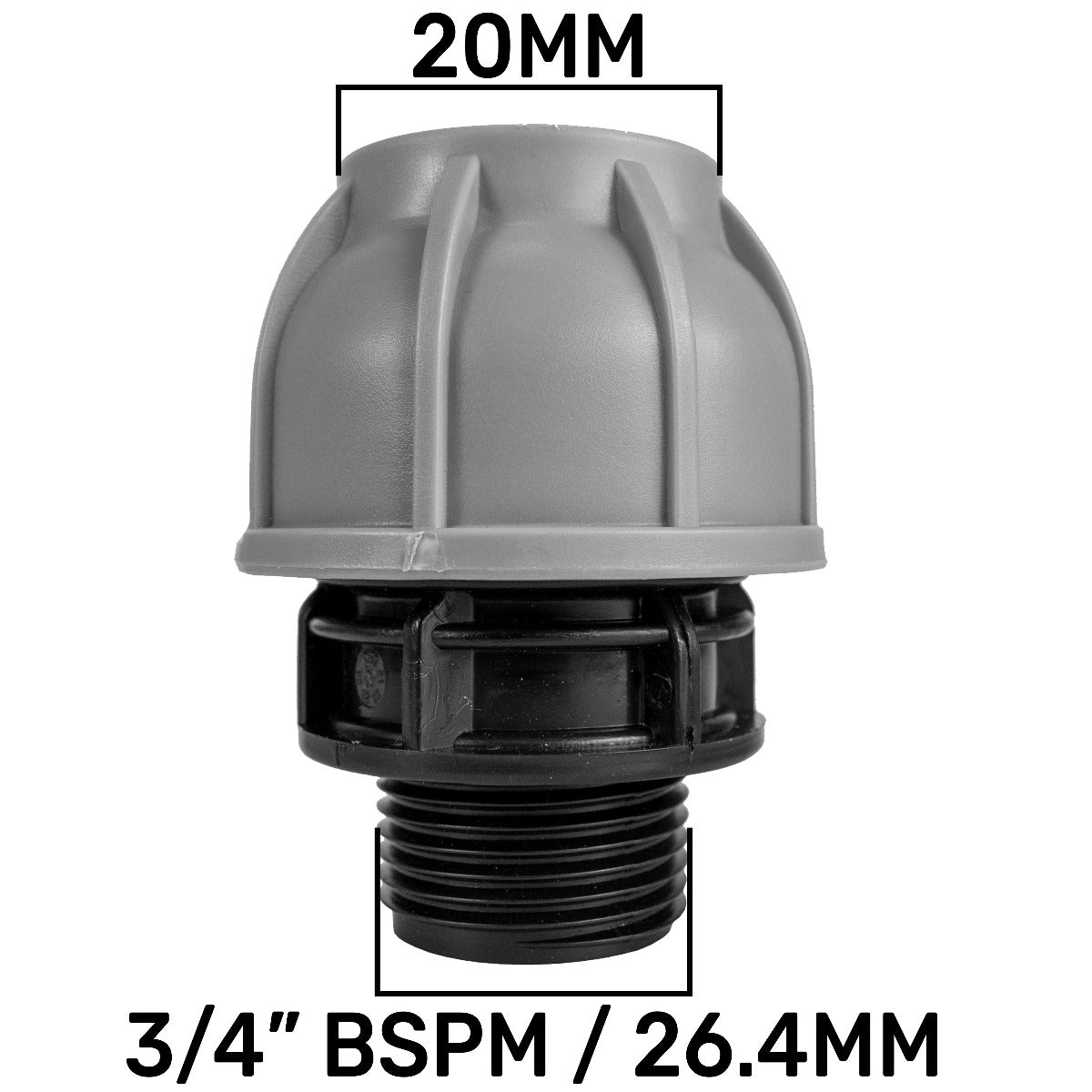

Bring a 20mm MDPE pipe run into a ¾-inch BSP female fitting with this straight adapter. Its grey compression nut surrounds the pipe end, while the projecting black male thread screws into the mating socket.
One adapter supplied. The illustration shows a separate valve and pipe to make the connection clear; these parts and the support clip are not included.
Pipe diameter and BSP size are different
20mm identifies the pipe outside diameter. Check the exterior of your MDPE pipe, rather than its bore or the width of the grey compression nut.
¾-inch BSP identifies the nominal thread size. The black end has an external male thread, so it needs a matching female fitting. It is not a 19.05mm thread measurement or a ¾-inch hose connection.
This fitting provides one pipe connection and one threaded connection. If you need another size or two compression ends, compare the MDPE straight joiner range.
Make room for a sound joint
Support the adjoining pipework and leave access to assemble and inspect the connection.
Prepare the pipe
Isolate and depressurise the supply. Prepare a clean, square end, follow the insertion guidance and check whether your pipe requires a separate liner.
Match the female fitting
Confirm the receiving thread and its specified sealing method. Keep the threads aligned and follow the tightening guidance without overtightening the plastic adapter.
Check both ends
Restore the supply gradually and inspect the assembled joints. Consider the PN10 designation together with the complete system and service conditions.
Choose the right threaded end
What does BSPM tell me?
The “M” means male: the thread is on the outside of the black spigot. It fits a matching ¾-inch BSP female socket, where the thread is inside.
Does this replace an equal MDPE joiner?
No. An equal joiner connects two plain pipe ends. This adapter connects one 20mm MDPE pipe to a separate female-threaded component.
Product information & technical details
| SKU | MDPESTR20-34BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| MDPE size | 20mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Connection | 20mm outside-diameter MDPE compression socket × ¾-inch BSP male thread. |
| Pressure designation | PN10. Assess the complete system and service conditions before use. |
| Pack contents | One adapter. Pipe, valve, support clip and any separate pipe liner or sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
