Description
A threaded connection for your 20mm pipe

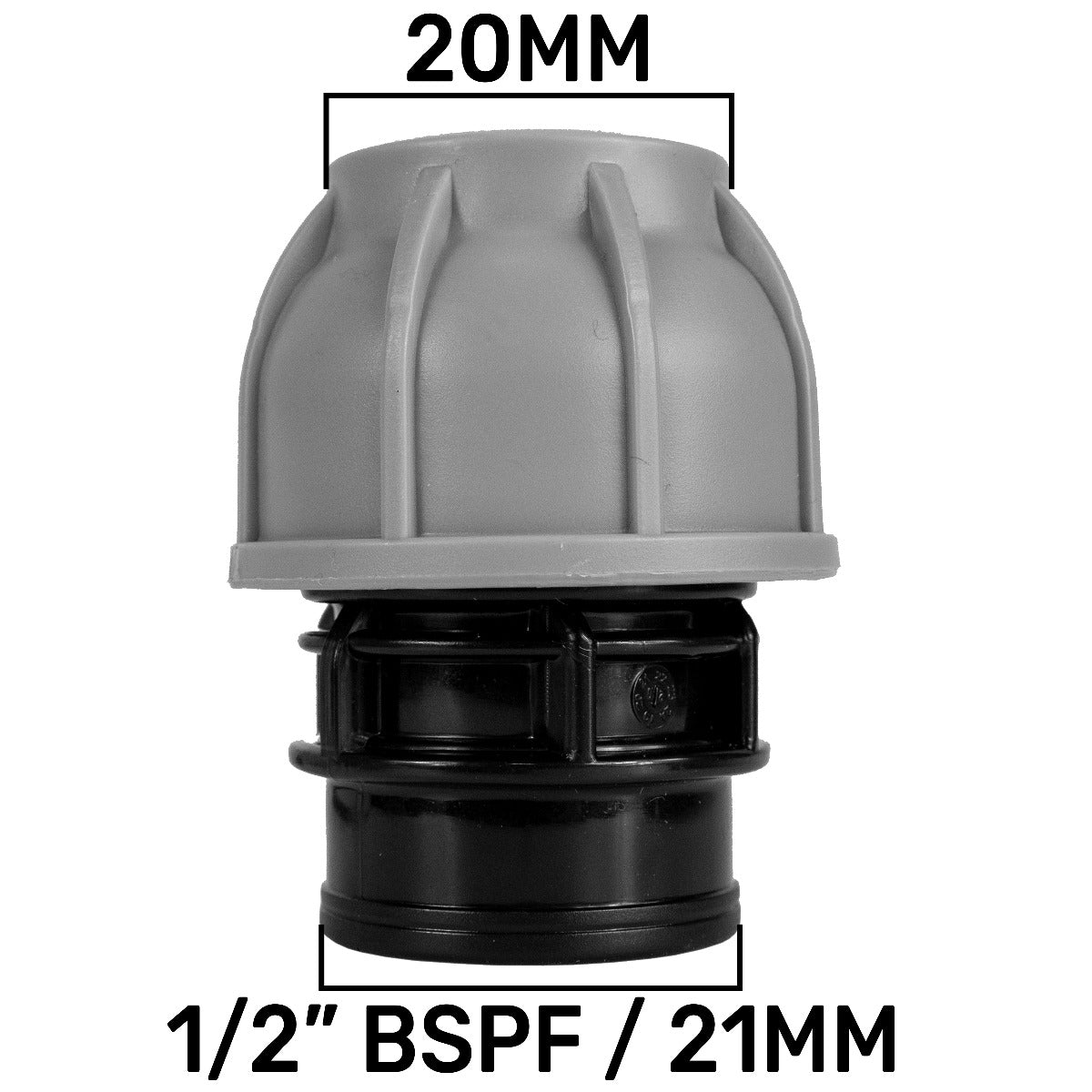

Connect a compatible 20mm MDPE pipe to a ½-inch BSP male fitting with this straight compression adapter. The grey nut forms the pipe connection, while the black female socket takes the threaded mating part.
Supplied as one adapter. The installation illustration shows how the two connection types work together.
Two sizes to check
20mm is the pipe outside diameter. Measure across the exterior of the MDPE pipe. Its bore and the width of the grey nut are different measurements.
½-inch BSP is the nominal thread size. The black end has an internal female thread for a matching male fitting. It is not a ½-inch hose connection, and the designation does not mean a 12.7mm measured opening.
Confirm the mating thread and its sealing requirements before fitting. The shared BSP guide below the technical details can help identify nominal thread sizes.
Make the transition with care
Prepare the pipe, match the thread and support the finished assembly.
Prepare the pipe end
Isolate and depressurise the supply. Prepare a clean, square end and follow the insertion guidance. Check whether your pipe requires a separate liner.
Fit the threaded connection
Keep the threads aligned and use the sealing method specified for the mating fittings. Follow the tightening guidance and avoid overtightening the plastic socket.
Check the assembled joint
Support the adjoining pipework without strain on the adapter. Restore the supply gradually and inspect both joints. Assess the PN10 designation alongside the full system and service conditions.
Connection questions
Is the threaded end male or female?
Female: its thread is inside the black socket. It connects to a matching ½-inch BSP male fitting with an external thread.
Can I use a different MDPE pipe diameter?
This adapter is for 20mm outside-diameter MDPE pipe. For another diameter or BSP size, compare the MDPE straight joiners and threaded adapters and match both ends.
Product information & technical details
| SKU | MDPESTR20-12BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Female |
| MDPE size | 20mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Connection | 20mm outside-diameter MDPE compression socket × ½-inch BSP female thread. |
| Pressure designation | PN10. Check the complete system and service conditions before use. |
| Pack contents | One adapter. Pipe, valve, support clip and any separate pipe liner or sealing materials are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
