Description
Keep your 20mm pipe run connected

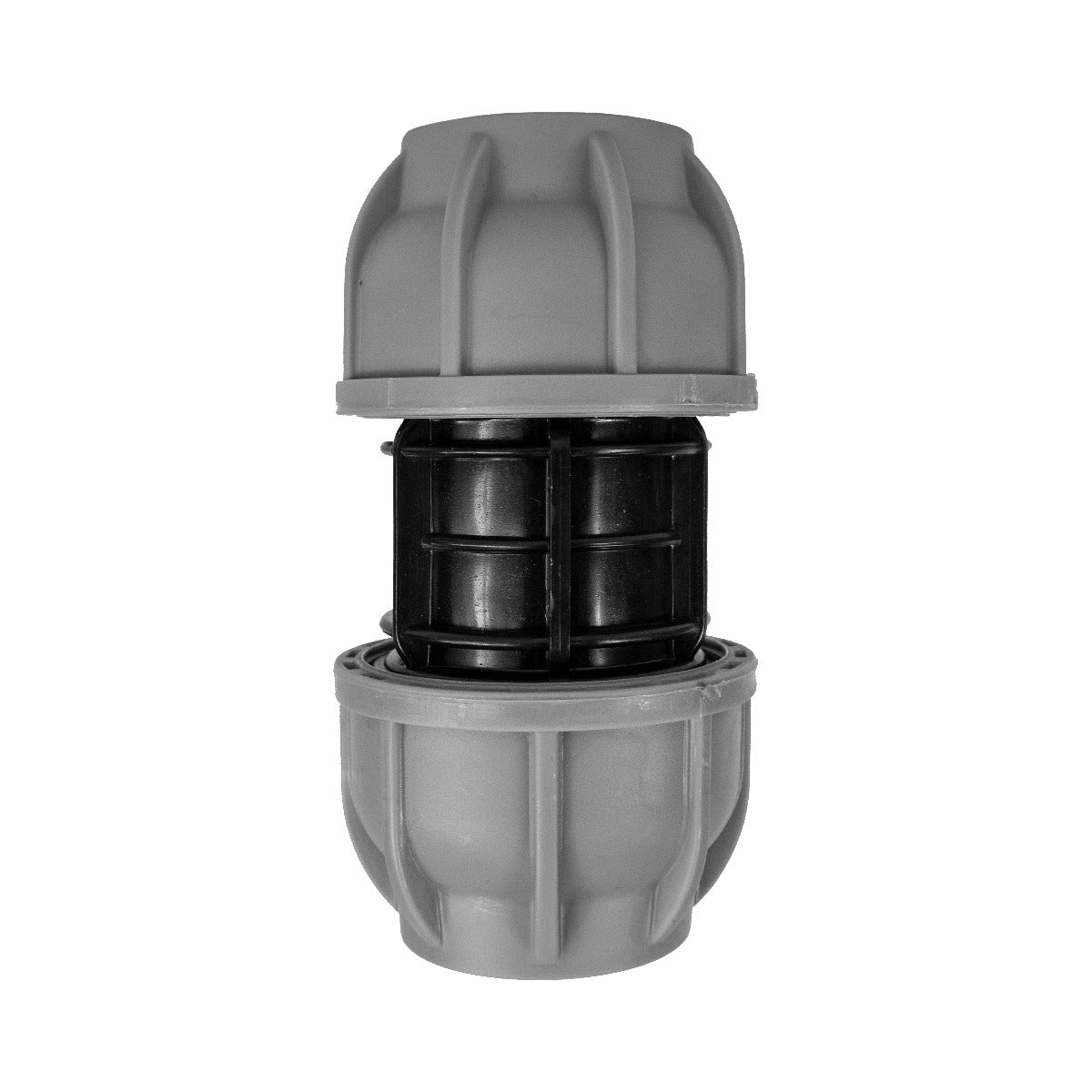

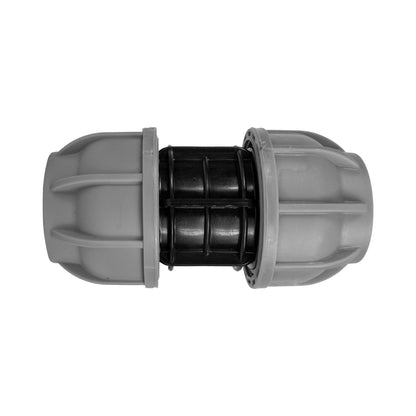

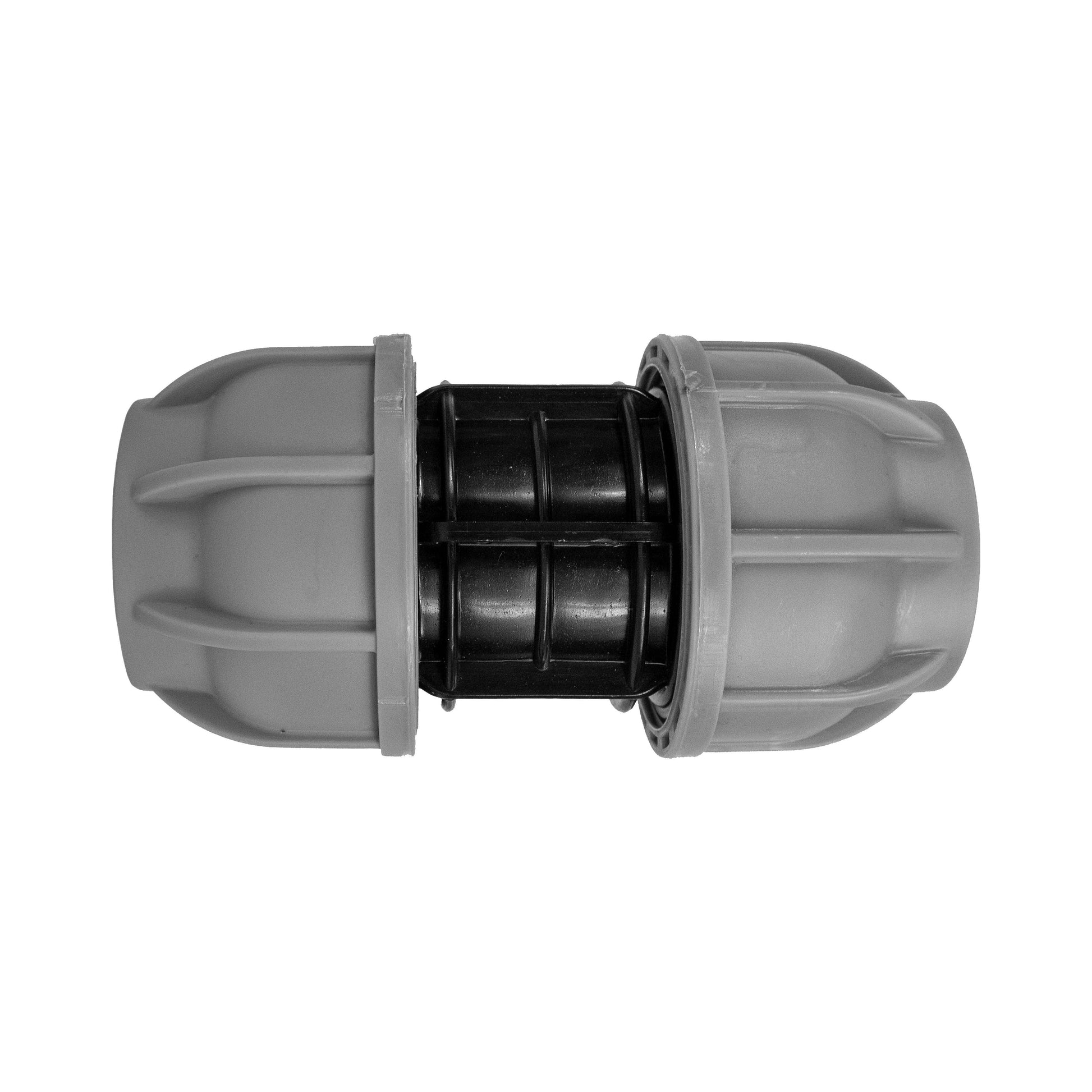

Extend a run of compatible MDPE pipe or join sound pipe ends after a repair. This 20mm straight compression coupling connects two lengths in line, with a grey compression nut at each end and a black central body.
Both connections are for 20mm outside-diameter MDPE pipe. One coupling is supplied.

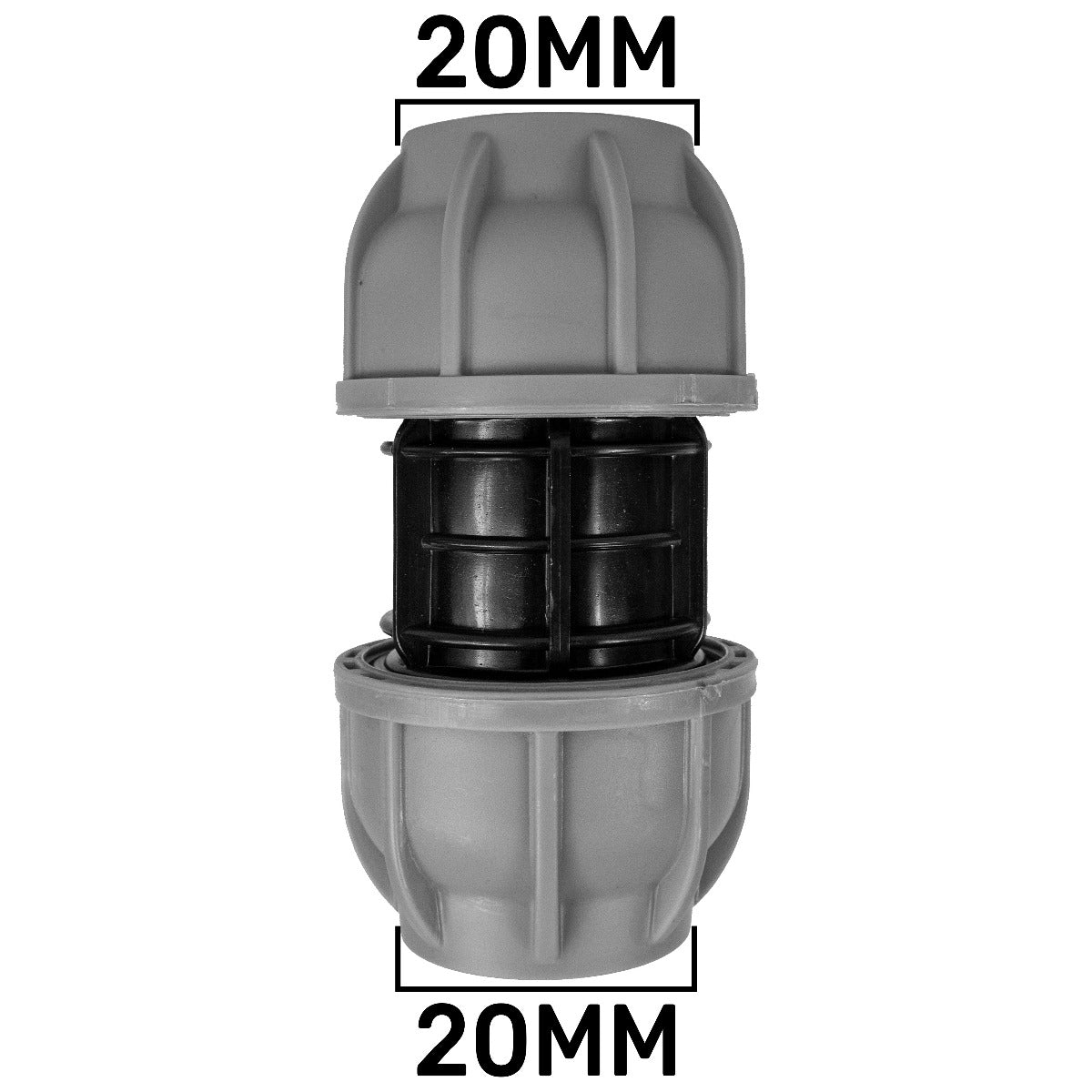

20mm at both ends
Measure across the outside of each pipe before ordering. The size identifies the pipe that enters the fitting, rather than the width of the grey nut or the pipe’s internal bore.
This is an equal pipe-to-pipe joiner. For a change of diameter or a threaded connection, compare the reducers and threaded adapters in our MDPE joiner range.
Plan a sound joint
Check the pipe and leave room to assemble both connections.
Prepare the pipe ends
Isolate and depressurise the supply. Cut back to sound pipe and prepare clean, square ends in line with the fitting guidance.
Check the assembly
Follow the required insertion and tightening procedure. Check whether your pipe and fitting combination needs separate pipe liners before assembly.
Support and inspect
Support the adjoining pipework without strain on the joint. Restore the supply gradually and inspect both connections. Consider the PN10 designation alongside the complete system and service conditions.
Choosing your connection
Will it connect 20mm pipe to 25mm pipe?
No. Both ends are for 20mm outside-diameter MDPE pipe. A change in diameter needs a correctly sized reducing fitting.
Are the pipes and liners included?
No. Each order quantity supplies one straight coupling. The illustrated pipes and clips demonstrate its use; any separate pipe liners must be selected for your assembly.
Product information & technical details
| SKU | MDPESTR20001 |
|---|---|
| Product type | |
| MDPE size | 20mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Connection | Two equal compression sockets for 20mm outside-diameter MDPE pipe. |
| Pressure designation | PN10. Check suitability for the complete assembly and service conditions. |
| Pack contents | One 20mm straight coupling. Pipe, support clips and any separate pipe liners are not included. |
