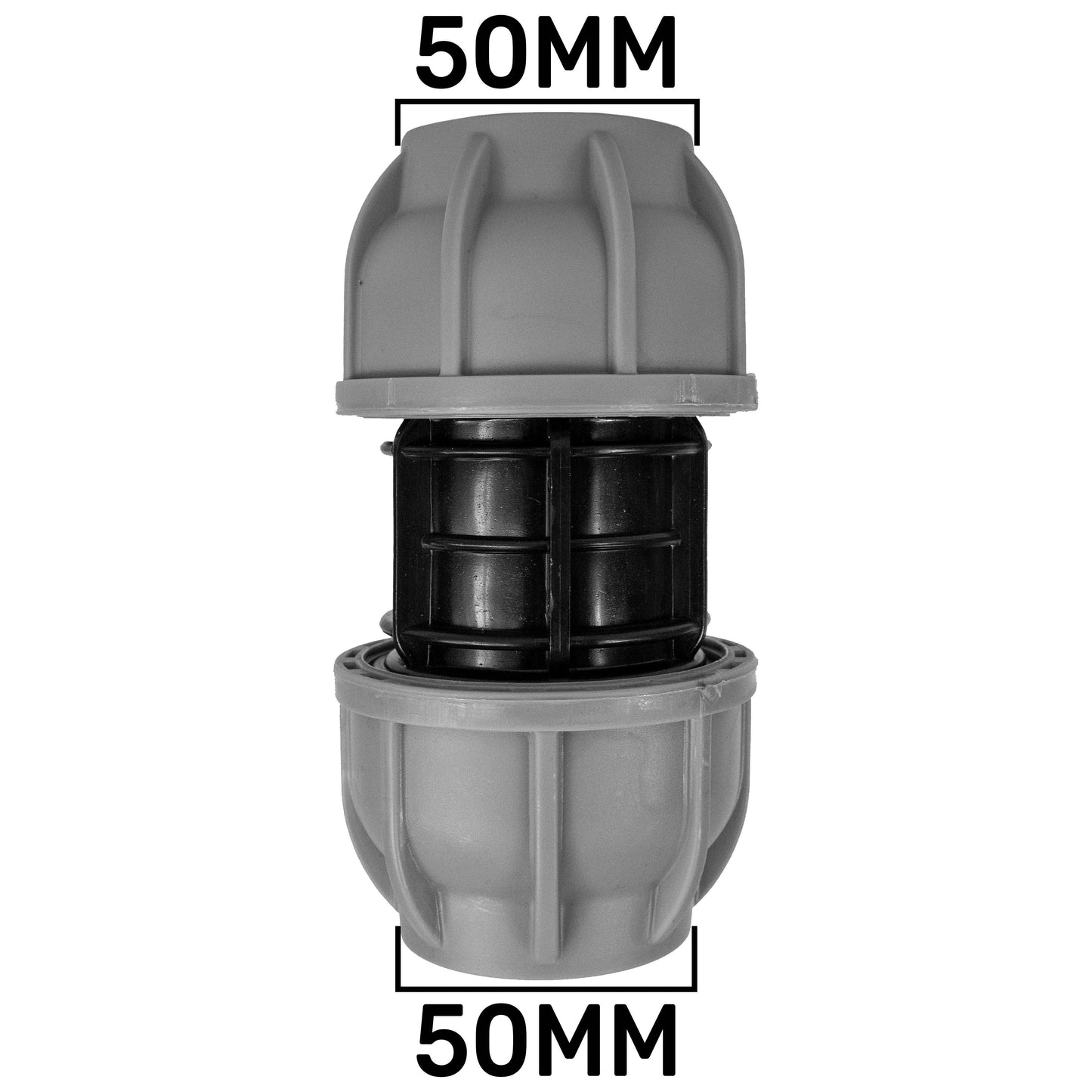

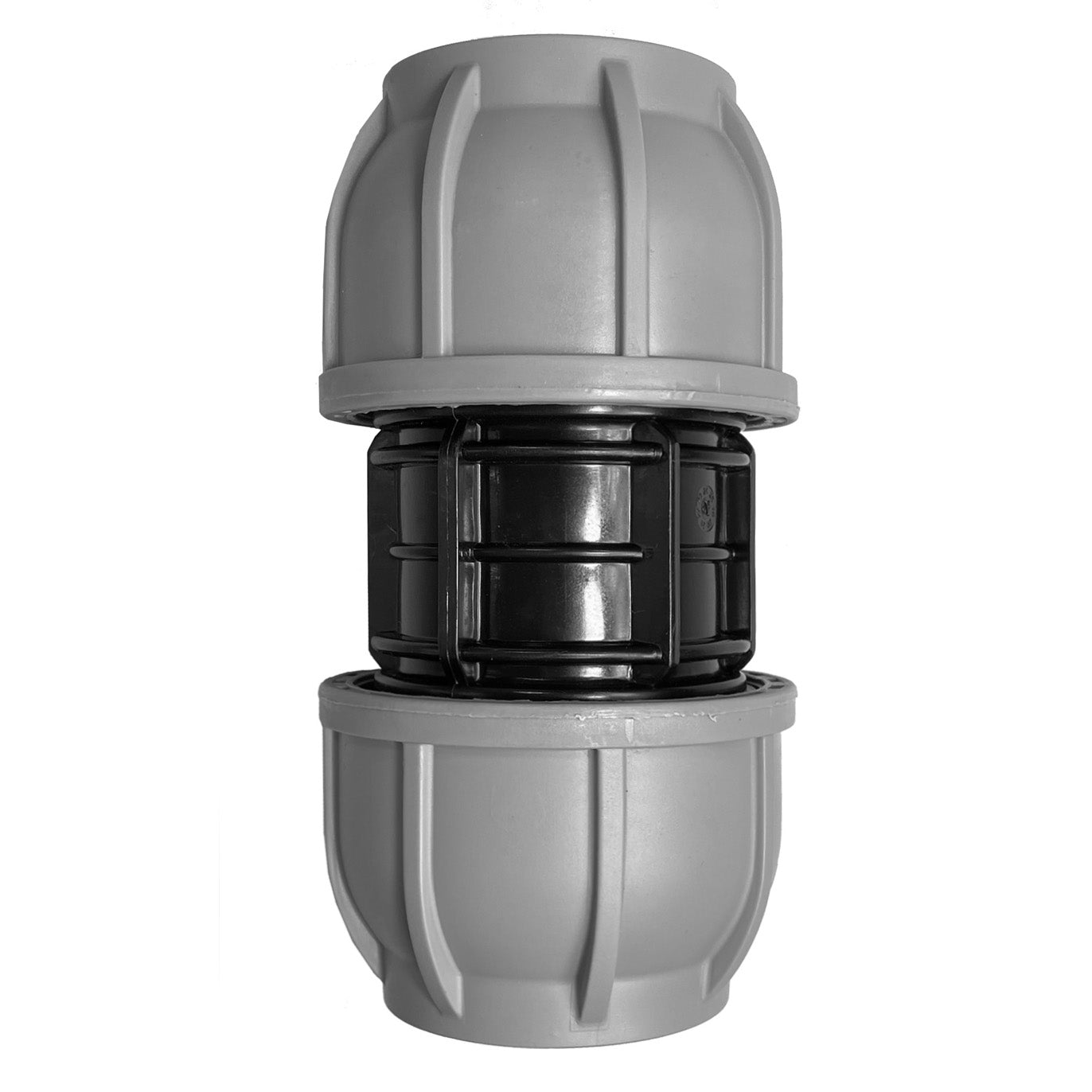

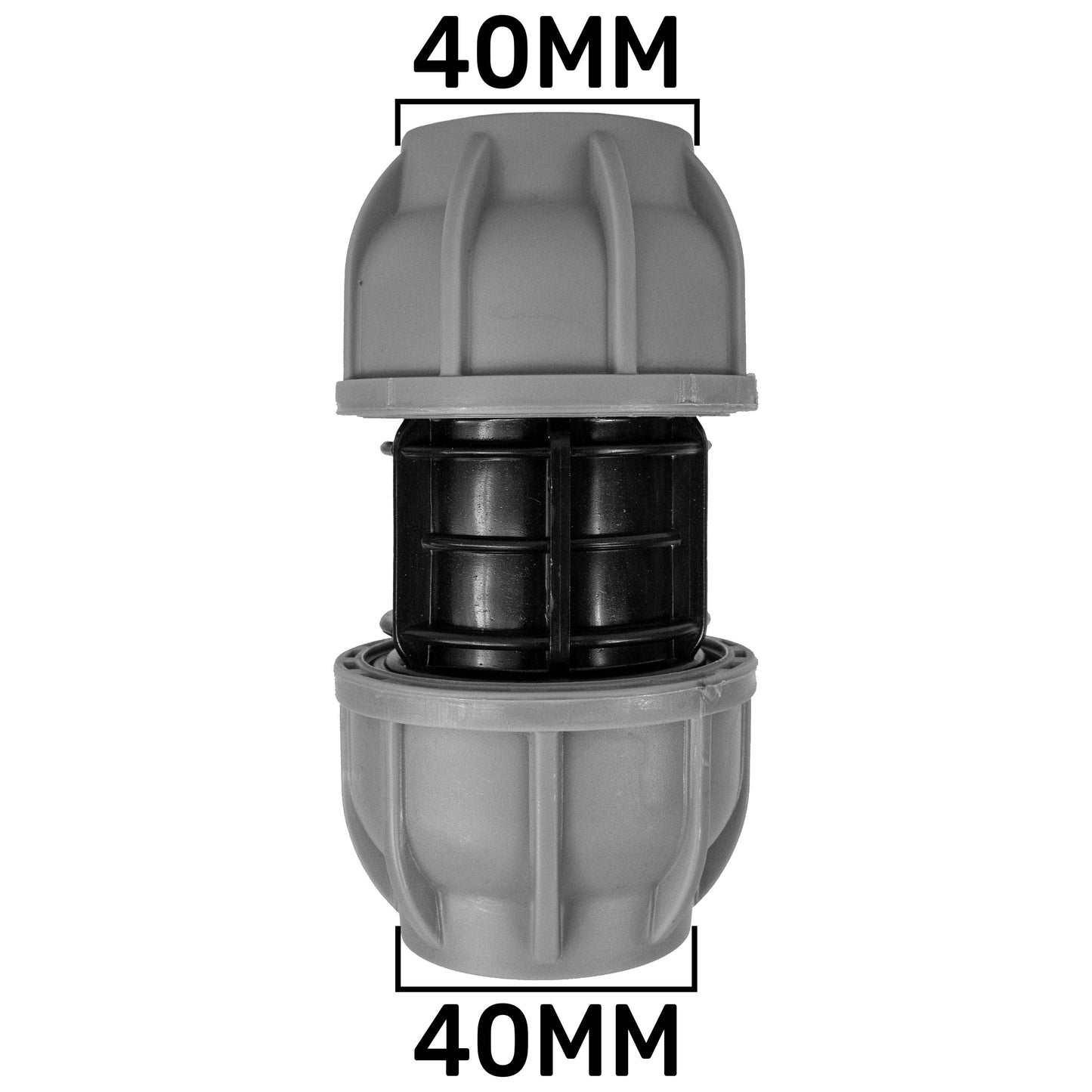

Equal compression
Join two pipe ends with the same outside diameter. Both ends are compression connections.
Description

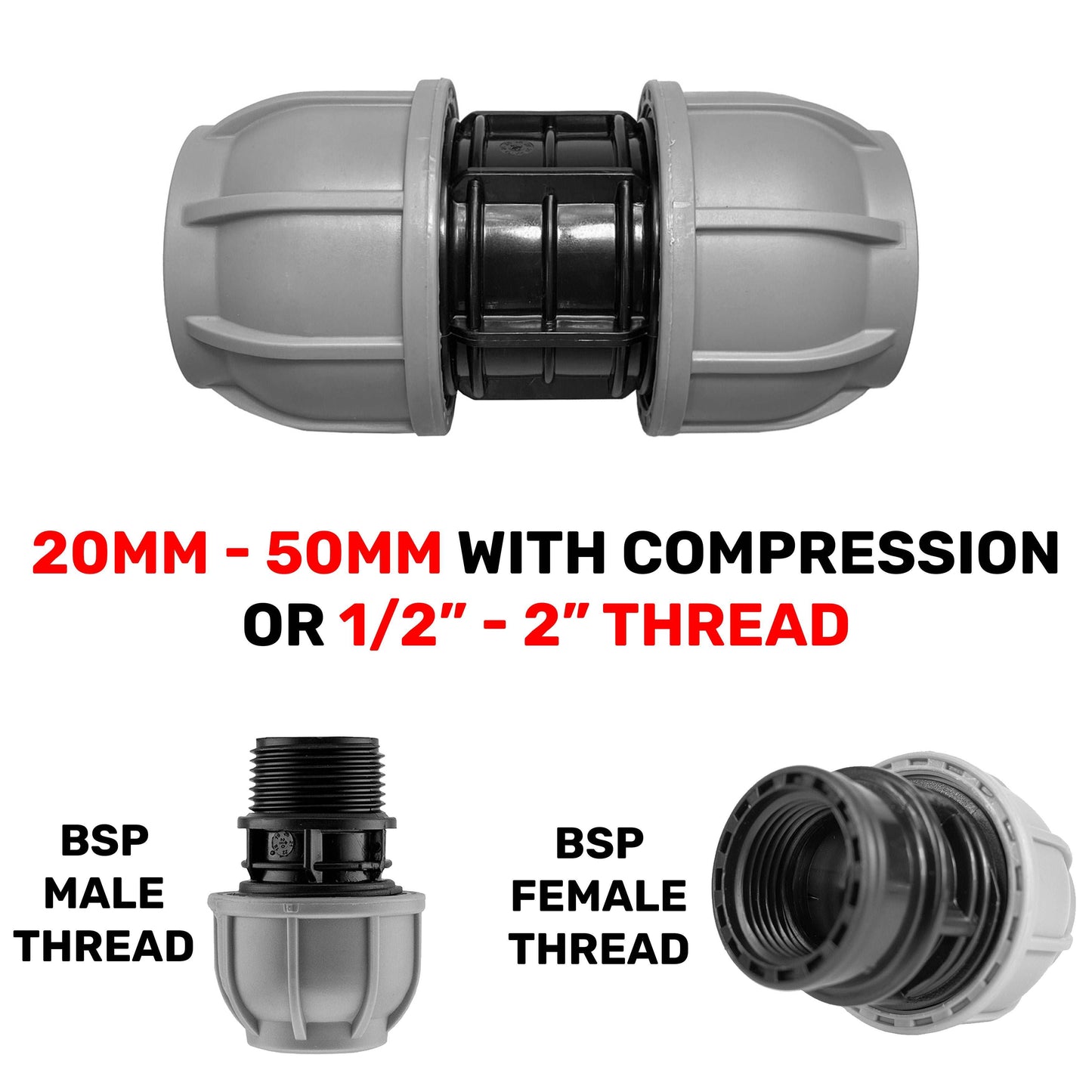

Make the right connection between pipe runs
Extend an MDPE run, join different pipe diameters or connect pipe to a threaded component. This range brings equal couplings, reducers and BSP adapters together so you can choose the fitting for the two ends you need to join.
Start with the pipe’s outside diameter, then check the other end: another pipe size, or a male or female BSP thread. The selector above lists the exact combinations.

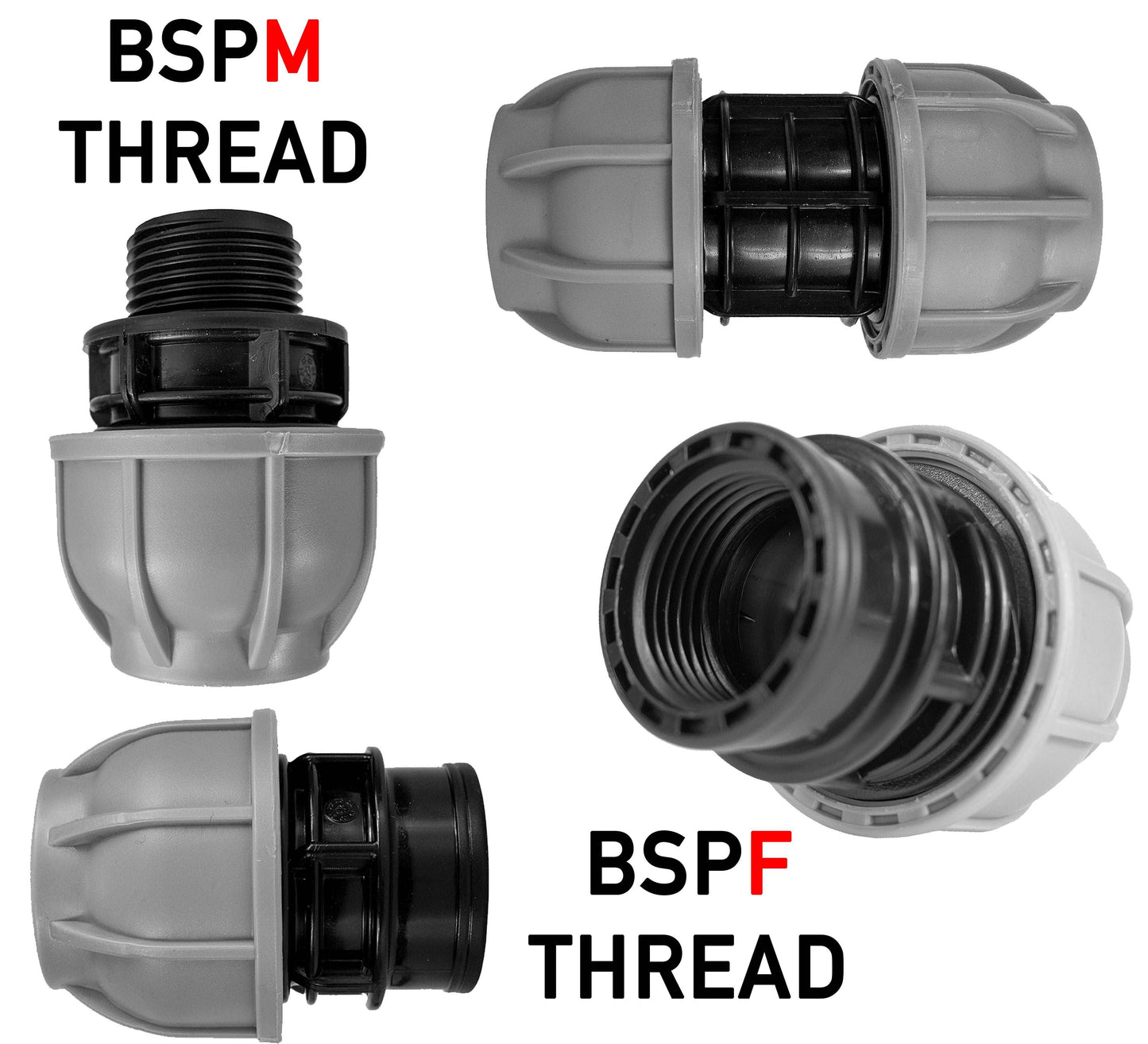

Four ways to connect
Identify what goes into each end before selecting your fitting. Photographs show connection styles.

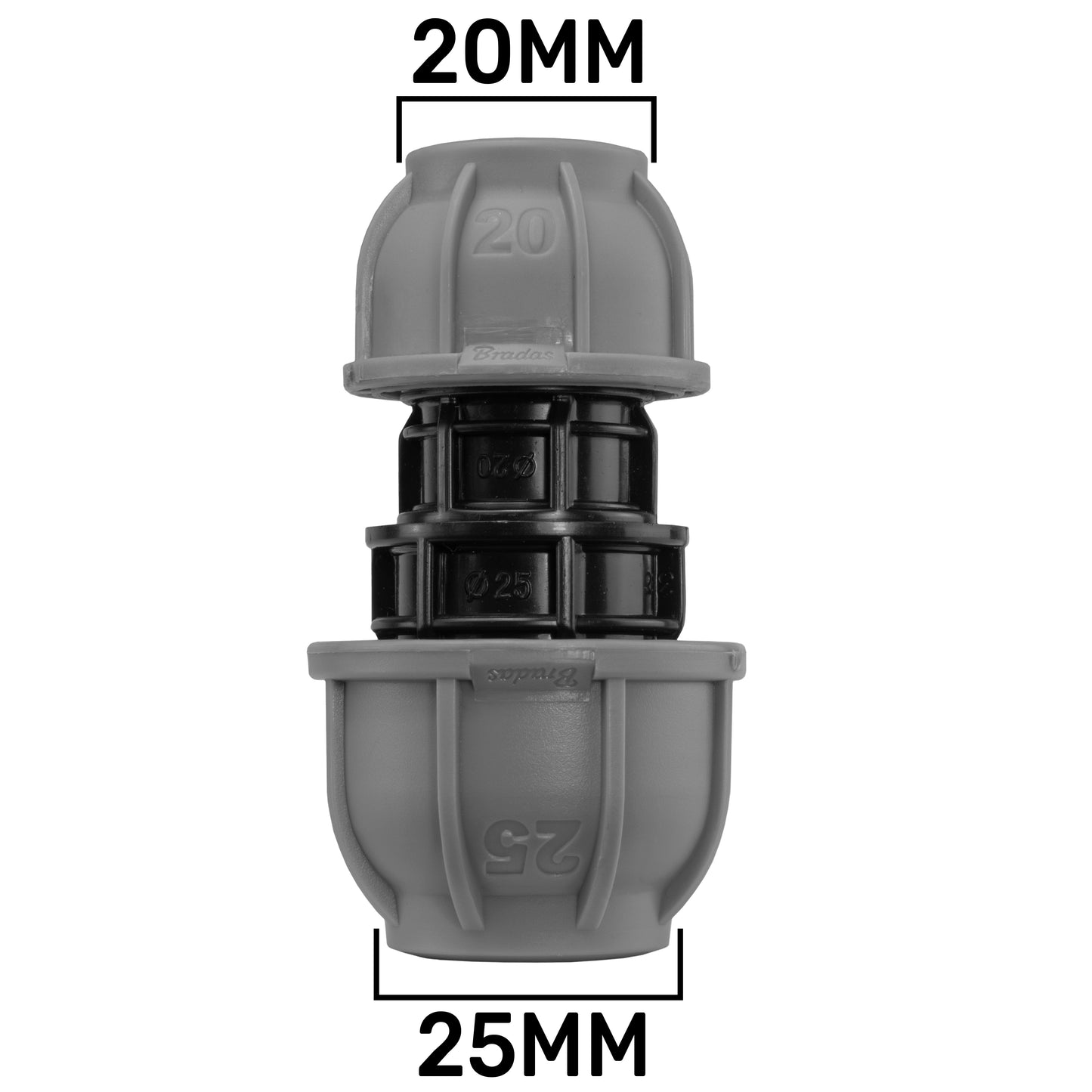

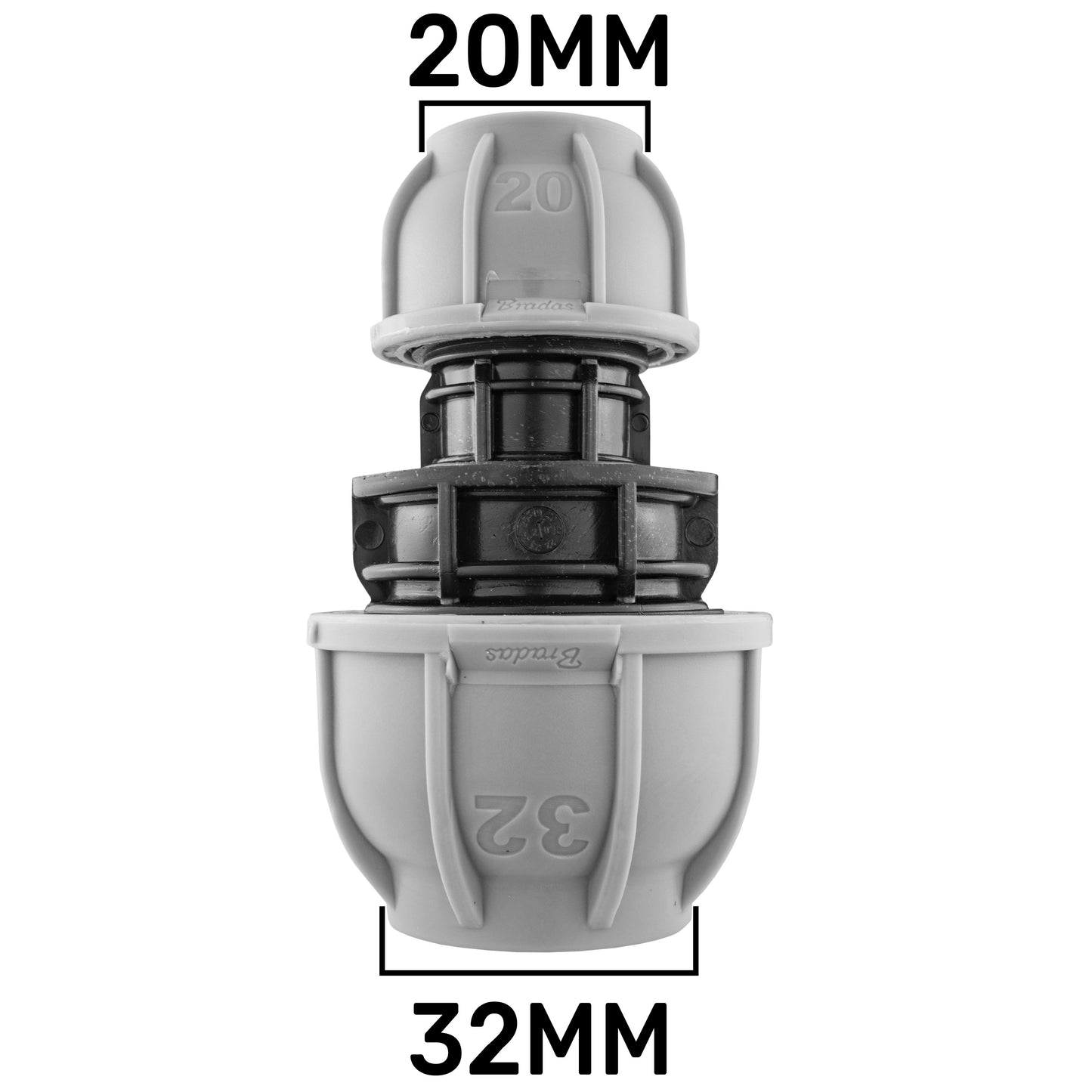

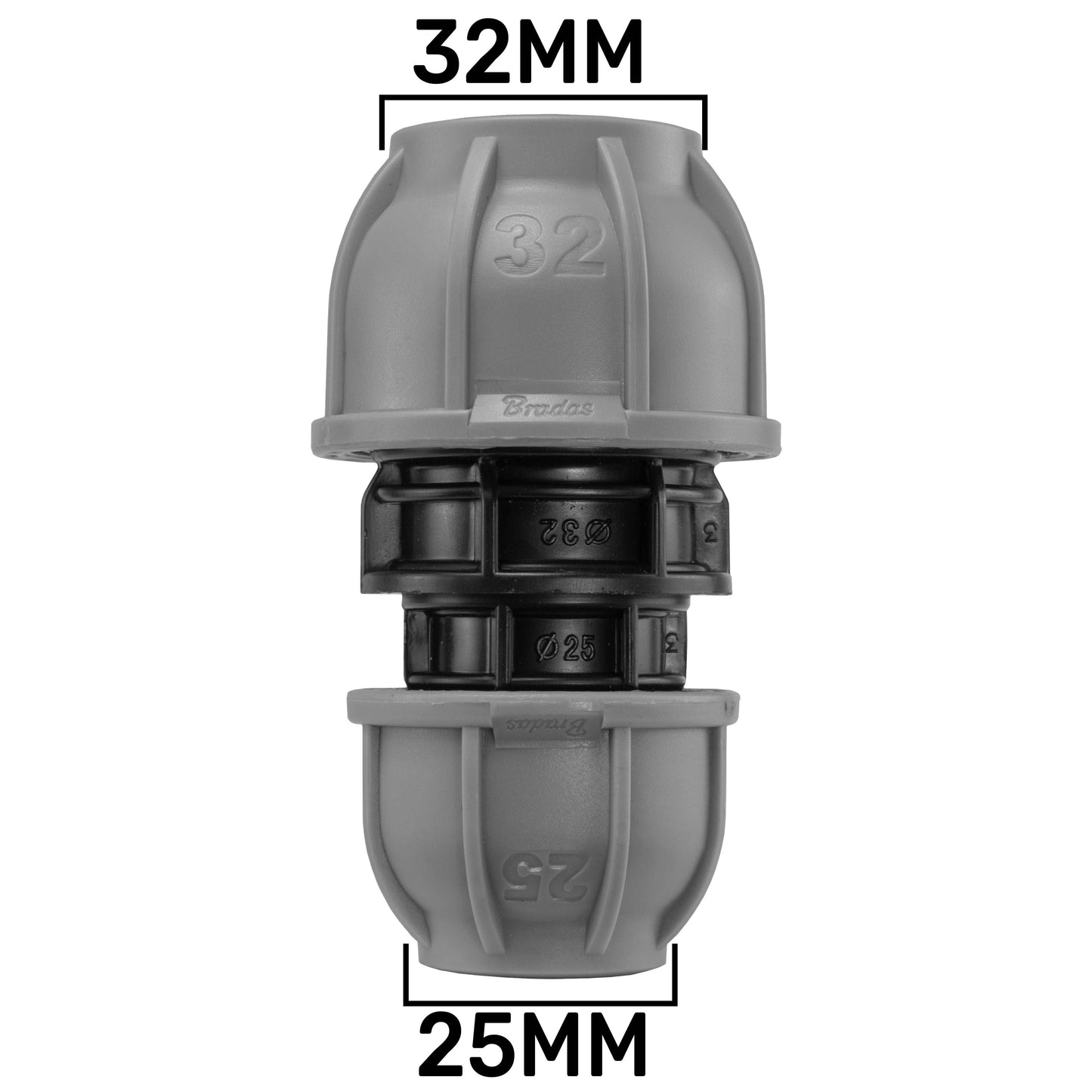

Reducing compression
Join two different pipe sizes. This range includes 25mm–20mm, 32mm–20mm and 32mm–25mm.

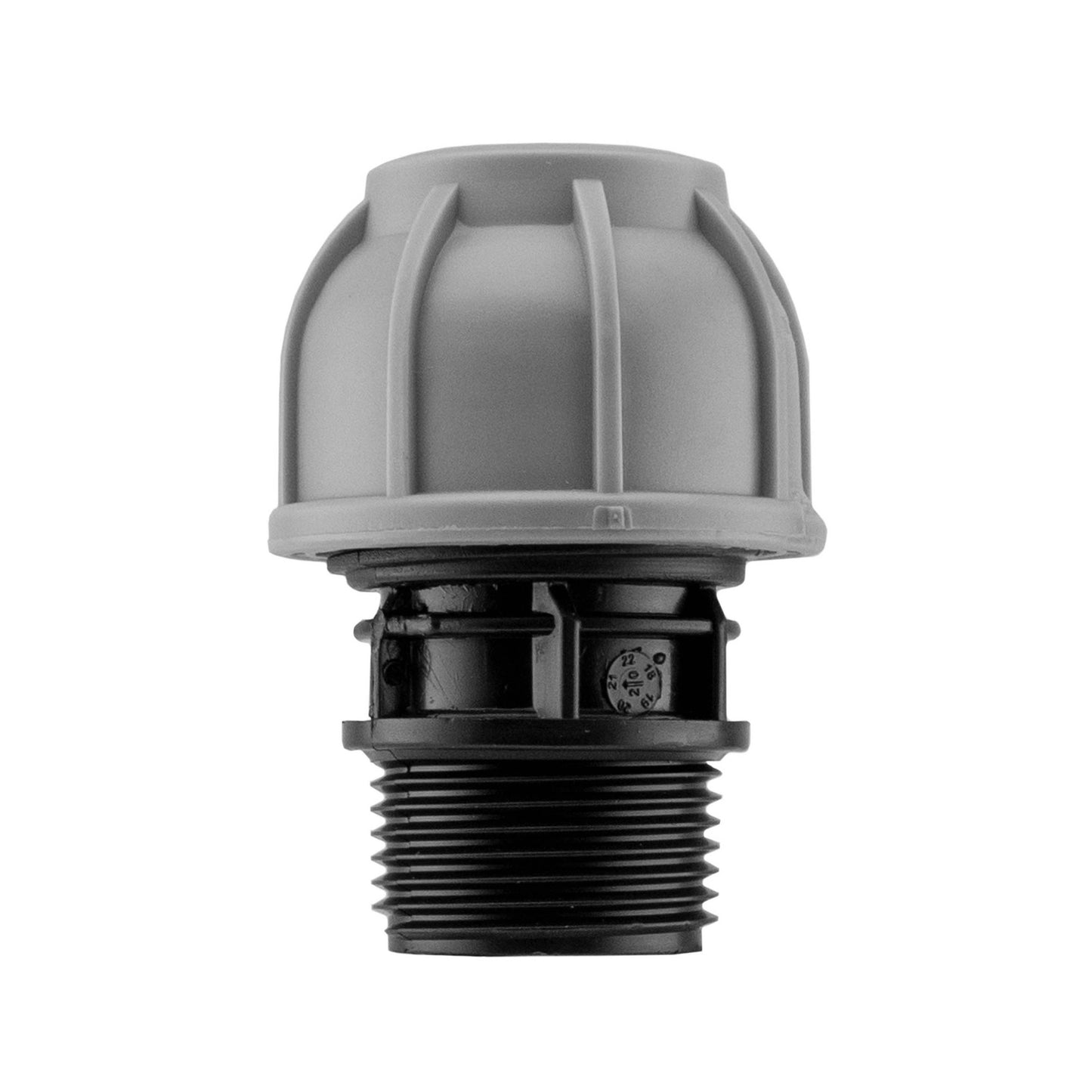

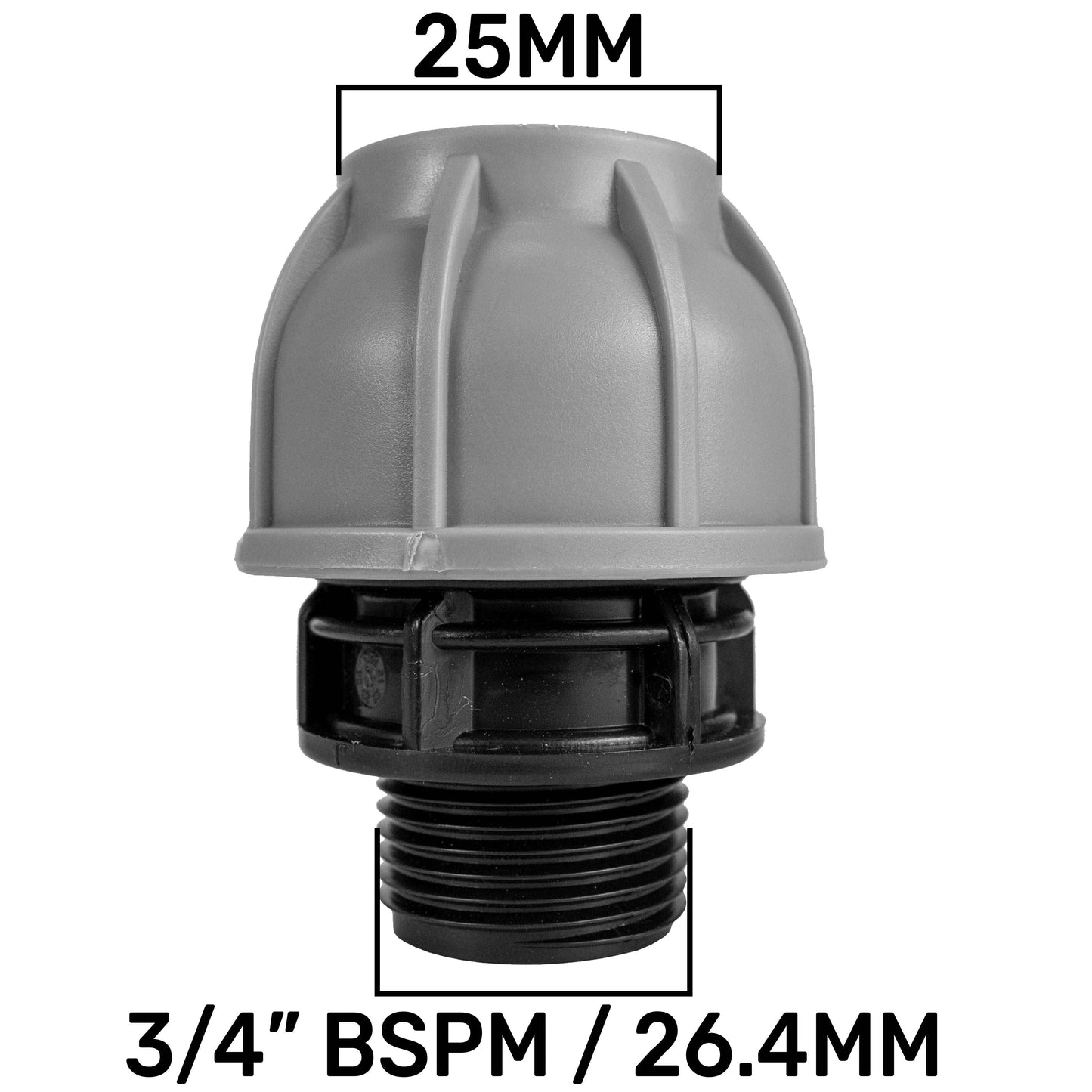

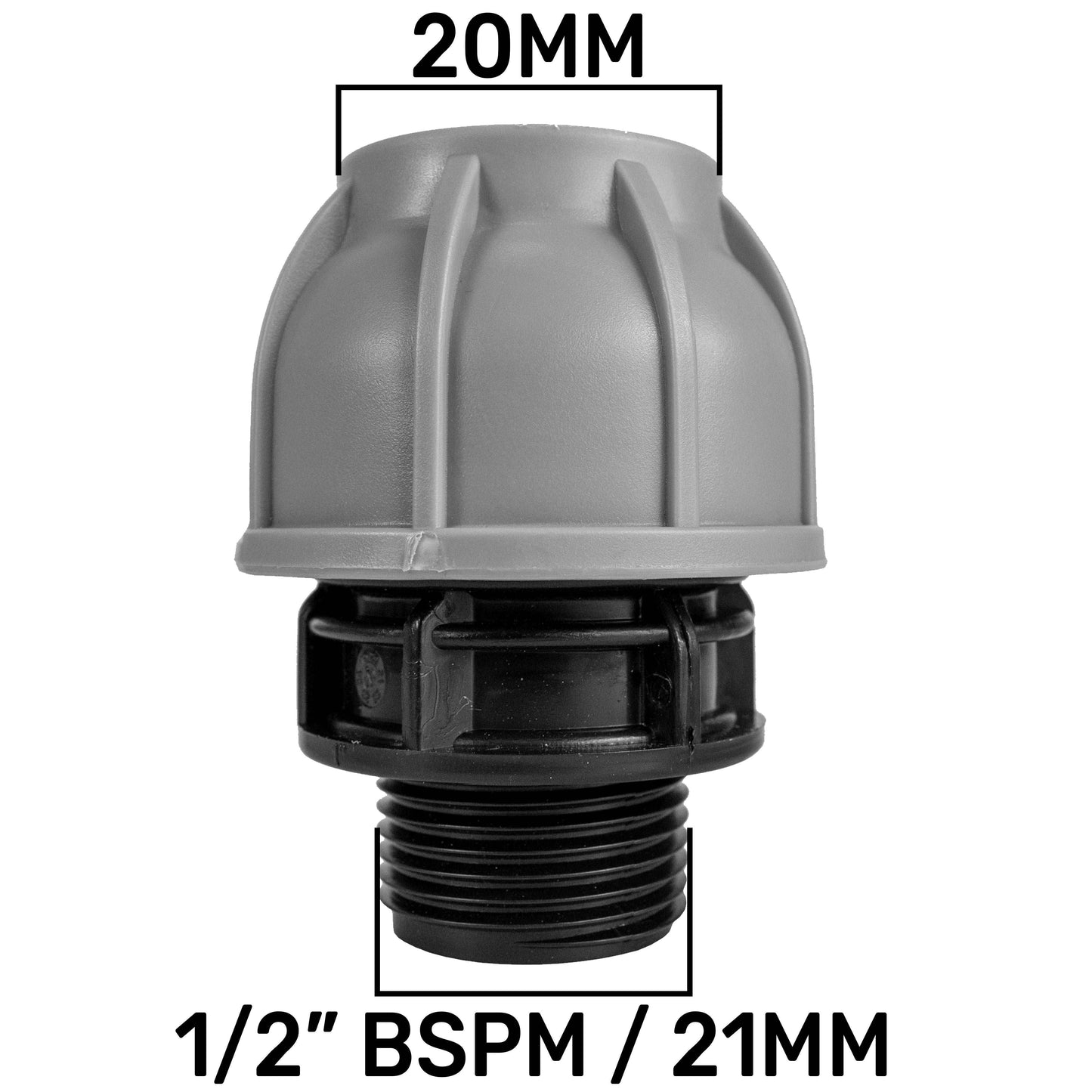

BSP male adapter
Connect MDPE pipe to a matching female BSP fitting. The separate black threaded end is the BSP connection.

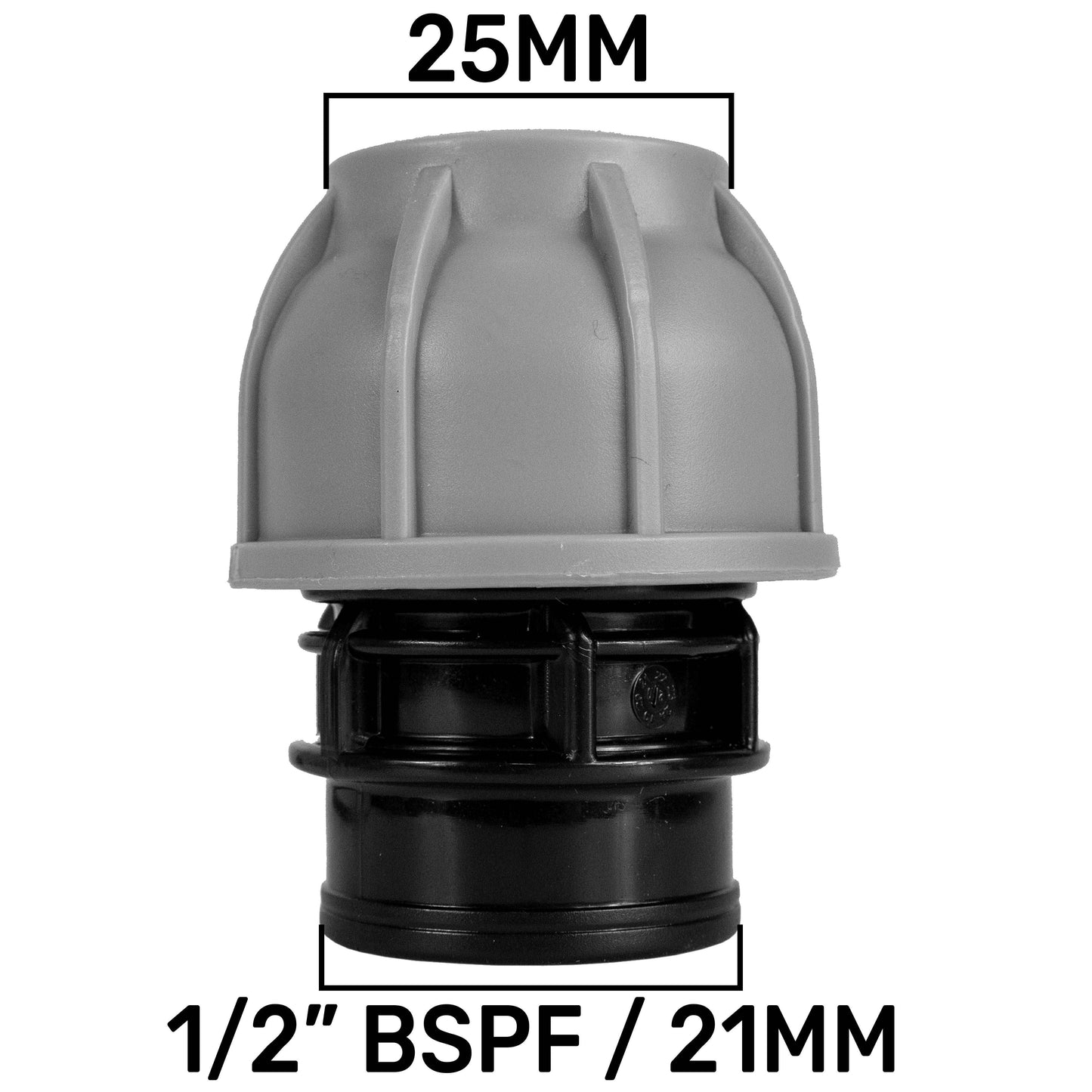

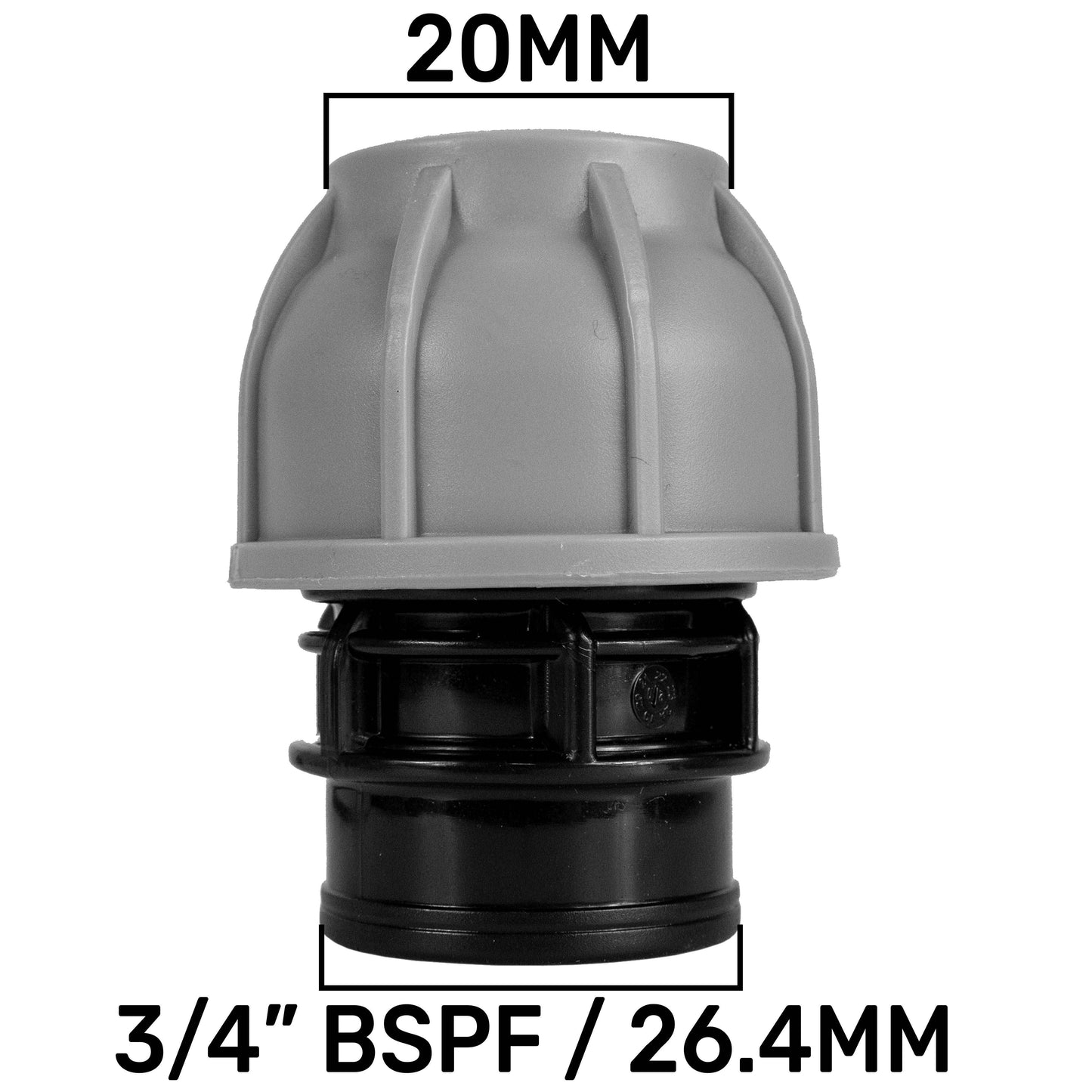

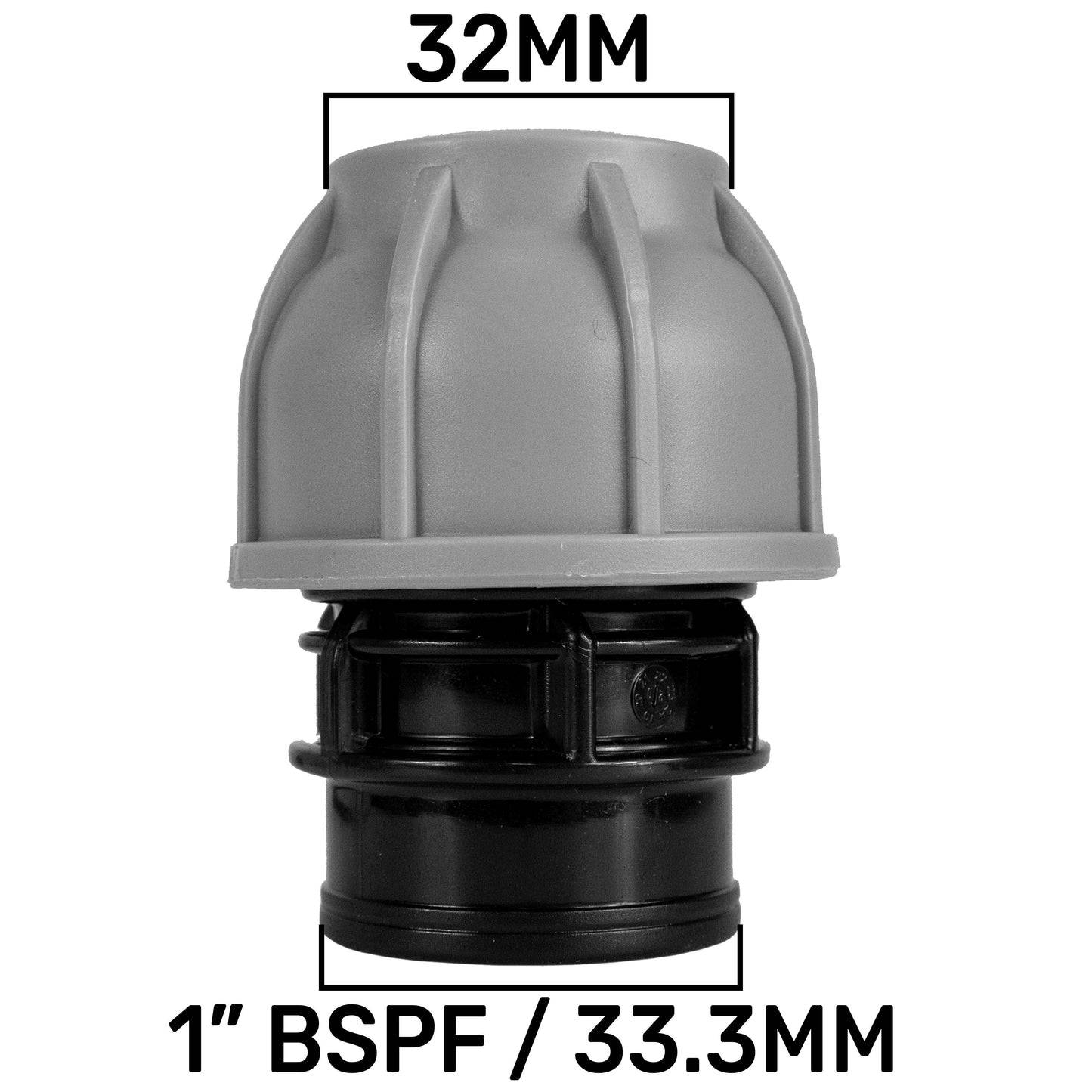

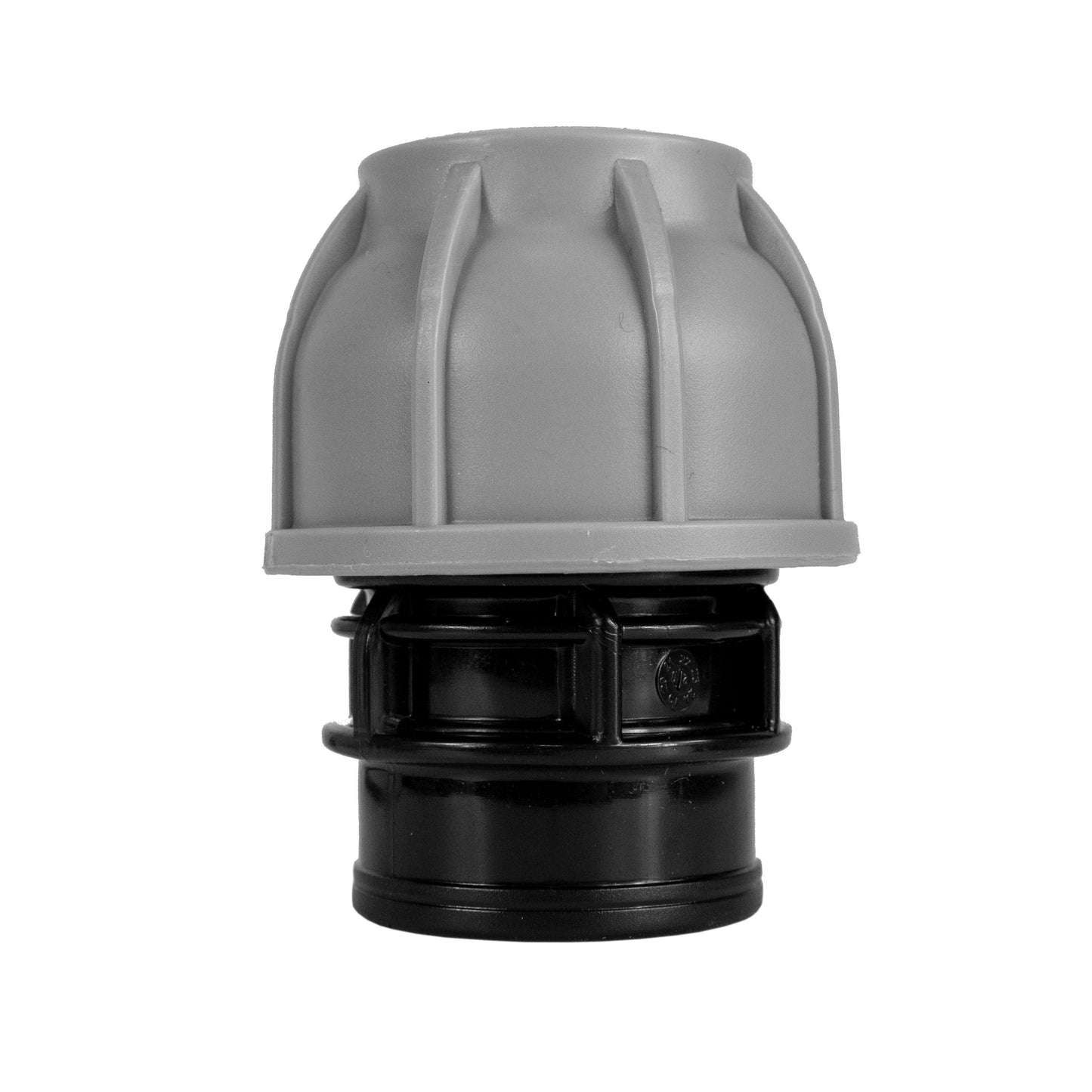

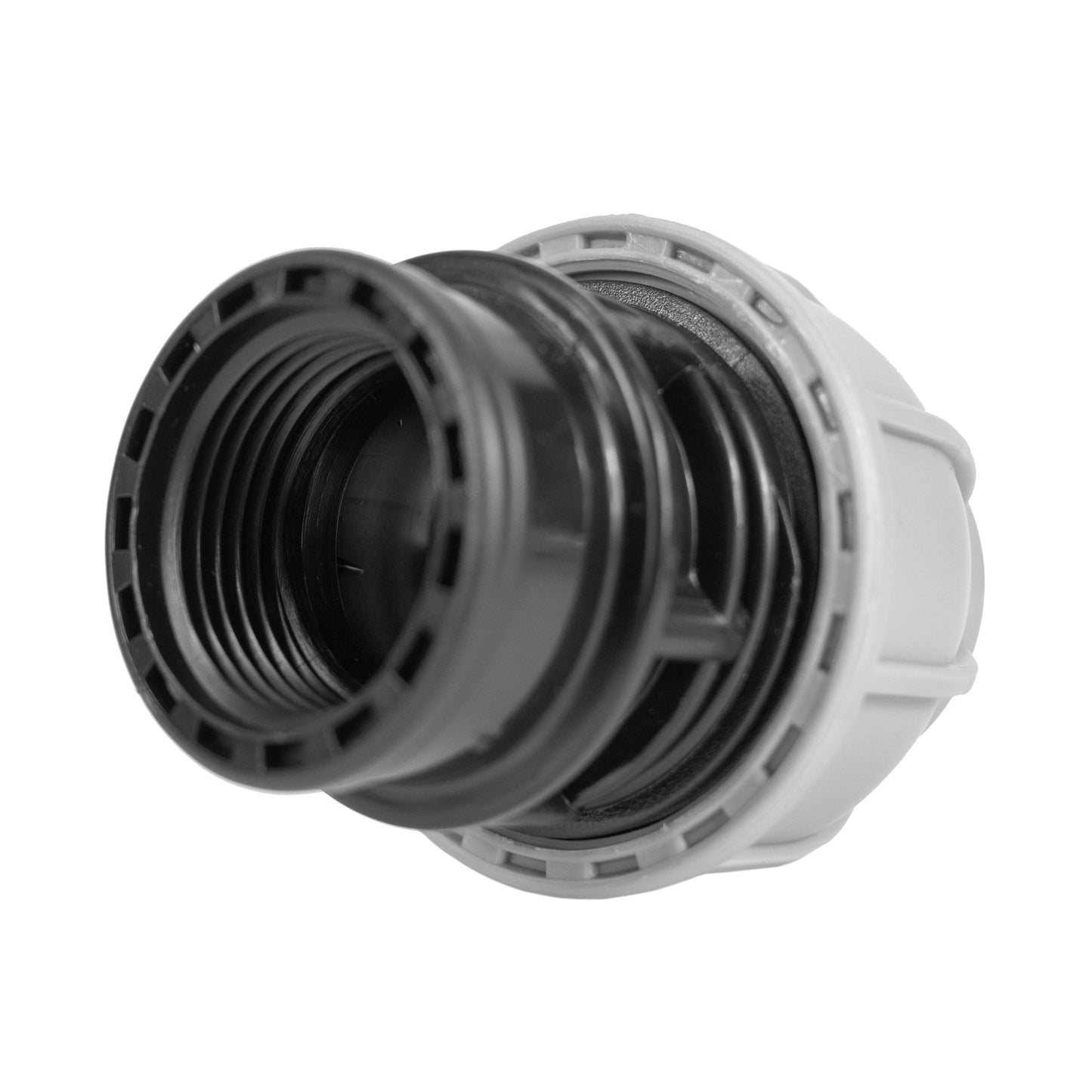

BSP female adapter
Connect MDPE pipe to a matching male BSP fitting. Check the nominal thread size as well as the pipe size.
Find your size combination
Not every pipe diameter is offered with every thread size.
Pipe to pipe
Equal couplings: 20mm, 25mm, 32mm, 40mm or 50mm at both ends.
Reducing couplings: 25mm–20mm, 32mm–20mm or 32mm–25mm.
Pipe to BSP thread
- 20mm pipe: ½-inch or ¾-inch male/female; 1-inch female.
- 25mm pipe: ½-inch, ¾-inch or 1-inch male/female.
- 32mm pipe: ¾-inch or 1-inch male/female.

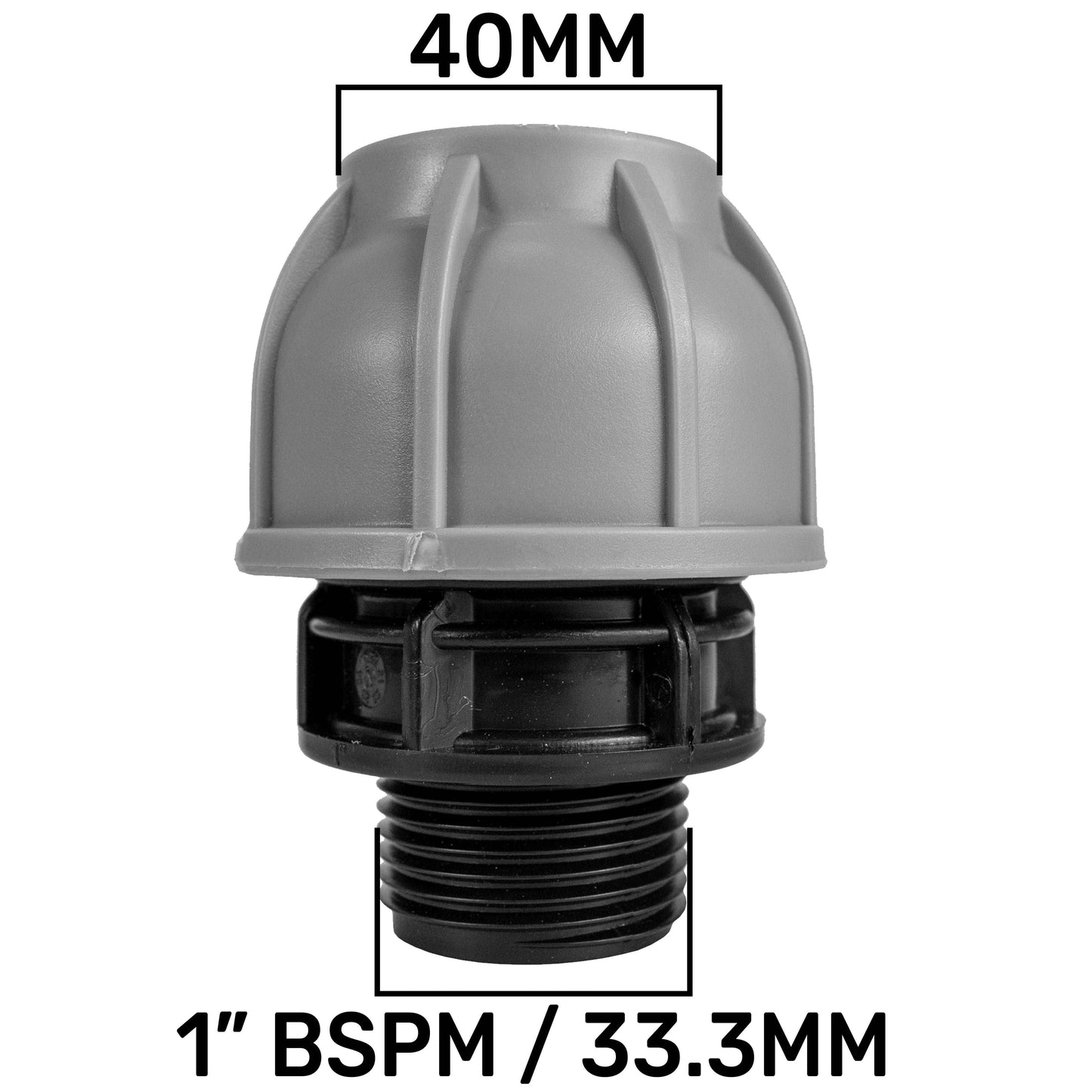

- 40mm pipe: 1-inch male.

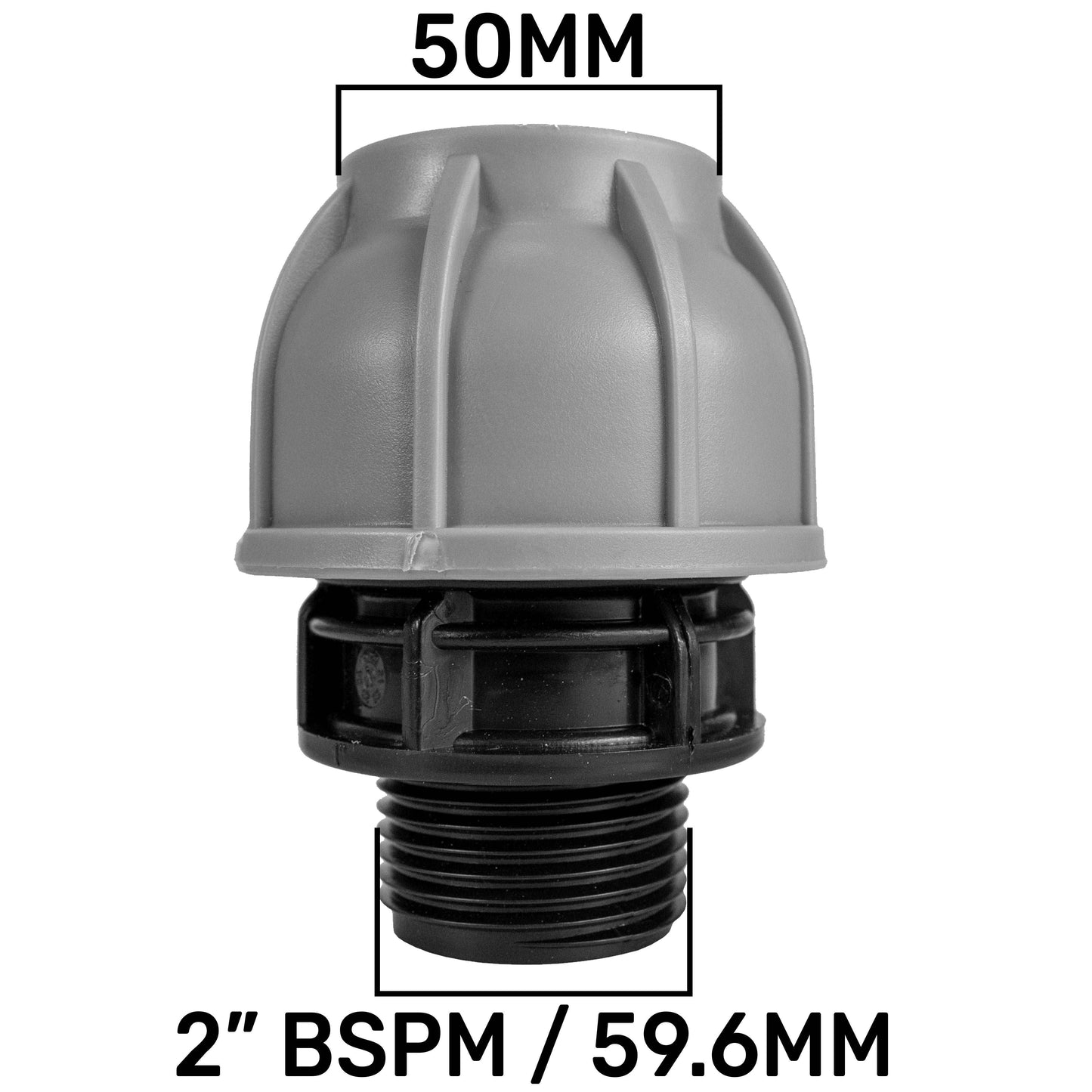

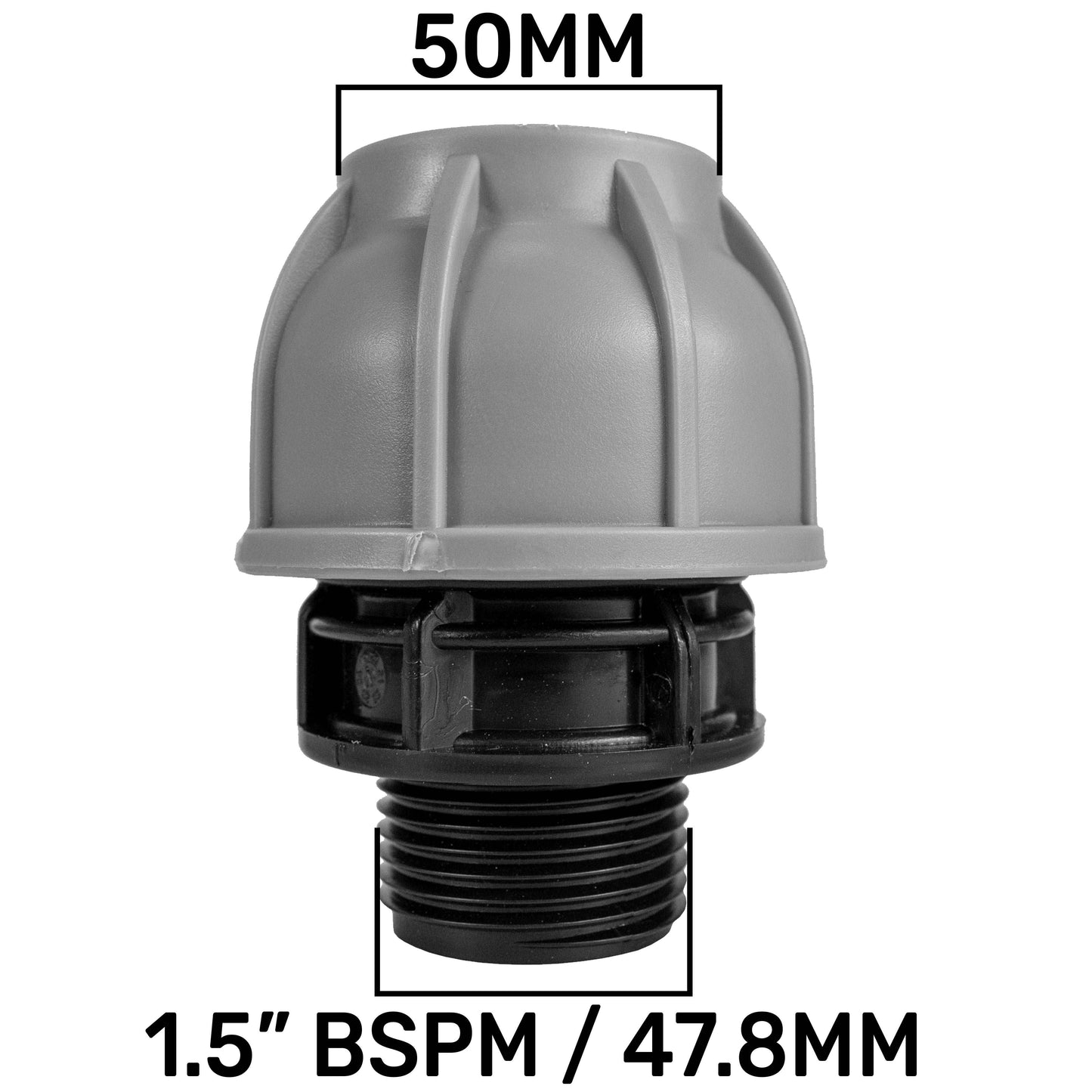

- 50mm pipe: 1½-inch or 2-inch male.
BSP sizes are nominal thread sizes, not direct inch measurements of the opening. Use the “What is BSP?” guide in the product information if you need help identifying a thread. The grey nuts belong to the pipe compression connections.
Prepare the joint before assembly
Plan enough access to assemble the fitting and support the adjoining pipework.
Prepare the pipe ends
Isolate and depressurise the supply. Cut sound pipe square, clean the ends and follow the fitting guidance for insertion depth, assembly and any required pipe liner.
Match threaded parts
For BSP adapters, match the nominal size and opposite thread gender. Align the joint squarely and use a suitable sealing method; avoid cross-threading or overtightening the plastic body.
Support and inspect
Support the pipe and connected components. Restore the supply gradually and inspect the joints. Check the complete system’s suitability for its service conditions rather than relying on the PN10 designation alone.
Before you order
Which measurement do I use for the pipe?
Measure across the outside of the MDPE pipe. For an equal coupling, both pipes must match the selected size. For a reducer, each pipe must match its corresponding end.
Do I receive every fitting shown?
No. Each order quantity supplies one fitting in the selected size and connection type. Pipe, clips, mating fittings, separate seals and pipe liners are not included.
Product information & technical details
| SKU | MDPESTR20001[#ML] |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4", 1", 1.5", 2" |
| Thread gender | Male, Female |
| MDPE size | 20mm, 25mm, 32mm, 40mm, 50mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Connection styles | Equal compression, reducing compression, compression to BSP male, or compression to BSP female; depends on selected option. |
| Pressure designation | PN10. Suitability depends on the complete assembly and service conditions. |
| Pack contents | One straight fitting in the selected size and connection type. Pipe and installation accessories are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
