Description
63mm shut-off

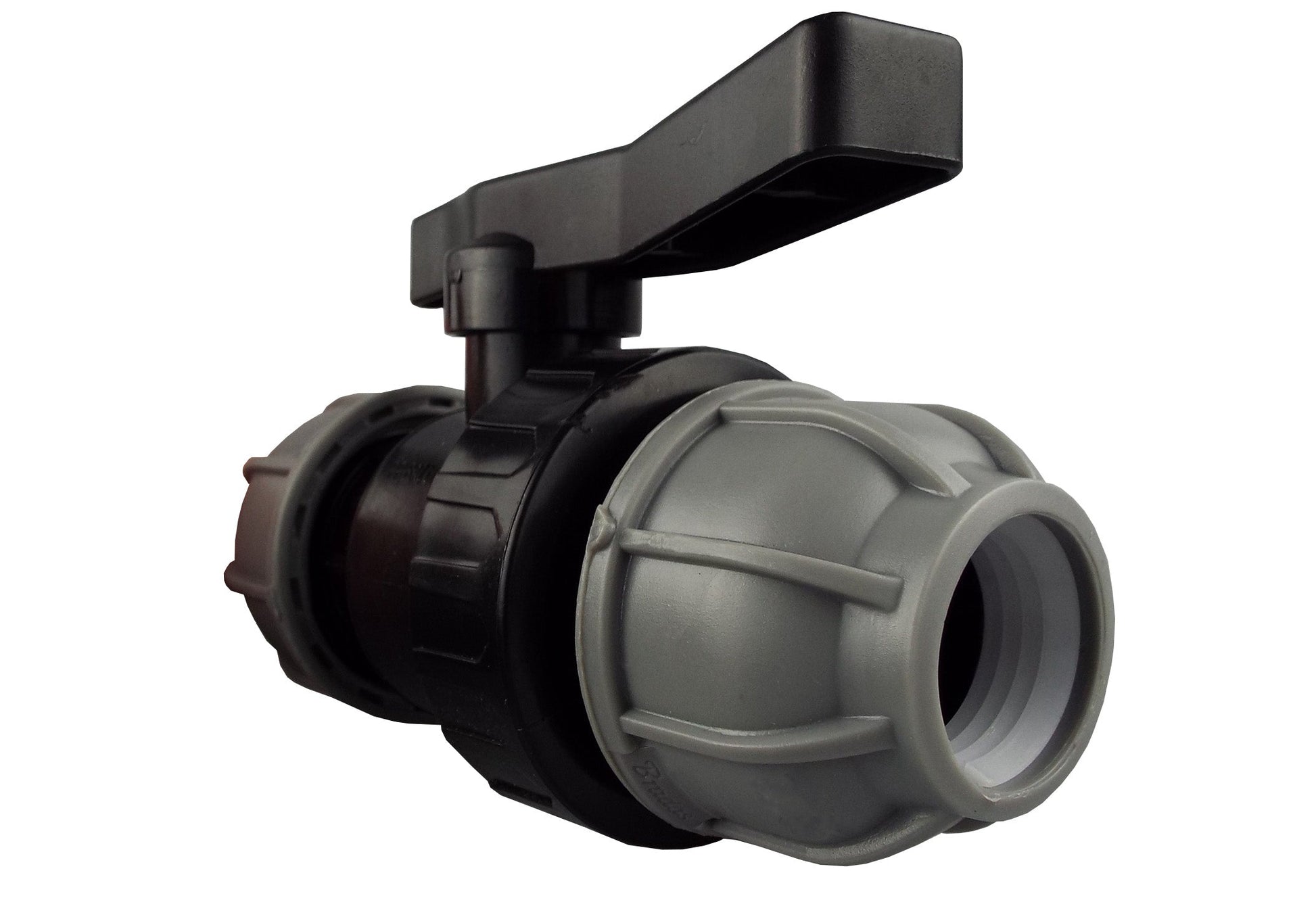

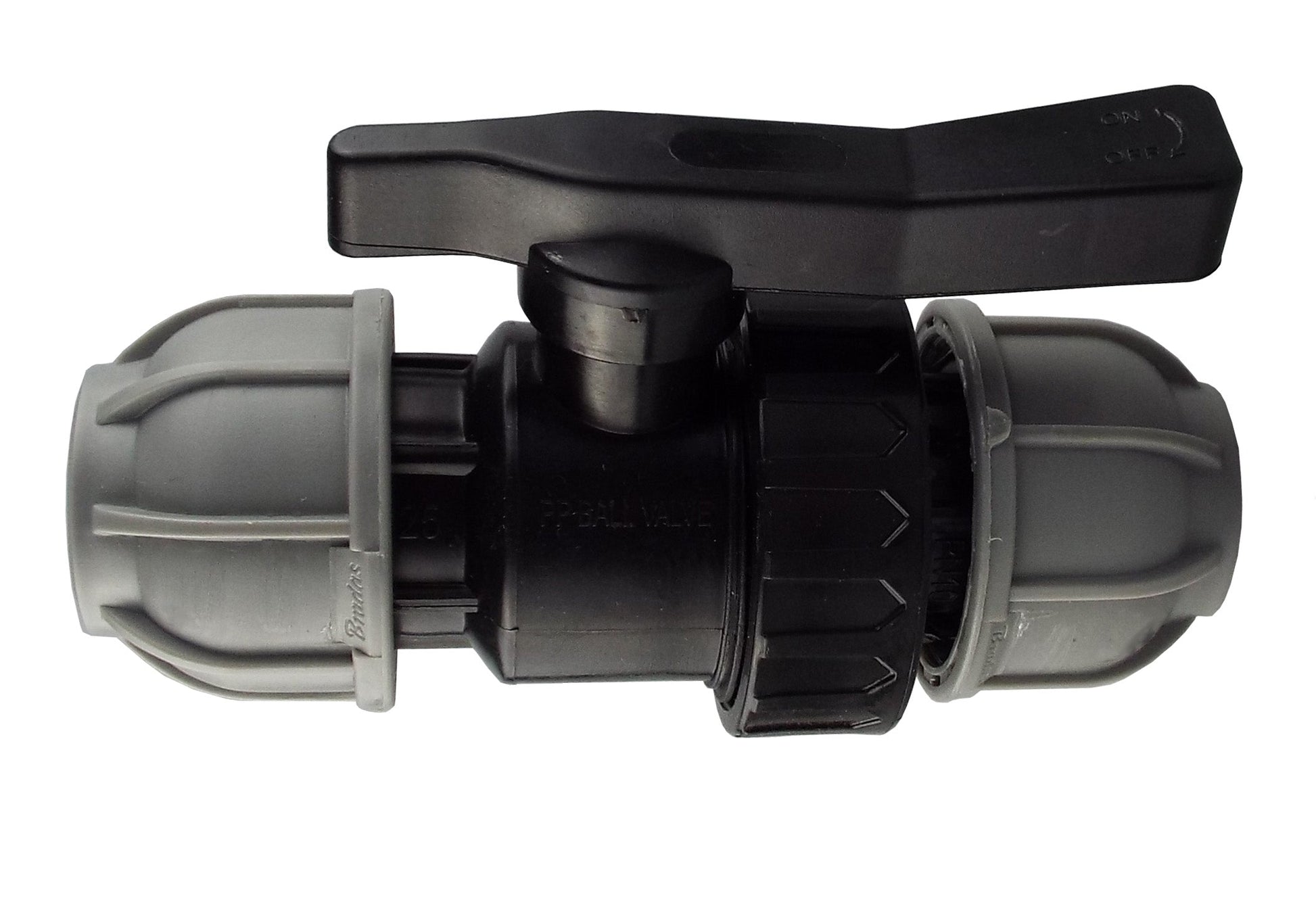

Make a manual shut-off point in your MDPE water pipework. This 63mm ball valve has a compression connection at each end, with a black lever for opening and closing the line.

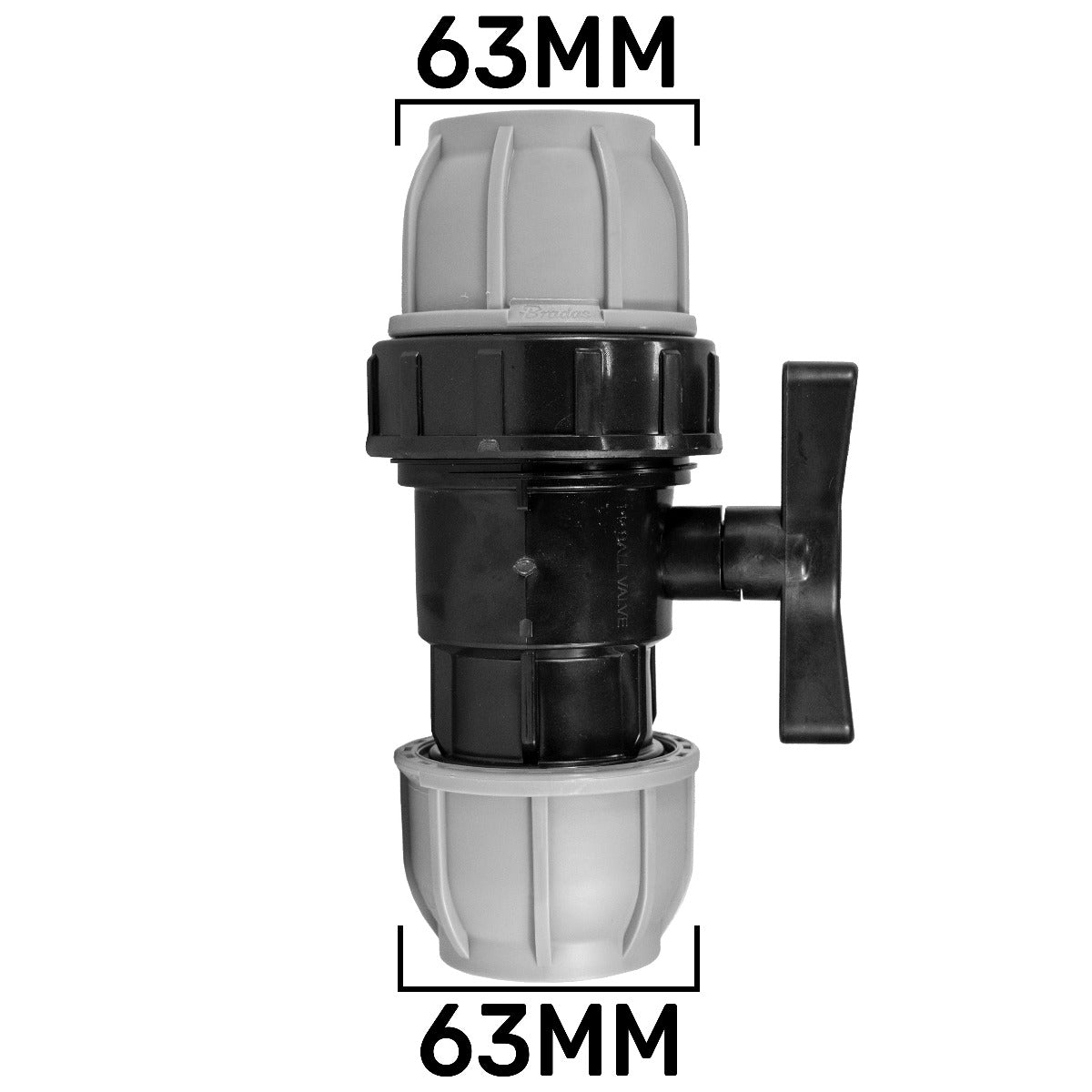

Its two grey nuts fit 63mm outside-diameter pipe. Choose this version for matching pipe sizes on both sides of the valve.
One valve supplied. Pipe, support clips and pipe liners are sold separately.
Match the pipe, then plan the space
Measure the outside diameter of the pipe. Both compression ends accept the same 63mm MDPE pipe size. The bore inside the pipe is smaller; it is not the measurement used to select this fitting.
Allow room for the valve body, the compression nuts and the handle movement. Support the pipework so its weight and alignment do not put strain on the connections, and keep the lever accessible after installation.
Check the connection type
This version joins pipe to pipe. It has no hose tail, BSP outlet or change in pipe size.
If your assembly needs a different end, compare the MDPE ball-valve range and match each connection before ordering.
Leave the valve within reach
A useful shut-off point stays accessible, with supported pipework on each side.
Prepare
Isolate and depressurise the line. Cut the pipe square, remove burrs and keep the pipe ends and sealing surfaces clean.
Connect
Check insertion depth and pipe-liner requirements for your pipe and fitting. Assemble the compression ends using the fitting guidance; do not treat them as push-fit sockets.
Check
Support both pipe runs, leave the lever free to move and check the completed joints before use. The valve is operated by hand; it does not close automatically.
Before you order
Does 63mm mean the hole through the pipe?
No. It means the MDPE pipe's outside diameter. Pipe wall thickness makes the internal bore smaller. A hose described by its 63mm internal diameter is not the same connection.
Can it connect directly to a BSP threaded fitting?
No. This valve has two 63mm compression ends, not BSP threads. A threaded assembly needs a suitable transition fitting; check the pipe size, thread size and thread gender separately.
Product information & technical details
| SKU | MDPEVALVE63-001 |
|---|---|
| Product type | |
| MDPE size | 63mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Connection layout | 63mm compression × 63mm compression; size refers to pipe outside diameter. |
| Pressure designation | PN10 |
| Supplied item | 1 valve. Pipe, support clips and pipe liners sold separately. |
