Description
50mm flow control
Bring on/off control into a straight run of 50mm MDPE pipe. This stop valve joins the pipe through two compression sockets, with a separate black lever to control the supply without loosening either connection.
The horizontal installation example shows blue pipe seated in both grey nuts and supported on each side. Leave room above the valve for the handle to turn, and keep the joints accessible for inspection.
Connection layout; not to scale.
Match the pipe, not the nut

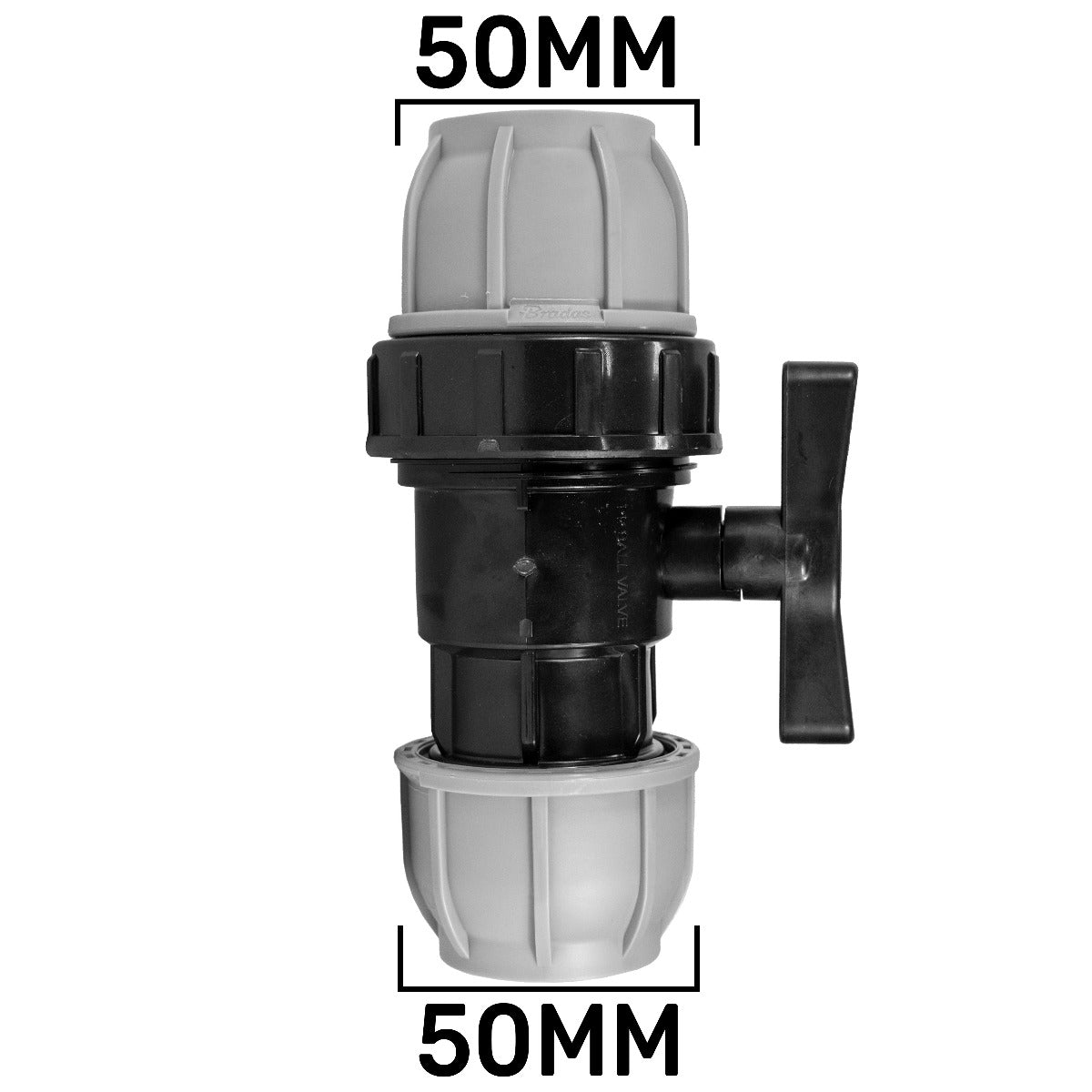

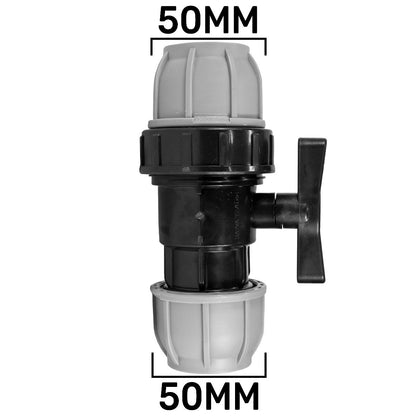

Choose this valve for 50mm outside-diameter MDPE pipe. Measure across the pipe itself, rather than the nut or the internal waterway. Both ends accept the same pipe size.
The grey compression nuts secure the pipe connections; the black lever operates the valve. This is the compression-to-compression version, with no exposed BSP outlet or garden-hose quick connector.
Use it as an accessible control point in a straight run. Keep the adjoining pipework supported so the valve is not carrying the weight of an unsupported line.
Leave room to operate
Plan access to the lever and both pipe joints before fitting.
Plan the position
Choose an accessible section of 50mm pipe and check the handle clearance. Isolate and depressurise the supply before cutting or disconnecting the line.
Prepare both pipe ends
Use clean, square-cut MDPE pipe. Follow the pipe and fitting instructions for any support liners, insertion depth and tightening; do not substitute the nut size for the pipe size.
Support and check
Support the pipes independently and check the PN10 designation against the whole system and service conditions. Restore the supply gradually, inspect both joints and check that the lever operates freely.
Before you connect
Will this fit a 50mm internal-diameter hose?
No. The sockets are for MDPE pipe with a 50mm outside diameter. Flexible hose is often specified by internal bore and needs an appropriate hose connection instead.
Does shutting the valve drain the pipe?
No. Closing it stops the supply through the valve, but water and pressure can remain downstream. Release pressure and confirm the line is safe before maintenance. One valve is supplied; the pipe, clips and any separate support liners are not included.
Product information & technical details
| SKU | MDPEVALVE50-001 |
|---|---|
| Product type | |
| MDPE size | 50mm |
| Colour | Black, Grey |
| Material | Plastic |
| Connections | Two compression sockets for 50mm OD MDPE pipe. |
|---|---|
| Operation | Manual lever-operated on/off control. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One valve. Pipe, clips and any separate pipe liners are not included. |
