Description
A shut-off point for your water line
Control a 40mm MDPE pipe run with a lever-operated ball valve. Two compression ends connect matching pipe sizes, giving you a manual on/off point where you can reach it.

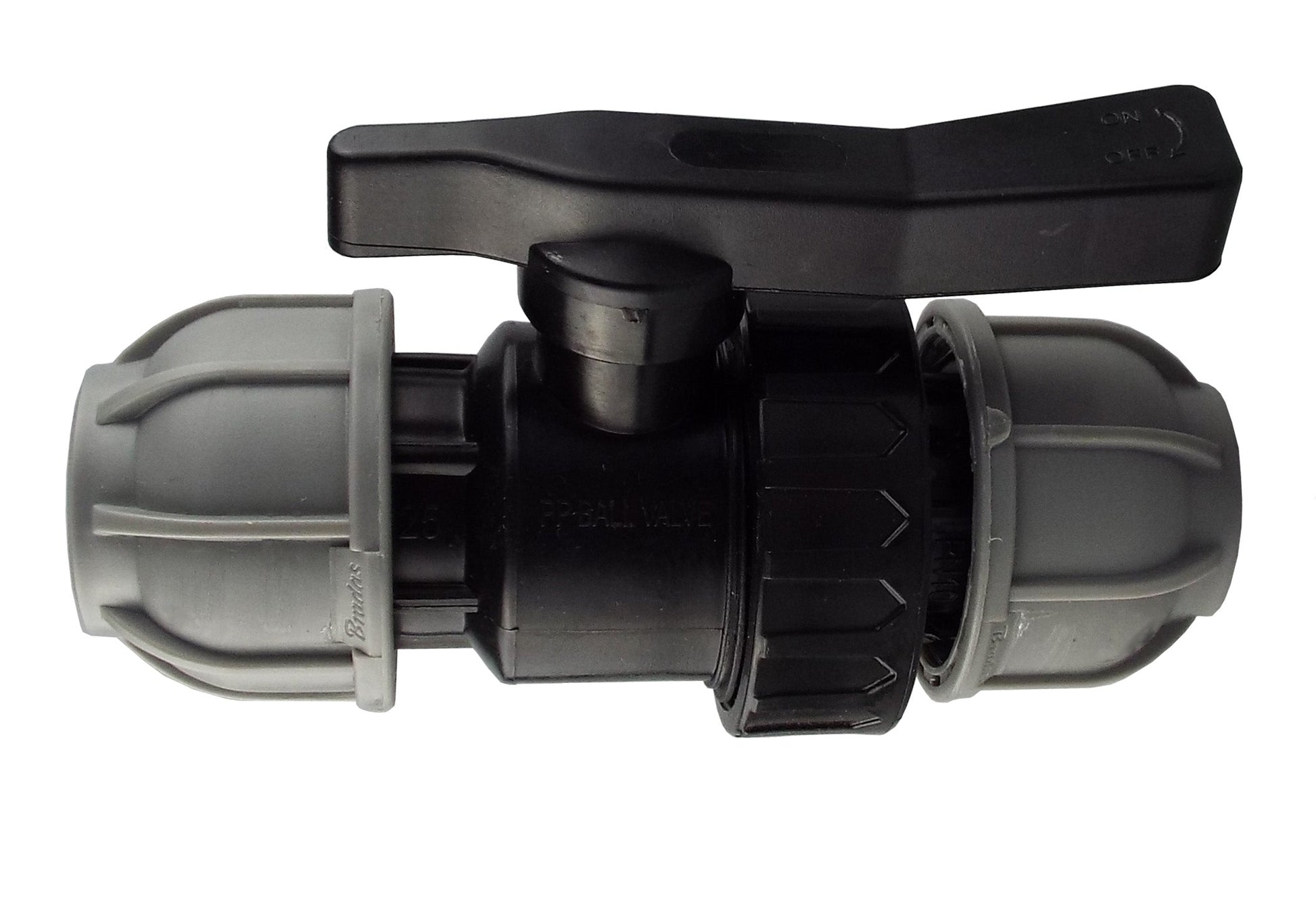

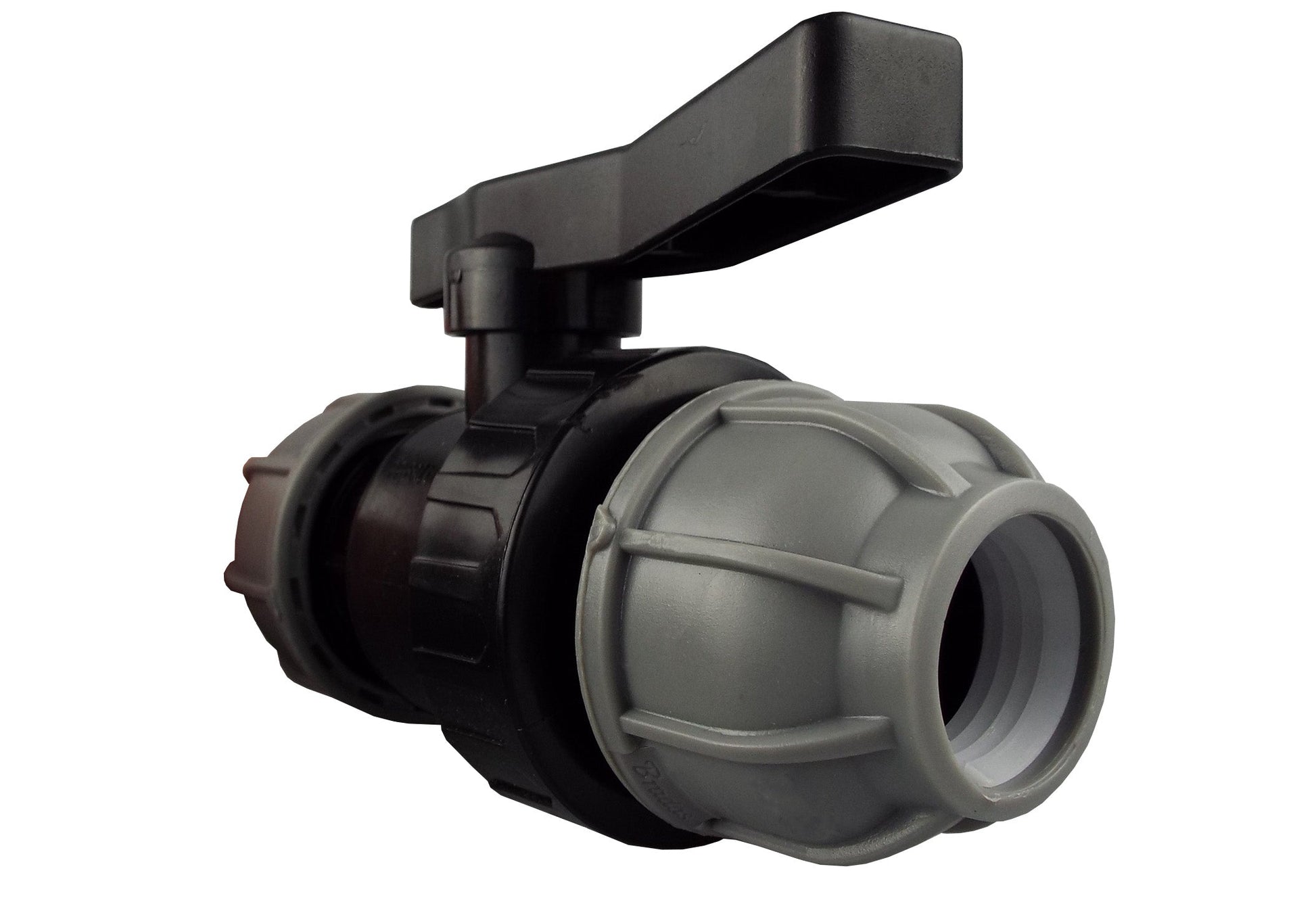

The grey nuts sit around the pipe ends; the black lever operates the valve. Leave space around the handle so it can move freely.
One 40mm valve supplied. Pipe, support clips and pipe liners are sold separately.
Measure the outside of the pipe

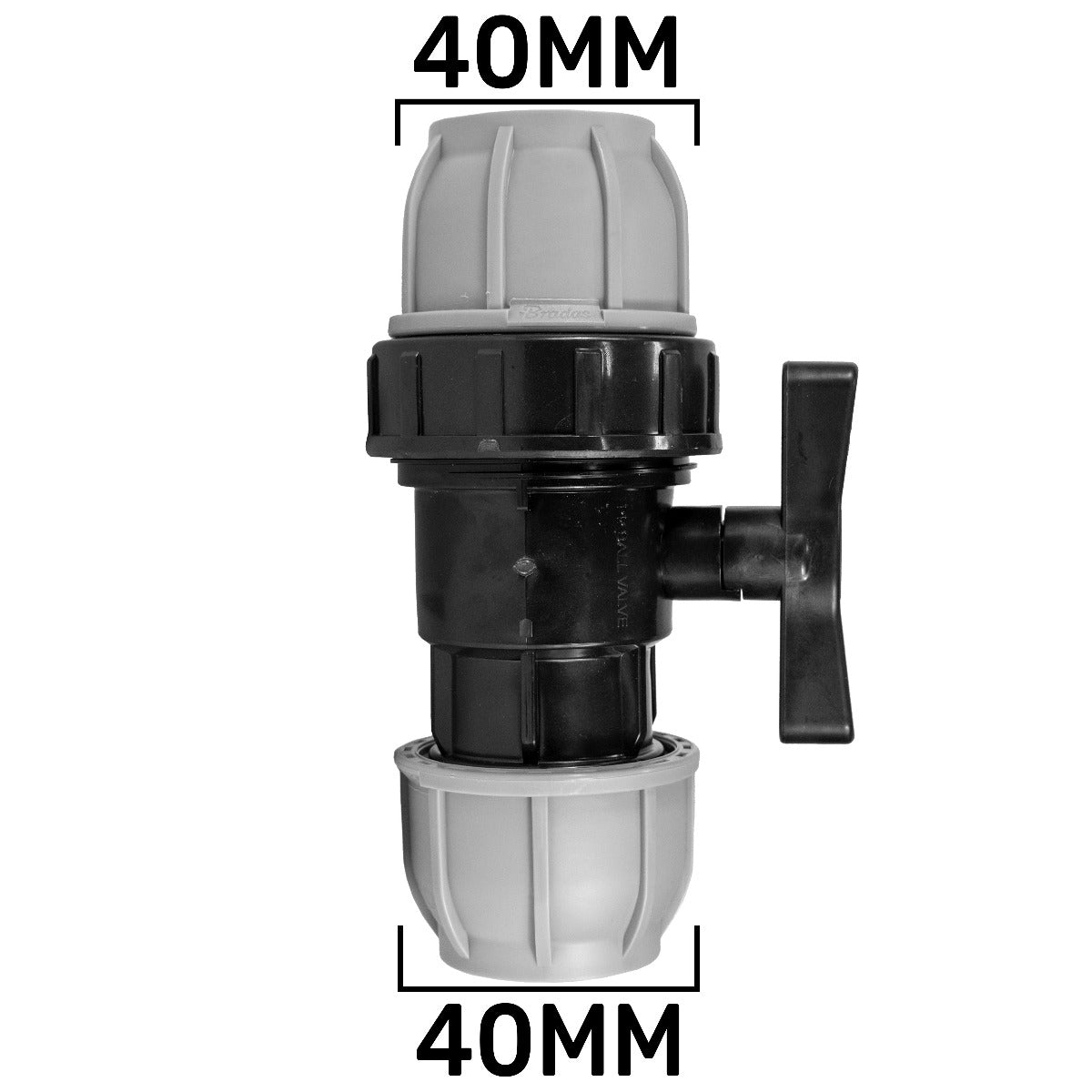

40mm refers to the pipe's outside diameter. Measure across the outside of your MDPE pipe before choosing the fitting. The hole through the pipe is smaller and is not the measurement used for these compression ends.
Both ends on this valve fit the same 40mm pipe size. It is not a reducer, a hose-tail fitting or a BSP threaded outlet.
Need a different size or a threaded end? Compare the MDPE ball-valve options before ordering.
Pipe cross-section schematic; wall thickness is illustrative.
Plan access before fitting
Choose a position where you can operate the valve and inspect the joints.
Prepare the pipe ends
Isolate and depressurise the line. Cut the pipe square, remove burrs and keep the sealing surfaces clean. Check the required insertion depth and whether your pipe needs a support liner.
Fit the compression ends
Use the fitting guidance for your pipe and valve. The nuts, internal rings and seals work around the pipe; this is not a garden-hose quick connector or a push-fit socket.
Support and check
Support the pipe on both sides without putting strain on the valve. Keep the lever clear of walls and other fittings, then check both finished joints before use.
Common fitting questions
Will it connect to 40mm internal-diameter hose?
No. These compression ends are for 40mm outside-diameter MDPE pipe. Flexible hose with a 40mm bore needs a different connection; matching the number alone does not establish a fit.
Does it stop reverse flow automatically?
No. This is a manual ball valve. You operate the lever to open or close the water line; it is not a non-return or check valve.
Product information & technical details
| SKU | MDPEVALVE40-001 |
|---|---|
| Product type | |
| MDPE size | 40mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Connection layout | 40mm compression × 40mm compression; size refers to pipe outside diameter. |
| Pressure designation | PN10 |
| Supplied item | 1 valve. Pipe, support clips and pipe liners sold separately. |
