Description
Control at the junction

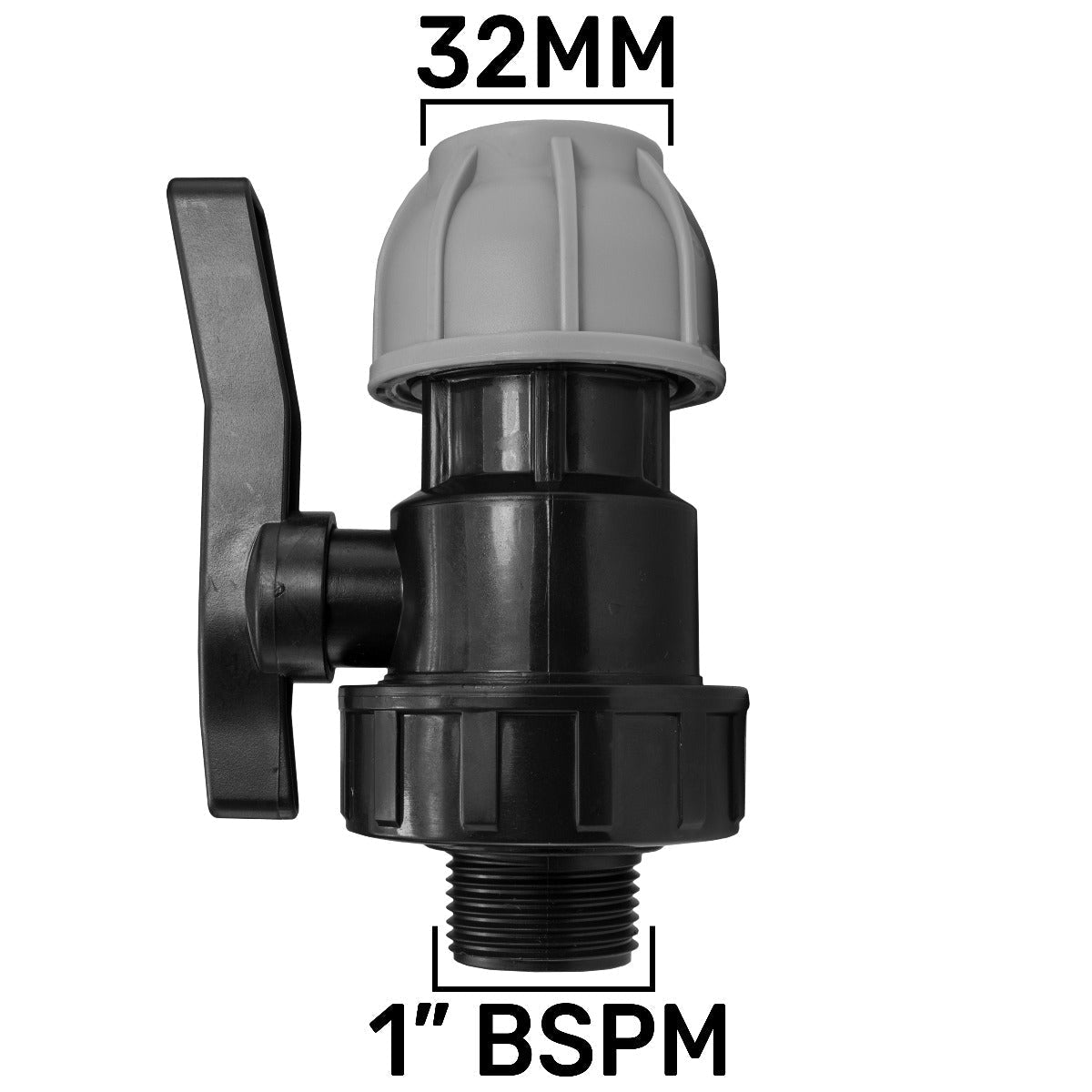

Connect your 32mm irrigation pipe to female-threaded equipment and add manual shut-off at the transition. This stop valve combines one 32mm compression socket with a 1-inch BSP male spigot and a black operating lever.
The installed example shows one way to continue the supply into garden hose. Blue MDPE pipe enters the grey nut above; a separate brass female-to-hosetail adapter fits over the male end below. Clips support the adjoining pipe and hose independently.
Connection layout; not to scale.
Match each end correctly
32mm refers to the MDPE pipe’s outside diameter. The grey compression socket grips this pipe; it is not sized by the pipe’s internal bore or the outside of the nut.
The opposite end has an external 1-inch BSP thread. It needs a compatible female BSP fitting and the appropriate sealing arrangement. Two male-threaded components will not screw together directly.
BSP is a nominal thread size, not a 25.4mm measured diameter. For identification, a 1-inch BSP male thread measures about 33.3mm across its outer crests; also check the thread form and mating fitting.
Plan the joint and lever space
Choose the mating fitting and support the pipework before assembling the connection.
Prepare the MDPE end
Isolate and depressurise the line. Use a clean, square-cut 32mm OD MDPE pipe end. Follow the pipe instructions for any separate support liner, then the fitting instructions for insertion and nut tightening.
Fit the female connection
Match the male spigot to a compatible 1-inch BSP female fitting. Use the sealing method specified for that joint and avoid overtightening or twisting the valve body through the attached pipe.
Support and test
Keep the lever accessible and support adjoining pipework or equipment independently. Check the PN10 designation against the complete assembly and service conditions. Restore the supply gradually and inspect the joints and valve operation.
Before you connect
Does the hose adapter come with the valve?
No. This listing supplies one valve. The female hose adapter, pipe, hose and clips in the illustration show one possible installation and are sold separately. Choose an adapter with the correct thread and hose connection for your system.
What if my existing fitting has a male thread?
Choose a valve with a female end, such as the 32mm × 1-inch BSP female stop valve, when it matches your existing component. This version has a male spigot and needs a female mating thread.
Product information & technical details
| SKU | MDPEVALVE32-1BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male |
| MDPE size | 32mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Connections | One 32mm OD MDPE compression socket and one 1-inch BSP male threaded spigot. |
| Operation | Manual lever-operated on/off control. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One valve. Mating fitting, pipe, hose, clips and any separate pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
