Description
Put shut-off control within reach.

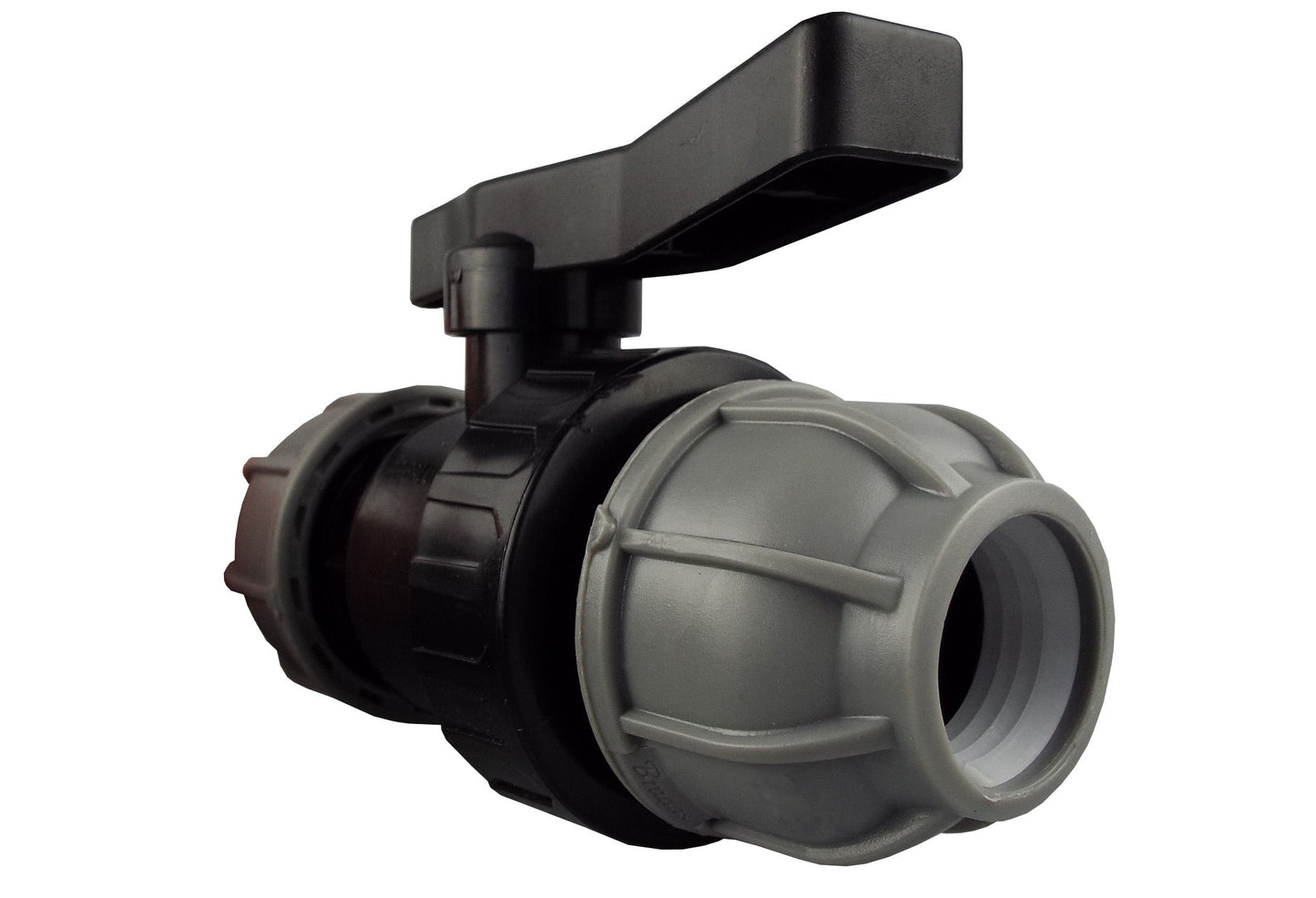

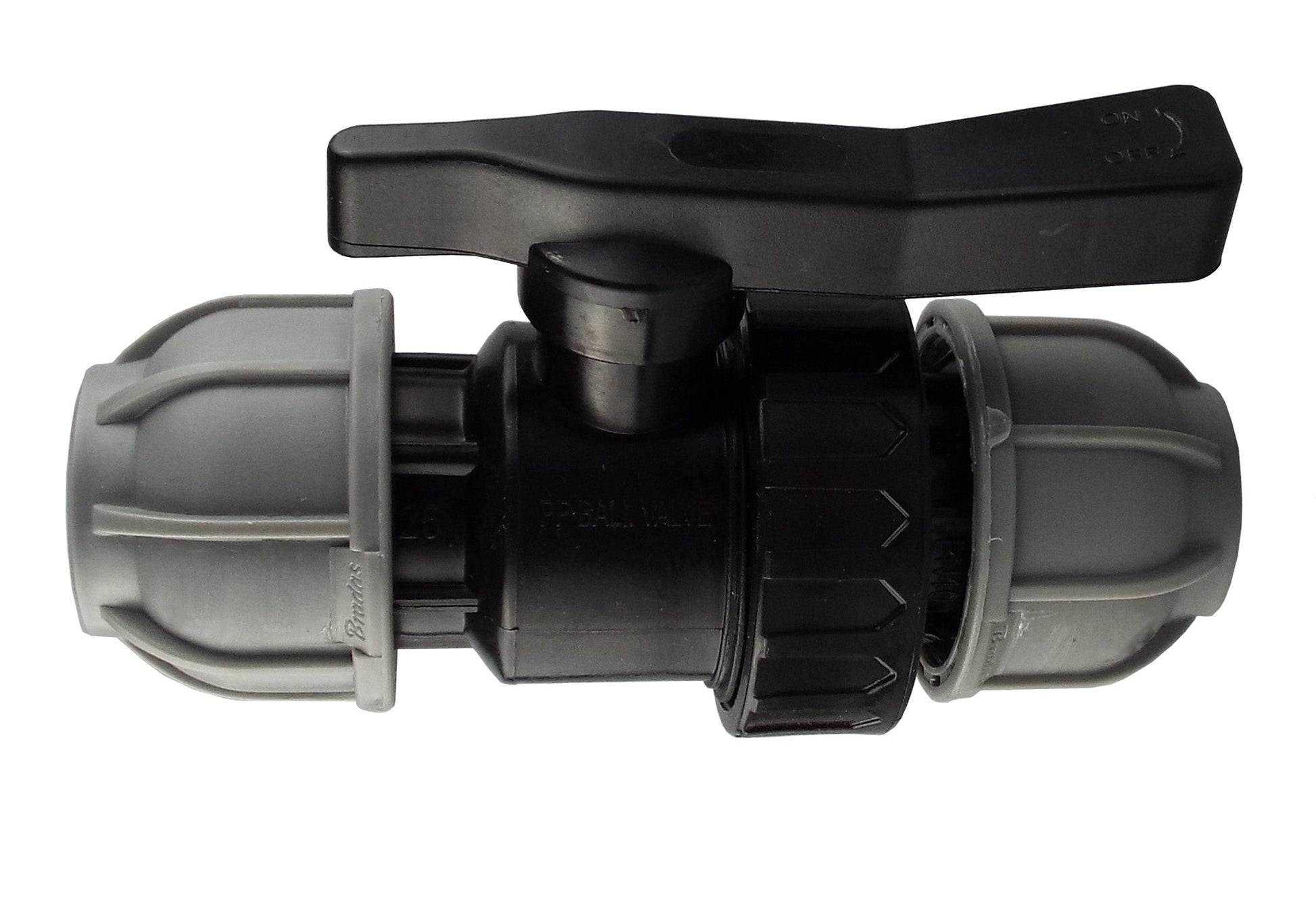

Add an accessible control point to your garden irrigation pipework with this 20mm MDPE stop valve. Two compression ends join the pipe in a straight run, while the black lever controls the supply through the valve.
Use the lever for on/off operation, leaving the pipe connections secured. Position the valve where you can reach it and move the handle freely, with the adjoining pipes supported independently.
Pipe size and access

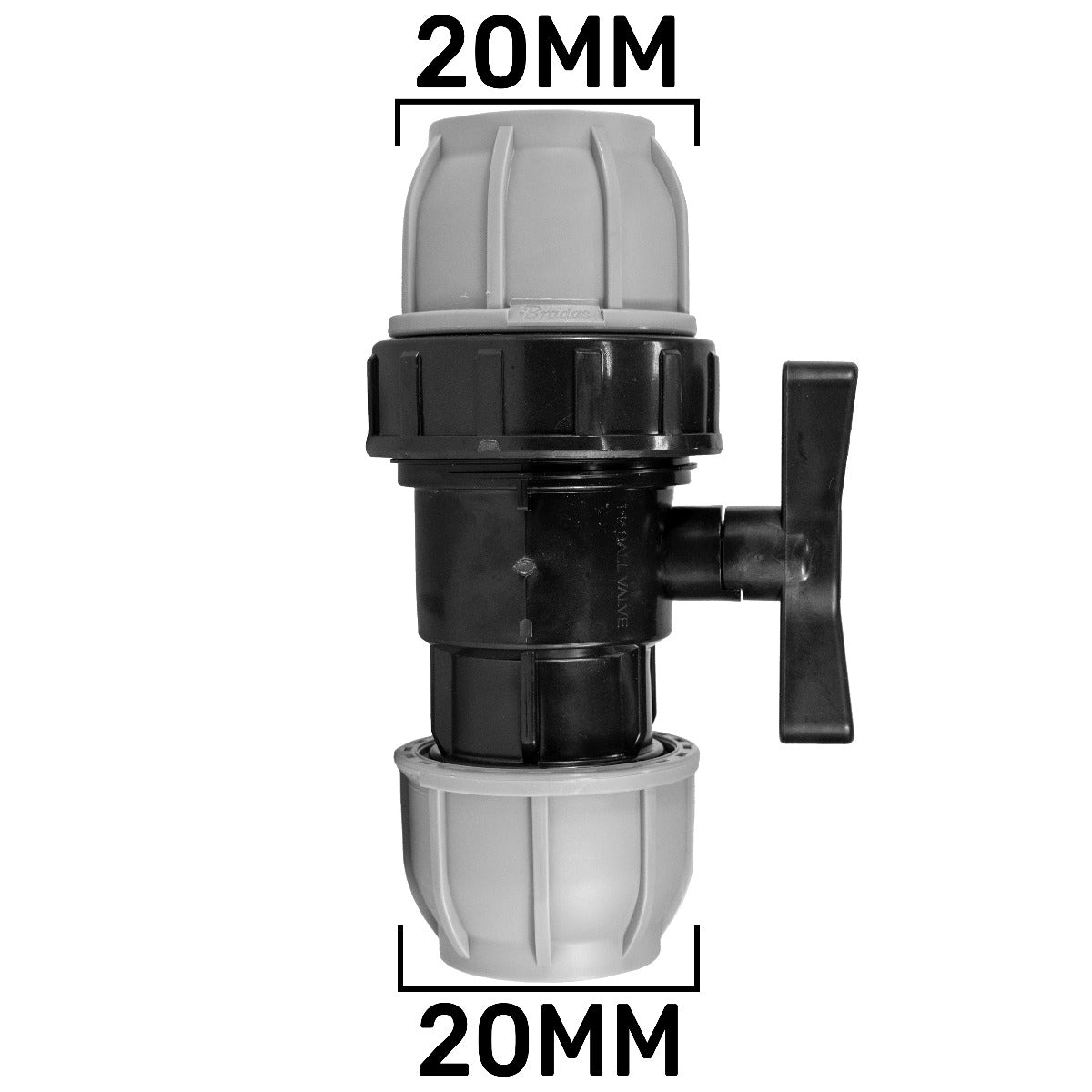

20mm refers to the pipe's outside diameter. Both grey nuts take plain 20mm OD MDPE pipe. Measure the pipe itself; a 20mm internal-bore hose is a different size and connection.
The compression nuts secure the pipe ends. The black lever operates the valve. Allow space to turn that lever without hitting the wall, neighbouring pipework or planting, and keep access for checking the joints.
This version has a compression socket at each end. It is not the valve with a BSP threaded outlet, and it does not connect directly to a garden-hose quick connector.
Install with access in mind
Choose the control point before cutting the pipe, so the valve remains easy to reach after the installation is finished.
Isolate the supply
Shut off the upstream supply and depressurise the line before cutting or disconnecting pipe. Plan supports on each side of the valve.
Connect the pipe ends
Use clean, square-cut 20mm OD MDPE pipe. Follow the pipe and fitting instructions for insertion depth, tightening and any separate support liners.
Inspect and operate
Check the PN10 designation against the complete system and service conditions. Restore the supply gradually, inspect both joints and check the lever's operation. Use the handle rather than loosening a connection to stop the supply.
Before you order
Will it take a 20mm internal-diameter hose?
No. These are compression sockets for plain MDPE pipe with a 20mm outside diameter. Hose is often sold by its internal bore and needs a suitable hose connection instead. Do not choose this valve from the hose's nominal size alone.
Does closing the valve empty the downstream pipe?
No. Water and pressure can remain downstream after the supply is shut off. Release pressure and confirm the line is safe before maintenance or disconnection. One valve is supplied; pipes, clips and any separate pipe liners are not included.
Product information & technical details
| SKU | MDPEVALVE20-001 |
|---|---|
| Product type | |
| MDPE size | 20mm |
| Colour | Black, Grey |
| Material | Plastic |
| Connections | Two compression sockets for 20mm OD MDPE pipe. |
|---|---|
| Operation | Manual lever-operated on/off control. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One valve. Pipe, clips and any separate pipe liners are not included. |
