Description
Bring a 25mm branch into the run

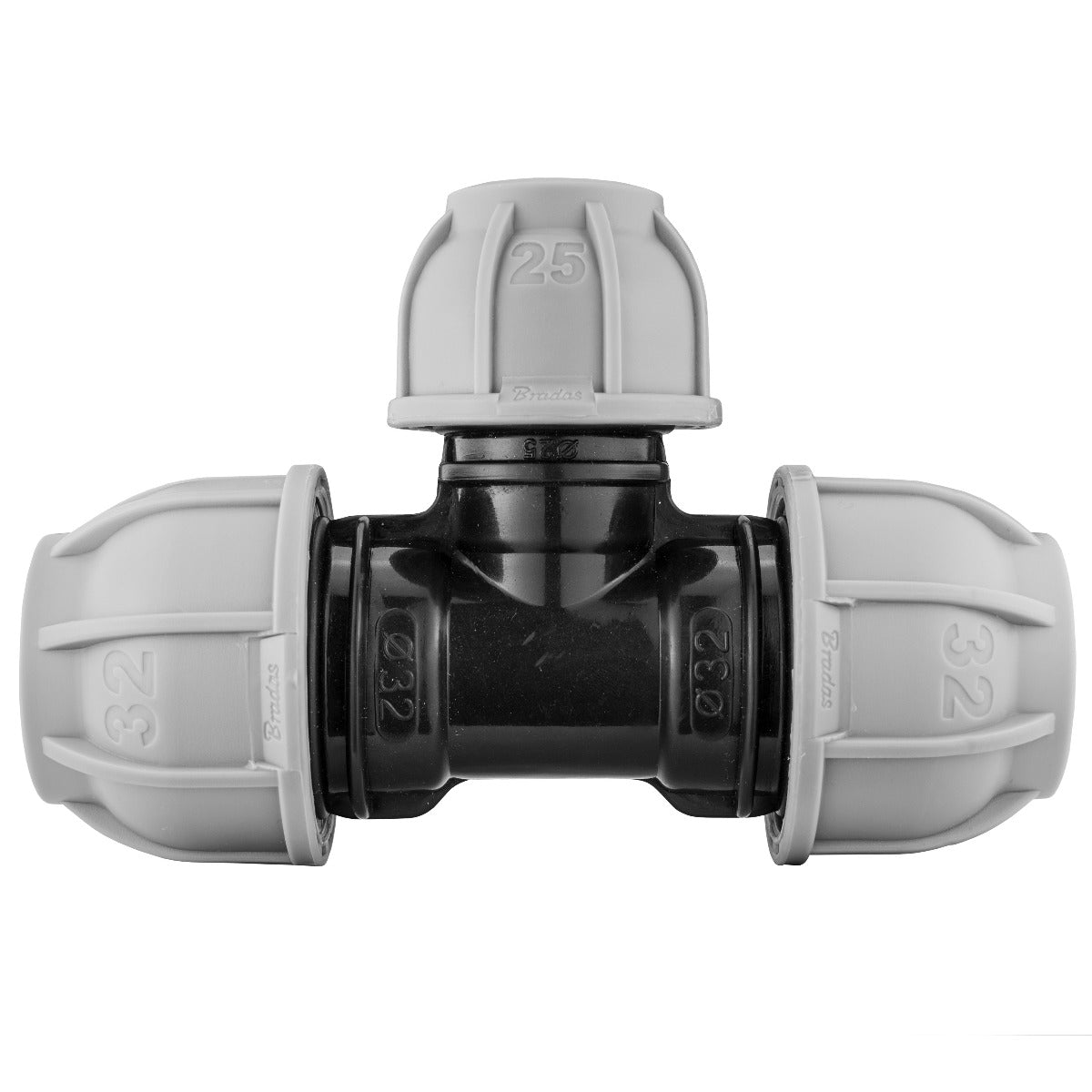

Connect 32mm MDPE pipe at both ends of the straight run, with a 25mm pipe on the branch. The reducing tee creates a right-angle junction without an extra reducing coupling between the tee and branch pipe.
All three connections are compression sockets for plain pipe. The installation illustration shows one possible orientation; the port diagram identifies the size of each connection.
Pipe outside diameters. Schematic, not to scale.
Choose by the three connections
32mm-25mm-32mm is the end-branch-end layout. The two opposite sockets both take 32mm outside-diameter pipe. Only the branch takes 25mm outside-diameter pipe.
Check the pipe outside diameter rather than the bore or the width of a compression nut. A tee with a 25mm run and a 32mm branch is a different fitting, even though the same two sizes appear in its name.
This is a pipe junction with no valve or threaded tap outlet. Other sizes and port combinations are available among our MDPE tee splitters.
Plan the junction before fitting
Keep the pipework aligned and leave access around each nut.
Prepare the ends
Isolate and depressurise the supply. Prepare clean, square ends on two suitable 32mm OD MDPE pipes and one 25mm OD pipe. Check whether your pipe specification requires separate liners.
Fit the matching ports
Follow the pipe and fitting instructions for insertion depth and tightening at each compression connection. Position the branch without bending the pipes to force them into the tee.
Support and inspect
Support the adjoining pipework so its weight does not load the fitting. Check the PN10 designation against the complete assembly and service conditions. Restore the supply gradually and inspect all three joints.
Check before ordering
Are the two opposite sockets different sizes?
No. Both take 32mm OD pipe. The 25mm connection is the branch at 90°. If you need an end-to-end transition from 32mm to 25mm, choose a straight reducing connector instead.
Does the tee control which way water flows?
No. The tee joins three pipe runs and has no shut-off or flow-control mechanism. Its port sizes describe the pipe connections, not a fixed inlet and outlet direction.
Product information & technical details
| SKU | MDPETEE32-25-32001 |
|---|---|
| Product type | |
| MDPE size | 25mm, 32mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Port layout | Straight run: 32mm OD × 32mm OD. Branch at 90°: 25mm OD. All three connections are MDPE compression sockets. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One tee. Pipe, support clips and any separate pipe liners are not included. |
