Description
A smaller branch from your main run

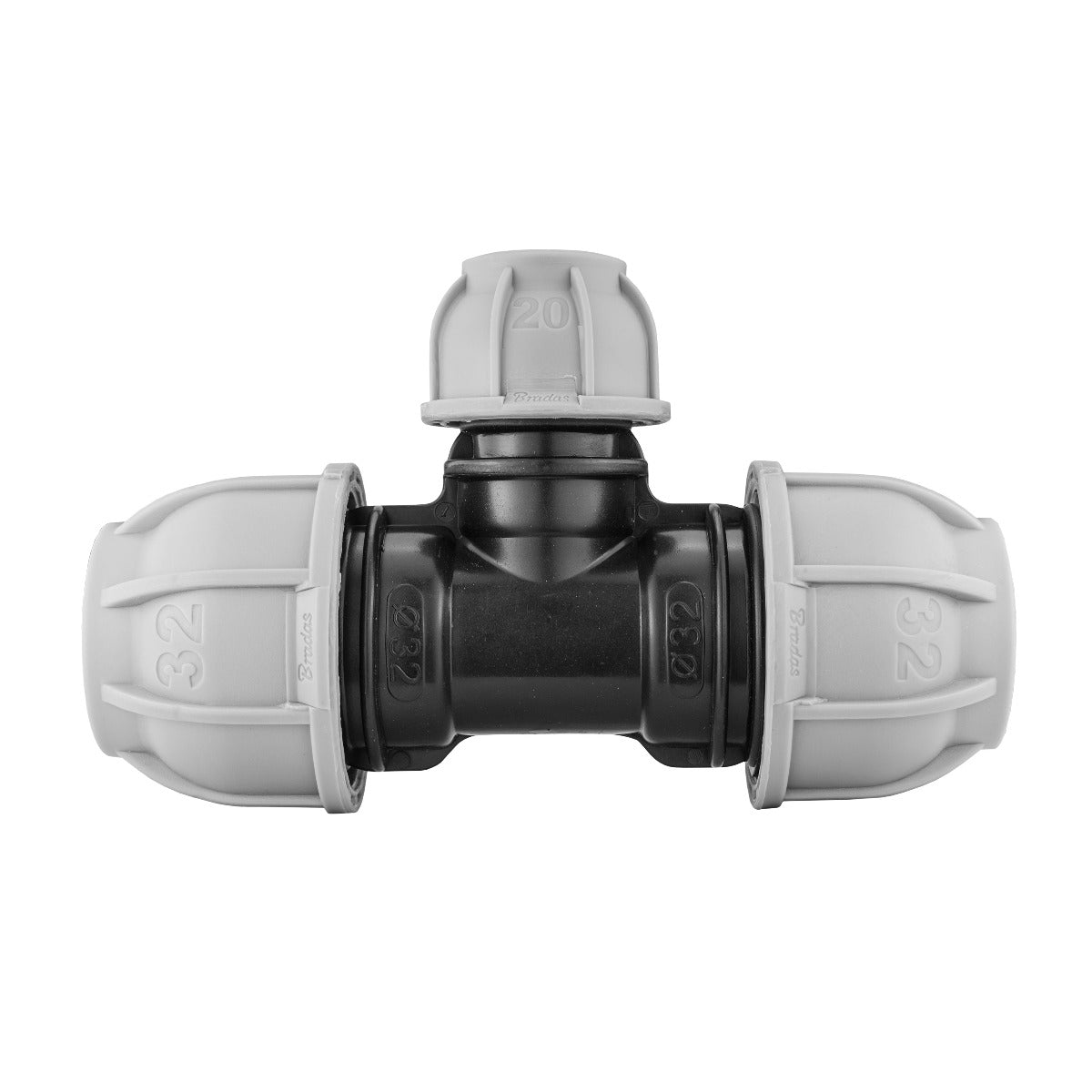

Keep the straight run at 32mm and connect a 20mm MDPE branch at a right angle. This reducing tee combines the three connections in one fitting, so the branch does not need a separate reducing coupling.
The sizes refer to pipe outside diameters. Check the layout below: two opposite 32mm sockets and one smaller 20mm branch socket.
Pipe outside diameters. Schematic, not to scale.
Three ports. Two pipe sizes.
The connection order is 32mm-20mm-32mm: end, branch, end. Match your main pipe to the two larger sockets and your branch pipe to the smaller socket.
Measure the outside diameter of each pipe. The pipe bore, compression nut width and overall fitting length are different measurements and should not be used to choose the size.
All three ends accept plain MDPE pipe. There is no BSP threaded outlet or built-in shut-off valve. Browse our MDPE tee splitters if you need another port arrangement.
Build an accessible junction
Allow space for the smaller branch and access around all three nuts.
Prepare each pipe
Isolate and depressurise the supply. Cut clean, square ends on the two 32mm OD pipes and the 20mm OD branch pipe. Check whether your pipe specification requires separate liners.
Match each socket
Insert the pipe ends into their corresponding compression sockets, following the pipe and fitting instructions for insertion depth and tightening. Keep the straight run aligned without forcing the branch into position.
Support the pipework
Use suitable supports so the fitting does not carry the adjoining pipes. Check the PN10 designation against the complete assembly and service conditions, then restore the supply gradually and inspect every joint.
Check the connection you need
Does the straight run reduce from 32mm to 20mm?
No. Both opposite ends are 32mm OD compression sockets. Only the branch is 20mm OD. For an end-to-end change in pipe diameter, choose a straight reducing connector instead.
Is one port the inlet and another the outlet?
The size layout does not assign a fixed flow direction. It identifies which pipe fits each port: 32mm at both opposite ends and 20mm on the branch. The tee connects the pipes; it does not regulate or isolate flow.
Product information & technical details
| SKU | MDPETEE32-20-32001 |
|---|---|
| Product type | |
| MDPE size | 20mm, 32mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Port layout | Straight run: 32mm OD × 32mm OD. Branch at 90°: 20mm OD. All three connections are MDPE compression sockets. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One tee. Pipe, support clips and any separate pipe liners are not included. |
