Description
A larger branch from a 25mm run

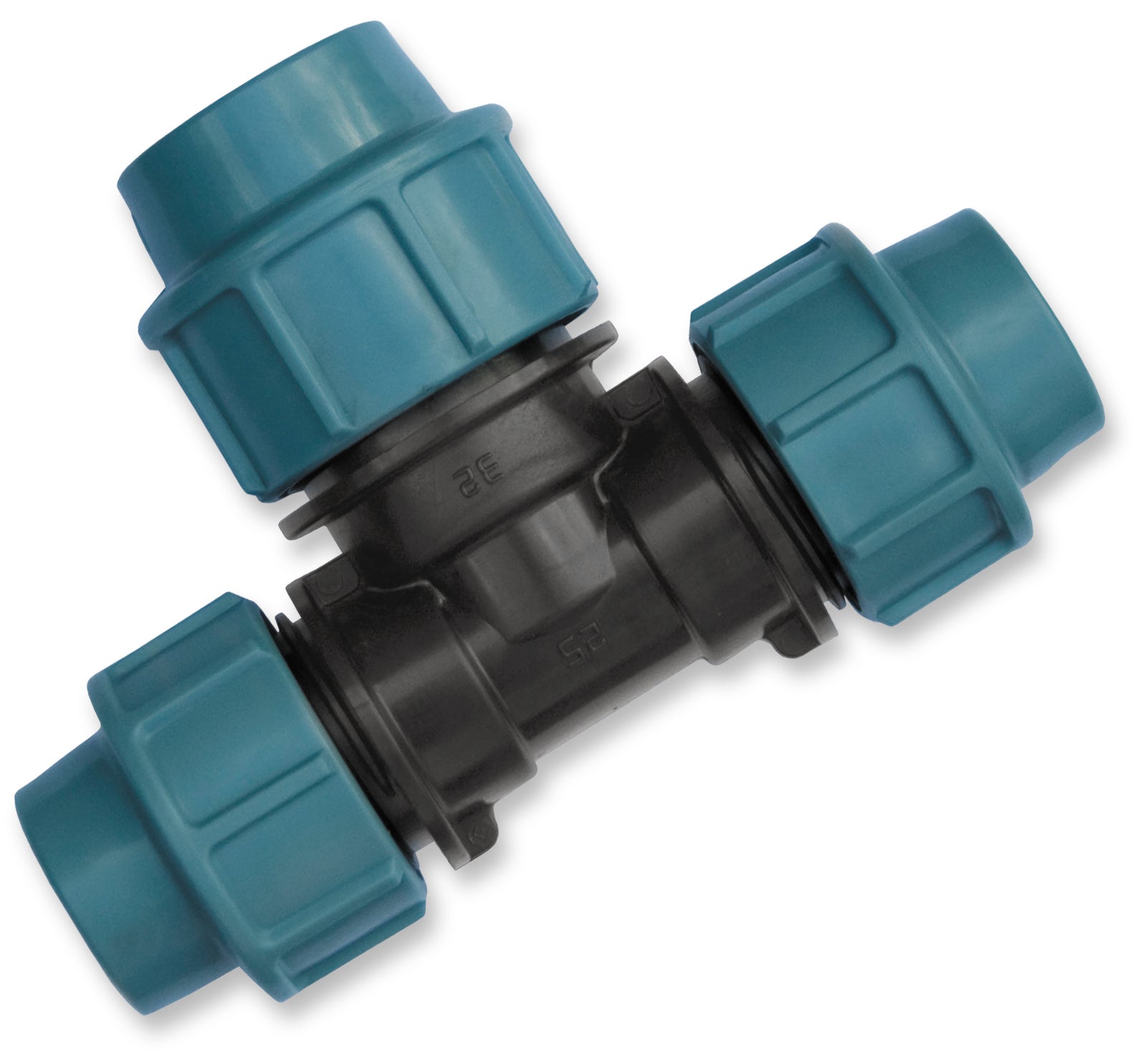

Connect two 25mm OD MDPE pipes through the straight section, with a 32mm OD pipe joining at 90°. This reducing tee brings three pipe ends together without adding a separate reducer to the branch.
Each port is a compression socket for plain pipe. Use the port layout below to check the size of every connection before ordering.
Pipe outside diameters. Schematic, not to scale.
Match the pipe, not the nut
25mm-32mm-25mm means end, branch, end. The two opposite connections are the same size; the branch takes the larger pipe.
These sizes refer to the outside diameter of the pipe, not its bore or the outside width of the compression nut. Measure each pipe rather than judging the fitting by its overall size.
The tee has no valve and does not impose a fixed flow direction. For other port combinations, see our MDPE tee splitters.
Make room for all three connections
Plan the branch position and leave access to each compression nut.
Check and prepare
Isolate and depressurise the supply. Prepare clean, square pipe ends: two at 25mm OD and one at 32mm OD. Check the pipe specification for any required separate liners.
Connect without strain
Insert each pipe into its matching socket, following the pipe and fitting instructions for insertion depth and tightening. Keep the straight pipes aligned and avoid pulling the branch sideways.
Support and check
Support the adjoining pipes independently of the tee. Check the PN10 designation against the full assembly and service conditions. Restore the supply gradually and inspect all three joints.
Before choosing your tee
Is this a 32mm tee with a smaller branch?
No. This version has two 25mm straight-run sockets and one larger 32mm branch socket. Check the position of each size, as a 32mm run with a 25mm branch is a different configuration.
Does the branch accept a screw-in tap?
No. The branch takes plain 32mm OD MDPE pipe. To connect a threaded tap, use a suitable pipe-to-thread adapter or select a tee with the required threaded branch.
Product information & technical details
| SKU | MDPETEE25-32001 |
|---|---|
| Product type | |
| MDPE size | 25mm, 32mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Port layout | Straight run: 25mm OD × 25mm OD. Branch at 90°: 32mm OD. All three ports are MDPE compression sockets. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One tee. Pipe, support clips and any separate pipe liners are not included. |
