Description
Finish the pipe run where you need it

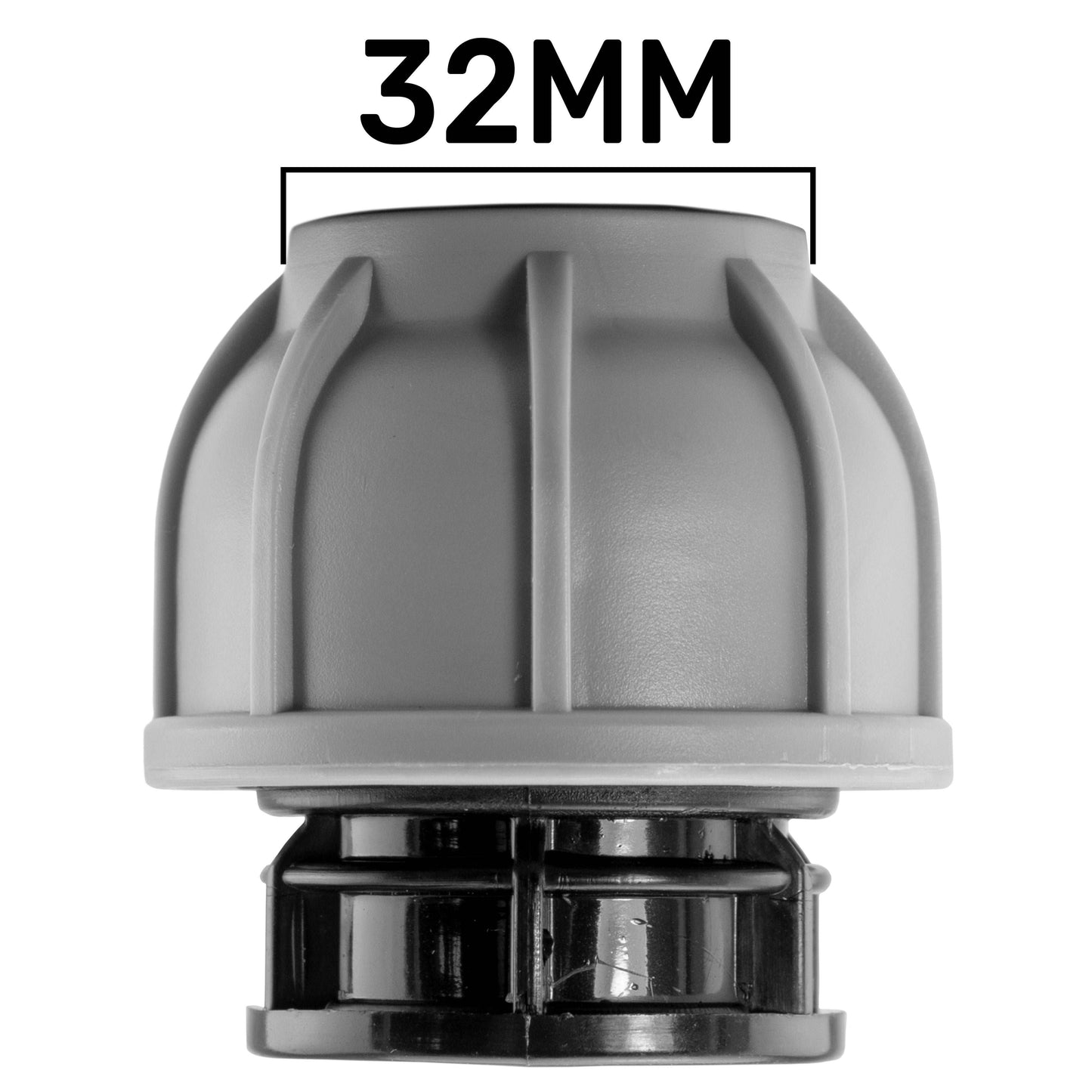

Close an unused end of your MDPE pipework with a compression stop end. Its single socket accepts the pipe, while the closed black body forms the end of the run.
Choose 20mm, 25mm or 32mm to match your pipe’s outside diameter. Each option supplies one cap, ready to use as the terminal fitting in a compatible water or irrigation layout.
Match the cap to the pipe
Use the pipe’s outside diameter, rather than its bore or the width of the grey nut.
20mm pipe
Select the 20mm option for an MDPE pipe measuring 20mm across the outside.
25mm pipe
Select the 25mm option for an MDPE pipe measuring 25mm across the outside.
32mm pipe
Select the 32mm option for an MDPE pipe measuring 32mm across the outside.
The size selector repeats the measurement, for example “25mm - 25mm”. This still supplies one stop end with one pipe connection, not a two-ended coupling.
Prepare, assemble and check
A sound pipe end and correct assembly matter as much as choosing the right size.
Prepare the end
Isolate and depressurise the supply. Cut the pipe square and clean it, removing burrs or damaged material before fitting.
Fit the compression cap
Follow the fitting guidance for insertion depth, assembly and tightening. Check whether your pipe requires a separate liner, and keep access to the grey nut.
Support and inspect
Support the adjoining pipework, restore the supply gradually and inspect the joint. The PN10 designation does not replace checking the suitability of the complete system.
Before you order
Is this a threaded plug or a valve?
No. It is a compression cap for the end of MDPE pipe. The grey nut belongs to the compression assembly; it is not a BSP connection. To control flow while leaving an outlet connected, you need a suitable valve instead.
What comes with the stop end?
One stop end in your selected size. The pipe and wall clip in the installation illustration demonstrate its use and are not supplied. Any separate pipe liner needed for your pipe must also be obtained separately.
Product information & technical details
| SKU | MDPESTOP20001[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm, 25mm, 32mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Connection | One MDPE compression socket; closed terminal body. |
| Pressure designation | PN10. Suitability depends on the full assembly and service conditions. |
| Pack contents | One stop end in the selected pipe size. Pipe and installation accessories are not included. |
