Description
Mount your tap
Bring an MDPE supply pipe up to a wall and create a supported connection for a separate garden tap. This MDPE wall plate outlet combines a compression pipe connection underneath with a female BSP socket projecting forwards.
The backplate fixes to the wall or a suitable panel, keeping the threaded outlet in position. Choose the pipe-and-thread pairing for your installation, then add a compatible male-threaded tap or accessory.
Choose both connections together
Each option pairs one pipe size with one female thread size.
20mm pipe · ½-inch BSP female
For MDPE pipe with a 20mm outside diameter and a compatible ½-inch BSP male tap or fitting.

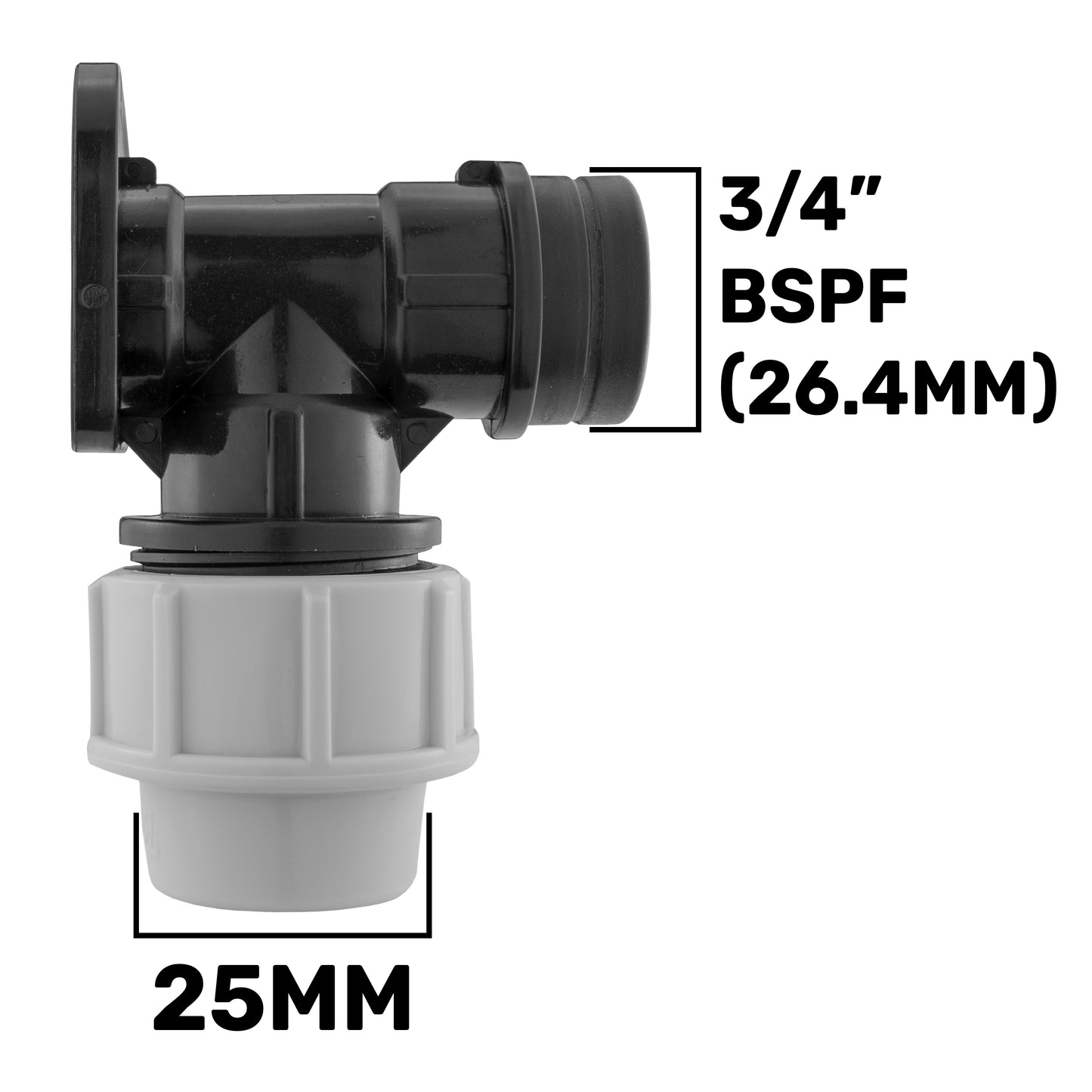

25mm pipe · ¾-inch BSP female
For MDPE pipe with a 25mm outside diameter and a compatible ¾-inch BSP male tap or fitting.
Measure the outside of the pipe, not its internal bore or the grey nut. BSP is a nominal thread designation, so the inch size is not the measured diameter of the pipe or socket.
Mount it with access in mind
Leave space to connect the pipe, fit the tap and inspect both joints.
Position the backplate
Use a sound mounting surface and suitable fixings through the plate's three holes. Plan the tap clearance and support the incoming pipe independently.
Connect the pipe
Isolate and depressurise the supply. Prepare a clean, square pipe end, then follow the pipe and fitting instructions for support liners, insertion and nut tightening.
Fit the tap or accessory
Fit a compatible male BSP tap or accessory, using its specified sealing method. Check the PN10 designation against the complete system and service conditions. Restore the supply gradually and inspect the joints.
Before you order
Is a tap included with the wall plate?
No. One wall flange is supplied. The brass tap in the installation example is separate, as are the pipe, wall fixings and any pipe support liners. Choose the tap thread to match the selected flange.
Does the wall plate turn the water off?
No. It provides the pipe connection, mounting plate and female threaded outlet. Flow control comes from a separate tap or valve. Isolate and depressurise the supply before fitting or removing components.
Product information & technical details
| SKU | MDPEWF20-12BSPF001[#ML] |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4" |
| Thread gender | Female |
| MDPE size | 20mm, 25mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| 20mm option | 20mm OD MDPE compression inlet; ½-inch BSP female outlet. |
| 25mm option | 25mm OD MDPE compression inlet; ¾-inch BSP female outlet. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One wall flange. Tap, pipe, wall fixings and any separate pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
