Description
Finish the run with a 32mm stop end

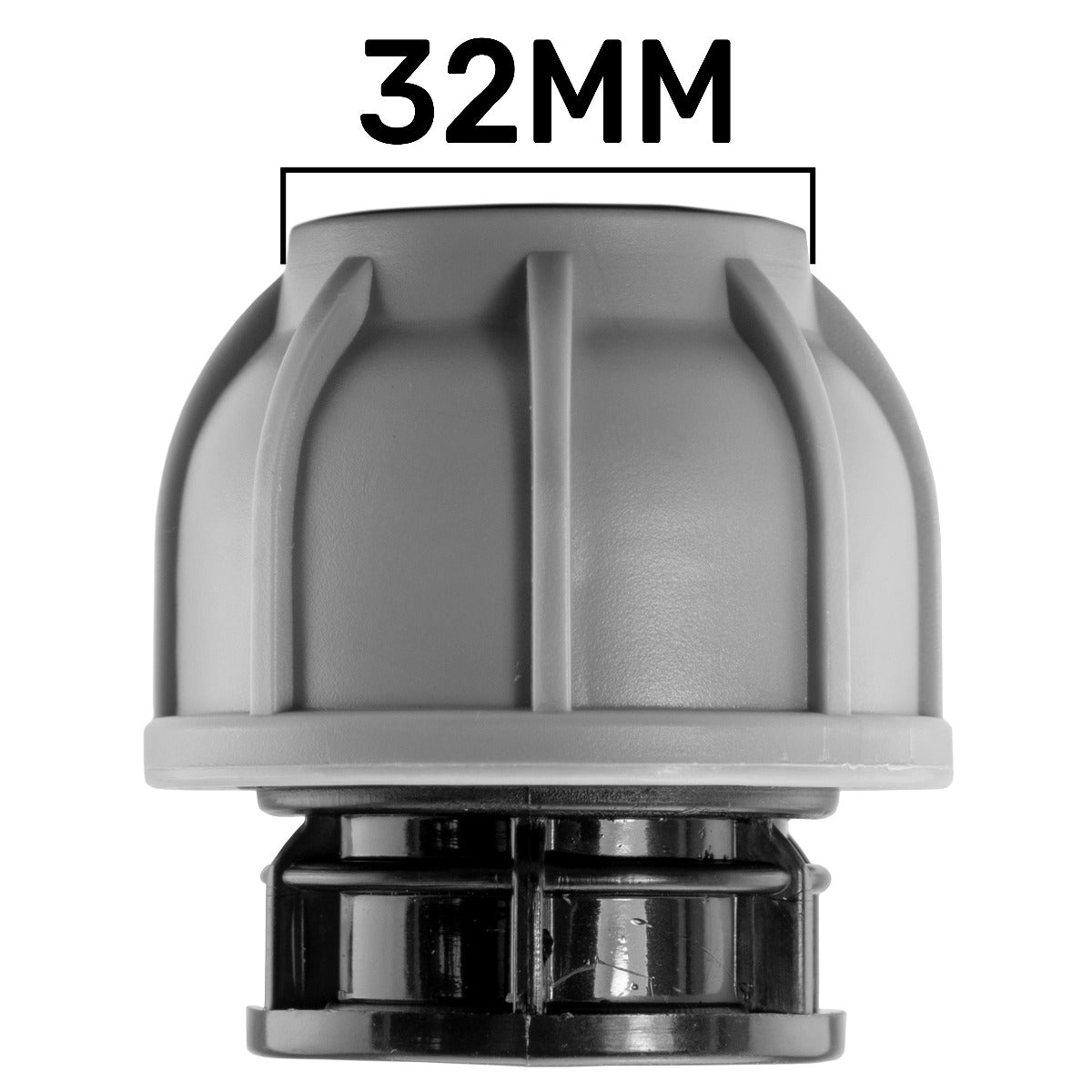

Close an open end of compatible MDPE pipework with this 32mm compression cap. The pipe enters through the grey nut, while the solid black terminal brings the run to an end.
For 32mm outside-diameter MDPE pipe. Each order quantity supplies one end cap.
One compression connection
The cap has a single pipe-entry socket and a closed end. It provides the terminal connection in a compatible water or irrigation layout, rather than continuing the pipe into another component.
The grey nut is part of the compression assembly. It is not a BSP socket for a threaded tap or outlet. If the job needs an onward connection or adjustable flow, choose a suitable coupling or valve instead.
A good fit starts with the pipe
Check the diameter, pipe condition and assembly requirements before fitting.
Measure across the exterior
Use the outside diameter of the MDPE pipe: this fitting is for 32mm OD. The width of the grey nut and the pipe’s internal bore are not the fitting size.
Prepare and assemble
Isolate and depressurise the supply. Prepare a clean, square pipe end and follow the fitting guidance for insertion, assembly and tightening. Check whether a separate pipe liner is needed.
Support and check the joint
Support the adjoining pipework and leave access to the nut. Restore the supply gradually and inspect the connection. Check system suitability alongside the PN10 designation and service conditions.
Before you fit
Can I choose the cap by the pipe’s internal diameter?
Use the outside measurement of the MDPE pipe. This cap fits 32mm OD pipe; the internal bore varies with the pipe construction and is not the selection measurement.
Are pipe liners or support clips supplied?
No. The pack contains one 32mm stop end. Select any separate pipe liner according to your pipe and fitting requirements. The pipe and clip in the illustration show how the fitting is used and are not included.
Product information & technical details
| SKU | MDPESTOP32001 |
|---|---|
| Product type | |
| MDPE size | 32mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Connection | One compression socket for 32mm outside-diameter MDPE pipe; closed terminal end. |
| Pressure designation | PN10. Suitability depends on the complete assembly and service conditions. |
| Pack contents | One 32mm stop end. Pipe, support clip and any separate pipe liner are not included. |
