Description
Keep your 50mm run on course

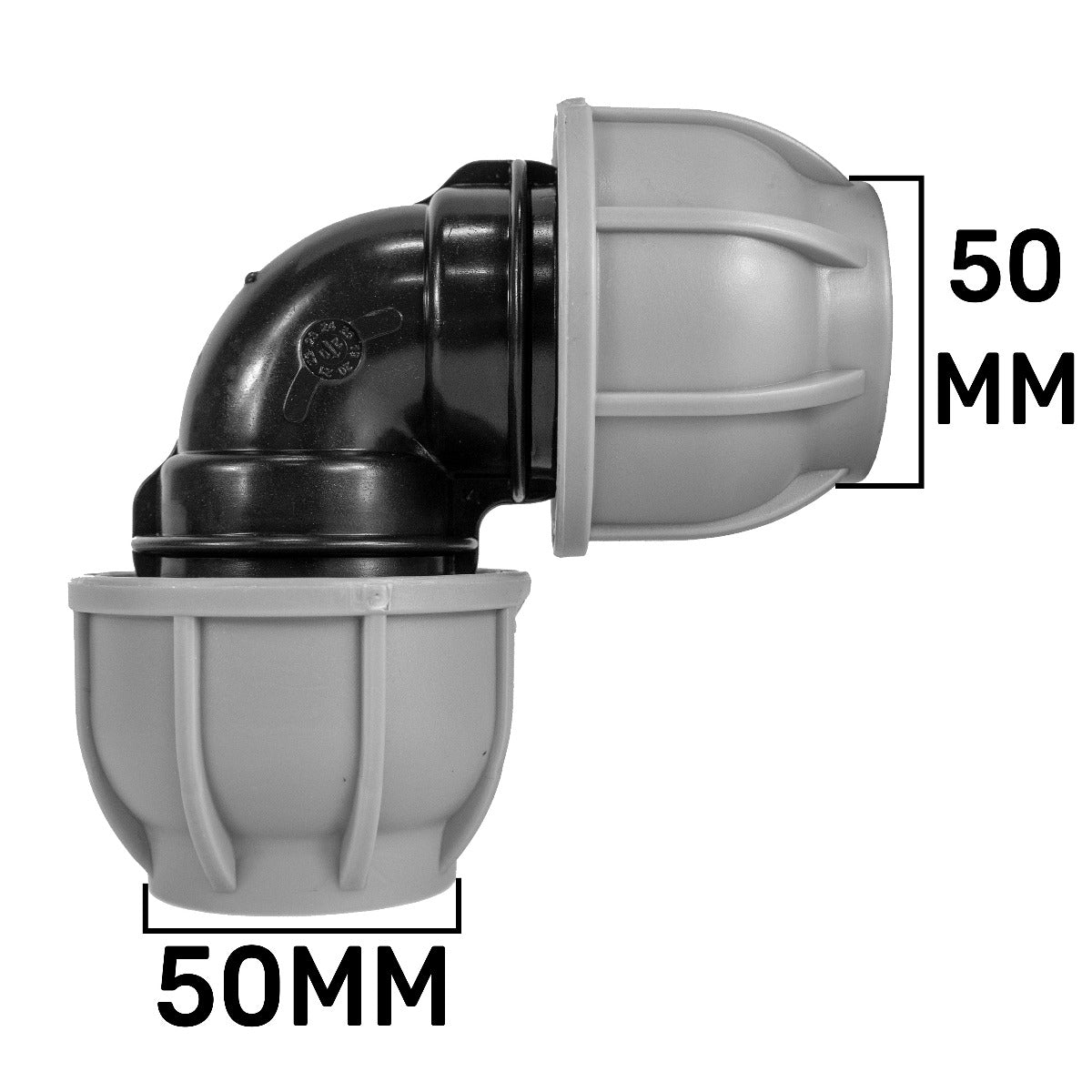

Make a planned corner in your pipework with a 50mm MDPE equal elbow. Its two grey compression nuts connect plain pipe ends through a fixed 90° turn, keeping the same pipe size on both sides.
The black curved body changes the route; it does not add a branch or reduce to a smaller connection. Leave working room around both nuts and support the adjoining pipes separately.
One elbow supplied. Pipe and clips in the illustration are separate accessories.
Match both sides of the bend
Start with the pipe size and the type of connection you need.
50mm means pipe outside diameter
Check the marking on each length of MDPE or measure across the outside of the pipe. Both ends take 50mm OD pipe. Measuring the bore or the much larger grey nut will not identify the pipe size.
Equal compression connections
Each grey nut connects to a plain pipe end. There is no BSP threaded outlet on this elbow. Choose a suitable transition fitting for a threaded component, or a reducing fitting if the two pipe sizes differ.
Prepare a supported corner
Align the pipes without putting strain on either joint.
Prepare both pipe ends
Isolate and depressurise the supply. Cut sound MDPE pipe square and clean both ends. Follow the fitting guidance for insertion depth, assembly and any required pipe liners.
Leave access to the nuts
Position the elbow so both pipes meet their compression ends squarely. Allow room to assemble each joint; do not use the elbow to pull misaligned pipework into place.
Support before checking
Support both pipe lengths independently. Restore the supply gradually and inspect both joints. Choose operating conditions suitable for the whole assembly.
Choosing the correct connection
Will one end accept a smaller MDPE pipe?
No. This is an equal elbow with 50mm compression connections at both ends. A suitable reducing fitting is needed where the pipe outside diameters are different.
Are the threads under the grey nuts BSP outlets?
No. They are part of the pipe compression assembly, not outlets for a BSP tap or adapter. Use this elbow for plain 50mm MDPE pipe ends.
Product information & technical details
| SKU | MDPEELB50001 |
|---|---|
| Product type | |
| MDPE size | 50mm |
| Colour | Black, Grey |
| Material | Plastic |
| Bend angle | 90°. |
|---|---|
| Connections | 50mm MDPE compression × 50mm MDPE compression. |
| Pressure designation | PN10. |
| Pack contents | One equal elbow. Pipe, clips and pipe liners are not included. |
