Description
A right-angle turn for 40mm pipe

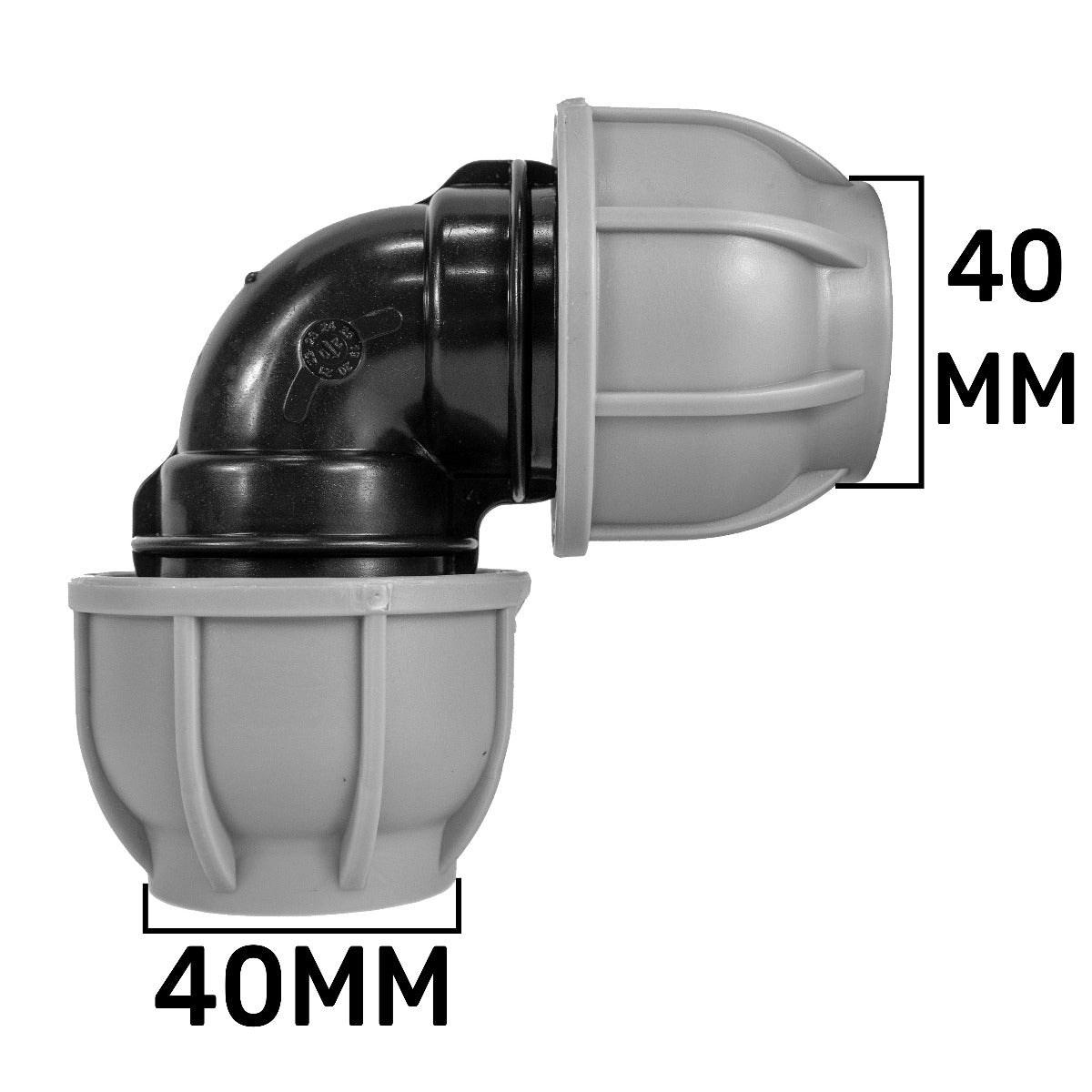

Keep the same pipe size as your route changes direction. This 40mm MDPE equal elbow joins two plain pipe ends through a 90° bend, with a grey compression nut on each side.
It forms the corner between the two runs rather than forcing the pipe into a tight curve. Plan room around both nuts and support each length of pipe separately.
One elbow supplied. Pipe and clips shown in the illustration are not included.
Check the pipe, then plan the corner
Both connections are for the same outside-diameter pipe.
Match 40mm outside diameter
Read the marking on your MDPE pipe or measure across its outside. Each end accepts 40mm OD pipe; the internal bore and the larger compression nut are different measurements.
Two pipe ends, one change of direction
This equal elbow keeps the connection size the same on each side. It does not reduce to a smaller pipe, provide a BSP threaded outlet or add a branch to a continuing run.
Make space for both connections
Set out the pipework before tightening the corner.
Prepare clean pipe ends
Isolate and depressurise the supply. Cut sound pipe square and clean both ends. Follow the fitting guidance for insertion depth, assembly and any required pipe liners.
Align the two runs
Bring each pipe squarely into its compression end. Leave access to both grey nuts, and avoid using the elbow to pull misaligned pipework together.
Support and inspect
Support both pipe lengths independently. Restore the supply gradually and inspect both joints. The operating conditions must suit every part of the assembly.
Before ordering
Is 40mm the internal diameter of the pipe?
No. For this MDPE connection, 40mm refers to the outside diameter of the pipe. Check the pipe itself rather than measuring the bore or the nut.
Can I use this to join two pipes in a straight line?
This fitting creates a fixed 90° corner. For two aligned 40mm MDPE pipe ends, choose an appropriate straight compression coupling instead.
Product information & technical details
| SKU | MDPEELB40001 |
|---|---|
| Product type | |
| MDPE size | 40mm |
| Colour | Black, Grey |
| Material | Plastic |
| Bend angle | 90°. |
|---|---|
| Connections | 40mm MDPE compression × 40mm MDPE compression. |
| Pressure designation | PN10. |
| Pack contents | One equal elbow. Pipe, clips and pipe liners are not included. |
