Description
A turn and a threaded connection
Connect the end of 32mm MDPE pipe to a ¾-inch male BSP fitting while turning the route through 90°. This elbow combines a pipe compression end with a female threaded socket in one fitting.

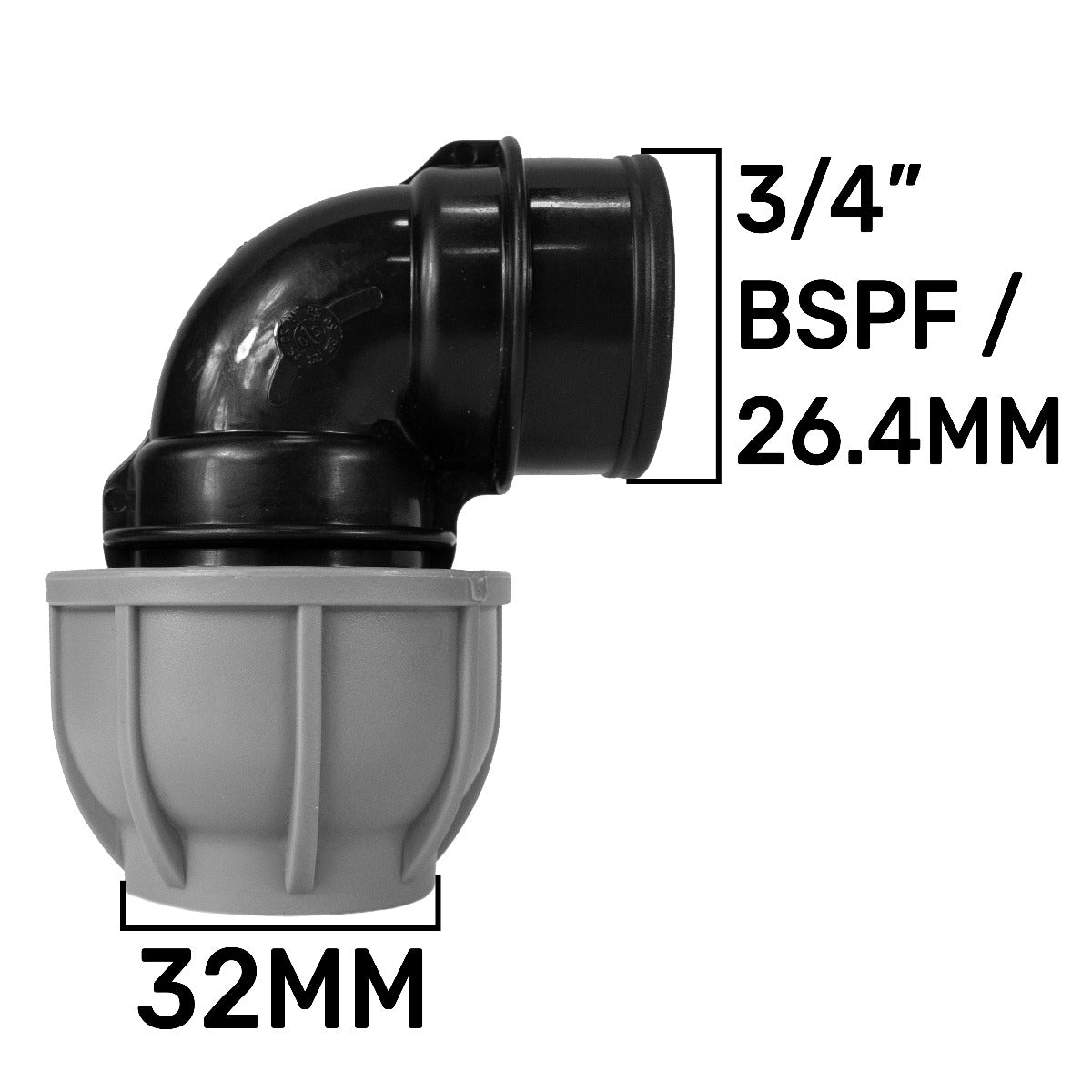

The grey nut goes around the pipe. The black outlet has its thread inside, ready for a compatible male component. It is a two-ended transition, rather than a branch for a continuing pipe run.
One elbow supplied. The illustration shows the female socket open; blue pipe and support clip are separate.
Match the pipe and the mating fitting
Both the size and the connection type need to agree.
Compression end: 32mm MDPE
Check for 32mm outside-diameter MDPE pipe. Read its marking or measure across the outside of the pipe itself. The pipe bore and the larger compression nut are different measurements.
Female end: ¾-inch BSP
Choose a compatible ¾-inch male BSP component to meet the internal thread. This socket does not connect directly to another plain pipe end. BSP is a nominal thread size; the “What is BSP?” guide in the product information below helps with identification.
Make room around the corner
Plan alignment, access and support before joining the parts.
Prepare the MDPE end
Isolate and depressurise the supply. Cut sound pipe square and clean the end. Follow the fitting guidance for insertion depth, assembly and any pipe-liner requirement.
Align the male fitting
Start the matching male thread squarely in the black female socket. Use the sealing method appropriate for that joint. Avoid cross-threading or overtightening the plastic body.
Support and check
Support the pipe and attached fitting separately, keeping their weight off the elbow. Restore the supply gradually and inspect both joints. Every part of the assembly must suit the intended service conditions.
Before fitting the elbow
Does 32mm describe the threaded socket?
No. It describes the outside diameter of the MDPE pipe accepted by the grey-nut compression end. The separate black socket is a ¾-inch female BSP connection, sized to meet a compatible male thread.
Can a second plain pipe connect at the black end?
No. The black end is threaded internally. Choose an equal compression elbow to join two same-size plain pipe ends, or the appropriate transition fitting for your threaded component.
Product information & technical details
| SKU | MDPEELB32-34BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| MDPE size | 32mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Bend angle | 90°. |
| Connections | 32mm MDPE compression × ¾-inch BSP female. |
| Pressure designation | PN10. |
| Pack contents | One elbow adapter. Pipe, clips, mating fittings, seals and pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
