Description
From pipe to female BSP

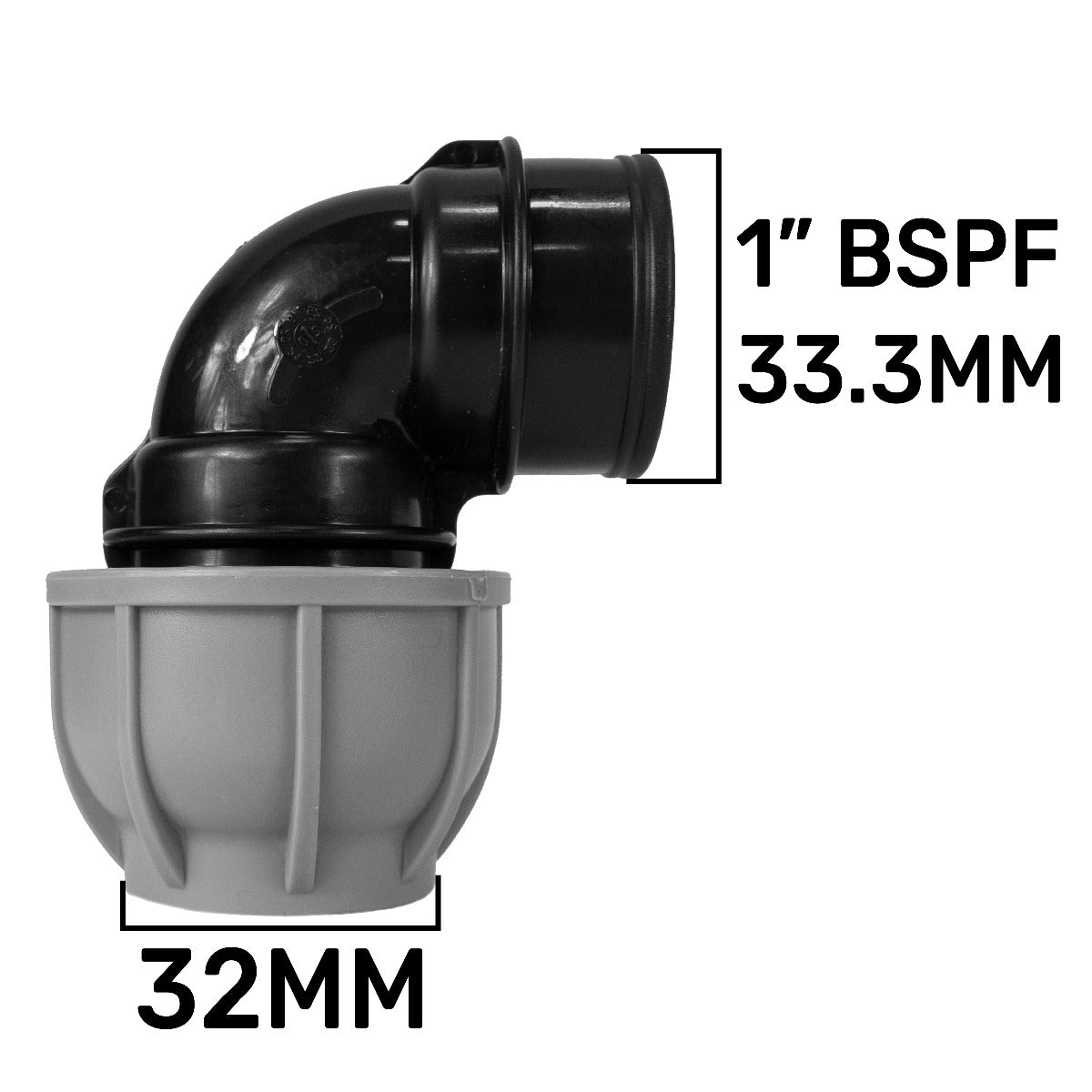

Finish a 32mm MDPE pipe run with a 1-inch female BSP connection, turning through 90° as you go. The grey compression nut connects to the pipe; the black socket has an internal thread for a compatible male-threaded component.
This elbow combines a change of direction with a change of connection type. It is a two-ended adapter, so it does not create a branch while the main pipe continues.
The illustration leaves the female socket open to show its thread. One elbow supplied; pipe and clip are separate.
Two ends. Two checks.
Match the MDPE pipe and the threaded component separately.
Pipe end: measure outside
The grey-nut end takes 32mm outside-diameter MDPE pipe. Read the pipe marking or measure across its outside. The bore and the width of the nut are different measurements.
BSP end: choose male
The black end has a 1-inch female BSP thread inside its socket. It needs a compatible 1-inch male BSP component, rather than a plain pipe end. BSP is a nominal thread size; open “What is BSP?” in the product information below for identification help.
Allow space for the connection
Check the route, assembly access and support before fitting.
Prepare the MDPE pipe
Isolate and depressurise the supply. Cut sound pipe square and clean the end. Follow the fitting guidance for insertion depth, assembly and any pipe-liner requirement.
Start the thread squarely
Align the matching male component with the female socket. Use the sealing method appropriate for that joint, avoiding cross-threading or overtightening the plastic body.
Support and inspect
Support the pipe and attached component separately. Restore the supply gradually and check both joints. The service conditions must suit every part of the finished assembly.
Connection questions
Does the female socket accept another plain MDPE pipe?
No. The black socket is a 1-inch female BSP thread for a matching male-threaded component. Only the grey-nut end is a pipe compression connection, sized for 32mm outside-diameter MDPE.
Can I use this to add a branch to a continuing run?
No. This elbow has two ends and turns the end of the run. A suitable tee or branch fitting is needed to add an outlet while continuing the main pipe.
Product information & technical details
| SKU | MDPEELB32-1BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Female |
| MDPE size | 32mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Bend angle | 90°. |
| Connections | 32mm MDPE compression × 1-inch BSP female. |
| Pressure designation | PN10. |
| Pack contents | One elbow adapter. Pipe, clips, mating fittings, seals and pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
