Description
A corner for 32mm pipe

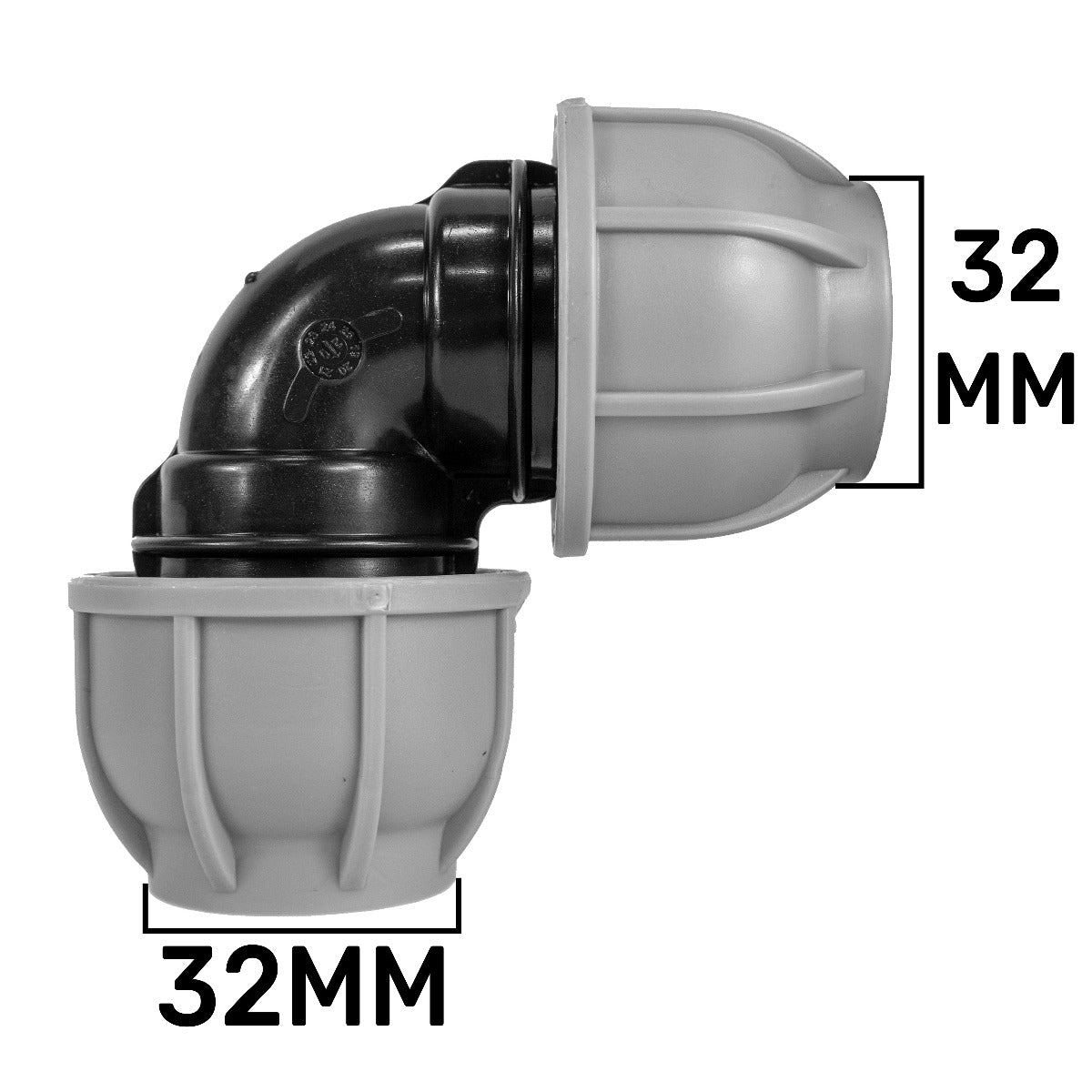

Take your 32mm MDPE pipe run through a right angle with an equal compression elbow. Each grey nut connects to a plain pipe end, keeping the same pipe size on both sides of the bend.
Use it where your route changes direction. The black curved body and two compression ends form the corner; separate clips support the adjoining pipework.
One elbow supplied. Blue pipe and clips in the illustration are not included.
Match both pipes before ordering
The pipe size stays the same through this elbow.
Measure the outside diameter
Both compression ends take 32mm outside-diameter MDPE pipe. The size refers to the pipe, not its internal bore or the larger nut around it. Check the pipe marking or measure across its outside.
Plan the route and access
This is a two-ended bend. It redirects the run without adding a branch or changing its size. Leave working space around both grey nuts and plan separate support for the vertical and horizontal pipes.
Prepare both ends of the corner
Start with aligned, supported pipework.
Prepare the pipe
Isolate and depressurise the supply. Cut sound pipe square and clean both ends. Follow the fitting guidance for insertion depth, assembly and any pipe-liner requirement.
Align both connections
Bring each pipe squarely into its compression end. Avoid forcing a misaligned run into place or using the elbow to pull the pipes together. Keep access to both nuts.
Support and check
Support each leg so its weight does not hang from the elbow. Restore the supply gradually and inspect both joints. Choose service conditions suitable for every part of the assembly.
Before you choose
Can this elbow join two different pipe sizes?
No. Both ends accept 32mm outside-diameter MDPE pipe. Choose a suitable reducing fitting if your two pipes have different outside diameters.
Can I screw a BSP tap directly into it?
No. These are two pipe compression connections, not BSP threaded outlets. Connecting a threaded tap or fitting requires the appropriate separate transition adapter.
Product information & technical details
| SKU | MDPEELB32001 |
|---|---|
| Product type | |
| MDPE size | 32mm |
| Colour | Black, Grey |
| Material | Plastic |
| Bend angle | 90°. |
|---|---|
| Connections | 32mm MDPE compression × 32mm MDPE compression. |
| Pressure designation | PN10. |
| Pack contents | One equal elbow. Pipe, clips and pipe liners are not included. |
