Description
Pipe to male BSP

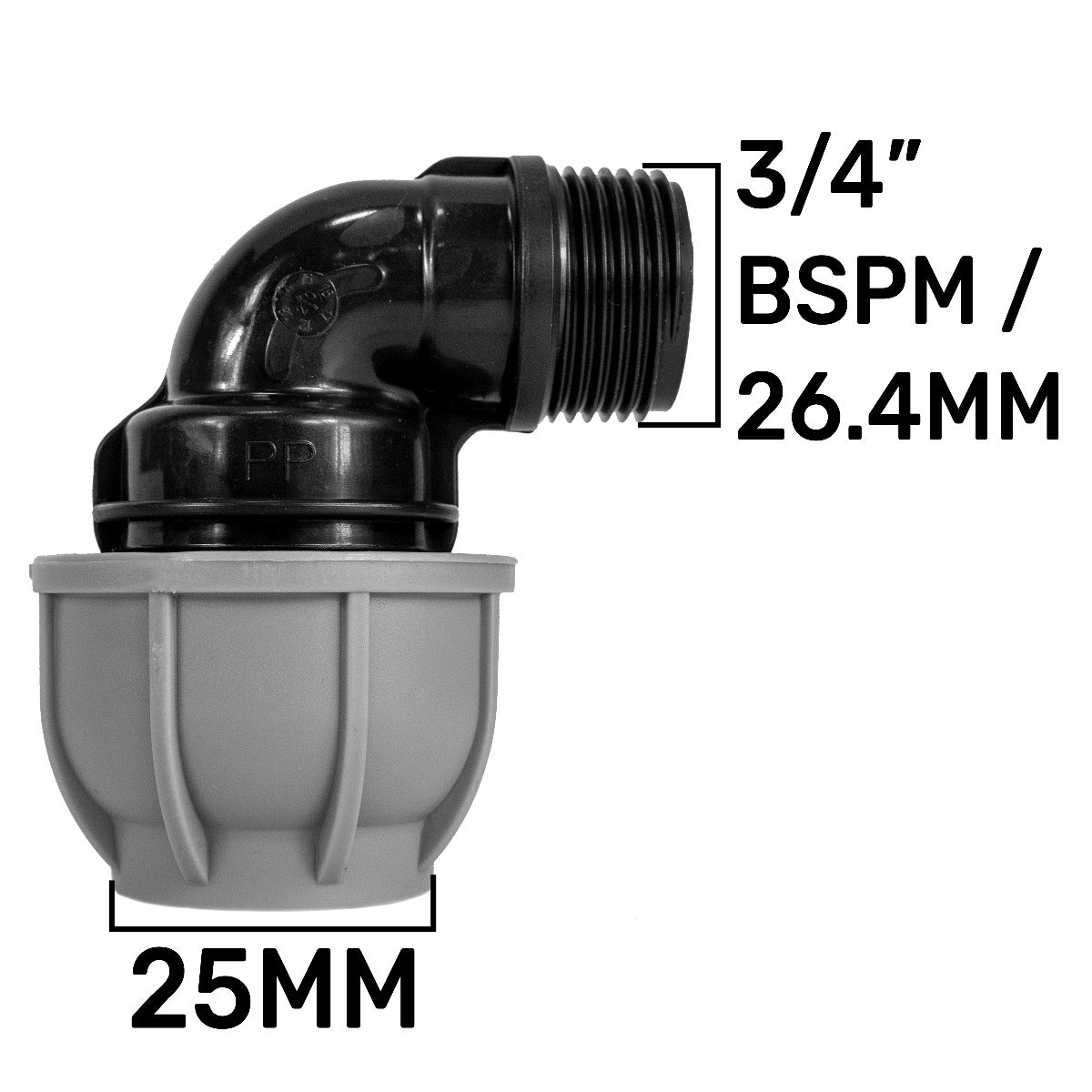

Turn the end of a 25mm MDPE pipe run through 90° and connect it to a ¾-inch female BSP component. This elbow has a grey compression nut for the pipe and an external male thread on the projecting black end.
It is a transition between two connection types, rather than a bend for two plain pipe ends. Check the pipe outside diameter and the nominal BSP size before ordering.
One elbow supplied. The illustration leaves the male thread exposed to show the connection. Blue pipe and wall clip are separate.
Check the pipe. Match the thread.
Each end has its own size and connection method.
Compression end: 25mm MDPE
The grey-nut end accepts 25mm outside-diameter MDPE pipe. Measure the pipe itself, not the compression nut. This is not a barb for flexible garden hose.
Threaded end: ¾-inch male BSP
The thread is on the outside of the black end and needs a compatible ¾-inch female BSP fitting. BSP is a nominal thread size. Open “What is BSP?” in the product information below for help identifying an existing thread.
Make room for both joints
Plan access and support before joining the pipework.
Prepare the MDPE pipe
Isolate and depressurise the supply. Cut sound pipe square and clean its end. Follow the fitting guidance for assembly, insertion depth and any pipe-liner requirement.
Align the female component
Start the male thread squarely in the matching female fitting. Use the sealing method appropriate for that joint. Avoid cross-threading or overtightening the plastic body.
Support and check
Support the pipe and attached component independently, keeping their weight off the elbow. Restore the supply gradually and inspect both joints. Service conditions must suit the whole assembly.
Before you choose
Does the ¾-inch end take another plain pipe?
No. The ¾-inch end is an external male BSP thread for a matching female threaded component. The separate grey-nut end is the compression connection for 25mm MDPE pipe.
Can it add an outlet while the main pipe continues?
No. This two-ended elbow changes direction at the end of the run. A suitable tee or branch fitting is needed if you want a separate outlet and a continuing main pipe.
Product information & technical details
| SKU | MDPEELB25-34BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| MDPE size | 25mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Bend angle | 90°. |
| Connections | 25mm MDPE compression × ¾-inch BSP male. |
| Pressure designation | PN10. |
| Pack contents | One elbow adapter. Pipe, clips, mating fittings, seals and pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
