Description
Pipe to male BSP
Give the end of a 25mm MDPE pipe run a 1-inch male BSP connection at a right angle. This elbow joins the pipe to a compatible female-threaded component, with one compression socket and an exposed external thread.
The grey nut connects the pipe; the black male outlet screws into the mating female fitting. Allow space to assemble the threaded joint without twisting the pipe.

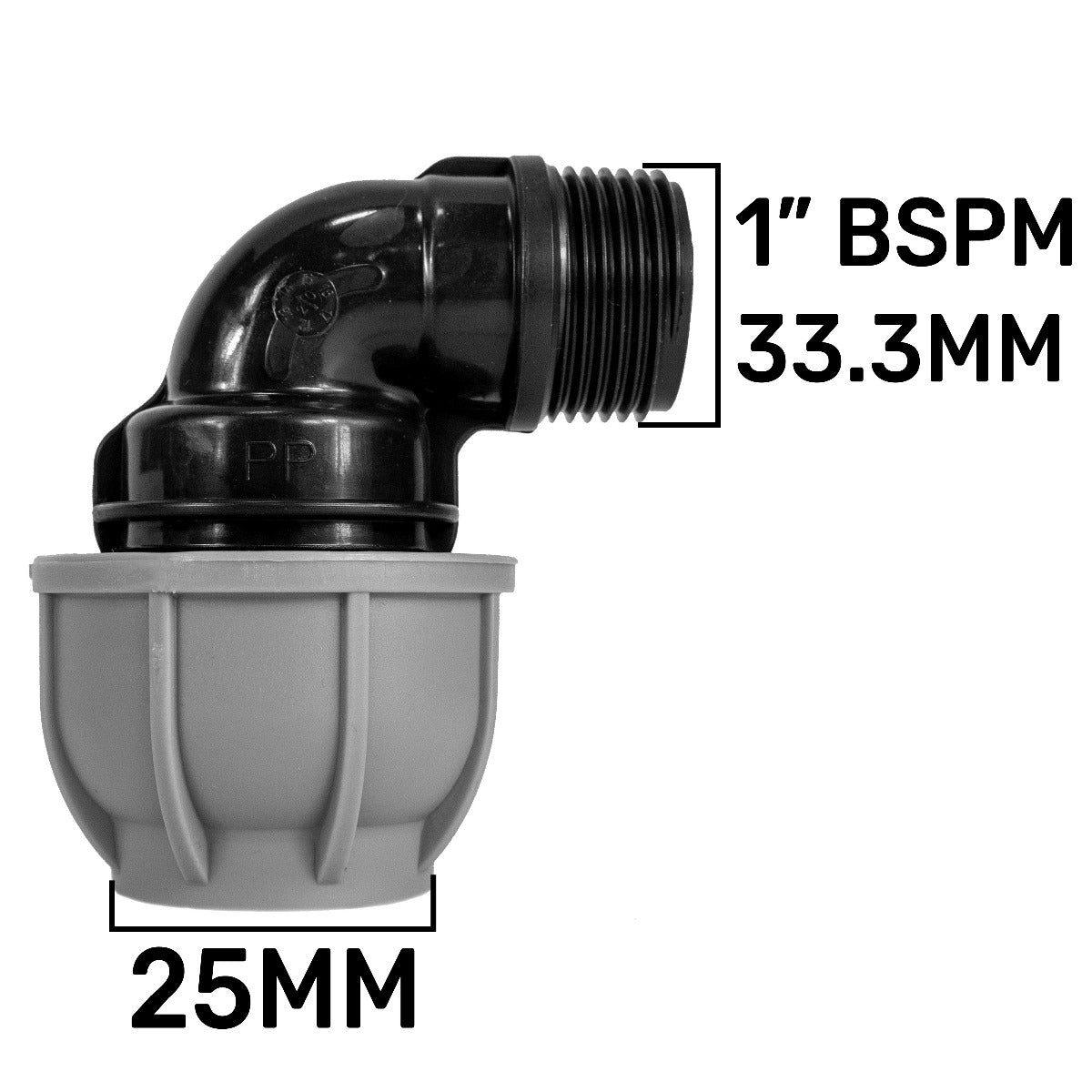

One elbow adapter supplied. The illustration leaves the male outlet exposed so you can identify it; pipe and support clip are separate.
Match the pipe and BSP fitting
Match the plain pipe and threaded component separately before ordering.
25mm compression socket
Use 25mm outside-diameter MDPE pipe in the grey-nut connection. Measure the pipe itself, rather than the nut. This end is not a hose tail for pushing flexible garden hose over.
1-inch male BSP outlet
The external thread fits a compatible 1-inch female BSP connection. BSP is a nominal thread size, not an inch-to-millimetre measurement. Open “What is BSP?” in the product information below for help identifying the thread.
Make room for the threaded joint
Plan the connection and supports before securing the pipe run.
Prepare a sound pipe end
Isolate and depressurise the supply. Cut the pipe square and clean the end. Follow the fitting guidance for insertion depth, compression assembly and any required pipe liner.
Align the BSP connection
Start the male thread squarely in the matching female fitting. Use the sealing method appropriate for the joint and avoid cross-threading or overtightening. Keep access to the grey nut.
Support both sides
Support the pipe and attached component independently, rather than letting the elbow carry their weight. Restore the supply gradually and inspect both joints. Match operating conditions to the complete installation.
Check the connection
Is the threaded outlet male or female?
This version is male: its BSP thread is on the outside of the black outlet. It screws into a matching 1-inch female BSP connection. The grey nut is for the separate 25mm MDPE pipe connection.
Does this elbow add a branch to an existing pipe run?
No. It has two connections and turns the end of the pipe run through 90°. It is not a tee. Choose a suitable tee or branch fitting if the main pipe needs to continue past the connection.
Product information & technical details
| SKU | MDPEELB25-1BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male |
| MDPE size | 25mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Bend angle | 90°. |
| Connections | 25mm MDPE compression × 1-inch BSP male. |
| Pressure designation | PN10. |
| Pack contents | One elbow adapter. Pipe, clips, mating fittings, seals and pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
