Description
Pipe to male BSP

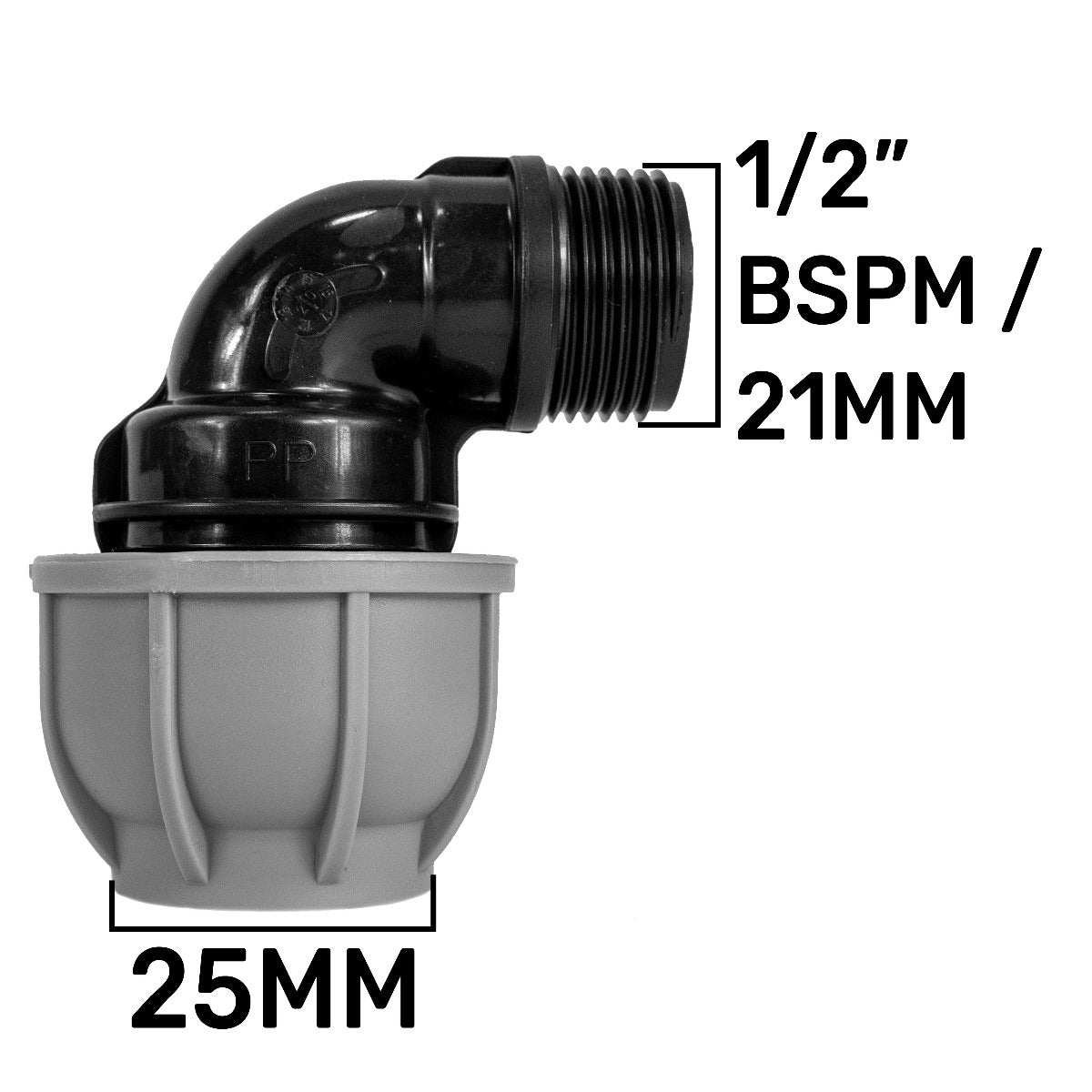

Finish a 25mm MDPE pipe run with a ½-inch male BSP thread facing at a right angle. This black elbow joins the pipe through a grey compression nut and presents an external thread for a matching female component.
It brings together two different connection types in one fitting. Check the pipe outside diameter and the nominal BSP size separately, then plan space to make both joints.
One elbow supplied. The illustration leaves the male thread exposed for identification; the blue pipe and wall clip are separate.
Match the two ends
Choose by the pipe diameter at one end and the threaded fitting at the other.
Grey nut: 25mm MDPE pipe
The compression connection is for 25mm outside-diameter MDPE pipe. Measure across the pipe itself. A flexible garden hose marked ½-inch describes a different connection and does not fit this compression end.
Black thread: ½-inch BSP male
The thread is on the outside of the projecting end. It fits a compatible ½-inch female BSP connection. For help identifying nominal thread sizes, open “What is BSP?” in the product information below.
Leave room to assemble the corner
Allow access for the threaded joint, compression nut and separate supports.
Prepare the pipe
Isolate and depressurise the supply. Cut sound pipe square and clean the end. Follow the fitting guidance for insertion depth, assembly and any pipe-liner requirement.
Start the BSP joint squarely
Align the male thread with the matching female fitting. Use the sealing method appropriate to that joint; avoid cross-threading and overtightening the plastic body.
Support, then inspect
Support the pipe and attached component independently so their weight does not pull on the elbow. Restore the supply gradually and inspect both joints. Service conditions must suit the complete assembly.
Before you order
Is this the male or female threaded elbow?
This is the male version: the BSP thread is on the outside of the projecting black end. The component it connects to needs a matching ½-inch female BSP thread.
Does ½-inch BSP mean the pipe should be ½-inch?
No. This adapter takes 25mm outside-diameter MDPE pipe. The ½-inch BSP label belongs to the separate threaded end and is a nominal thread size, not the diameter of the MDPE pipe.
Product information & technical details
| SKU | MDPEELB25-12BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| MDPE size | 25mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Bend angle | 90°. |
| Connections | 25mm MDPE compression × ½-inch BSP male. |
| Pressure designation | PN10. |
| Pack contents | One elbow adapter. Pipe, mating fittings, supports, seals and pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
