Description
Turn the pipe run through 90°

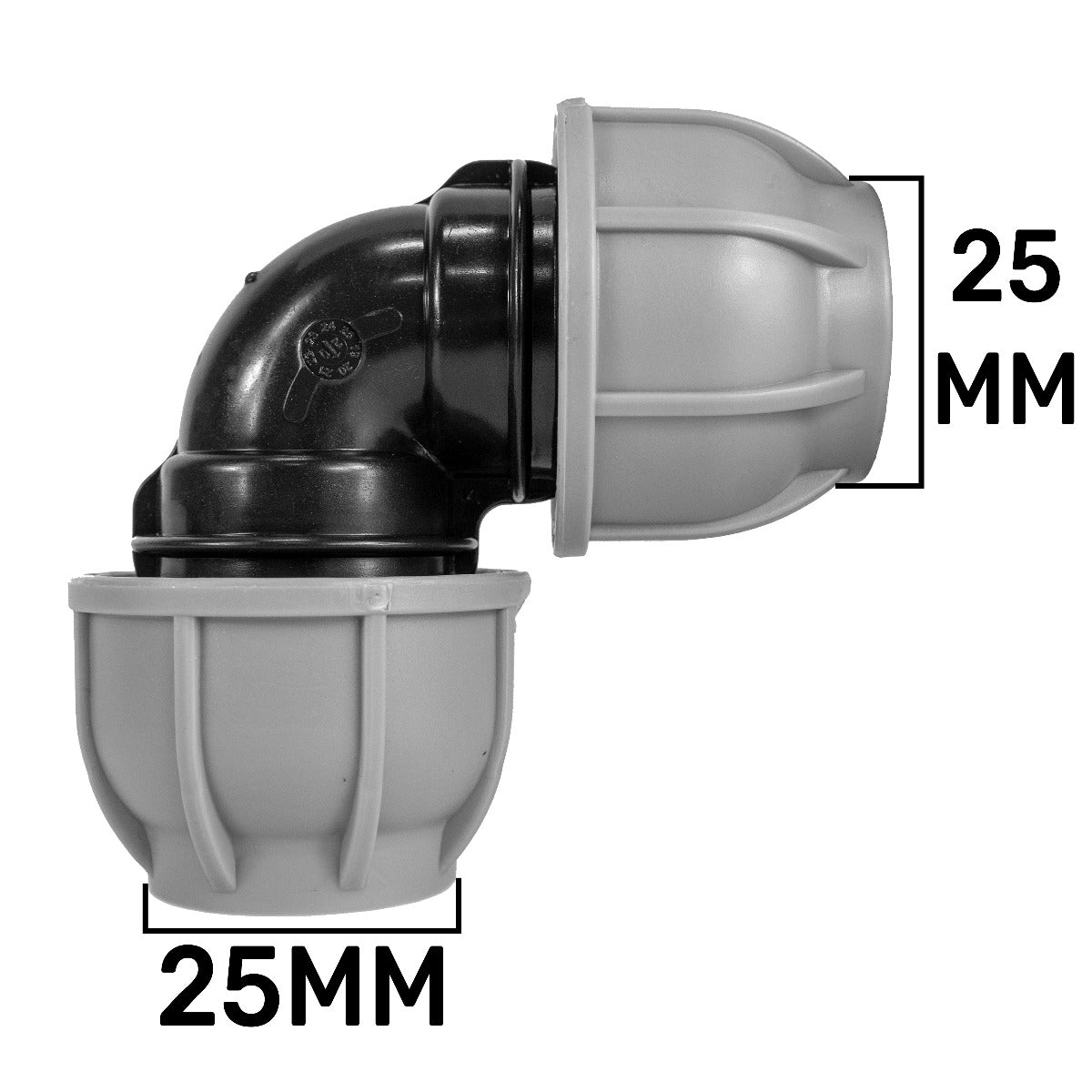

Bring two 25mm MDPE pipe runs together at a right angle with this equal compression elbow. The black curved body sets the direction of the turn, while the two grey compression nuts connect the pipe ends.
Both ends take 25mm outside-diameter MDPE pipe. Use it where the route needs a defined corner, with space to assemble the connections and support the adjoining pipework.
One elbow supplied. Pipe, support clips and any required pipe liners are separate.
Check the pipe, then plan the corner
Match both pipe ends before ordering, and leave access to the compression nuts.
Match the outside diameter
Check that both pipe runs are 25mm MDPE. Measure the pipe itself, rather than the grey nut. This equal elbow does not reduce between different pipe sizes or provide a BSP threaded outlet.
Prepare both connections
Isolate and depressurise the supply before work. Cut sound pipe ends square and clean them. Follow the fitting guidance for pipe-liner requirements, insertion depth and assembly.
Support the adjoining runs
Keep each pipe aligned with its socket and support the runs independently, so their weight does not pull on the joints. Restore the supply gradually and inspect both connections before use.
Choosing the correct elbow
Is the 25mm size measured inside or outside the pipe?
It is the outside diameter of the MDPE pipe entering each compression end. Both ends are the same size; the outside diameter of the nut is not the pipe-size measurement.
Is this a push-fit hose connector or a threaded adapter?
No. It joins two 25mm MDPE pipe ends using compression connections. Choose a fitting with the appropriate hose tail or thread if you need to connect a flexible hose or a threaded component.
Product information & technical details
| SKU | MDPEELB25001 |
|---|---|
| Product type | |
| MDPE size | 25mm |
| Colour | Black, Grey |
| Material | Plastic |
| Bend angle | 90°. |
|---|---|
| Connections | 25mm MDPE compression at both ends; pipe size refers to outside diameter. |
| Pressure designation | PN10. |
| Pack contents | One elbow. Pipe, support clips and pipe liners are not included. |
