Description
A female BSP outlet
Finish a 20mm MDPE pipe run with a ¾-inch female BSP connection facing at a right angle. This black elbow brings the pipe and a separately matched male-threaded component together without adding a branch.

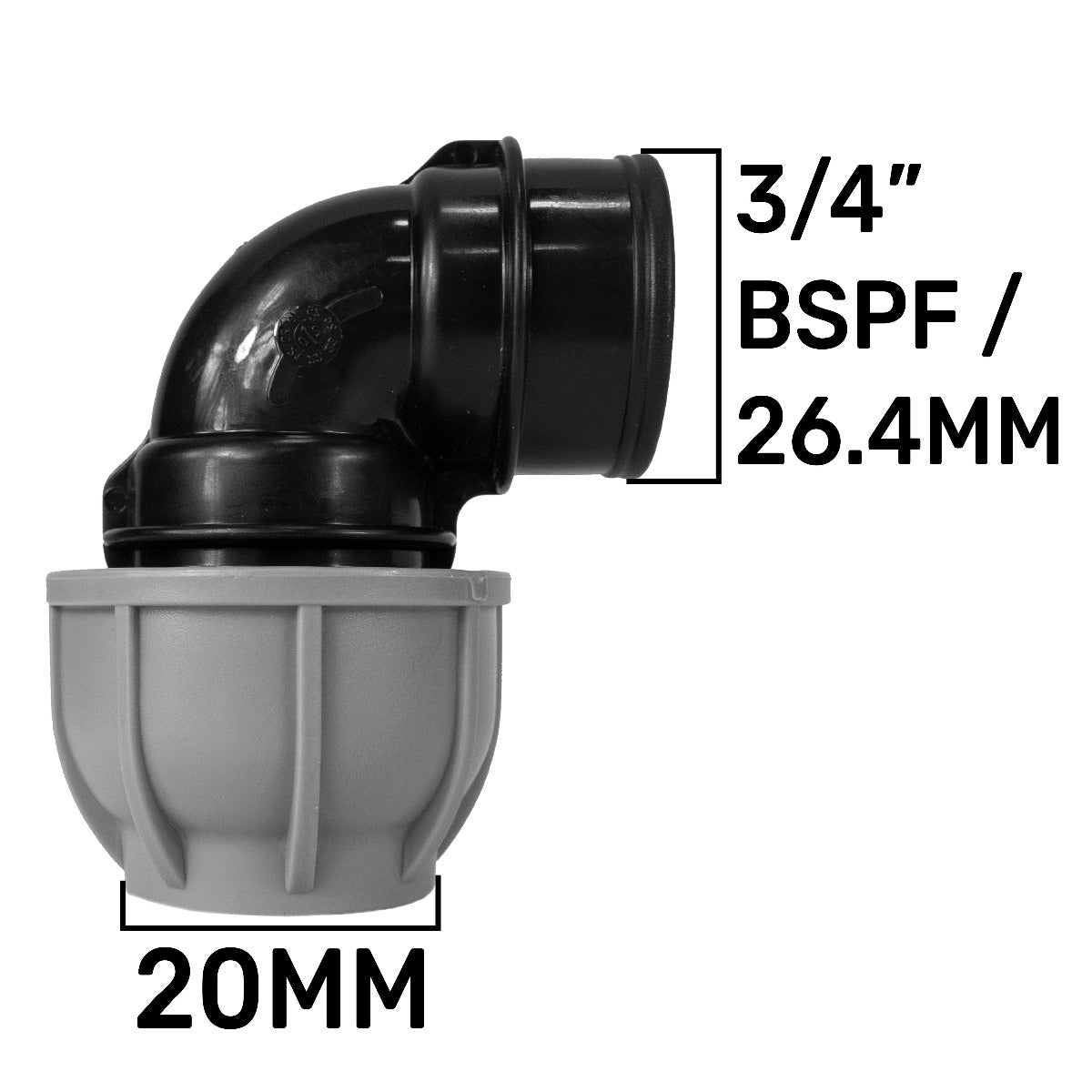

The grey nut belongs to the pipe compression socket. The black outlet has its thread on the inside, ready to accept a compatible male BSP fitting.
One adapter supplied. The illustration shows the pipe connected and the female socket left open for identification.
Check the pipe and thread
Match each end to its own size and connection type.
20mm on the pipe side
The compression socket takes 20mm outside-diameter MDPE pipe. Measure the outside of the pipe, not its bore or the outside of the grey nut.
¾-inch on the BSP side
The female socket needs a compatible ¾-inch male BSP fitting. BSP sizes are nominal thread designations, not direct inch-to-millimetre conversions. Open “What is BSP?” in the product information below for identification guidance.
Plan access to both joints
Leave room for the compression nut and the component that screws into the outlet.
Prepare sound pipe
Isolate and depressurise the water supply. Cut the pipe square and clean the end. Follow the fitting guidance for insertion depth and any required pipe liner.
Assemble squarely
Use a compatible male BSP fitting and the sealing method appropriate to that joint. Avoid cross-threading, forcing or overtightening the plastic socket.
Support and inspect
Support the pipe and attached component separately so their weight does not strain the elbow. Restore water gradually and inspect both joints. Choose operating conditions suitable for the whole installation.
Choosing the right elbow
Does this elbow create an extra branch?
No. It has two connections arranged at 90°: one for 20mm MDPE pipe and one ¾-inch female BSP outlet. A branch needs a separately specified tee or other branching fitting.
Will a second plain pipe fit the black outlet?
No. The black outlet is internally threaded for a male BSP component. Choose a double-compression elbow when both ends need to accept plain MDPE pipe, or a separately matched adapter for a different connection.
Product information & technical details
| SKU | MDPEELB20-34BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| MDPE size | 20mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Bend angle | 90°. |
| Connections | 20mm MDPE compression × ¾-inch BSP female. |
| Pressure designation | PN10. |
| Pack contents | One elbow adapter. Pipe, clips, mating fittings, seals and pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
