Description
Pipe to male BSP

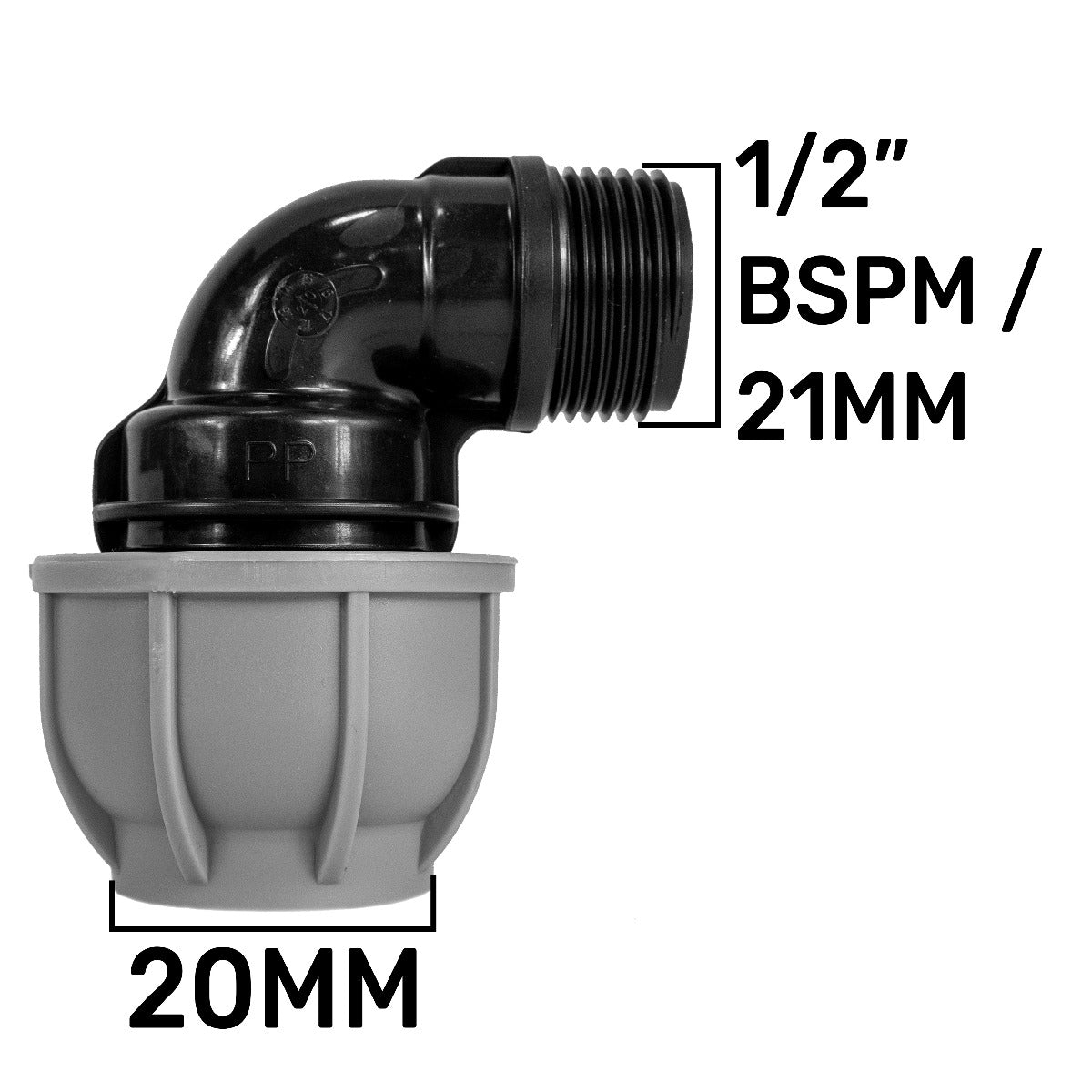

Connect a 20mm MDPE water line to a component with a ½-inch female BSP connection. This elbow turns the connection through 90°, with a compression socket for the pipe and an external male BSP thread for the mating fitting.
The single grey nut is the pipe connection. The exposed black thread is the outlet that screws into the female component, so allow space to assemble the joint before fixing the pipe run in place.
One adapter supplied. The illustration leaves the male thread exposed to show its connection type; pipe and support clip are separate.
Identify the two connections
A pipe measurement and a nominal thread size describe different ends of this fitting.
Compression socket: 20mm
Check that your MDPE pipe measures 20mm across its outside diameter. This socket takes the plain pipe end; it is not a barb for pushing a flexible garden hose over.
Male thread: ½-inch BSP
Match the external thread to a compatible ½-inch BSP female connection. BSP is a nominal thread size, not a direct inch-to-millimetre measurement. Open “What is BSP?” in the product information below for help identifying the thread.
Leave room to assemble
Plan the threaded joint and pipe support before tightening the connections.
Prepare the pipe end
Isolate and depressurise the supply. Cut sound pipe square, clean the end and check the fitting guidance for insertion depth and any pipe-liner requirement.
Align the mating fitting
Start the BSP thread squarely. Use the sealing method suitable for the joint, avoid cross-threading or overtightening, and leave access to the compression nut.
Support the run
Support the pipe and attached component independently. Avoid using the elbow to carry their weight. Restore the water gradually and check both joints; operating conditions must suit the complete system.
Check the fit
Is the BSP outlet male or female?
This version is male: the threads are on the outside of the black outlet. It screws into a matching female BSP connection. Choose the separately specified female version when your mating component already has an external male thread.
Can I use the grey nut as a threaded pipe outlet?
No. The grey nut belongs to the compression connection around 20mm outside-diameter MDPE pipe. The BSP connection is the exposed black thread at the other end of the elbow.
Product information & technical details
| SKU | MDPEELB20-12BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| MDPE size | 20mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Bend angle | 90°. |
| Connections | 20mm MDPE compression × ½-inch BSP male. |
| Pressure designation | PN10. |
| Pack contents | One elbow adapter. Pipe, clips, mating fittings, seals and pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
