Description
Pipe to thread, at 90°

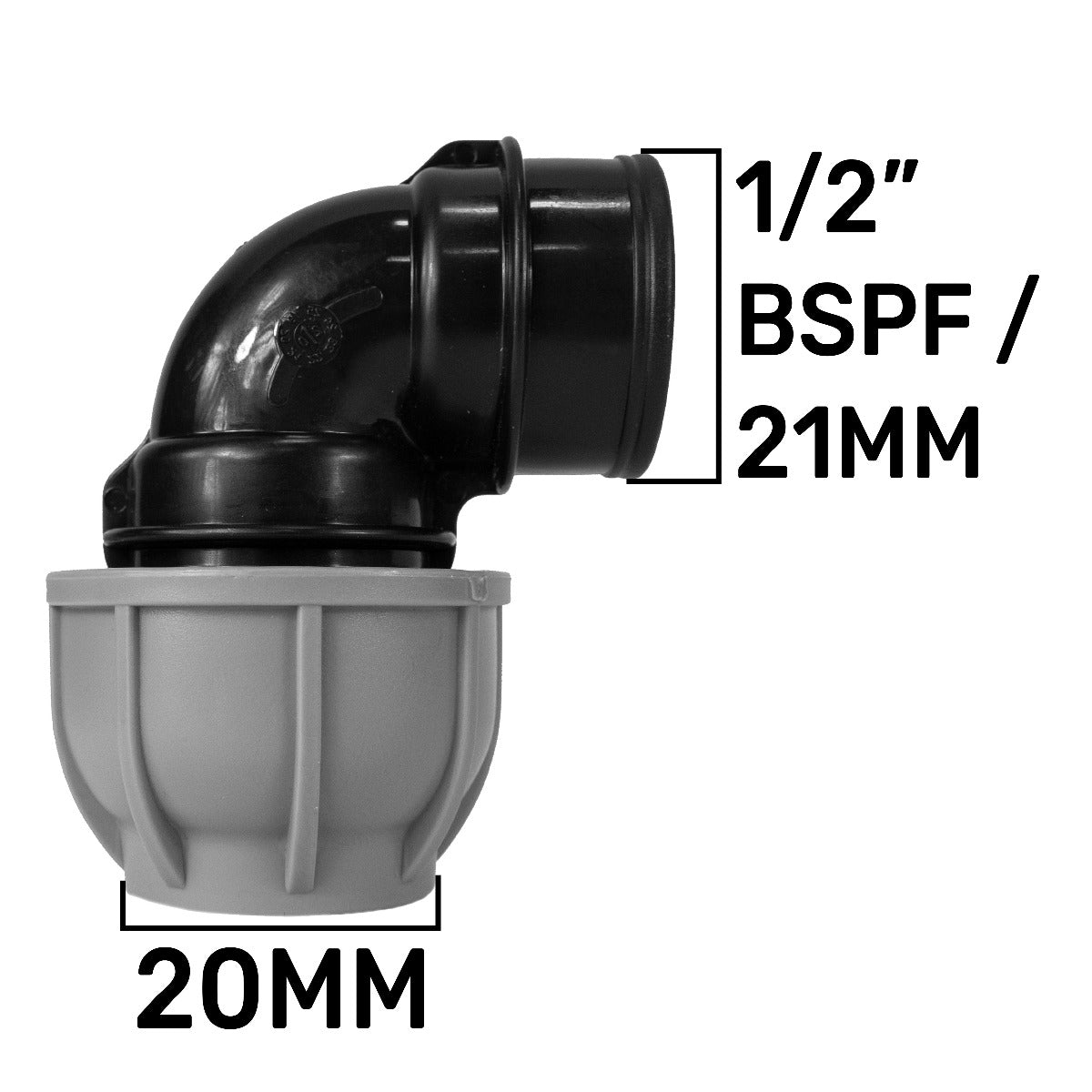

Bring a 20mm MDPE water pipe to a ½-inch female BSP outlet with a single right-angle adapter. The grey nut connects the pipe; the black threaded socket accepts a matching male BSP fitting.
Use it where a water-supply or irrigation run needs a threaded connection facing across the pipe's direction. It is a transition between two connection types, rather than an elbow joining two plain pipe ends.
One adapter supplied. The illustration shows a pipe connection in progress, with the female outlet left open so you can see its internal thread.
Two ends, two size checks
Check the pipe and the mating thread separately before ordering.
The pipe connection
The compression socket takes 20mm outside-diameter MDPE pipe. Measure the pipe itself, rather than the grey nut or the pipe's internal bore.
The threaded connection
The open black socket is ½-inch BSP female and needs a compatible male BSP fitting. BSP sizes are nominal thread designations: ½-inch does not mean a socket measuring 12.7mm across.
Make a supported connection
Allow access to the compression nut and space for the mating threaded fitting.
Prepare the pipe
Isolate and depressurise the supply. Cut sound MDPE pipe square, clean the end and follow the fitting guidance for insertion depth and any required pipe liner.
Match and assemble
Use a compatible male BSP fitting and sealing method appropriate to that joint. Start the thread squarely and avoid forcing or overtightening the plastic socket.
Support and inspect
Support the pipe and attached components independently so their weight does not strain the elbow. Restore water gradually and inspect both joints. Select conditions for the complete installation.
Before you order
Will it join two lengths of plain 20mm pipe?
No. Only one end is a 20mm compression connection. The other end is a ½-inch female BSP socket; choose a double-compression elbow when both connections need to accept plain pipe.
Does a garden hose push onto the threaded end?
No. The female socket is for a matching male BSP fitting, not a hose pushed over a barb. A hose connection would require a separately matched adapter and suitable hose fitting.
Product information & technical details
| SKU | MDPEELB20-12BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Female |
| MDPE size | 20mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Bend angle | 90°. |
| Connections | 20mm MDPE compression × ½-inch BSP female. |
| Pressure designation | PN10. |
| Pack contents | One elbow adapter. Pipe, clips, mating fittings, seals and pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
