Description
Make a 90° turn

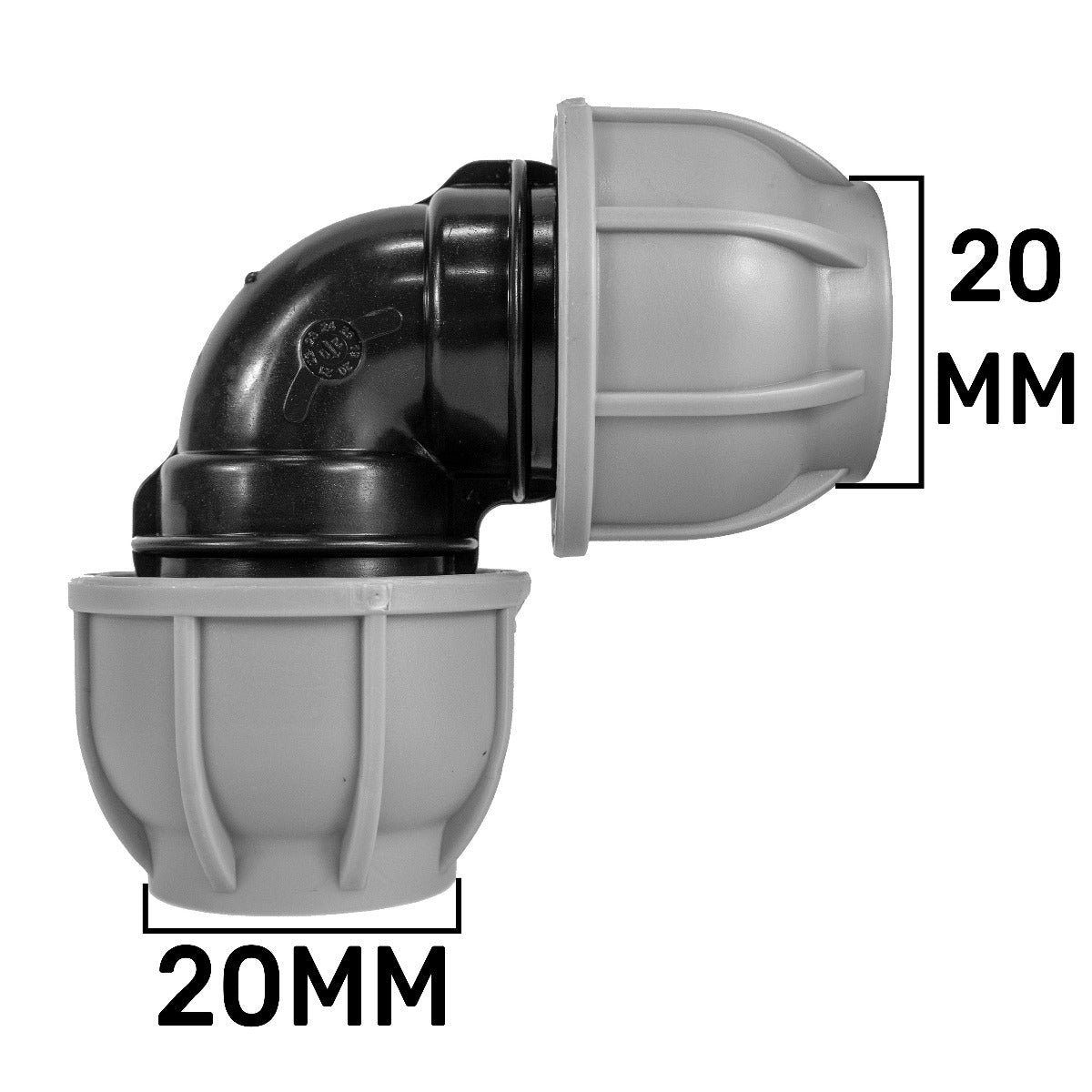

Change direction in a 20mm MDPE water line with this black elbow and its two grey compression nuts. It joins two pipe ends at a right angle, giving the run a defined turn without bending the pipe sharply.
Both connections accept 20mm outside-diameter MDPE pipe. This is an equal-size compression elbow, rather than a reducer or a threaded tap adapter.
One elbow supplied. The blue pipe and support clips in the illustration are separate installation components.
Match both pipe ends
Check the pipe outside diameter and connection type before ordering.
20mm at each end
Both sockets take 20mm outside-diameter MDPE pipe. The fitting keeps the same nominal pipe size through the bend; it does not reduce a larger pipe to a smaller one.
Compression, not BSP
The grey nuts form the compression connections around the pipe. They are not BSP outlets for screwing in a tap, and they are not hose tails for a flexible garden hose.
Plan the bend before joining
Keep the two pipe runs aligned with the elbow and supported independently.
Prepare the pipe
Isolate and depressurise the water supply. Cut sound pipe ends square and clean them, then follow the fitting guidance for pipe-liner requirements and insertion depth.
Make both connections
Seat each pipe in its compression socket and assemble the connection using the fitting guidance. Leave access to the nuts and avoid pulling the pipe sideways to force the bend into place.
Support and check
Support both pipe runs so their weight does not strain the joints. Restore the supply gradually and inspect both connections before use. Match operating conditions to the complete installation.
Choosing this elbow
Is 20mm the pipe's inside or outside diameter?
It is the outside diameter of the MDPE pipe that enters each compression socket. Check the pipe itself rather than measuring the outside of the grey nut.
Does it join different pipe sizes or provide a threaded outlet?
No. This version has two equal 20mm compression ends. Choose a suitable reducing fitting for different pipe sizes, or a separately specified threaded adapter when a BSP connection is needed.
Product information & technical details
| SKU | MDPEELB20001 |
|---|---|
| Product type | |
| MDPE size | 20mm |
| Colour | Black, Grey |
| Material | Plastic |
| Bend angle | 90°. |
|---|---|
| Connections | 20mm MDPE compression at both ends; pipe size refers to outside diameter. |
| Pressure designation | PN10. |
| Pack contents | One elbow. Pipe, support clips and pipe liners are not included. |
