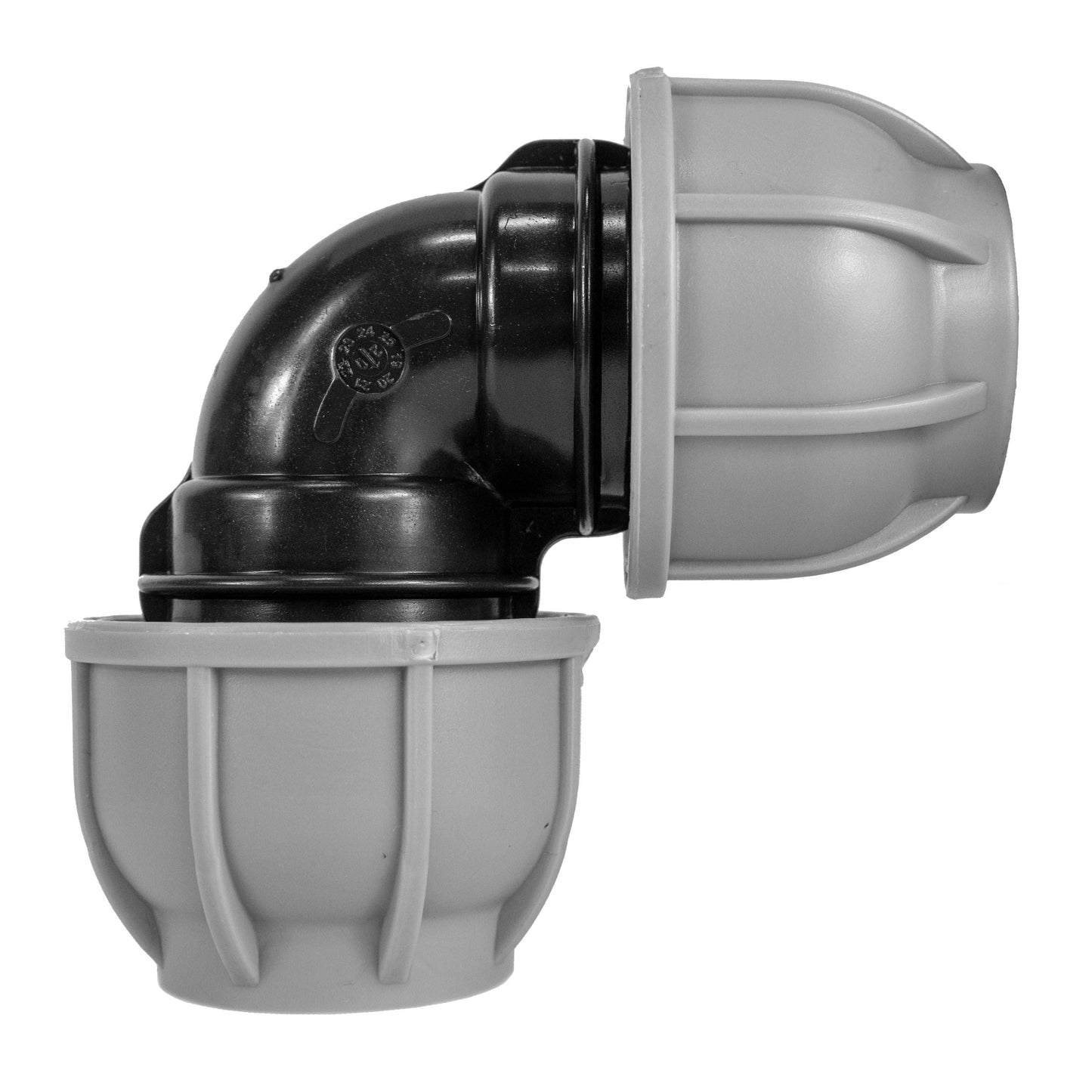

Equal compression
Join two pipes of the same outside diameter through a right angle. Both ends use compression connections.
Description

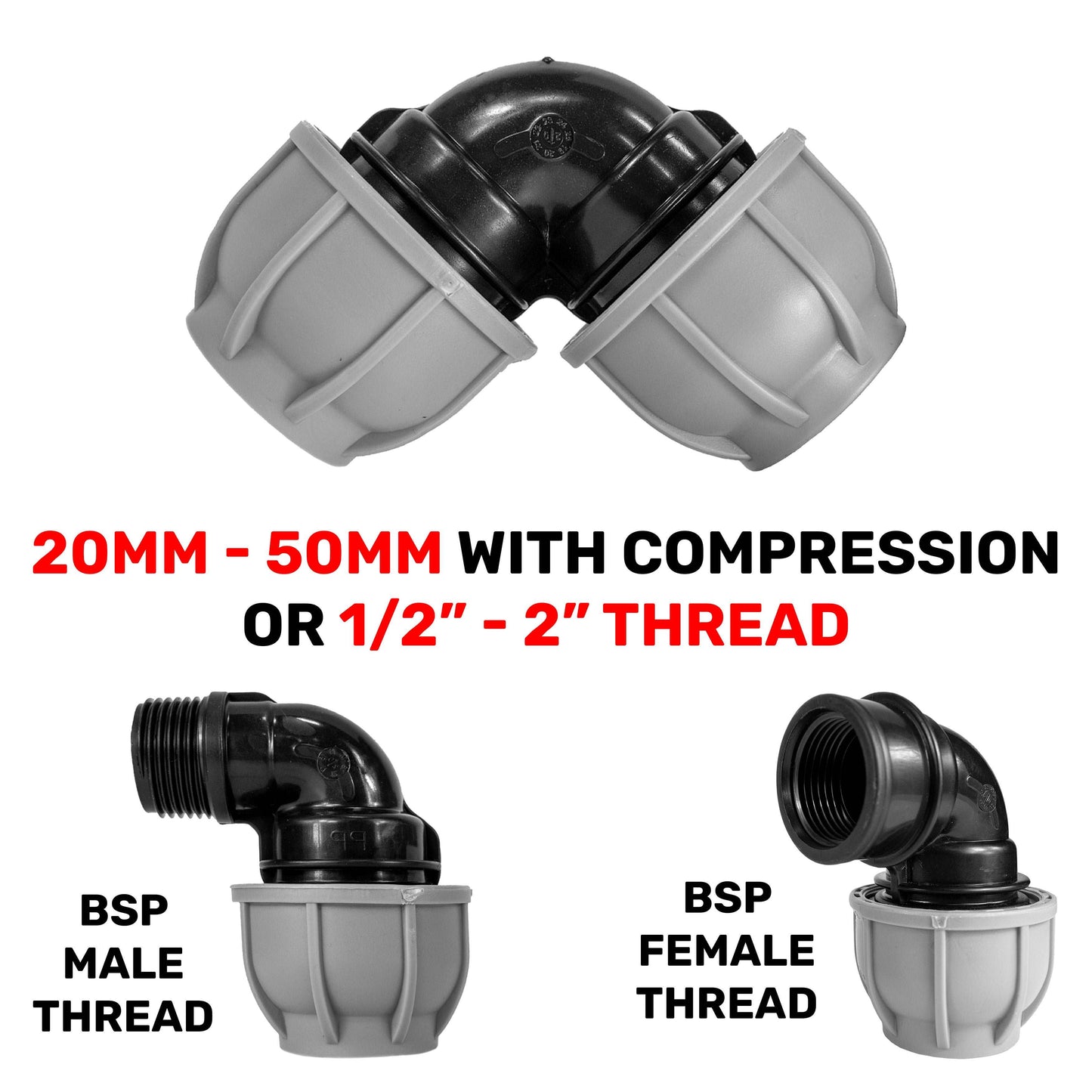

Choose the right MDPE elbow
Take your pipework around a 90° corner with an equal compression elbow, or change from MDPE pipe to a BSP-threaded connection at the turn.
Choose by pipe outside diameter, connection type and, where applicable, BSP size. Each option supplies one elbow. The photographs below explain the three connection styles; select the exact size above.

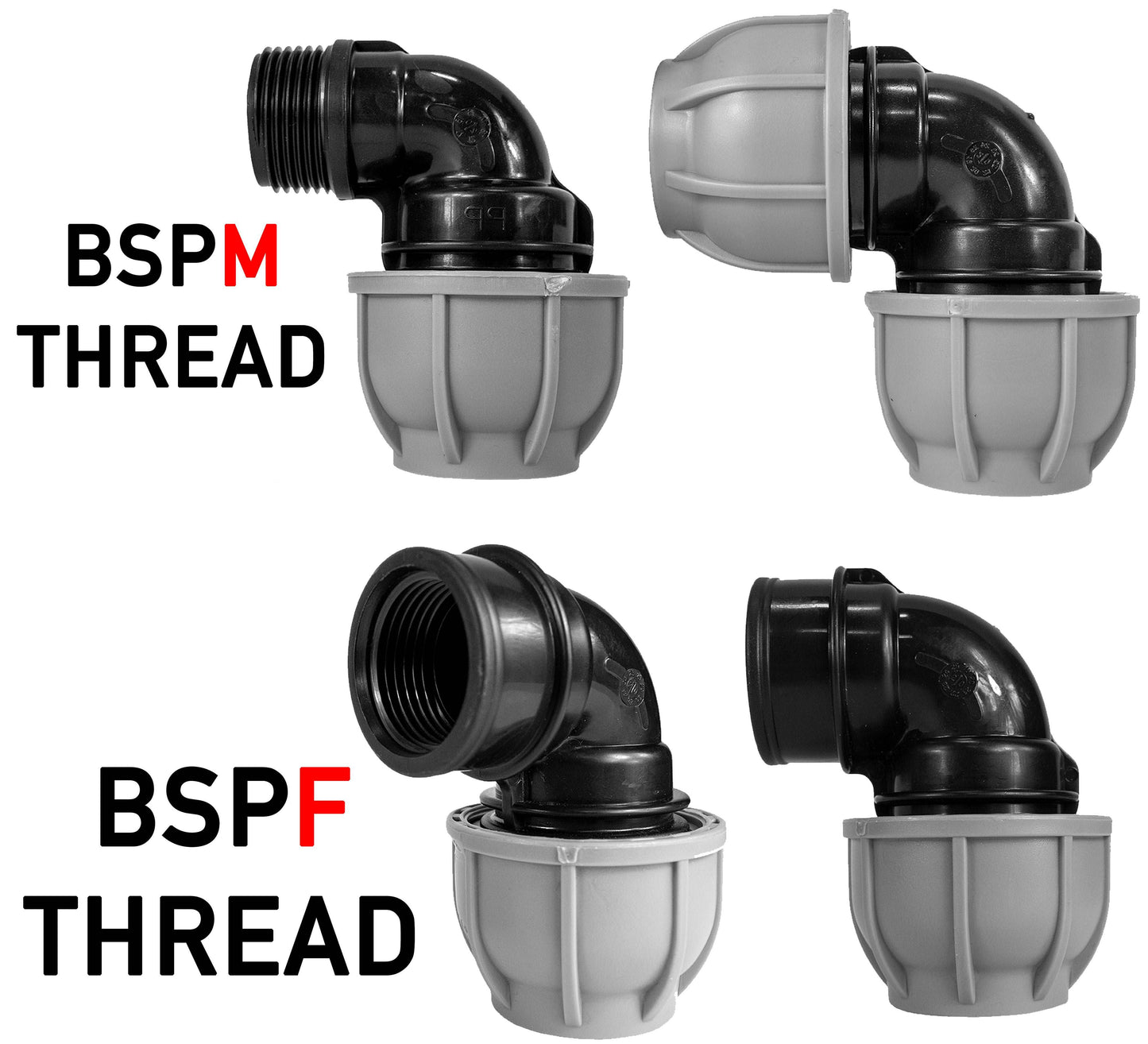

Which connection do you need?
Look at what will connect to each end before choosing a size.

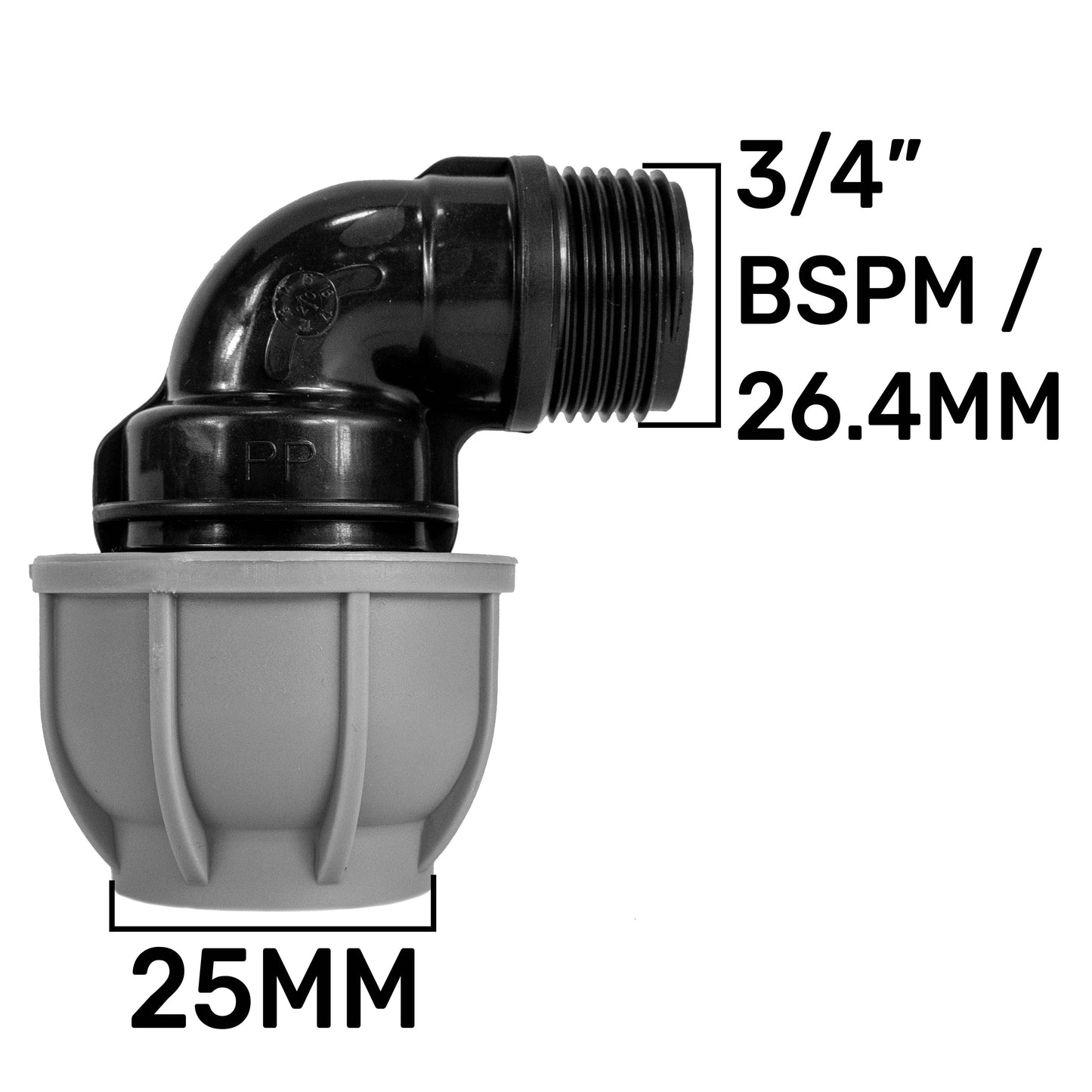

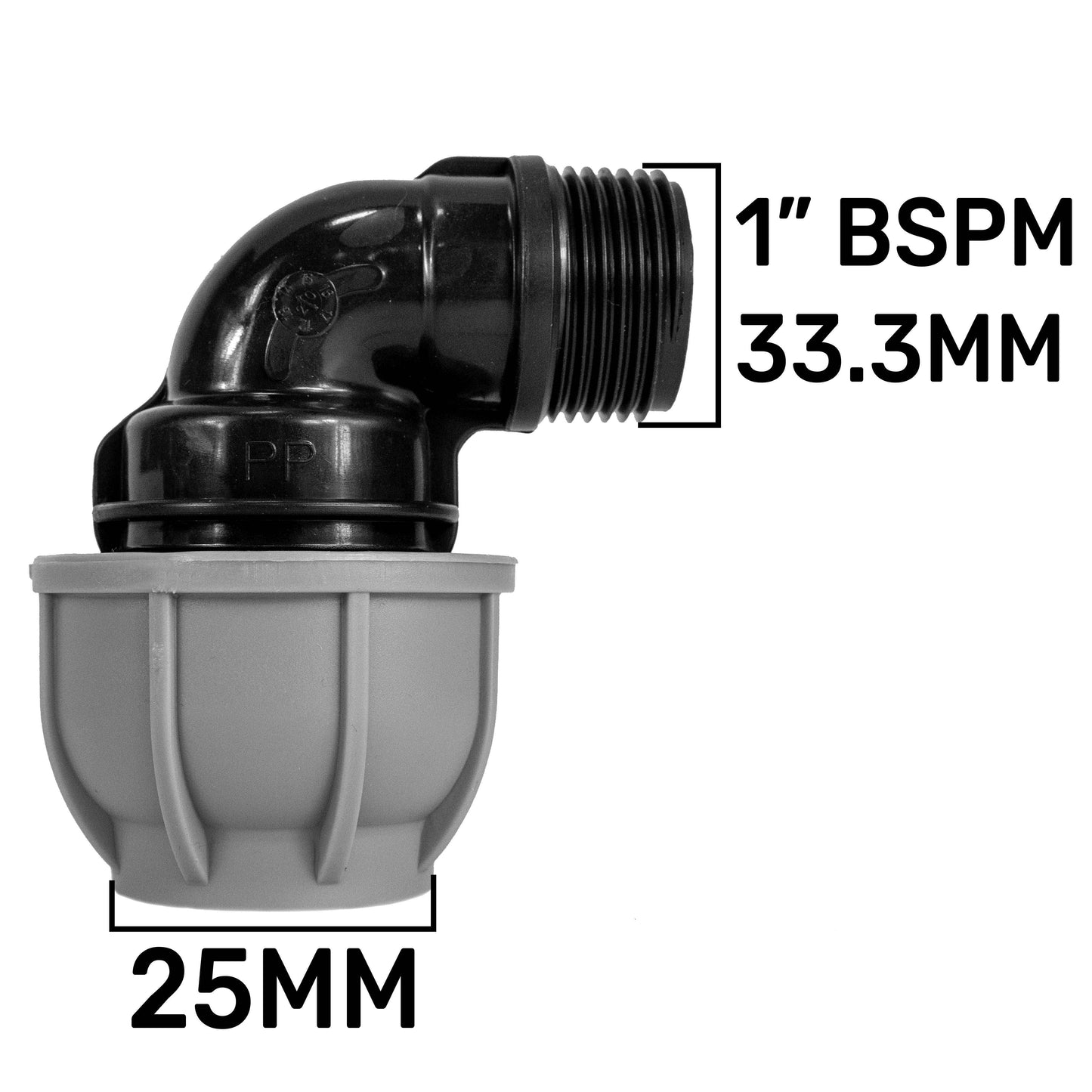

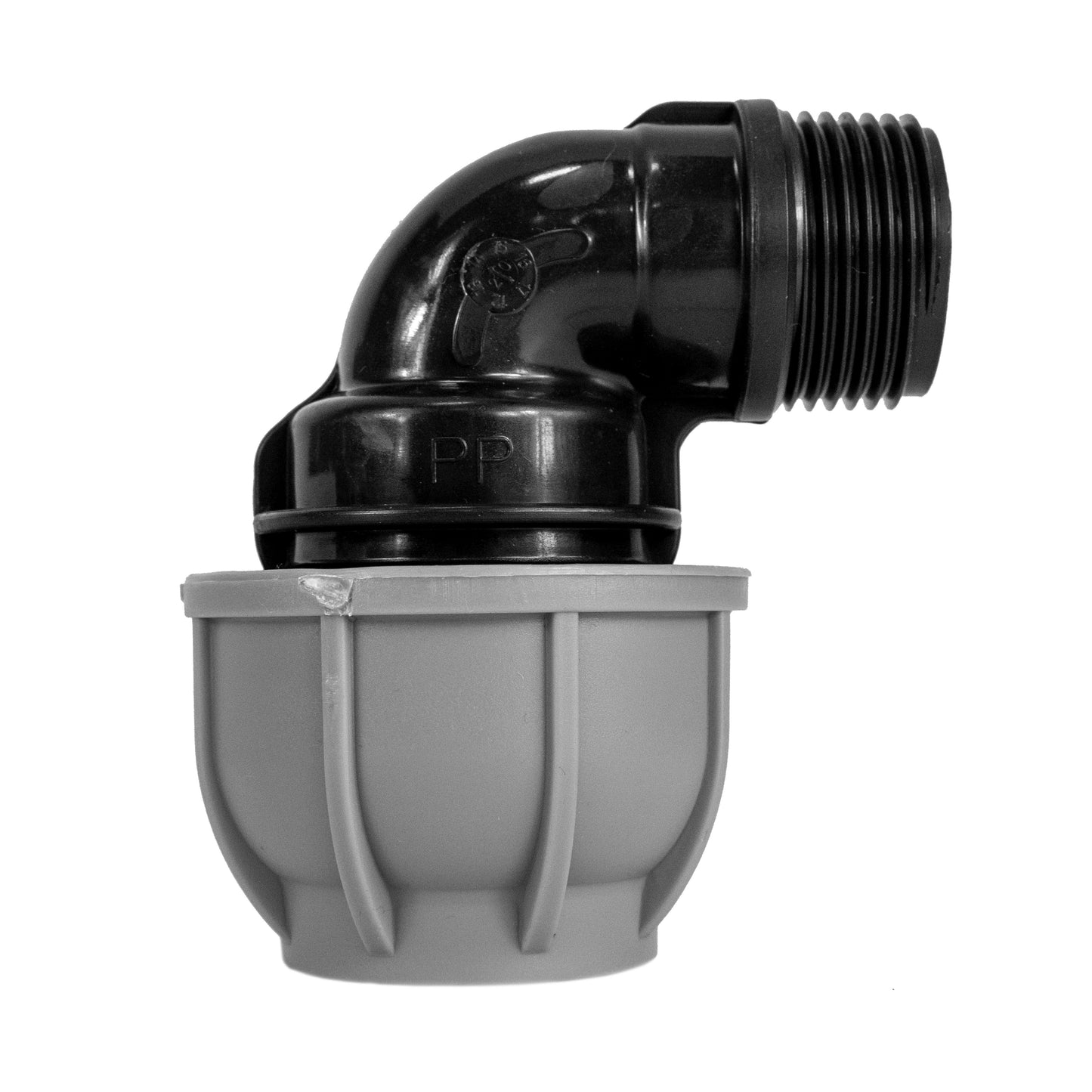

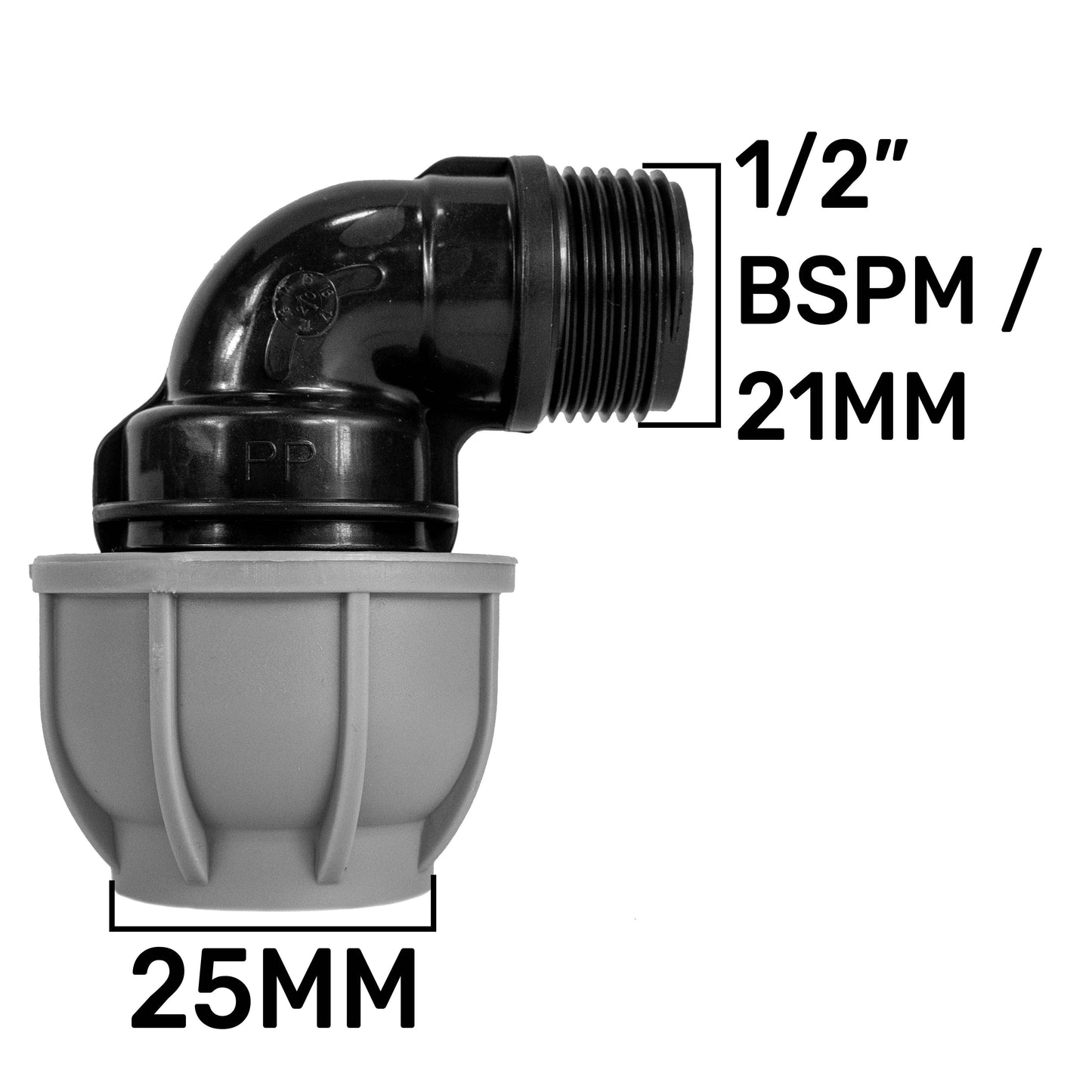

Compression to BSP male
Connect MDPE pipe to a compatible female BSP component. The male thread is on the outside of the black outlet.

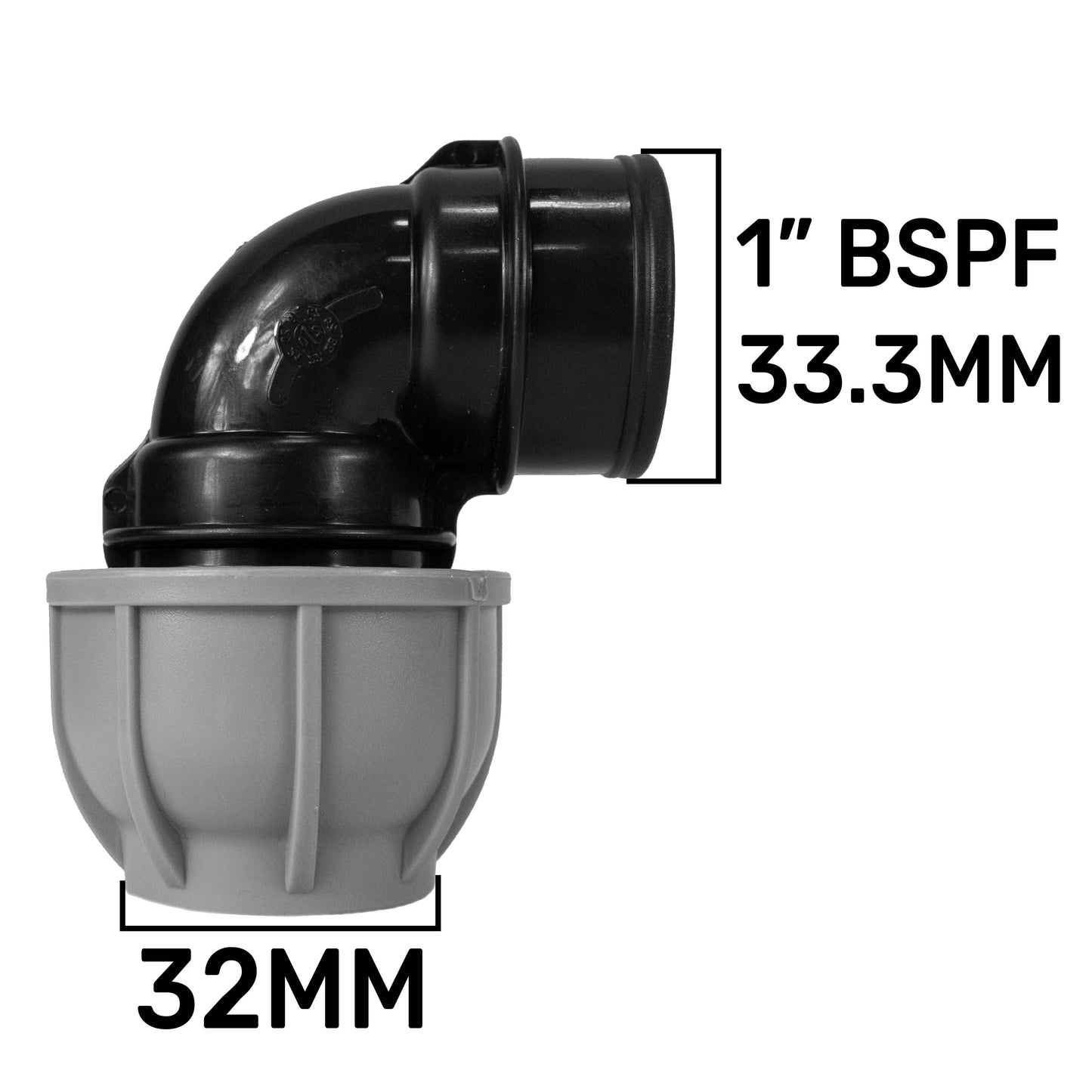

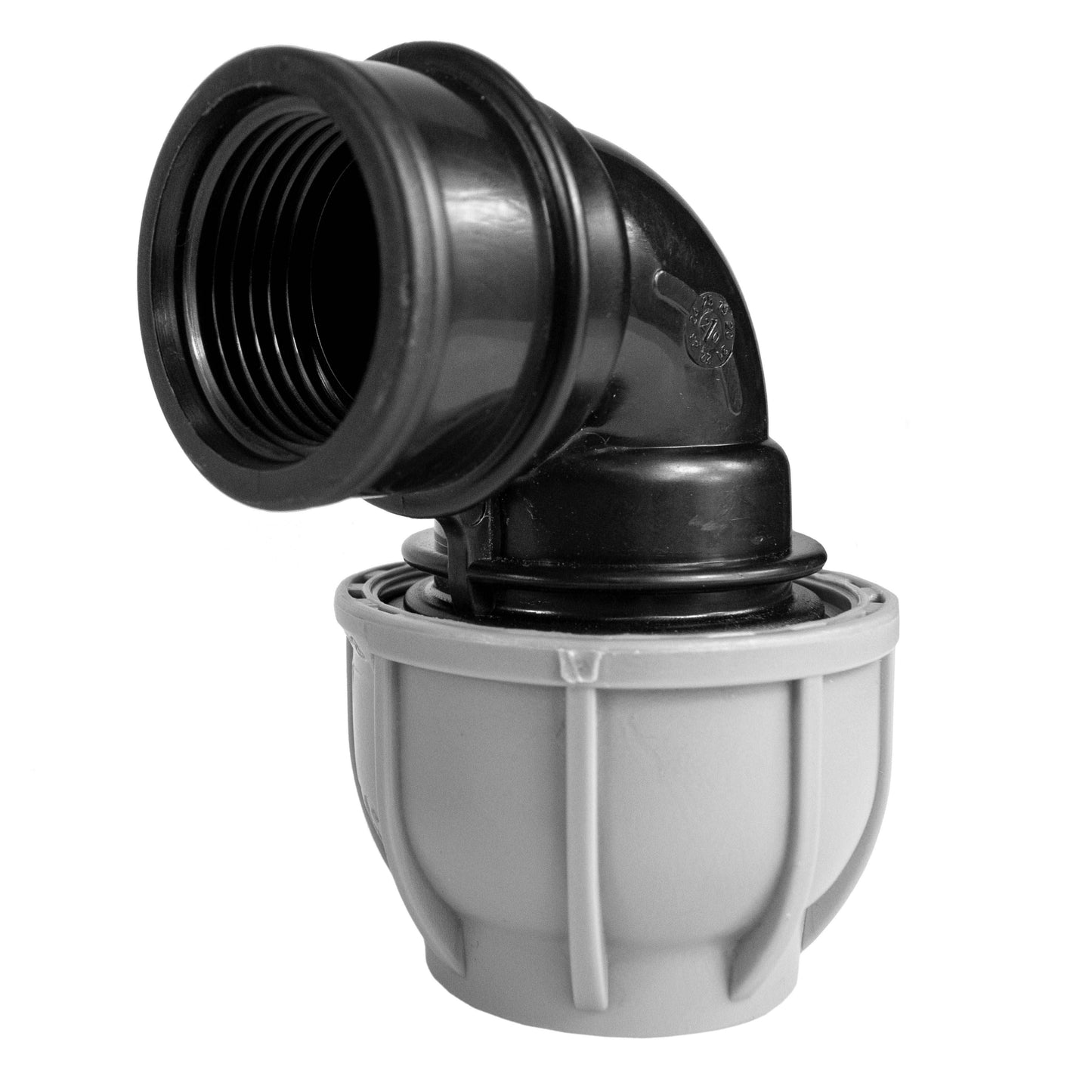

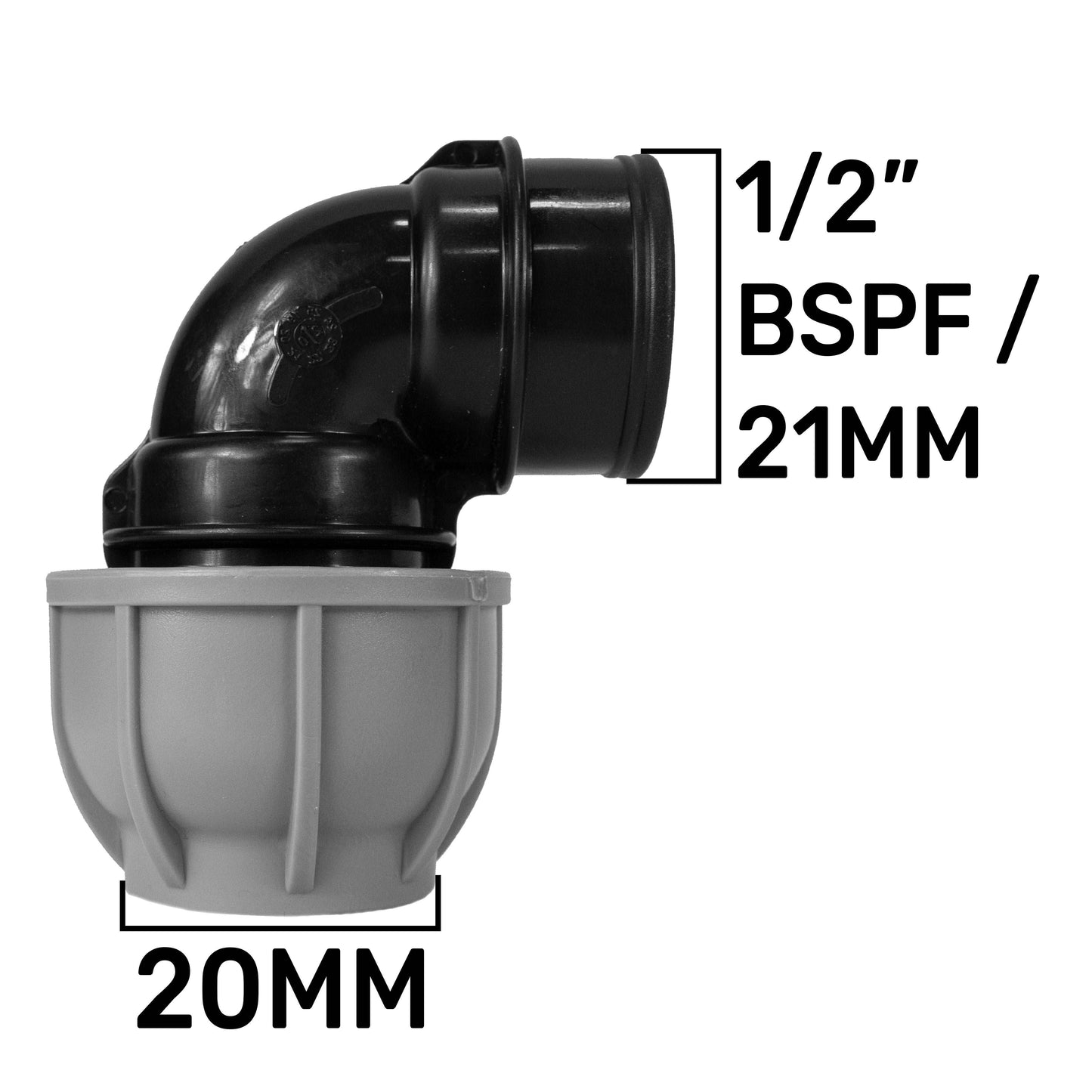

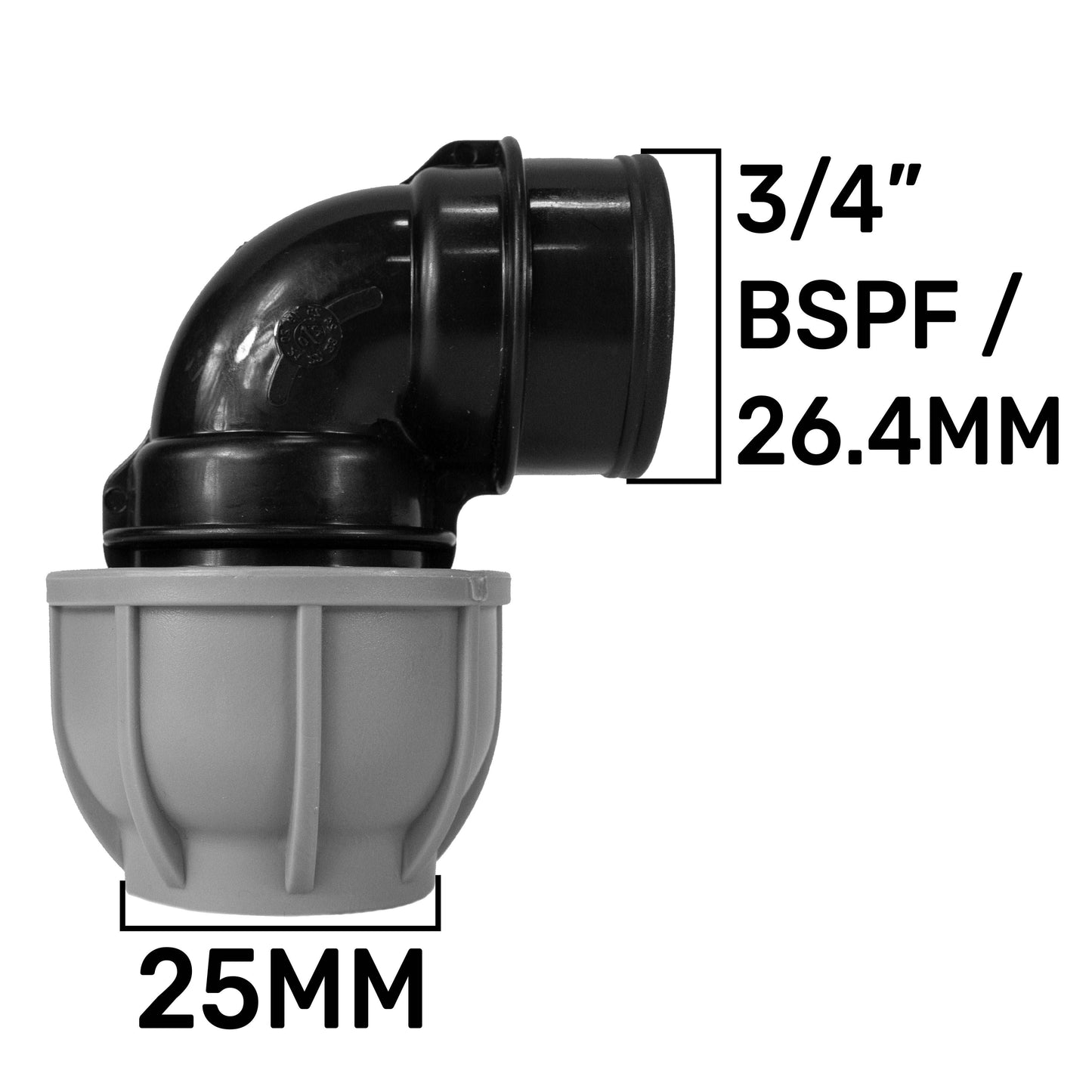

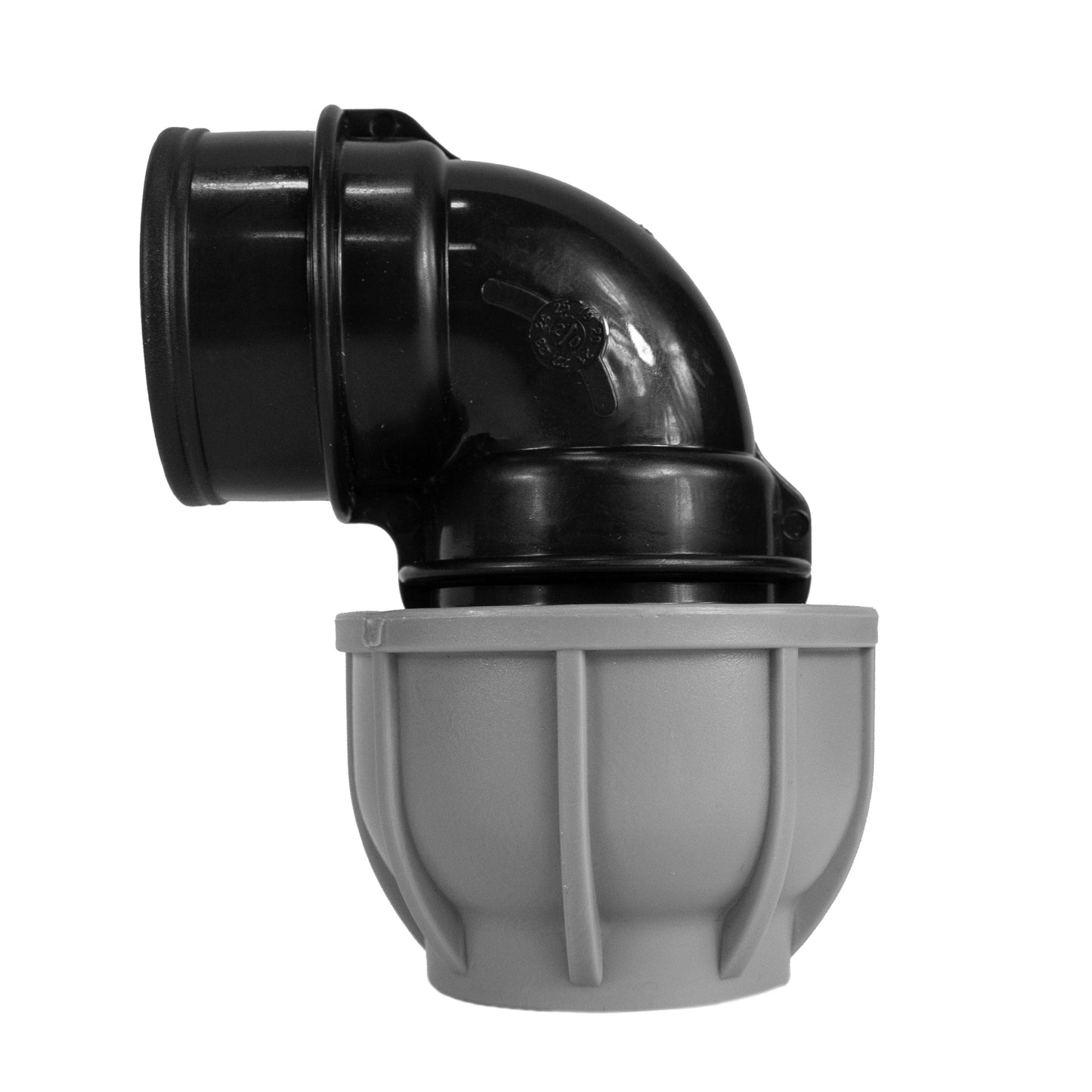

Compression to BSP female
Connect MDPE pipe to a compatible male BSP component. The female thread is inside the black socket.
Sizes in this range
The selector lists the available combinations. Not every pipe size has every threaded option.
- 20mm pipe
- 20mm equal, or ½-inch and ¾-inch BSP male or female.
- 25mm pipe
- 25mm equal, or ½-inch, ¾-inch and 1-inch BSP male or female.
- 32mm pipe
- 32mm equal, or ¾-inch and 1-inch BSP male or female.
- 40mm pipe
- 40mm equal compression.

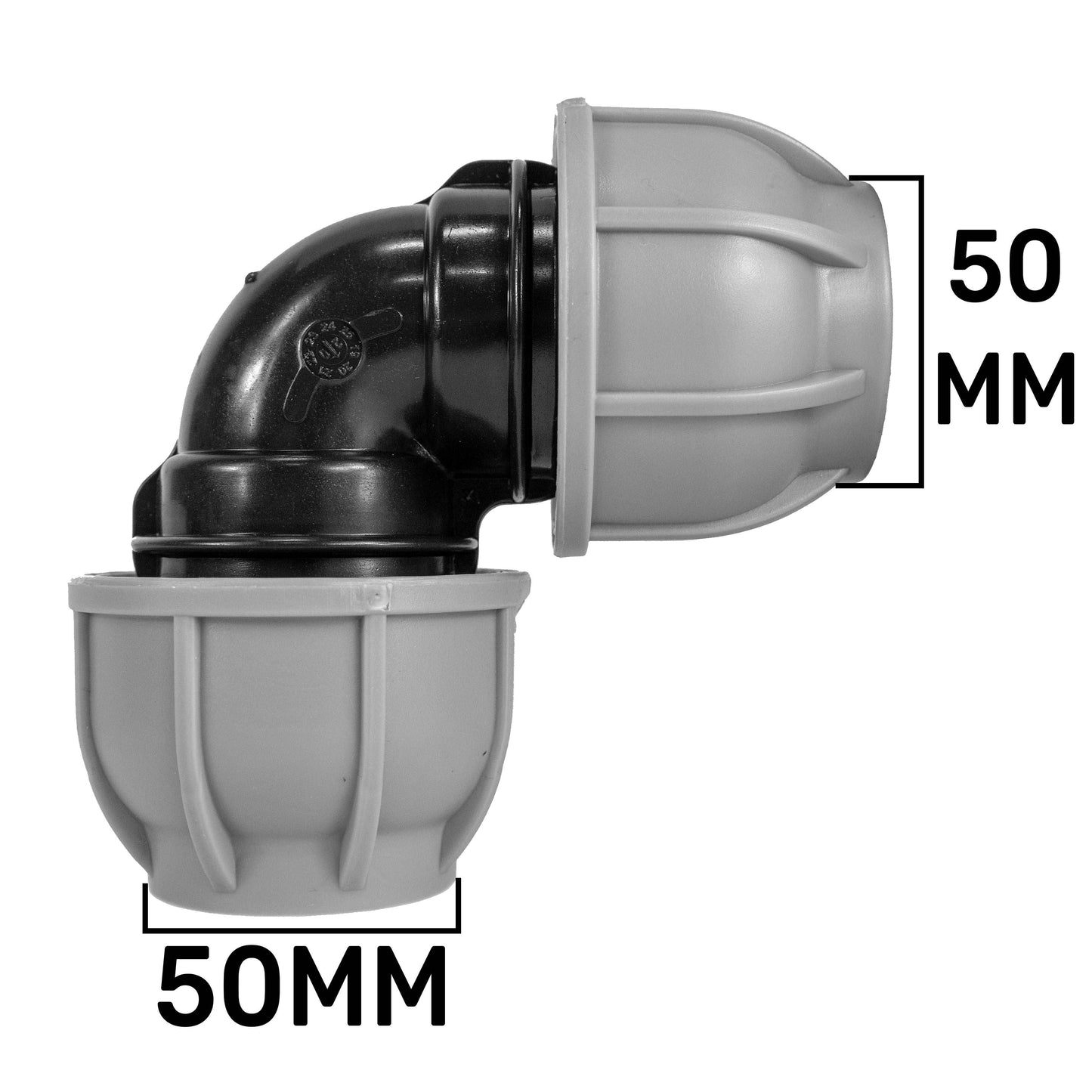

- 50mm pipe
- 50mm equal compression, or 2-inch BSP male.
Metric pipe sizes refer to the outside diameter of the pipe. BSP sizes are nominal thread sizes, not a direct inch measurement of the opening. See “What is BSP?” in the product information for thread-identification guidance.
Plan the corner before assembly
Leave access to the nuts and threaded joint, with support for the adjoining pipework.
Prepare the pipe
Isolate and depressurise the supply. Cut sound MDPE pipe square and clean the end. Follow the fitting guidance for insertion depth, assembly and any required pipe liner.
Match threaded parts
For a BSP option, match both nominal size and thread gender. Align the joint squarely and use an appropriate sealing method; avoid cross-threading or overtightening the plastic body.
Support and check
Support the pipe and attached component separately. Restore the supply gradually and inspect each joint. Suitability depends on the complete assembly and its service conditions.
Before you order
Is the full range supplied together?
No. Each order quantity supplies one elbow in the selected option. Pipe, clips, mating fittings, separate seals and pipe liners are not included.
Can I use the grey nut as a BSP connection?
No. The grey nut belongs to the MDPE compression connection. On a threaded option, the separate black male or female outlet is the BSP connection.
Product information & technical details
| SKU | MDPEELB20001[#ML] |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4", 1", 2" |
| Thread gender | Male, Female |
| MDPE size | 20mm, 25mm, 32mm, 40mm, 50mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Bend angle | 90°. |
| Connection styles | Equal compression, compression to BSP male, or compression to BSP female; depends on selected option. |
| Pressure designation | PN10. Suitability depends on the full assembly and service conditions. |
| Pack contents | One elbow in the selected size and connection type. Pipe and installation accessories are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
