Description
A fixed connection for your 25mm supply.
Mount the end of your 25mm MDPE pipe run at a wall or panel, with a ¾-inch BSP female connection ready for a separate tap, valve or adapter.

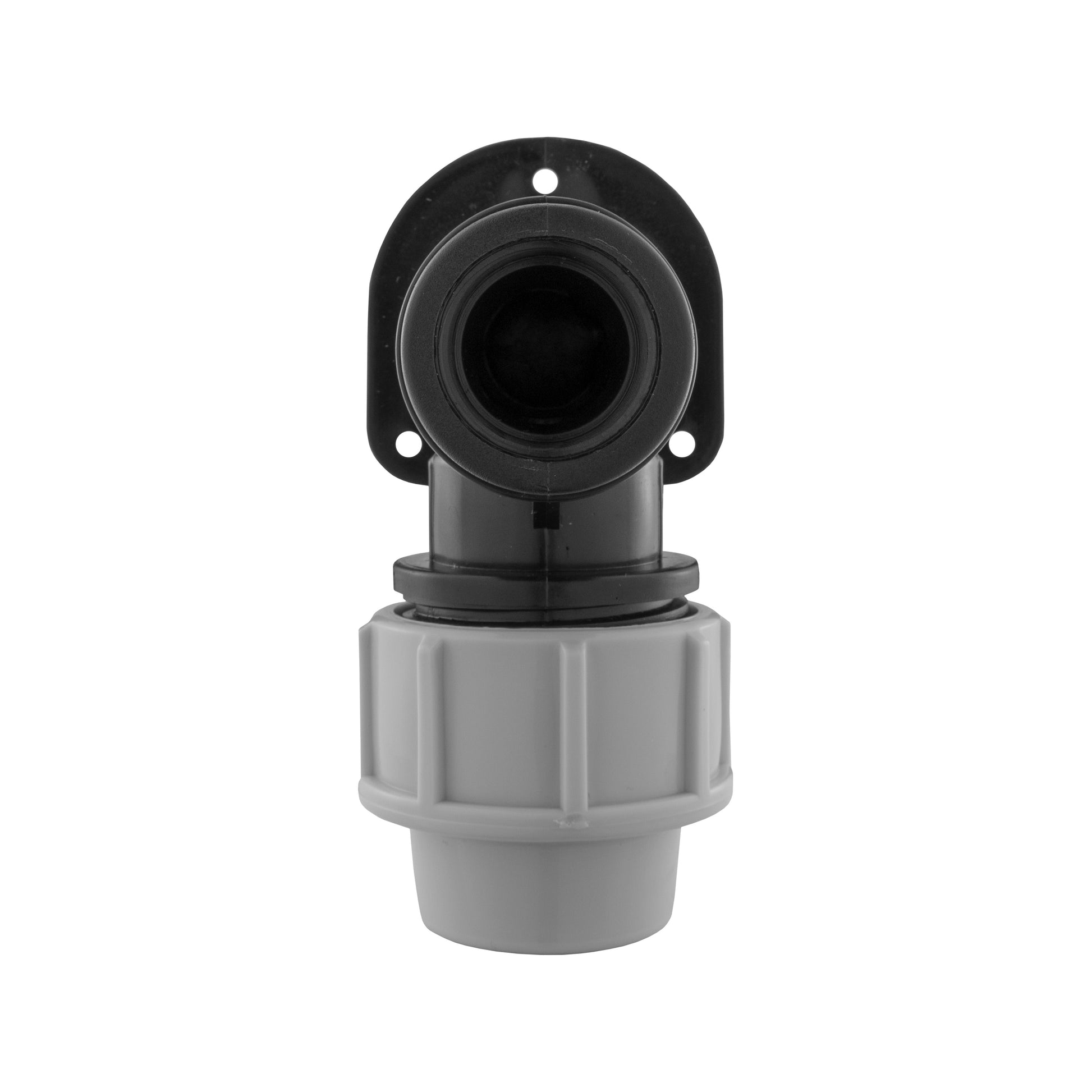

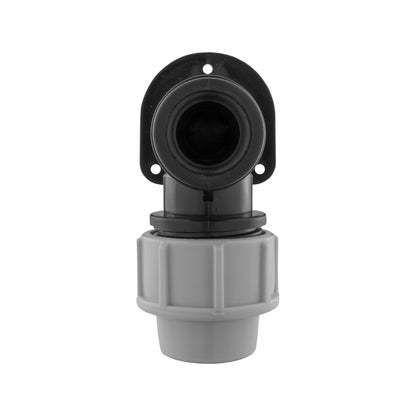

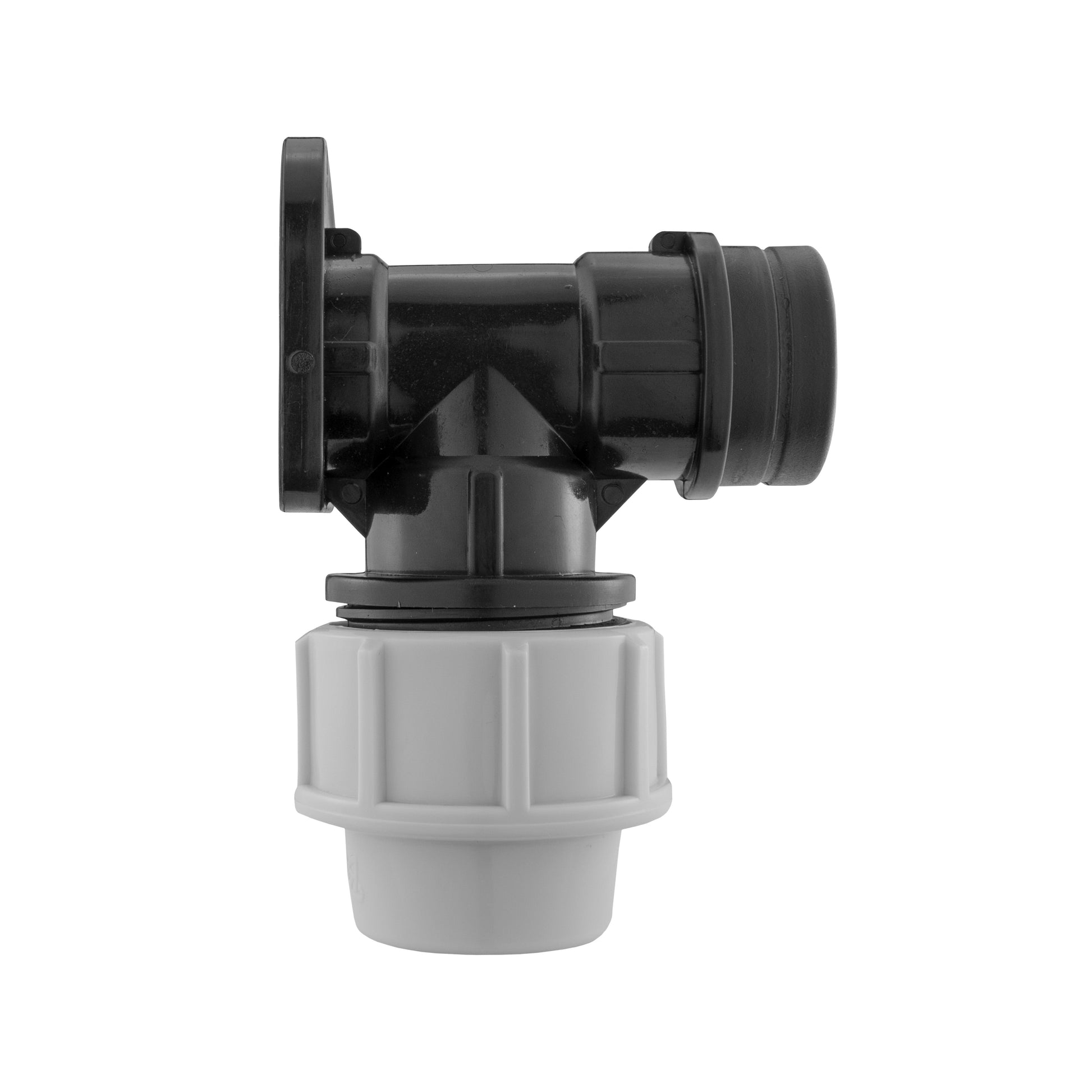

This bare wall flange combines a lower compression inlet with a forward-facing ¾-inch BSP female outlet. Its mounting plate secures the connection at the surface rather than leaving the outlet supported only by the pipe.
Match each side of the connection
The pipe size and thread size describe different connections.

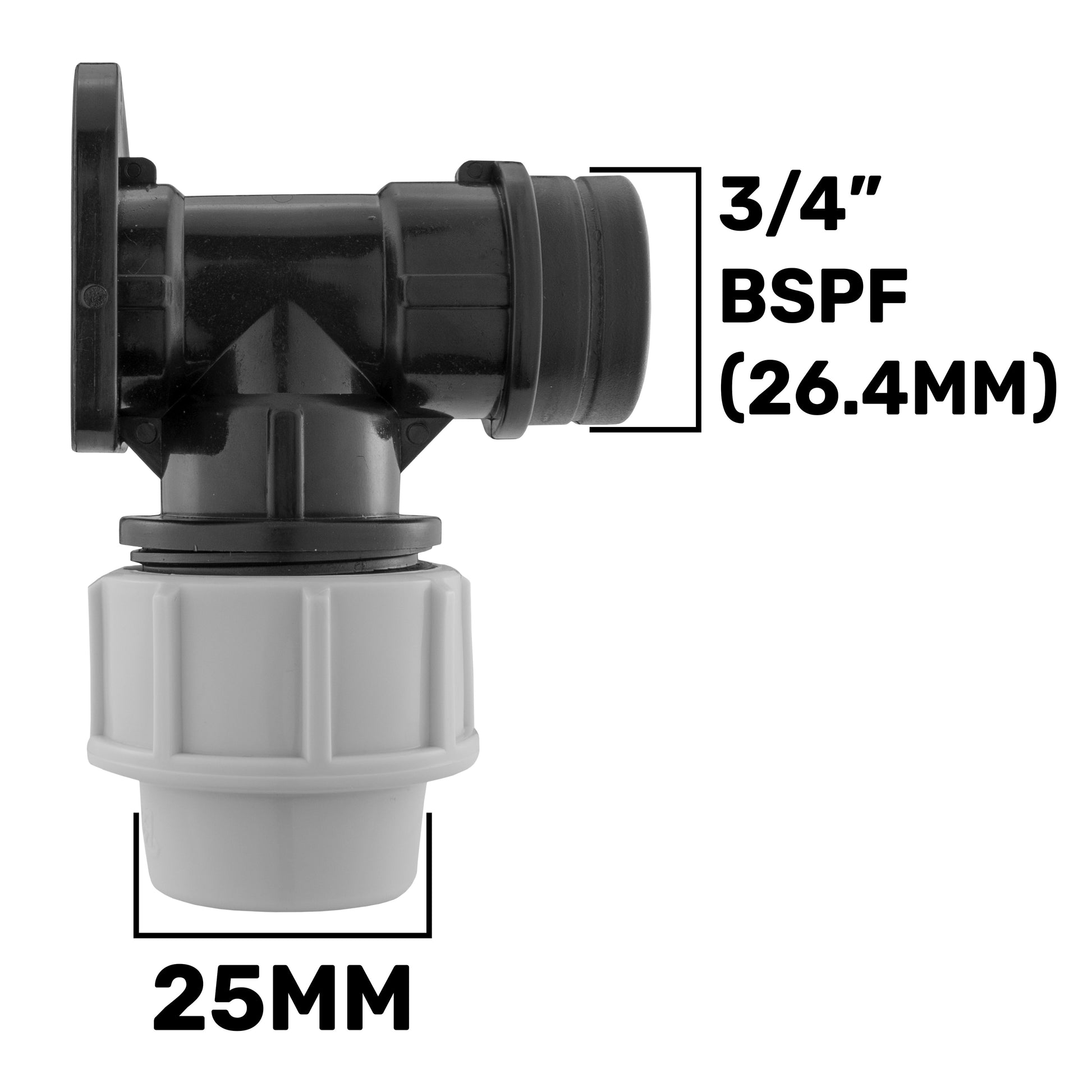

- Supply pipe: 25mm outside diameter
- The lower compression socket takes 25mm MDPE pipe. Measure the outside of the pipe, not its bore.
- Outlet: ¾-inch BSP female
- Choose a matching ¾-inch BSP male tap, valve or adapter. BSP is a nominal thread size; it is not a direct inch-to-millimetre measurement of the socket.
- Supplied: one wall flange

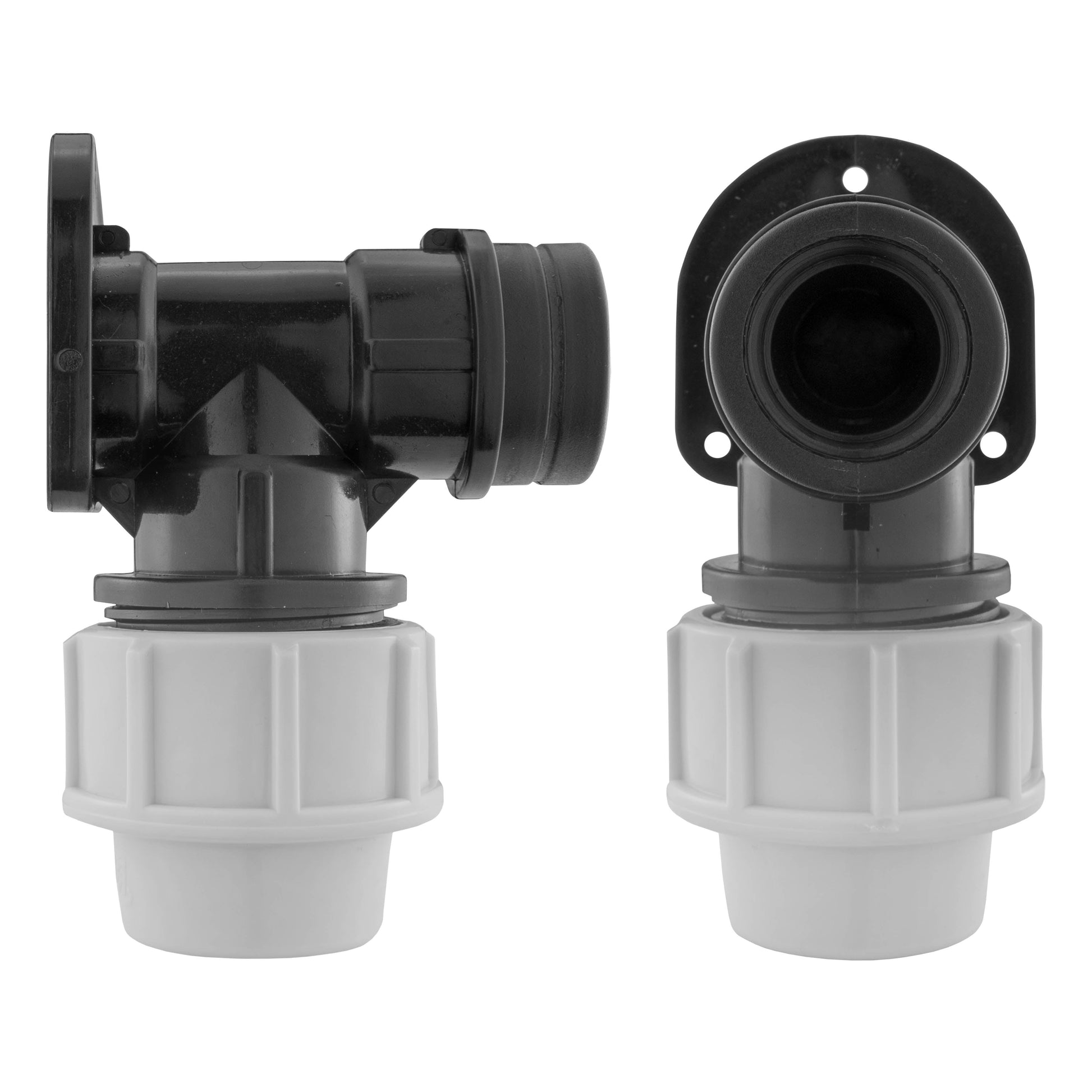

- One fitting is supplied. The gallery’s front-and-side image shows the same component from two angles; a tap, hose connector or shut-off valve is not included.
Secure the flange. Support the pipe.
Leave access for assembly and the outlet you plan to fit.
Use the mounting holes with fixings appropriate to the wall or panel. Support the incoming pipe independently so its movement and weight are not carried by the threaded outlet.
Follow the compression-fitting instructions and fit a compatible pipe liner where required. Use a suitable seal on the threaded connection without overtightening plastic parts, then check the installation before use. Isolate and depressurise the supply before dismantling. The fitting’s PN10 pressure class does not override a lower limit elsewhere in the system.
Check before ordering
Does this include a tap or turn the water off?
No. This listing supplies the bare wall flange only. Fit a suitable separate tap or valve if you need on/off control; the backplate itself has no shut-off mechanism.
Will 20mm MDPE pipe fit this flange?
No. This version takes 25mm outside-diameter MDPE pipe and has a ¾-inch BSP female outlet. Choose a flange specifically sized for 20mm pipe if that is what your supply uses.
Want a backplate supplied with a tap or outlet fitting? Browse the MDPE wallplate tap kits and check the inlet size and included parts for your chosen kit.
Product information & technical details
| SKU | MDPEWF25-34BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| MDPE size | 25mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Pressure class | PN10 (10 bar) for this fitting. Other components may set a lower system limit. |
| Supplied quantity | 1 × bare 25mm MDPE wall flange; no tap or valve included. |
| Mounting | Fix through the flange plate to a suitable wall or panel. Fixings and pipe supports are separate. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
