Description
Fill your watering can

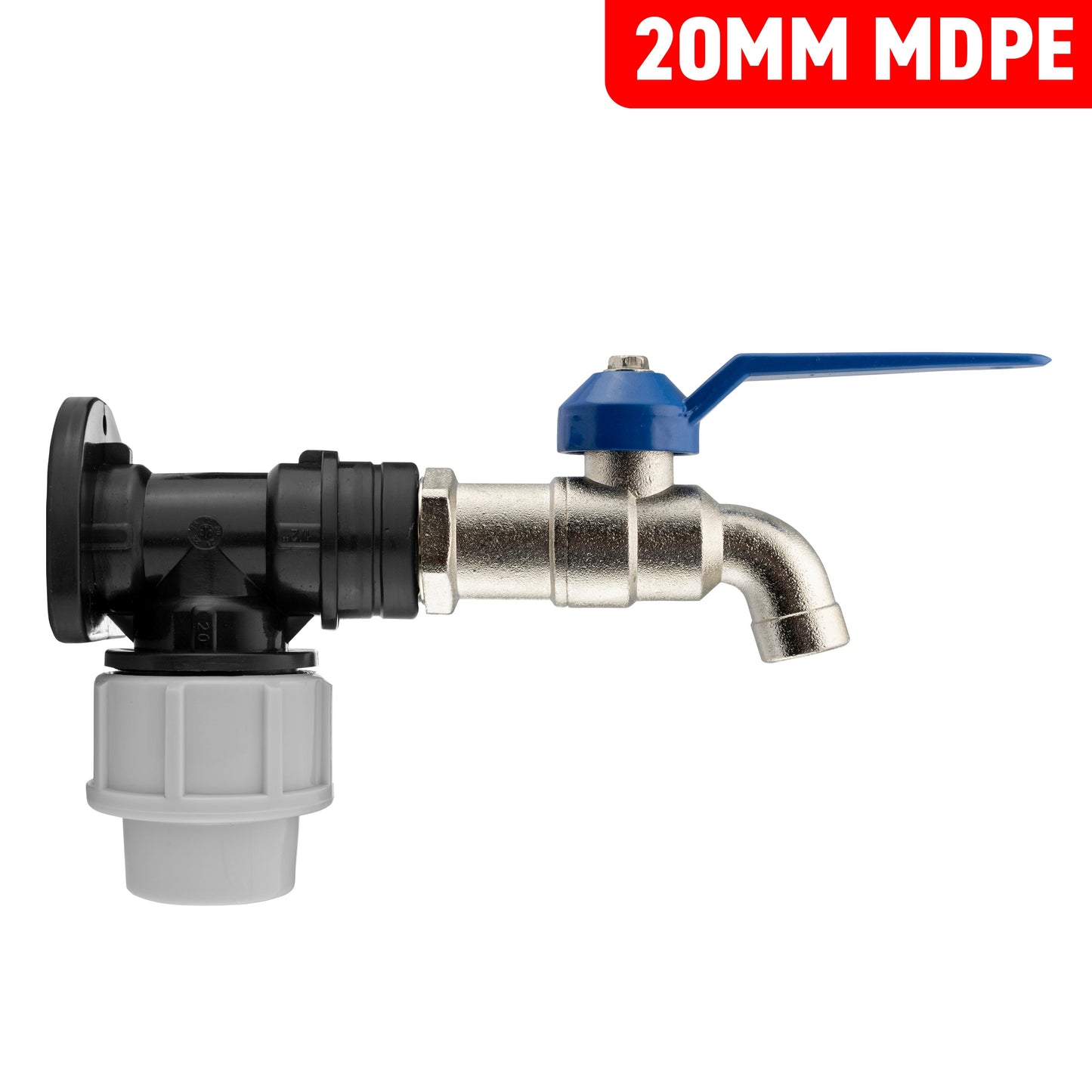

Give your watering can a convenient filling point near the plants. This 20mm MDPE wall flange and garden lever tap kit turns a supported pipe supply into a fixed tap for filling open containers.
The blue lever controls a plain, unthreaded spout. There is no hose connector to fit or leave attached: place your can or bucket beneath the outlet and use the water where you need it.
Check the supply and outlet
This is a container-filling tap. The pipe connection and tap inlet are different sizes with different jobs.
20mm MDPE pipe
The grey compression nut takes MDPE pipe with a 20mm outside diameter. Check the pipe itself, rather than its bore or the width of the nut.
½-inch BSP joint
The black flange has a female thread; the tap has a matching male inlet. BSP is a nominal thread size, not a 12.7mm pipe measurement.
Plain filling spout
The downward outlet has no hose thread, barb or snap-on plug. Choose this version for free discharge into a container, rather than connecting a garden hose.
Make room for the can
Position the outlet where you can reach the lever and slide your usual container underneath.
Plan the mounting point
Use a sound wall or suitable panel with appropriate fixings through the three-hole backplate. Leave clearance for the lever and space below the spout. Support heavy containers independently.
Prepare the connections
Isolate and depressurise the supply. Cut the MDPE pipe cleanly and squarely, then follow the pipe and fitting instructions for any liner, insertion depth and compression-nut tightening. Use the specified sealing method at the threaded joint.
Support and check
Support the pipe separately so it does not pull on the flange. Restore the water gradually and inspect each joint before use. The kit includes the flange and nickel-plated zinc tap; installation extras and PTFE tape are separate.
Before you order
Can I attach my garden hose to this tap?
This version is intended for standalone filling. Its outlet has no hose connection, so do not choose it for a direct hose attachment. Select a tap with a suitable barbed or quick-connect outlet if that is your main use.
Is the tap brass?
No. The supplied blue-lever tap has a nickel-plated zinc body. The kit contains one tap and one black-and-grey MDPE wall flange; pipe, fixings, supports, sealing materials and containers are not included.
Product information & technical details
| SKU | WF20KIT006[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm |
| Kit parts | 20mm MDPE Wall Flange, Nickel-plated Zinc Plain-spout Lever Tap |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Inlet connections | 20mm outside-diameter MDPE pipe; ½-inch BSP female flange socket; matching ½-inch BSP male tap inlet. |
| Tap material and outlet | Nickel-plated zinc body, blue lever control and plain unthreaded spout. No hose barb or quick connector. |
| Mounting | Three-hole wall backplate. Support the supply pipe separately and allow clearance for the lever and filling container. |
| Installation extras | MDPE pipe, any required pipe liners, pipe supports, wall fixings and thread-sealing materials are not included. No PTFE tape supplied. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
