20mm kit
Supply pipe: 20mm outside-diameter MDPE.
Flange socket: ½-inch BSP female.
Tap inlet: ½-inch BSP male.
Description
One supply. Two outlets.

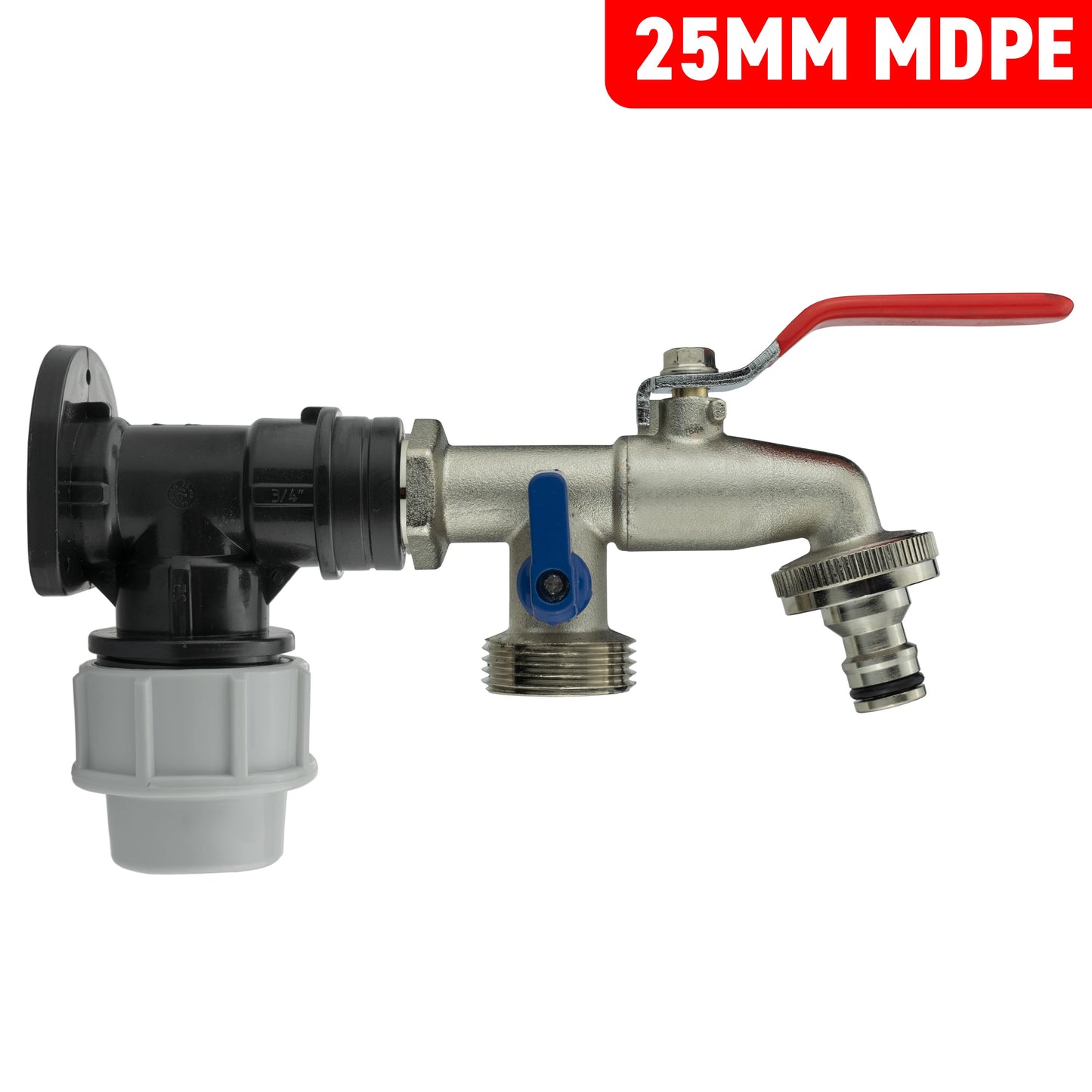

Keep a garden hose on the front connection and leave a second outlet available for a compatible threaded fitting. This MDPE wall flange and double-outlet tap kit brings both connections to one accessible watering point.
The nickel-plated brass tap has a larger lever for the front snap-on outlet and a small blue lever for the lower BSP threaded branch. Choose the flange to suit your 20mm or 25mm MDPE supply pipe.
Match your MDPE supply
Both kits provide the same two outlet types. The size choice changes the supply flange and tap inlet.
25mm kit
Supply pipe: 25mm outside-diameter MDPE.
Flange socket: ¾-inch BSP female.
Tap inlet: ¾-inch BSP male.
Connect each outlet correctly
The front adapter and lower thread accept different fittings; the hose does not push straight onto either as a barbed connection.
Front: snap on the hose
Fit a compatible female hose-end connector to your hose, then seat it on the supplied male quick-connect adapter. The larger top lever controls this outlet. Isolate the outlet before disconnecting the hose.
Below: match the thread
The downward-facing BSP male branch has its own small blue valve. Use a matching female threaded fitting or adapter for the equipment you want to connect. Check thread compatibility and the required sealing method before assembly.
At the wall: support the supply
Isolate and depressurise before installation. Fix the three-hole flange to a sound surface and support the MDPE pipe separately. Follow the pipe and fitting instructions for preparation, liners, insertion and tightening; restore the supply gradually and inspect all joints.
Planning your connections
Are both outlets quick-connect?
No. The curved front outlet has the supplied male snap-on adapter and needs a compatible female hose-end connector. The separate lower outlet is a BSP male thread with its own blue valve, so it needs a matching threaded fitting or adapter. These extra fittings and the hose are not supplied.
Can I use both outlets together?
The two outlets have separate valve controls. The flow available to each connected item still depends on your supply and what else is running; this tap does not increase supply pressure or guarantee equal flow. Allow enough space for both fittings, the levers and the hose when positioning the wall flange.
Product information & technical details
| SKU | WF20KIT005[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm, 25mm |
| Kit parts | Selected Size MDPE Wall Flange, Nickel-plated Brass Double-outlet Tap, Front Male Quick-connect Adapter |
| Colour | Black, Grey |
| Material | Plastic, Brass |
| 20mm kit inlet connections | 20mm OD MDPE supply pipe; ½-inch BSP female flange socket and matching ½-inch BSP male tap inlet. |
|---|---|
| 25mm kit inlet connections | 25mm OD MDPE supply pipe; ¾-inch BSP female flange socket and matching ¾-inch BSP male tap inlet. |
| Outlet connections | Front male snap-on hose adapter; separate downward-facing BSP male threaded branch. Additional hose-end connector and threaded fittings are separate. |
| Tap material and controls | Nickel-plated brass double-outlet tap. Larger top lever controls the front outlet; small blue lever controls the lower branch. |
| Installation extras | Pipe, hose, female hose-end connector, additional outlet fittings, wall fixings, pipe supports and thread-sealing tape are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
