20mm MDPE
For 20mm OD pipe. Includes a wall flange with a ½-inch BSP female outlet, a matching ½-inch BSP male/female valve and a ½-inch BSP male click adapter.
Description
A compact control for your garden water point.
Connect your MDPE supply to a wall-mounted hose outlet with a nickel-plated brass valve and a short black butterfly handle.
Turn the water off at the connection before detaching the hose. The backplate, valve and supply pipe remain fixed in place, ready for the next watering job.
Choose the backplate for your supply pipe
Use the MDPE pipe’s outside diameter to select the kit.

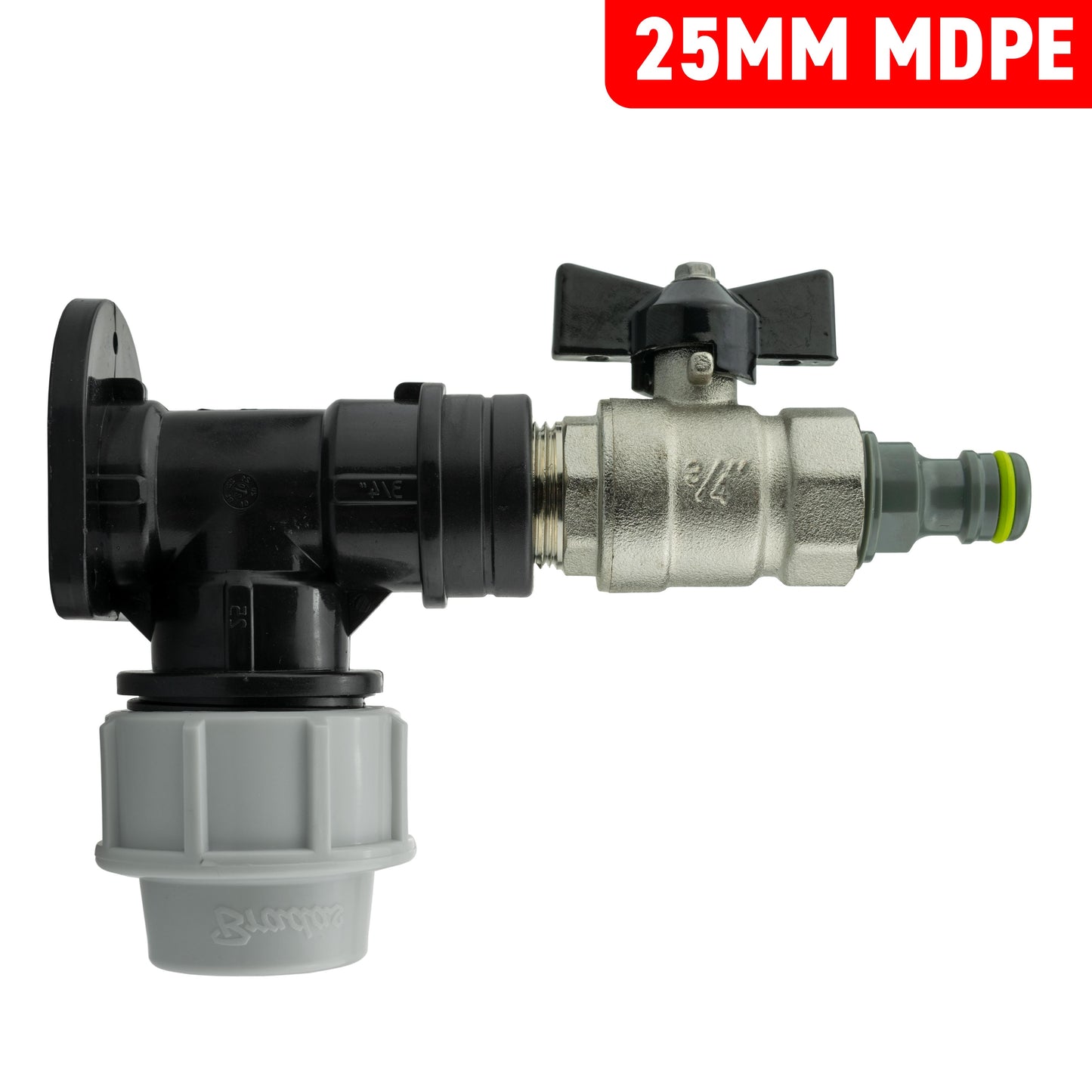

25mm MDPE
For 25mm OD pipe. Includes a wall flange with a ¾-inch BSP female outlet, a matching ¾-inch BSP male/female valve and a ¾-inch BSP male click adapter.
BSP is the nominal size of the threaded joints between the backplate, valve and adapter. It is different from the MDPE pipe’s measured outside diameter.
Finish the hose side of the connection
The kit includes the male outlet; add your own female hose connector.
The small spigot at the end of the valve is a male garden click fitting. Fit a compatible female quick connector to your hose, then click that connector fully onto the spigot. Bare hose does not attach directly to it.
Choose the female connector by the hose bore, independently of whether the MDPE supply is 20mm or 25mm. The valve lets you stop the water at the wall before releasing the hose connection.
Fit securely. Leave the handle accessible.
Support the pipe and keep hose pulls off the assembly.
Fix the backplate to a sound wall or panel with suitable fixings. Support the incoming MDPE pipe separately and follow the compression-fitting instructions, using a compatible pipe liner where required. Seal the BSP joints appropriately without overtightening the plastic backplate threads.
Leave clearance to turn the butterfly handle and operate the hose connector. Check the joints before use. Close the valve and release trapped hose pressure before disconnecting; isolate the upstream supply before dismantling the fixed fittings. Drain exposed water fittings when protecting the installation from frost.
Before you order
Does the kit include both backplate sizes?
No. Choose the 20mm or 25mm option to match your MDPE pipe’s outside diameter. You receive one backplate, one matched valve and one male click adapter.
Will my hose connect without another fitting?
Only if it already carries a compatible female hose-end quick connector. The supplied outlet is a male click spigot. Hose and female connector are sold separately.
Product information & technical details
| SKU | WF20KIT007[#ML] |
|---|---|
| Product type | |
| MDPE size | 20mm, 25mm |
| Kit parts | 1 × Selected-size MDPE Wall Flange, 1 × Matched Butterfly-handle Brass Valve, 1 × Matched Male Garden Click Adapter |
| Colour | Black, Grey |
| Material | Plastic, Brass |
|---|---|
| Supply connection | 20mm option: 20mm OD MDPE compression inlet. 25mm option: 25mm OD MDPE compression inlet. |
| Matched BSP joints | 20mm: ½-inch BSP female wall-flange outlet, male/female valve and male click adapter. 25mm: matching ¾-inch BSP components. |
| Valve | Nickel-plated brass valve with black butterfly handle for manual on/off control. |
| Hose connection | Male garden click spigot. Compatible female hose-end connector and hose sold separately. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
