Description
A 90° turn for your irrigation pipe

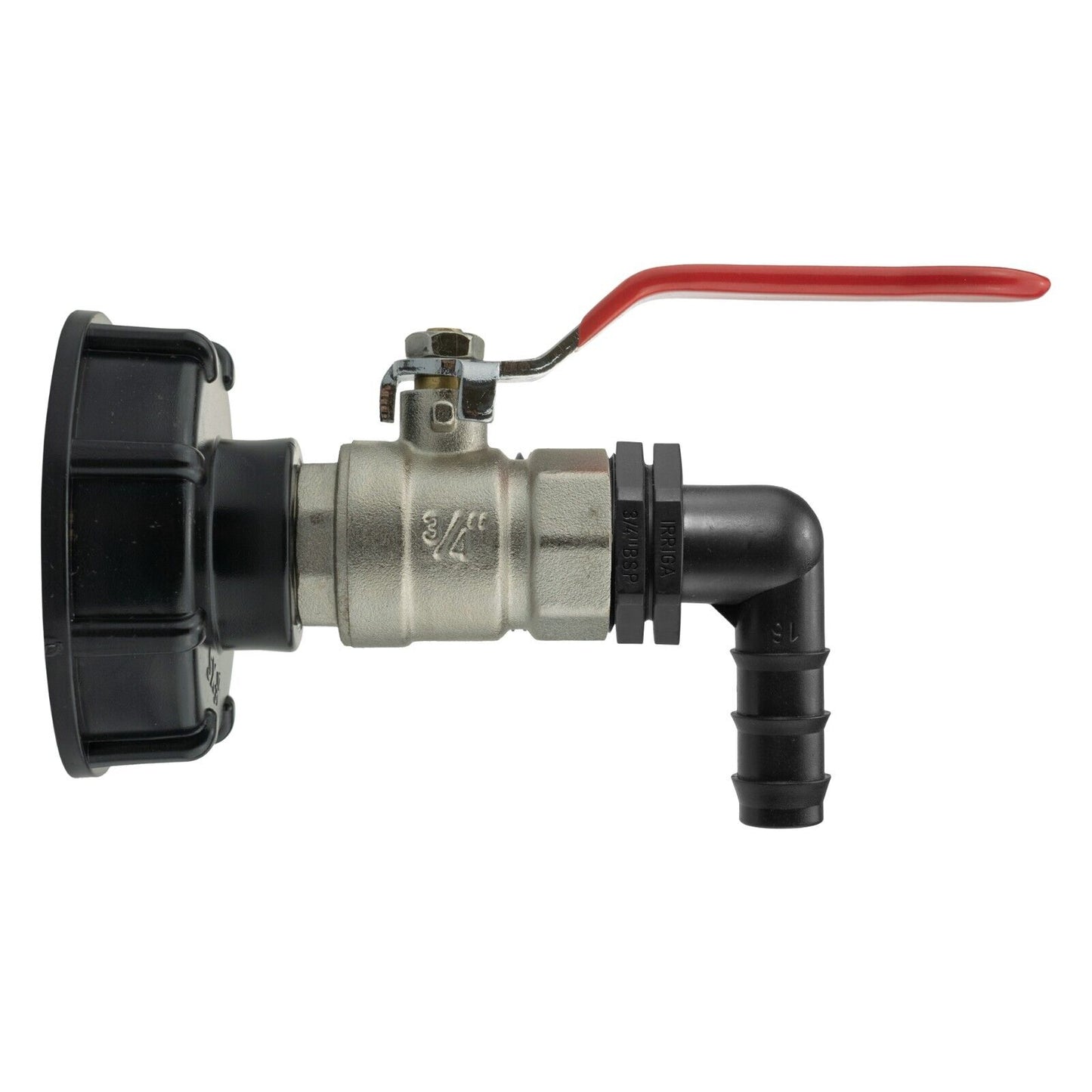

Route compatible irrigation pipe away from your IBC with a fixed 90° plastic elbow and a lever valve for manual shut-off. The elbow changes direction at the fitting, helping you run the pipe downward without forcing a sharp curve immediately beside the tank.
The compact S60x6 cap connects to a matching tank outlet. A plated brass valve sits between that cap and the elbow, keeping water control within reach.
Cap, lever valve and elbow supplied. Tank, existing tank valve, pipe or hose, clip and sealing tape are not included.
A threaded elbow with a barbed pipe outlet

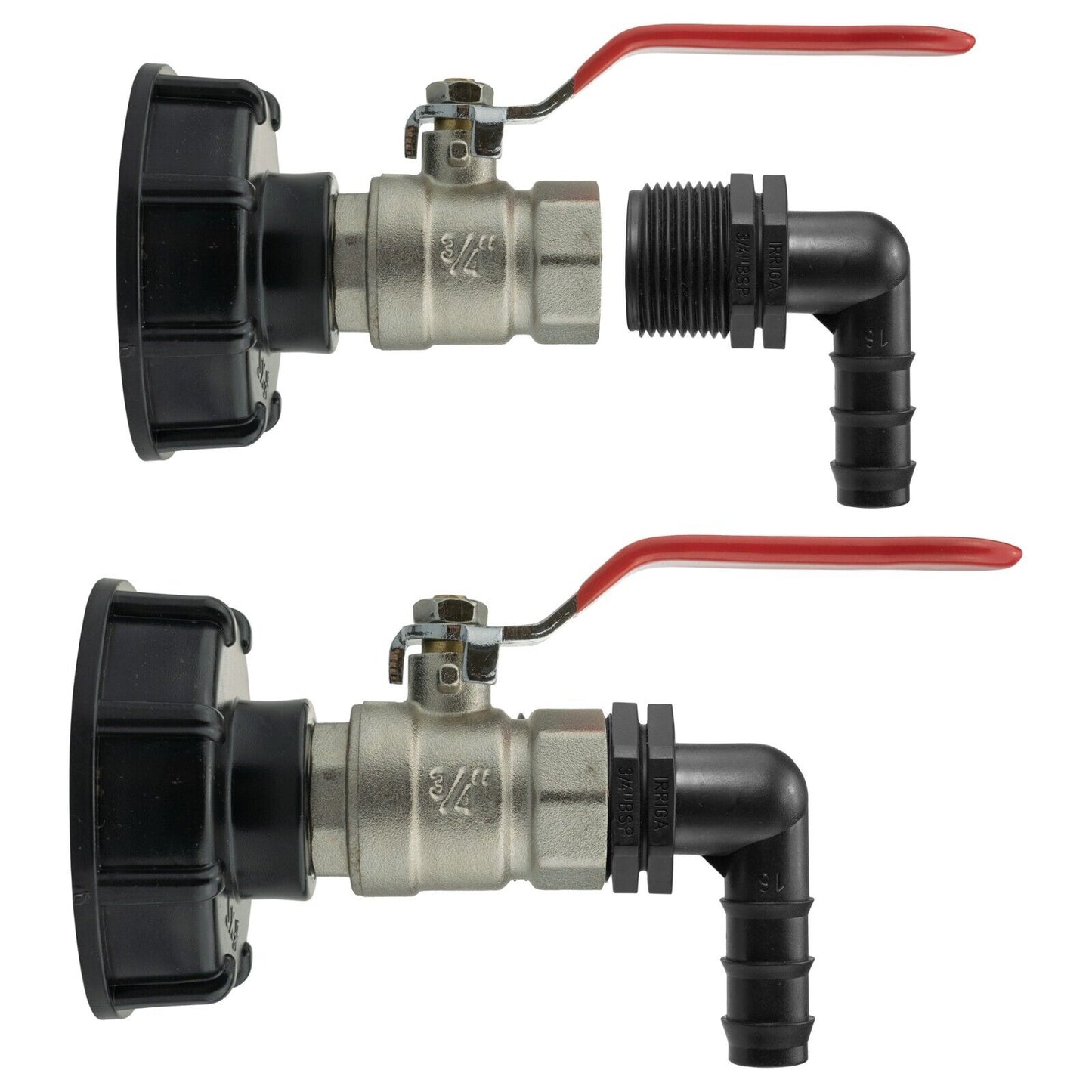

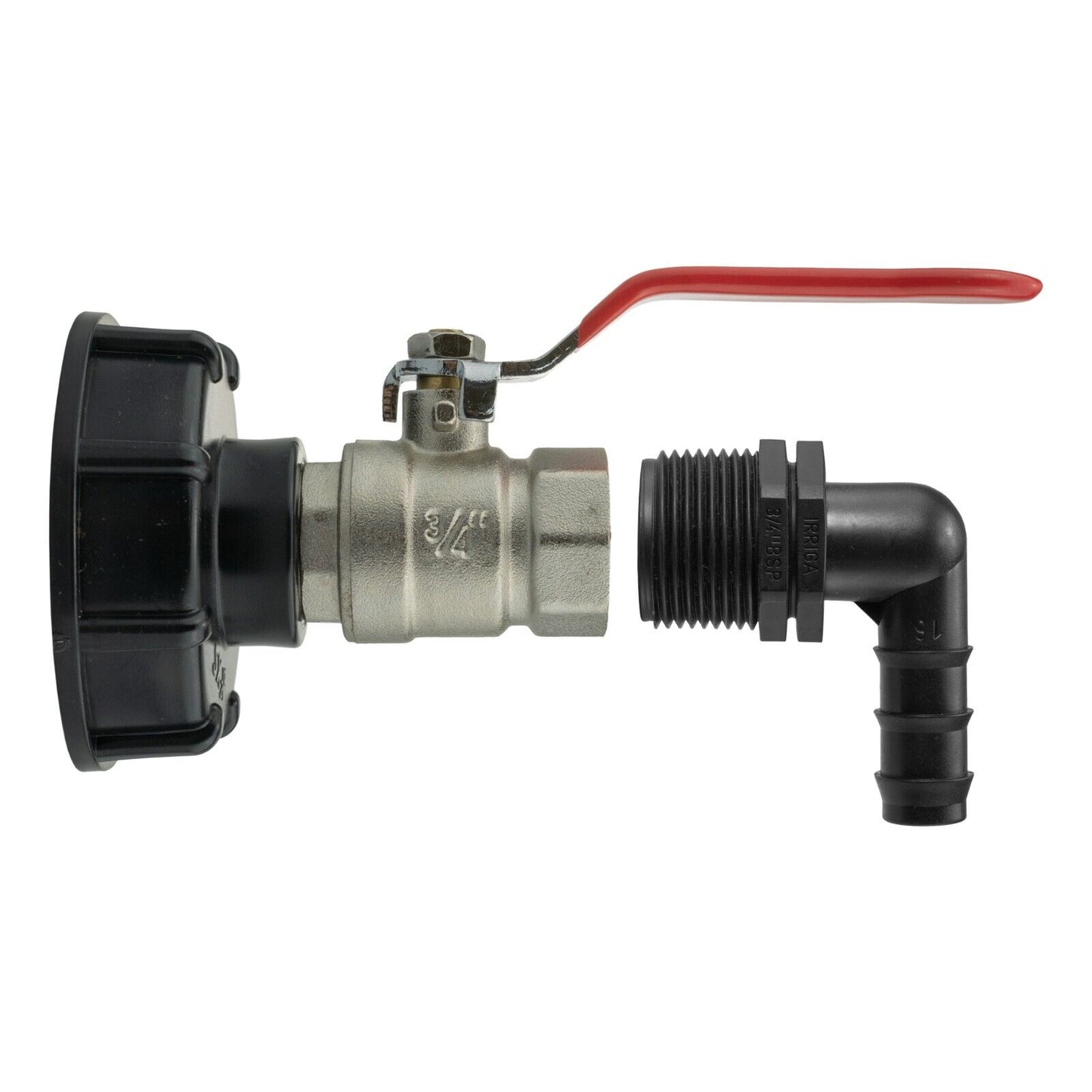

The valve's ¾-inch BSP male inlet screws into the cap's female port. The elbow's ¾-inch BSP male thread screws into the valve's female outlet. These are three components: the hose tail is part of the elbow.
Your compatible pipe pushes over the elbow's barbs. It does not screw onto the fitting or click onto a garden quick plug. Follow the pipe's fitting instructions, use a suitable clip where needed and support the run so it does not pull on the tank outlet.
The elbow is a fixed threaded fitting. Choose its orientation during assembly with suitable sealing; it is not a swivel to rotate while the system is connected.
Match three different connection sizes
S60x6 at the tank
Check for a male outlet nominally 60mm with a 6mm coarse pitch. Inspect the cap washer and leave room for the lever, elbow and pipe below it. Not every IBC uses this thread.
16mm irrigation pipe
The irrigation name refers to pipe outside diameter. Compatible 13/16mm pipe has roughly 13mm internal diameter and 16mm outside diameter, also commonly described as a ½-inch hose connection. Check the actual bore and barbed-fit requirements.
¾-inch BSP joints
The cap, valve and elbow use ¾-inch BSP screw joints. That is a nominal pipe-thread size, separate from the hose bore. Close the supply before fitting, start threads straight and use suitable sealing where required; PTFE tape is sold separately.
Planning your irrigation connection
Can this supply a porous hose directly from an IBC?
Only if the hose's bore, connection and required operating pressure suit the installation. The kit provides a connection and manual valve; it does not create pressure. Check the porous hose's instructions and the available water head before planning a gravity-fed system.
How should I support and disconnect the pipe?
Support the pipe independently so its weight does not hang from the elbow or tank connection. Fit it fully over the barbed section and choose any clip by the fitted pipe's outside diameter. Open the supply gradually and inspect the joints; close the valve and release trapped pressure before disconnecting or changing the elbow's orientation.
Product information & technical details
| SKU | IBC001V |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| IBC thread size | S60X6 (2") |
| Barb size | 12.7mm (1/2") |
| Kit parts | S60x6 cap with ¾-inch BSP female port, Plated brass ¾-inch BSP male-to-female lever valve, Plastic 90° elbow, 16mm irrigation hosetail to ¾-inch BSP male thread |
| Colour | Black, Silver |
|---|---|
| Material | Plastic, Brass |
| Valve body | Plated brass, silver finish |
| Elbow outlet | Fixed 90° plastic irrigation hosetail |
| Irrigation pipe convention | 13/16mm: approximately 13mm bore / 16mm outside diameter |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
