Description
Two connection points in one top lid

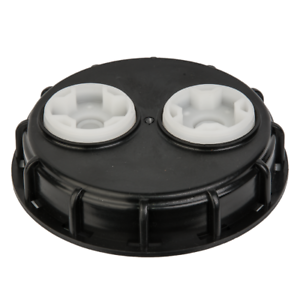

This black IBC lid combines a female S160x7 coarse tank-neck thread with two separate 2-inch BSP female ports. Both ports are supplied with recessed white plugs fitted, as shown.
It replaces the large lid over a matching tank's top filling opening. The smaller threaded ports give you two separate points for compatible fittings, where your tank and installation permit them.
One twin-port lid supplied, with both white plugs. Tank, cage and additional fittings are not included.
Match the large thread and the smaller ports separately
The S160x7 female thread underneath the lid mates with the large top filling neck. This size family is often described as 150mm, 155mm or 6-inch; compare your existing lid, thread and sealing face rather than relying on the name alone.
The two 2-inch BSP female ports are smaller, separate connections through the lid. Each accepts a matching BSP male fitting when its plug is removed. Check the fitting's thread, seal and intended use before installing it.
The ribbed outer rim provides grip for handling the main lid. Keep the tank-neck threads and sealing surfaces clean, inspect the lid and seals for damage, and start the thread squarely without forcing a mismatch.
Choose the lid around the installation
Two ports can be useful when an installation needs separate connections through the top closure. Plan the fittings and sealing method around your tank's instructions and the equipment you intend to connect; extra fittings are supplied separately.
Ports and automatic vents are different things. The white plugs are fitted in the product photographs. Having two threaded openings does not, by itself, establish automatic ventilation or pressure relief. Use the closure and any vent equipment required by your tank.
Before choosing a twin-port lid
Is this a bottom-outlet adapter?
No. This is a large top-fill lid with an S160x7 tank-neck thread. It is not an S60x6 bottom-outlet cap. Check where the fitting will be used as well as the actual thread size.
Does 2-inch BSP mean a 50.8mm thread diameter?
No. BSP uses nominal pipe sizes. A 2-inch BSP male thread measures about 59.6mm across its outer crests; the matching female port is identified by the same nominal size. Check thread pitch, form and sealing requirements as well as diameter.
Product information & technical details
| SKU | IBC155MM-LID-2VENTS-001 |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Female |
| IBC thread size | S160X7 (6") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Port arrangement | Two separate 2-inch BSP female ports in the main lid. |
| Supplied parts | One black S160x7 lid with two white recessed plugs fitted. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
