Description
Match your hose. Add control at the tank.
Connect a water hose to a matching S60x6 IBC outlet with a brass hosetail and a separate lever valve. Choose the fixed outlet size for your hose: 13mm, 19mm or 25mm internal diameter.
The valve gives you a convenient shut-off beside the tank for garden watering and water transfer. The brass tail provides a barbed connection for the hose, secured with a suitable clip.

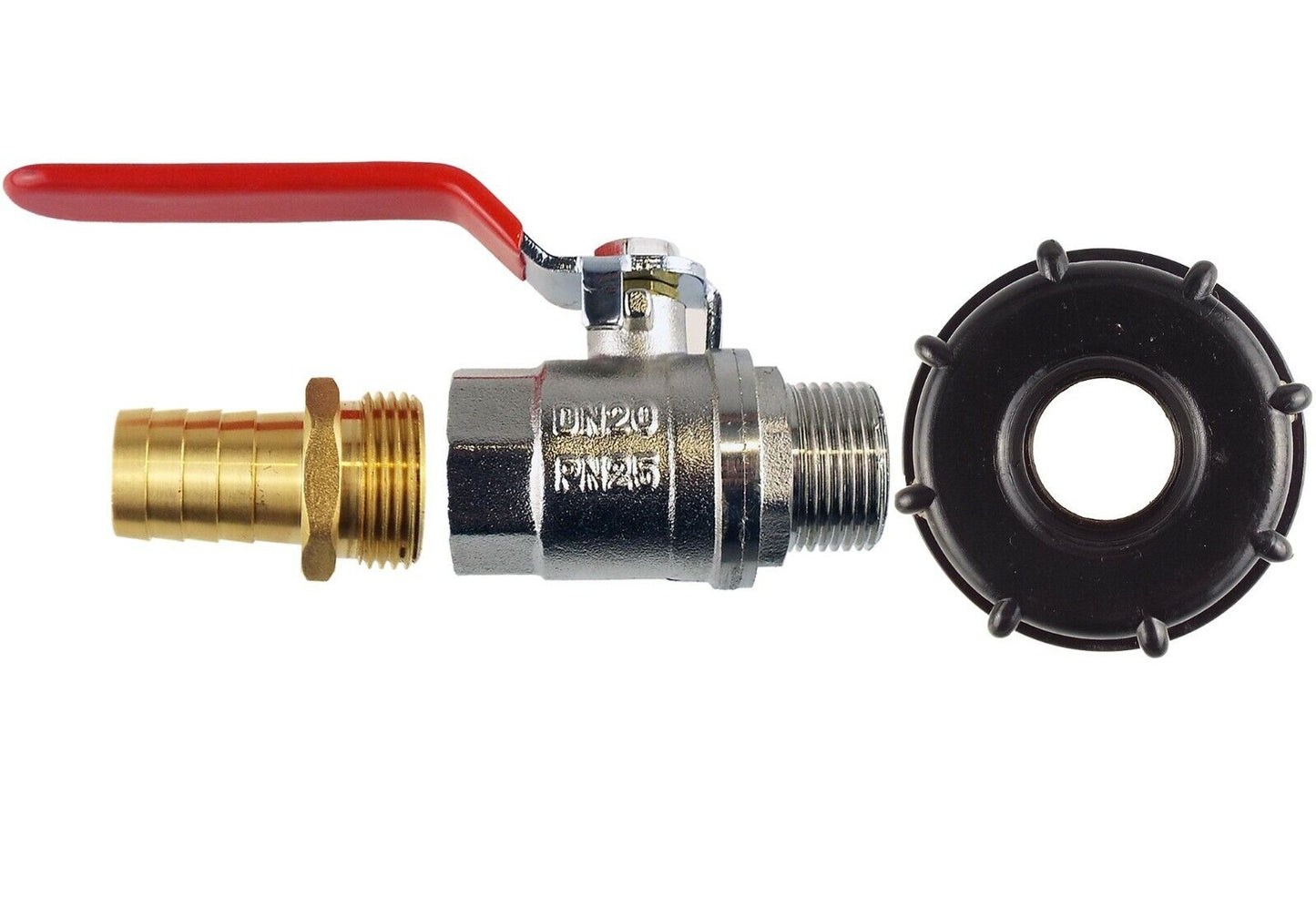

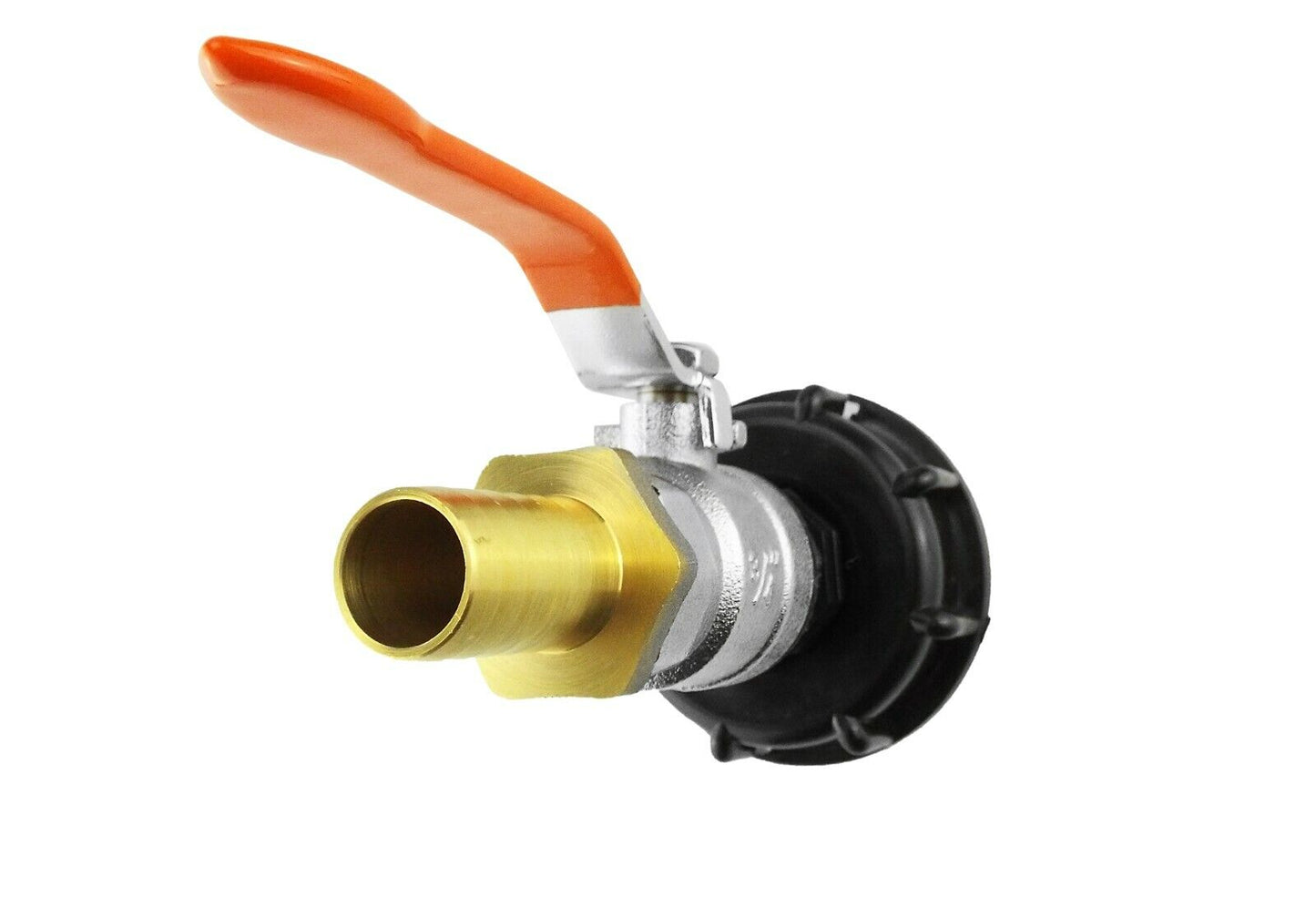

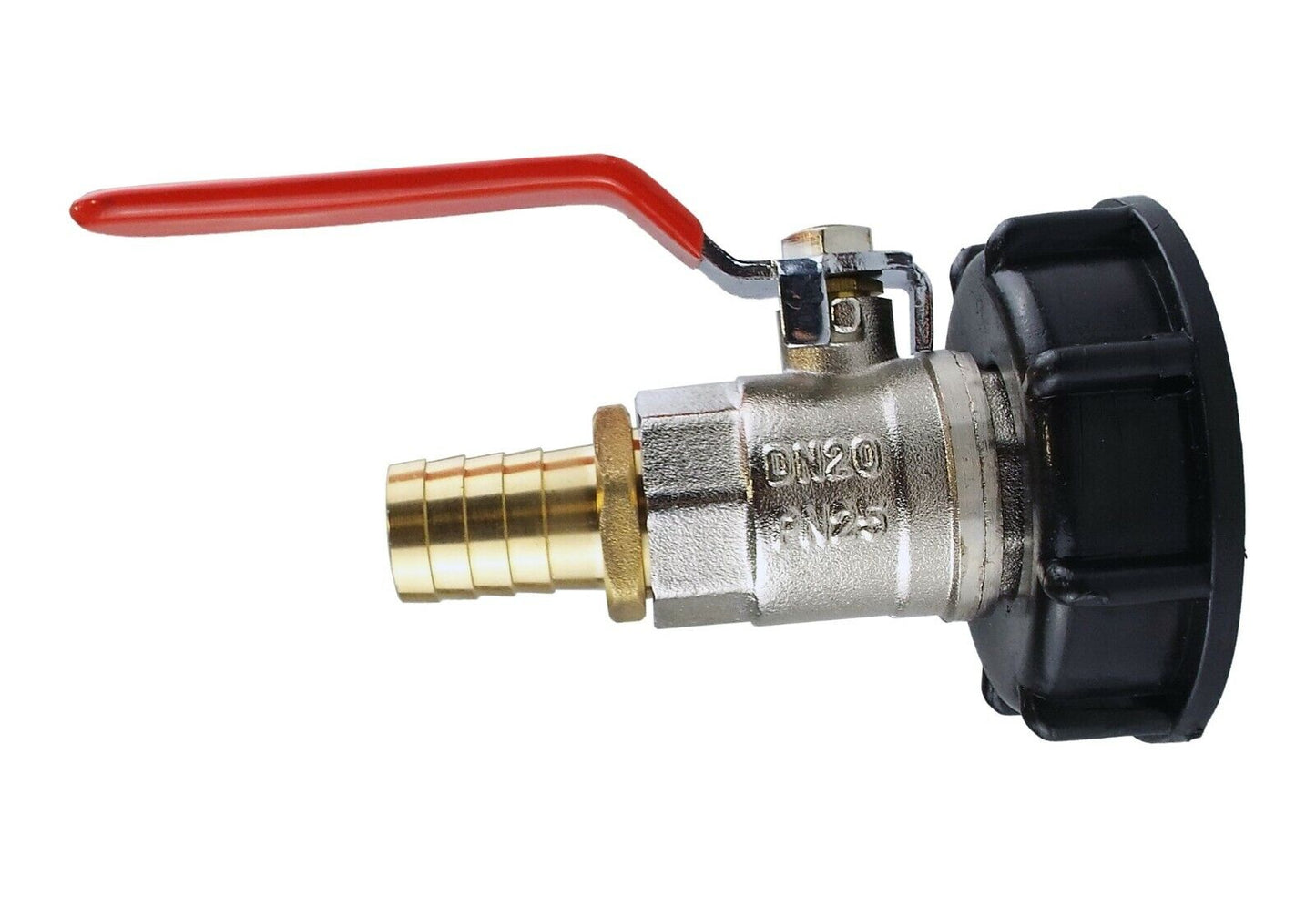

One selected-size kit supplied: S60x6 cap, plated brass lever valve and brass hosetail. Hose, clip, sealing tape and tank are separate.
Choose the kit for your hose
Match the hose's internal diameter, not its outside measurement. Each option has its own fixed brass tail and matching BSP joints; it is not a stepped outlet or a set of three tails.
½-inch barb option
13mm hose bore. The cap has a ½-inch BSP female port. The valve is ½-inch BSP male-to-female, and the hosetail has a ½-inch BSP male thread.
¾-inch barb option
19mm hose bore. The cap has a ¾-inch BSP female port. The valve is ¾-inch BSP male-to-female, and the hosetail has a ¾-inch BSP male thread.
1-inch barb option
25mm hose bore. The cap has a 1-inch BSP female port. The valve is 1-inch BSP male-to-female, and the hosetail has a 1-inch BSP male thread.
½-inch, ¾-inch and 1-inch hose names are nominal sizes. BSP is a thread standard: its nominal size is not the measured outside diameter of the thread.
From the tank thread to the hose
The plastic cap screws onto a matching male S60x6 coarse-thread outlet. Check the thread before ordering: S60x6 is nominally 60mm across the male thread with a 6mm pitch, and not every IBC uses it.
The valve's male BSP inlet fits the cap's female port. The hosetail screws into the valve's female outlet. Fit the threaded joints straight, use suitable sealing where required and check the cap washer. PTFE tape is available separately.
Seat a compatible hose over the barbed tail and secure it with a suitable clip. Choose the clip for the hose's outside diameter when fitted. Support the hose independently and leave room to operate the lever.
Before you connect
Will this fit a garden quick-connect hose fitting?
The outlet is a fixed brass hosetail for hose pushed directly over the barbs; it is not a male quick-connect plug. Choose the option for your hose bore, or use a different outlet kit if you need a clip-on garden connector.
Will the valve increase the pressure from my tank?
No. It provides manual shut-off and does not pump or pressurise the water. Flow depends on the water head, hose bore and length, and connected equipment. Check that your watering equipment can work with the available supply. Open the water gradually and inspect the joints before use.
Product information & technical details
| SKU | IBC001Z[#ML] |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4", 1" |
| IBC thread size | S60X6 (2") |
| Barb size | 13mm (1/2"), 19mm (3/4"), 25mm (1") |
| Kit parts | S60x6 cap with BSP female port for the selected size, Plated brass BSP male-to-female lever valve, Fixed brass hosetail for the selected hose bore |
|---|---|
| Colour | Black, Silver, Brass |
| Material | Plastic, Brass |
| Valve body | Plated brass, silver finish |
| Size options | 13mm hose / ½-inch BSP; 19mm hose / ¾-inch BSP; 25mm hose / 1-inch BSP. One selected-size kit supplied. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
