Description
Connect your irrigation hose. Keep control at the tank.
Take water from a matching S60x6 IBC outlet into a ½-inch-bore hose or compatible 13/16mm irrigation pipe. The black plastic hosetail gives the pipe a barbed connection, while the red lever controls the supply at the tank.

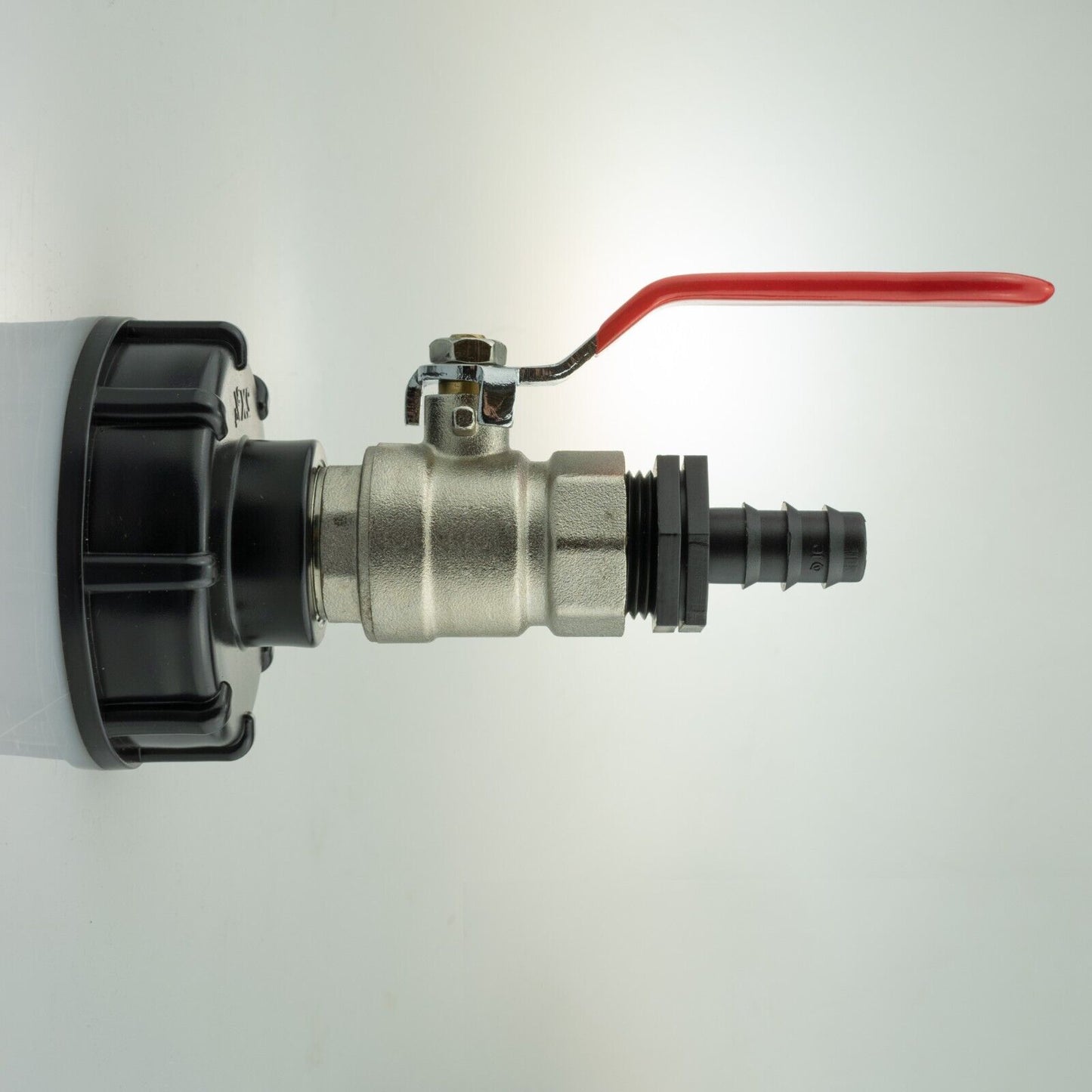

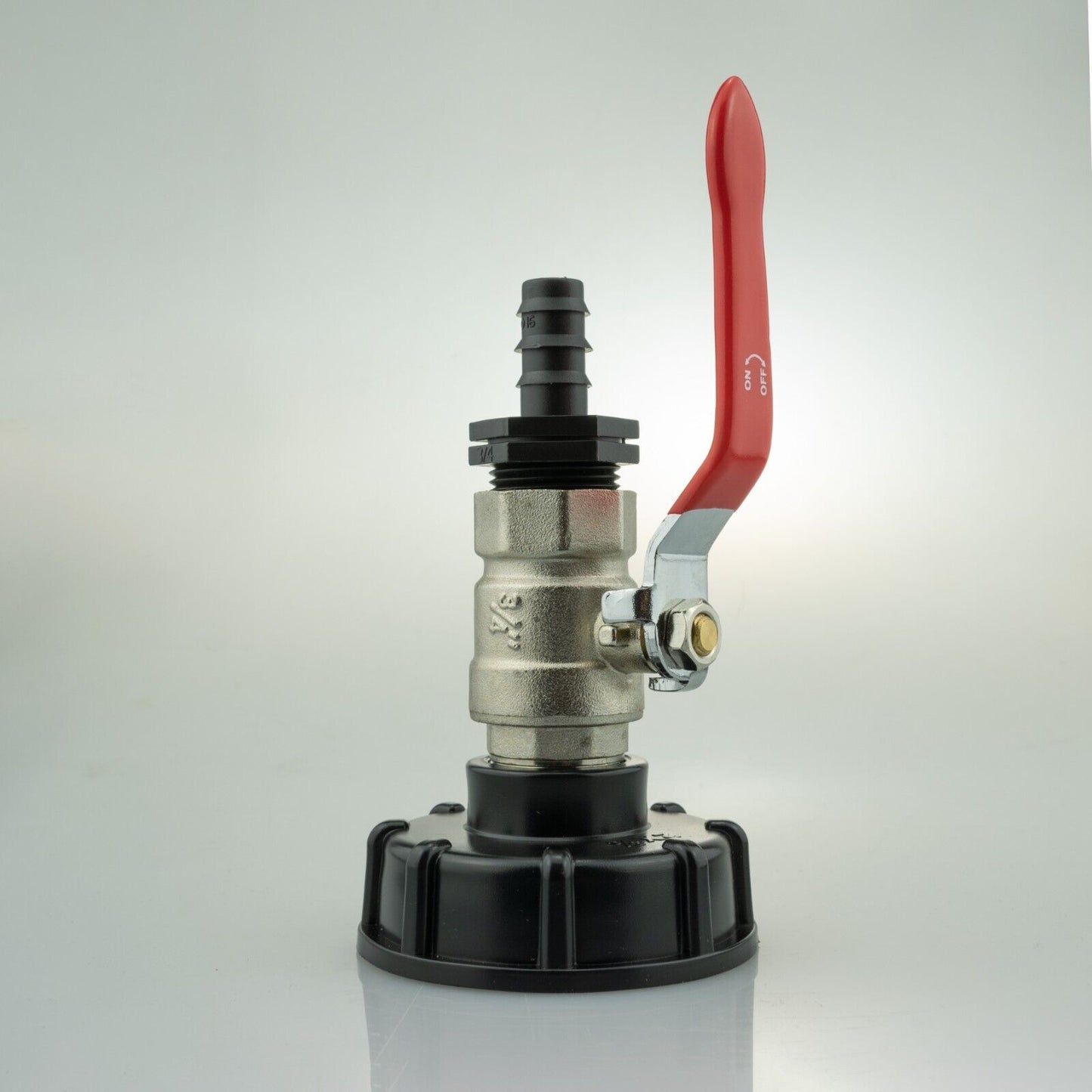

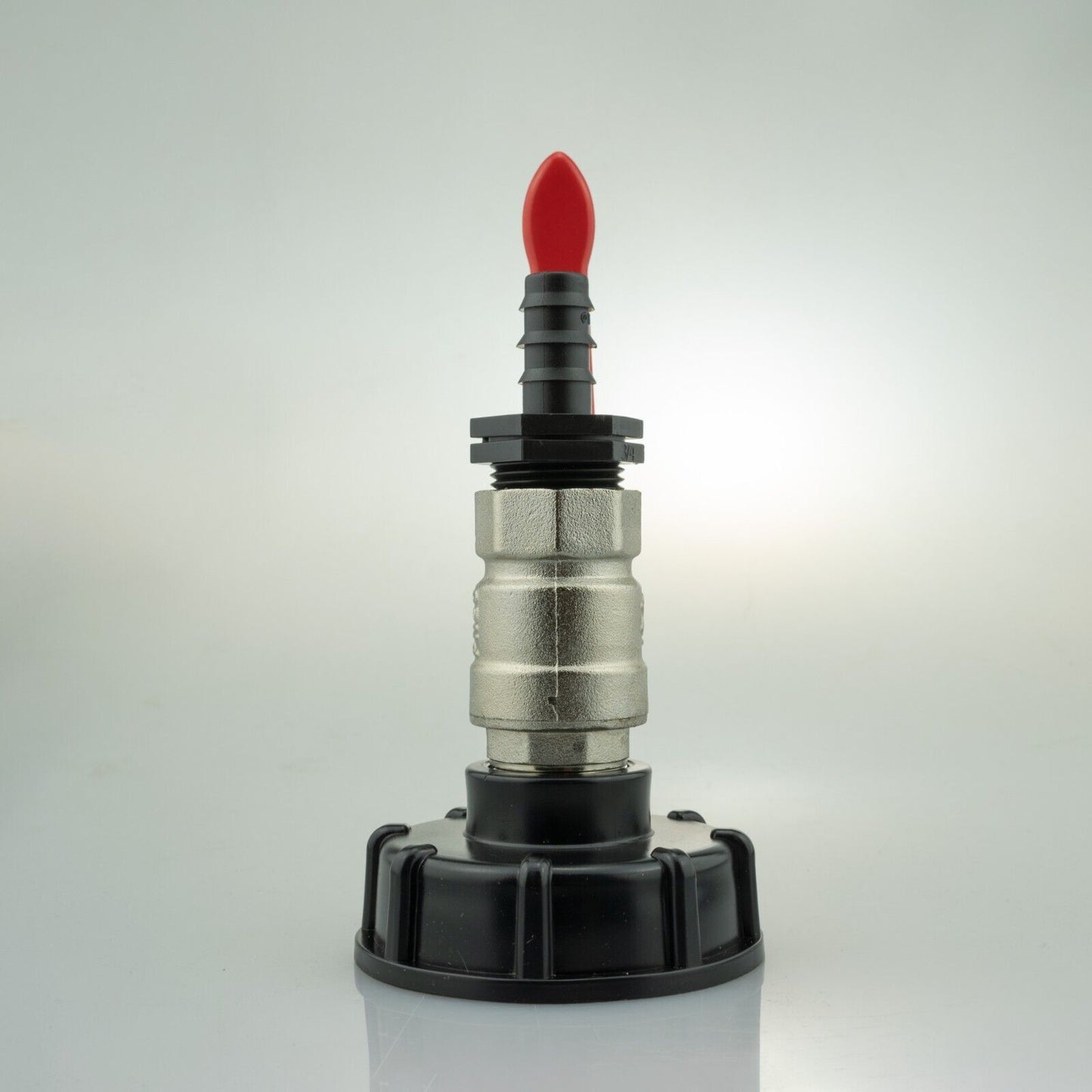

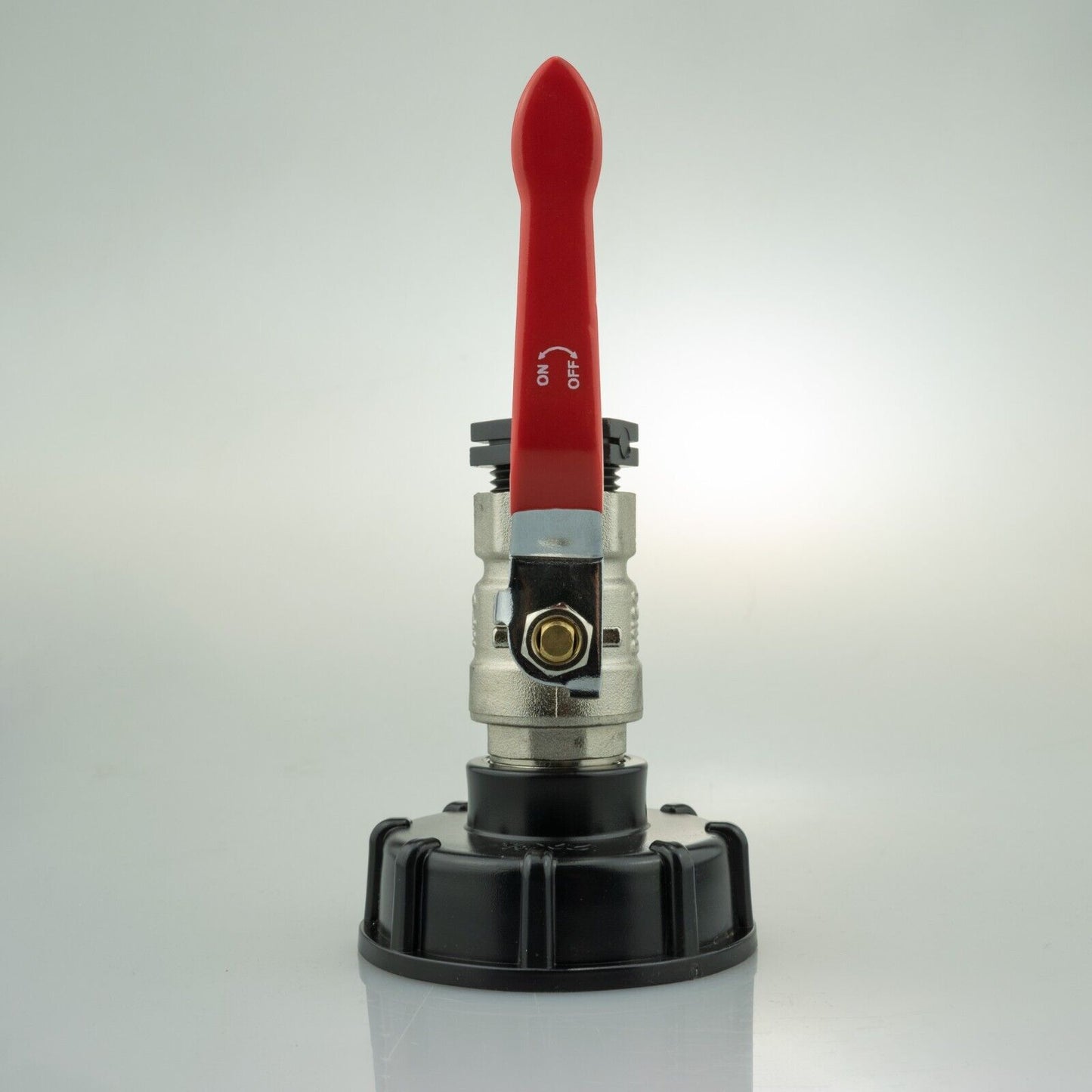

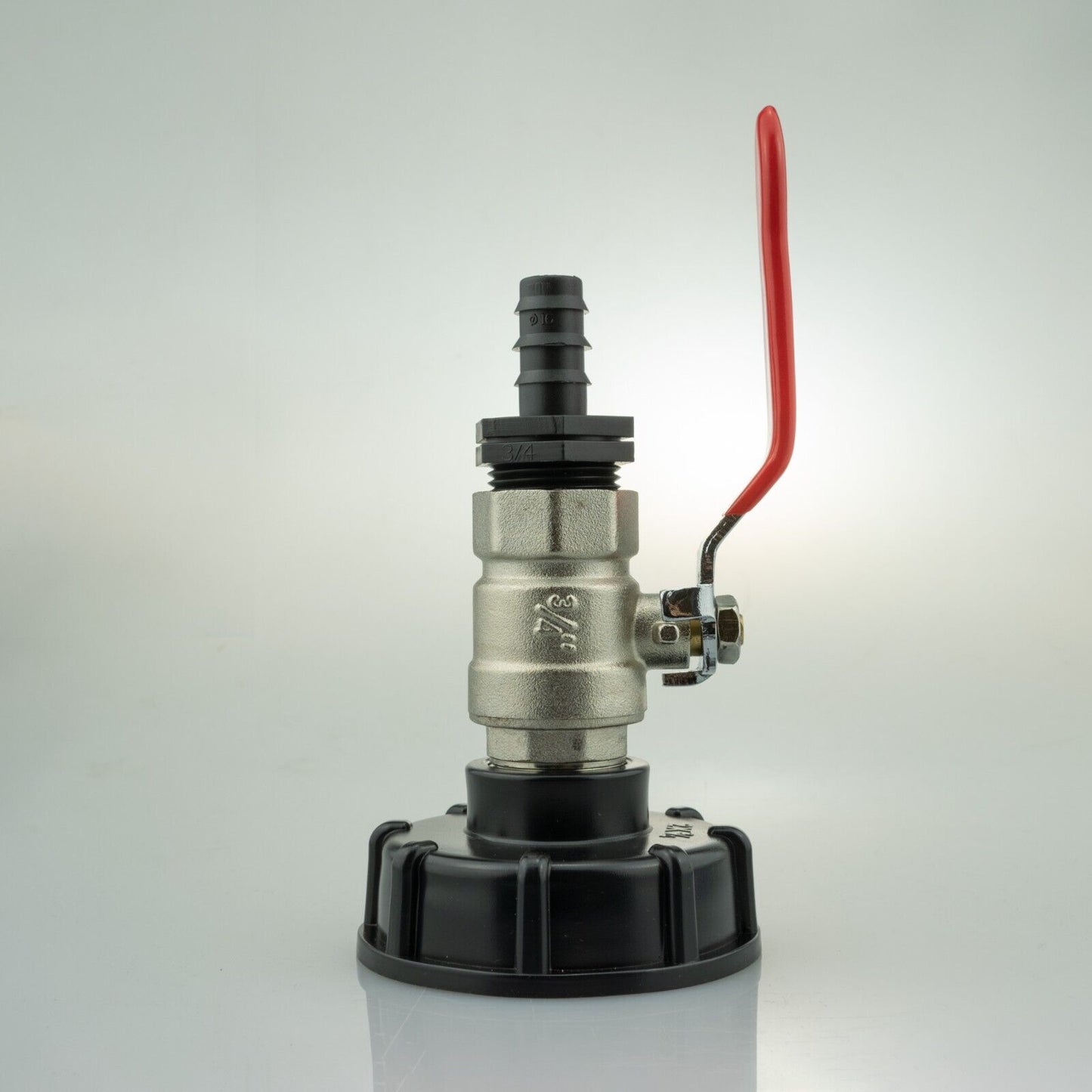

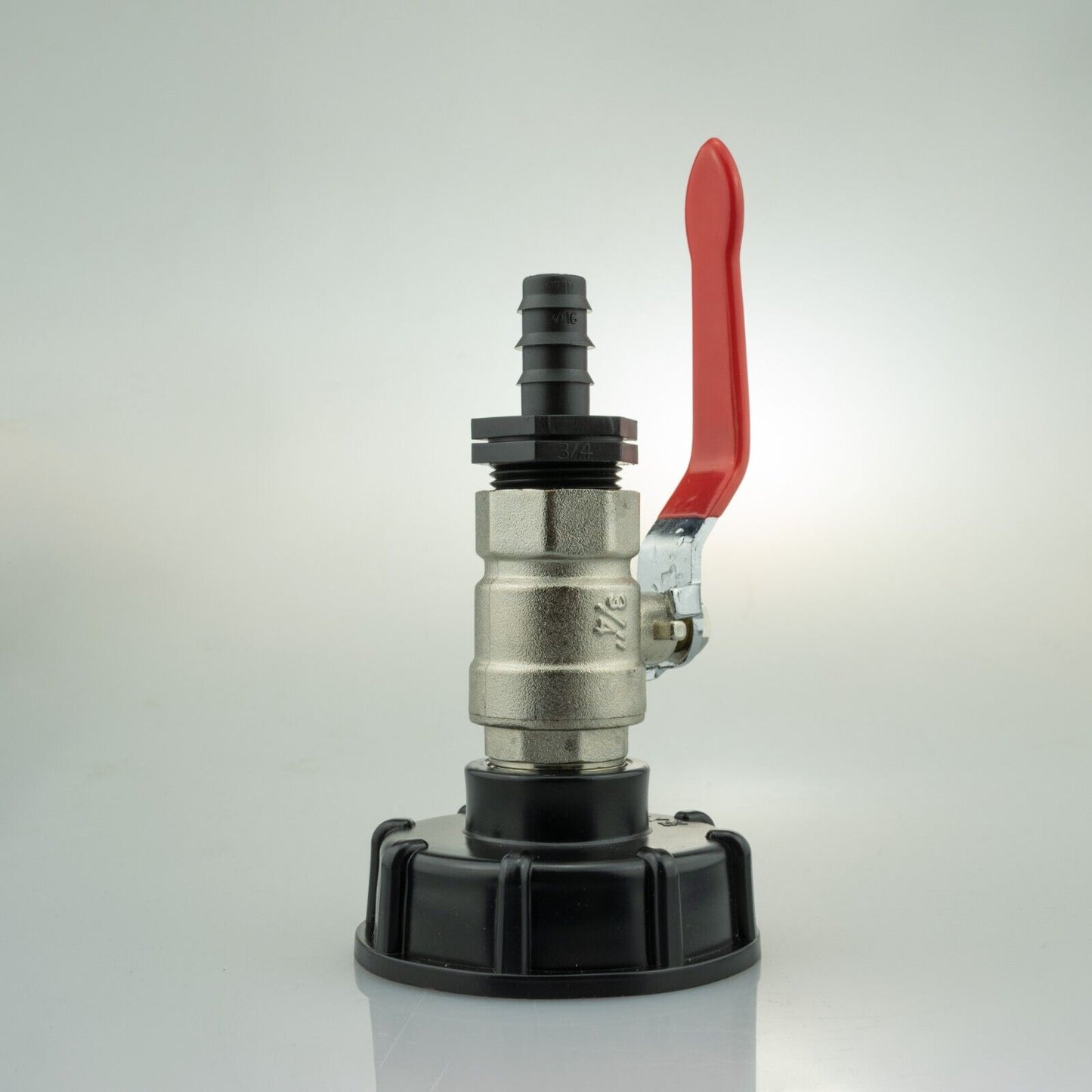

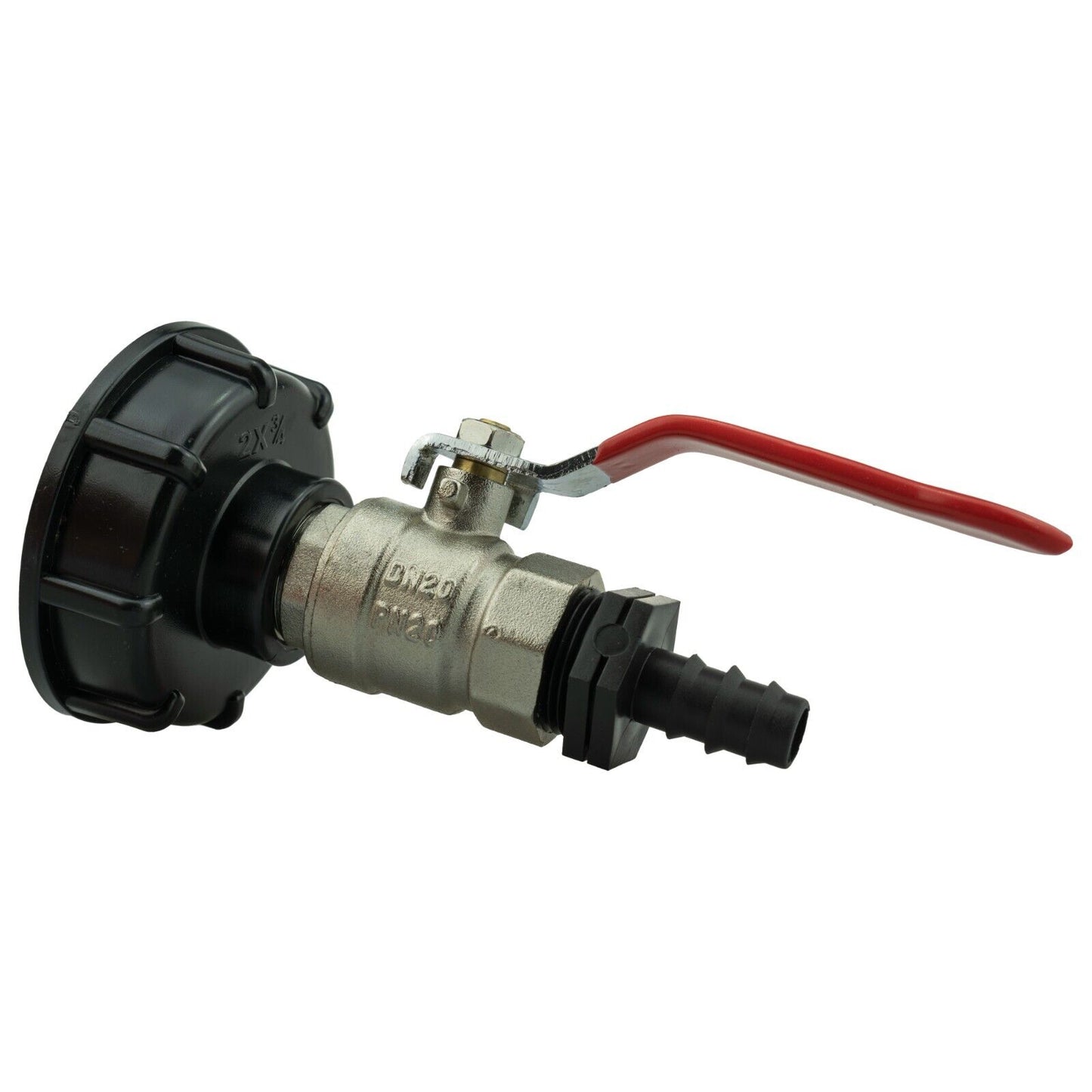

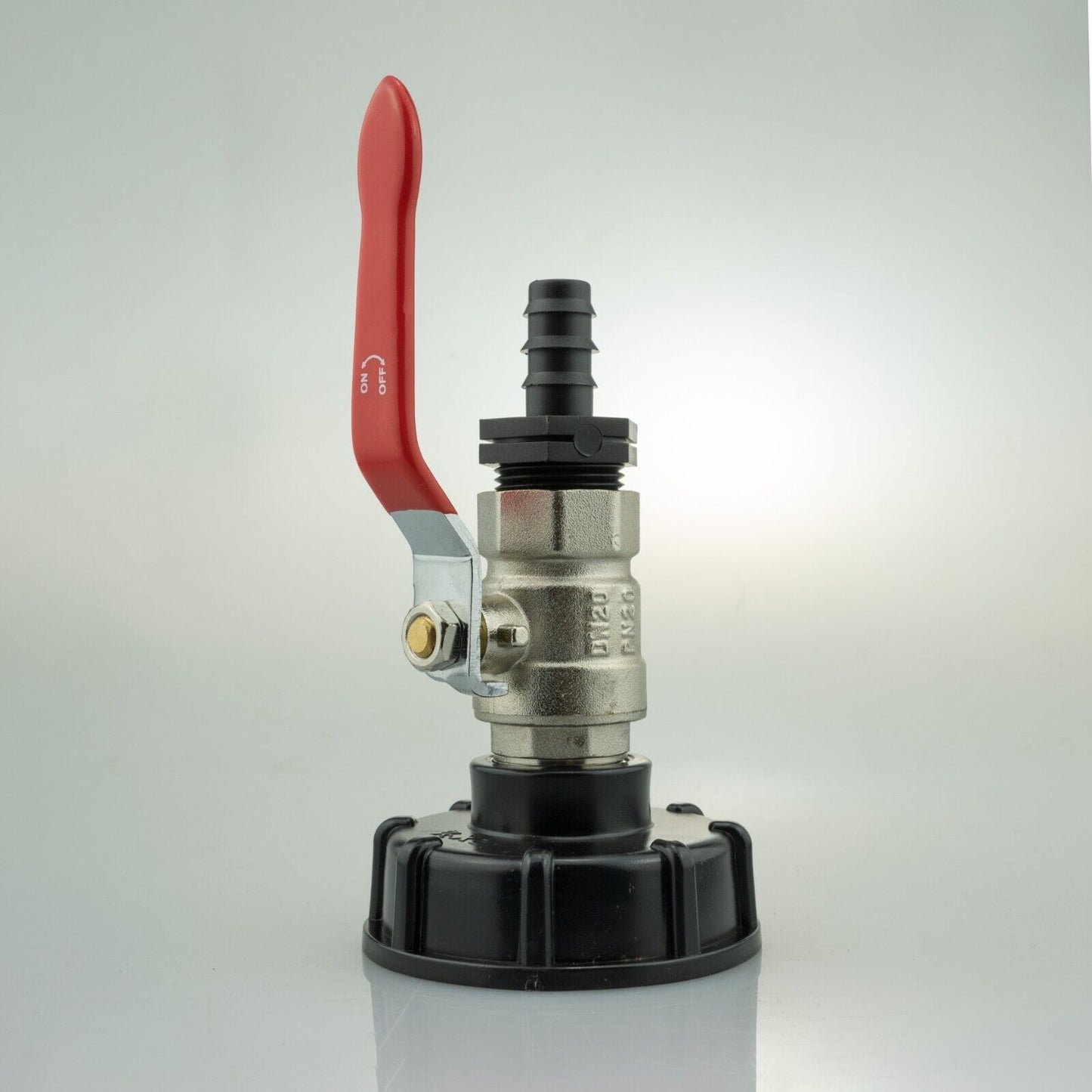

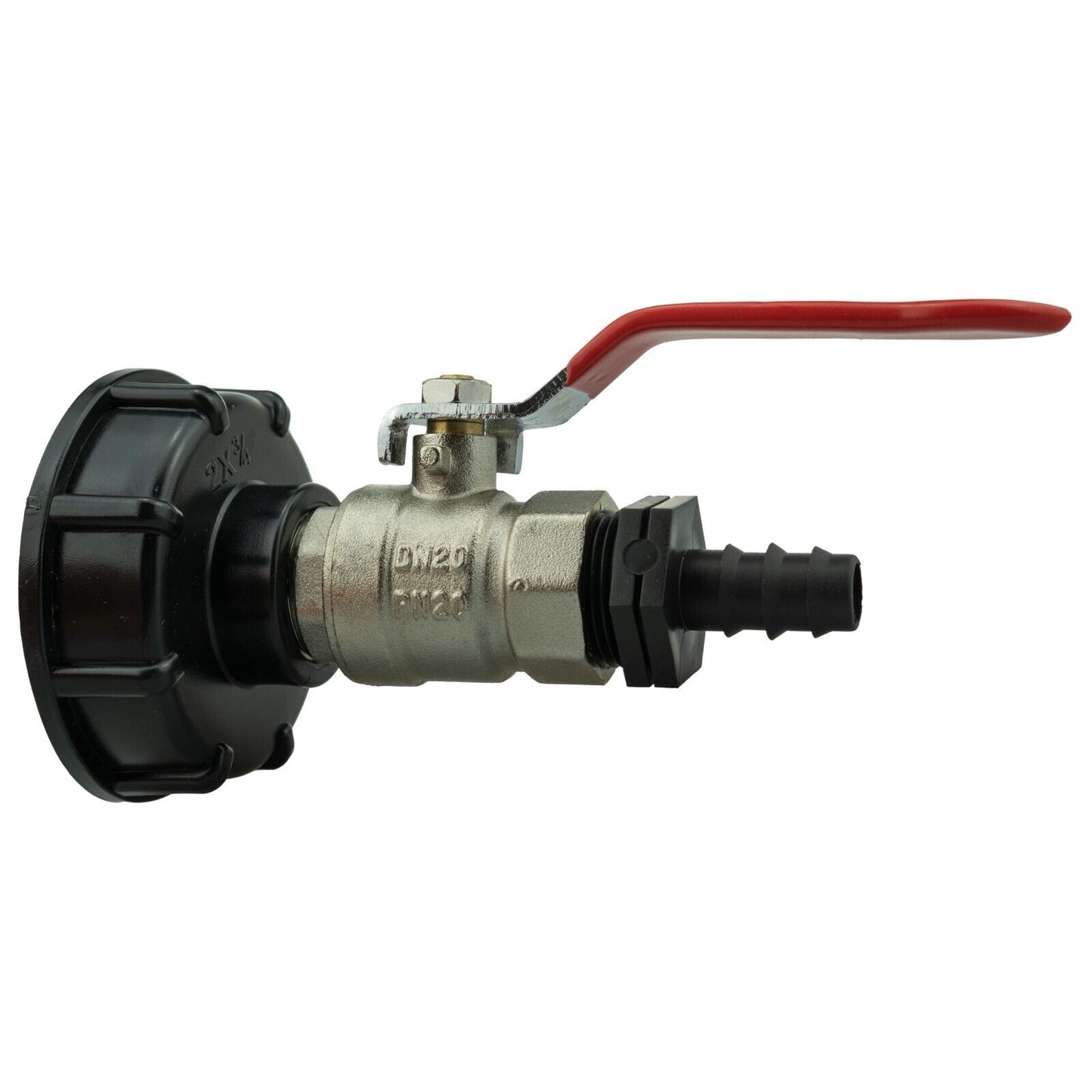

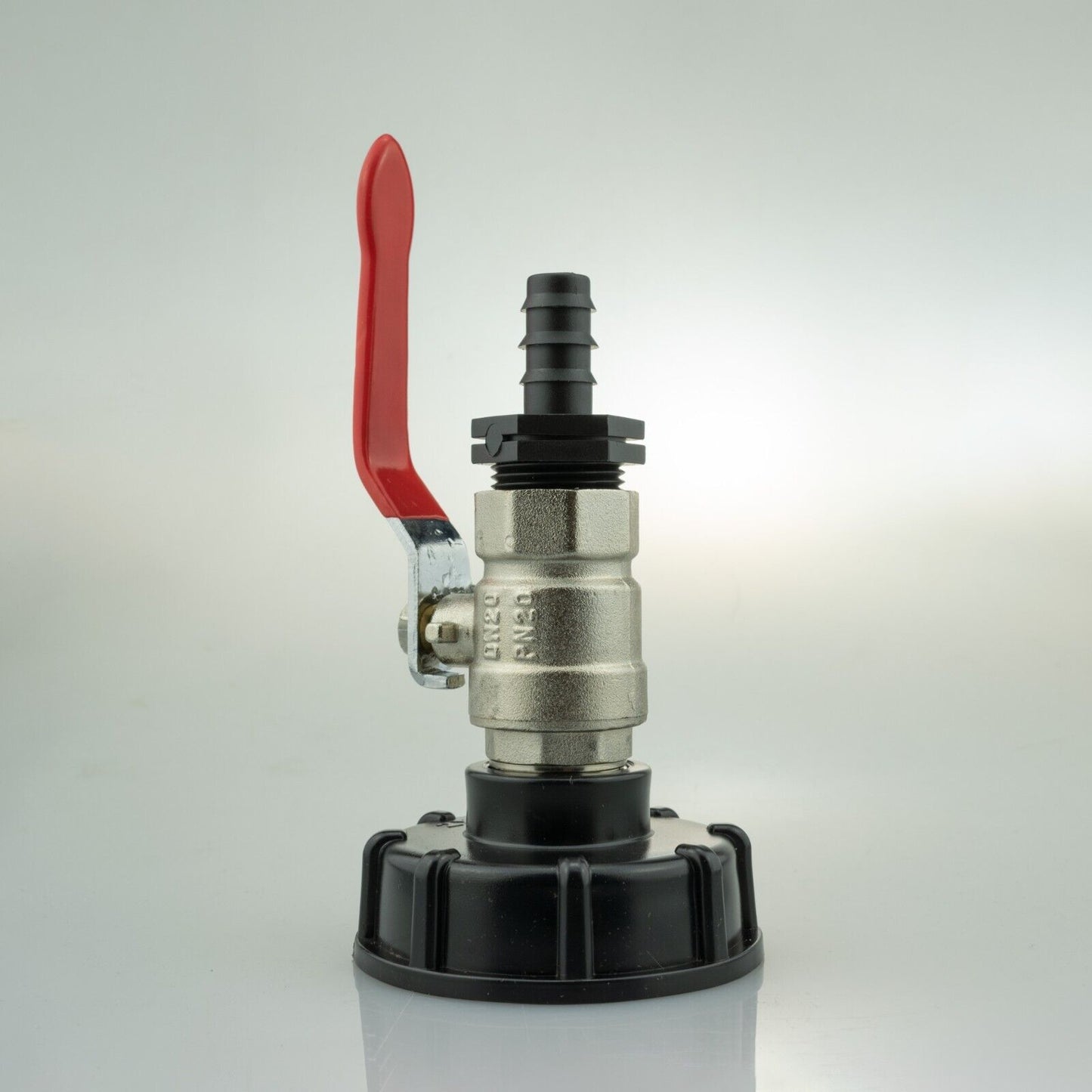

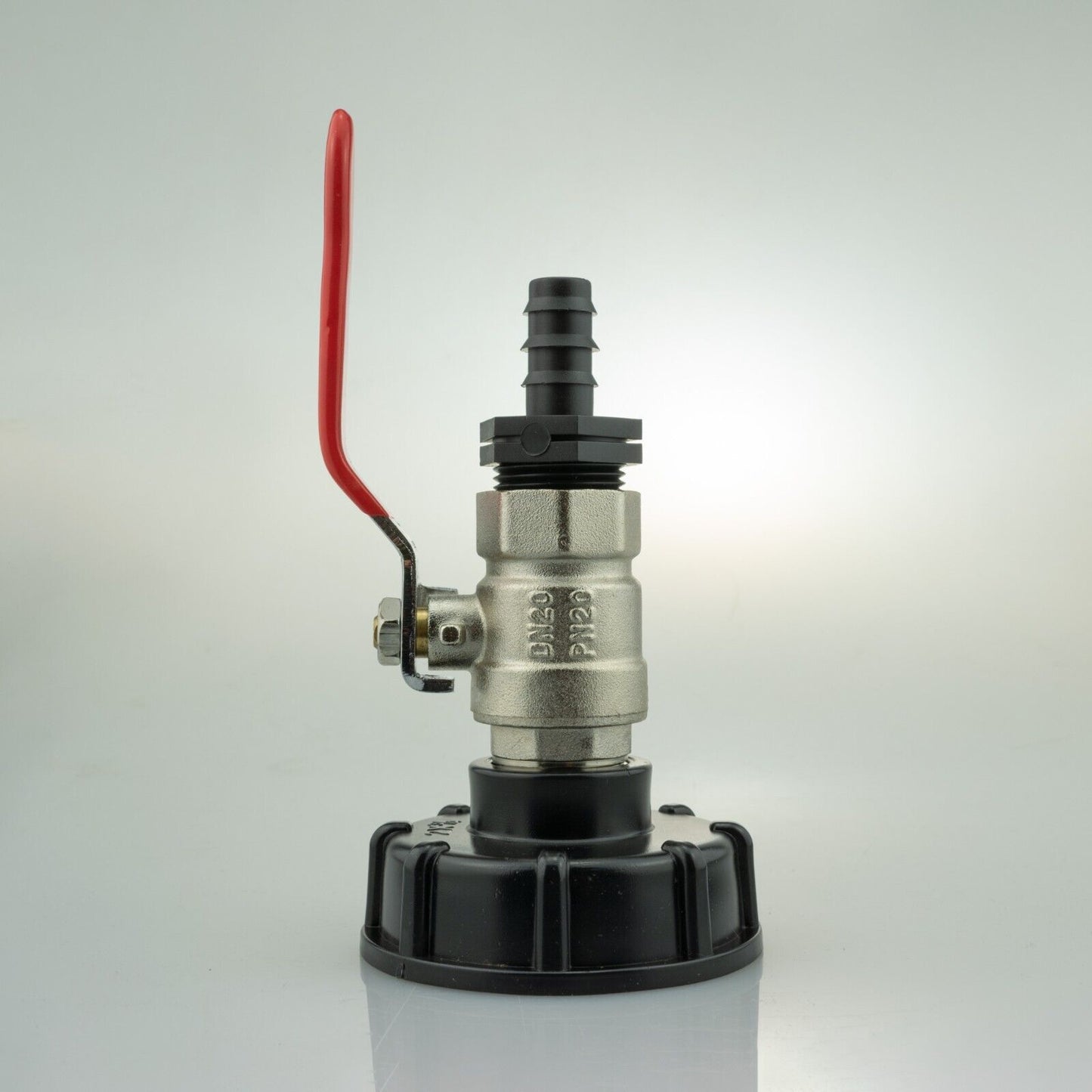

A compact black cap, plated brass valve and plastic hosetail make up the assembly. It is a direct hose connection: there is no garden quick-release plug to click into.
Three components supplied. Tank, existing tank valve, hose or pipe, hose clip and sealing tape are not included.
From tank thread to hose tail
The cap screws onto a male S60x6 tank or existing valve outlet. Its central ½-inch BSP female port accepts the valve's male thread. The plastic hosetail then screws into the valve's female outlet.
Your hose or pipe pushes over the tail; it does not screw onto a thread. Use a suitable clip where required by your hose or pipe system, and support the pipe so its weight does not pull on the tank connection.
The valve gives you a manual way to stop the water without unscrewing the cap. It does not increase pressure: gravity-fed performance depends on the tank water level, height difference and the connected irrigation system.
Choose the pipe by its bore, not its name alone
½-inch hose
The hose connection is nominally ½-inch internal diameter, about 13mm. Check the actual hose bore and its suitability for a barbed connection.
13/16mm irrigation pipe
This irrigation fitting is commonly called 16mm because it is used with pipe measured at its outside diameter. The 13/16mm convention describes approximately 13mm inside and 16mm outside; it does not mean a 16mm hose bore.
½-inch BSP joints
The cap, valve and hosetail screw together using ½-inch BSP. That nominal pipe-thread size is separate from hose and irrigation-pipe measurements. It is not a direct diameter conversion.
Fit the kit and check the connections
- Check your tank outlet. S60x6 is nominally 60mm with a 6mm coarse pitch. Match the actual thread, inspect the cap washer and allow room for the lever; not every IBC uses this outlet.
- Assemble the threaded parts. Close the tank supply first. Start the valve and tail threads straight and use suitable sealing where required. PTFE tape is separate; the cap washer seals a different joint.
- Fit and support the pipe. Push compatible hose or pipe over the barbs, following its fitting instructions. If using a hose clip, choose it by the outside diameter of the fitted hose. Open the supply gradually and inspect the joints. Close the valve and release trapped pressure before disconnecting.
Hose and pipe questions
Is this for 13mm or 16mm irrigation pipe?
Those figures commonly describe the inside and outside of the same 13/16mm irrigation pipe. This kit uses a 16mm irrigation hosetail, also described as a nominal ½-inch hose connection. Check your pipe's actual bore and compatibility with barbed fittings rather than choosing solely by its headline size.
Can a garden quick connector click onto the outlet?
No. The supplied outlet is a plastic hosetail for bare compatible hose or irrigation pipe. A female garden quick connector needs a matching male quick plug, which this kit does not include.
Product information & technical details
| SKU | IBC001J |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| IBC thread size | S60X6 (2") |
| Barb size | 12.7mm (1/2") |
| Kit parts | S60x6 cap with ½-inch BSP female port, Plated brass ½-inch BSP male-to-female lever valve, Plastic 16mm irrigation hosetail with ½-inch BSP male thread |
| Colour | Black, Silver |
|---|---|
| Material | Plastic, Brass |
| Valve body | Plated brass, silver finish |
| Hosetail material | Plastic |
| Irrigation pipe convention | 13/16mm: approximately 13mm bore / 16mm outside diameter |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
