Description
A direct hose outlet with control at the tank
Connect a 19mm internal-diameter hose to a matching S60x6 IBC outlet and control the supply with a lever valve. The brass hose tail gives the hose a ridged surface to grip; a suitable clip secures it over the barb.

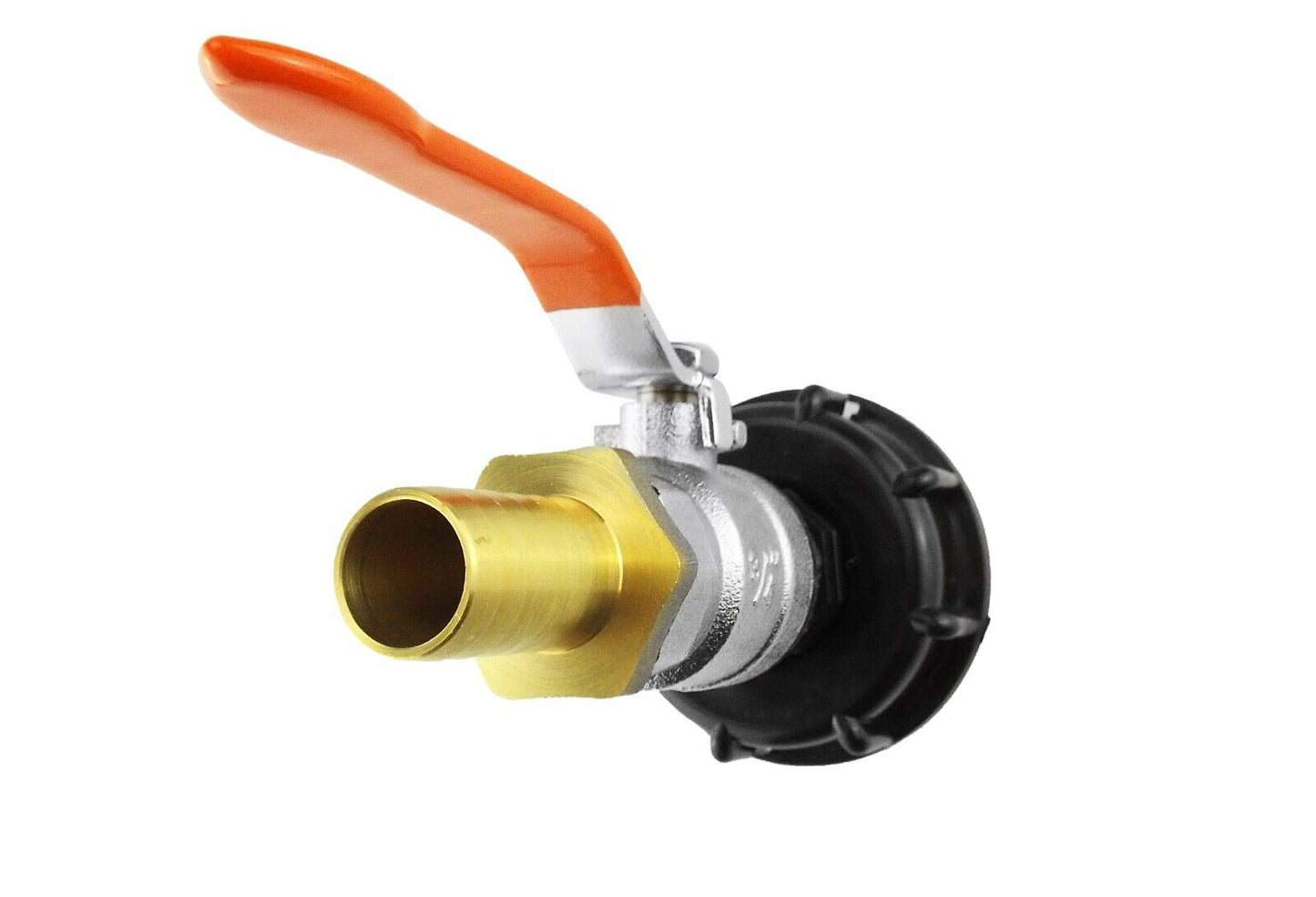

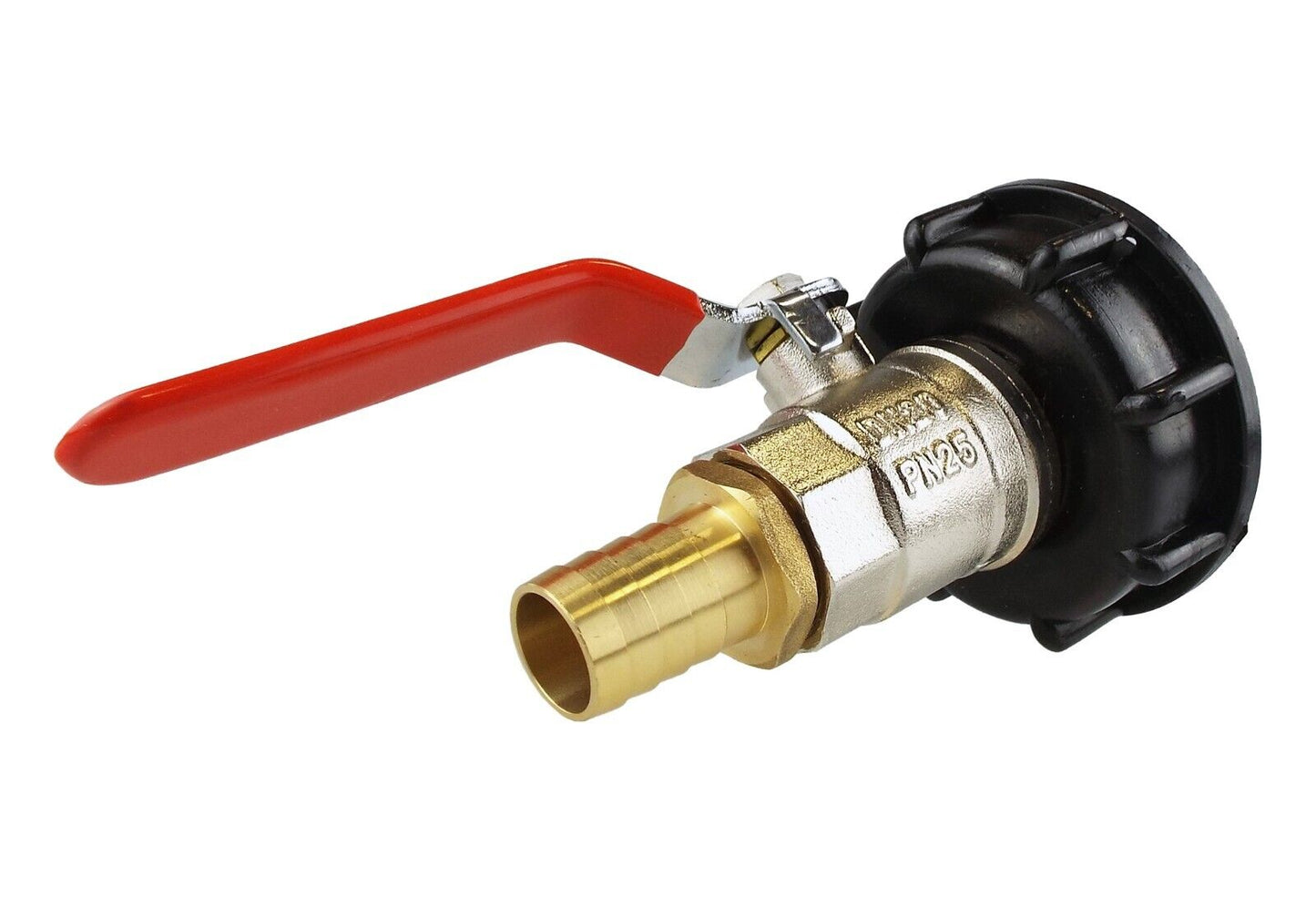

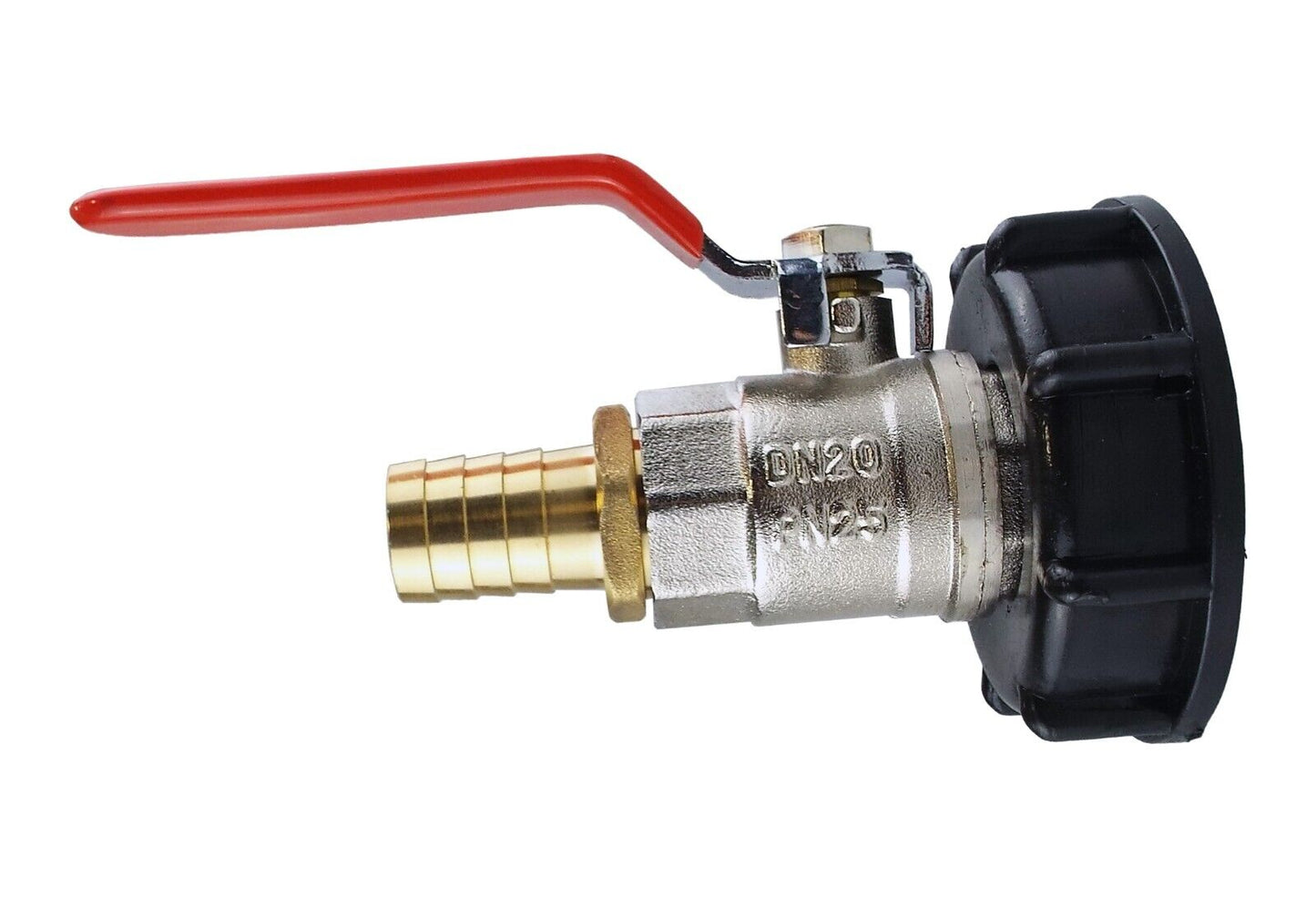

The compact black tank cap, plated brass valve and brass hosetail form one assembly. Close the valve when you need to stop the supply, without removing the cap from the tank connection.
Three-part kit supplied. Tank, existing tank valve, hose, hose clip and sealing tape are not included.
Three parts, one hose connection

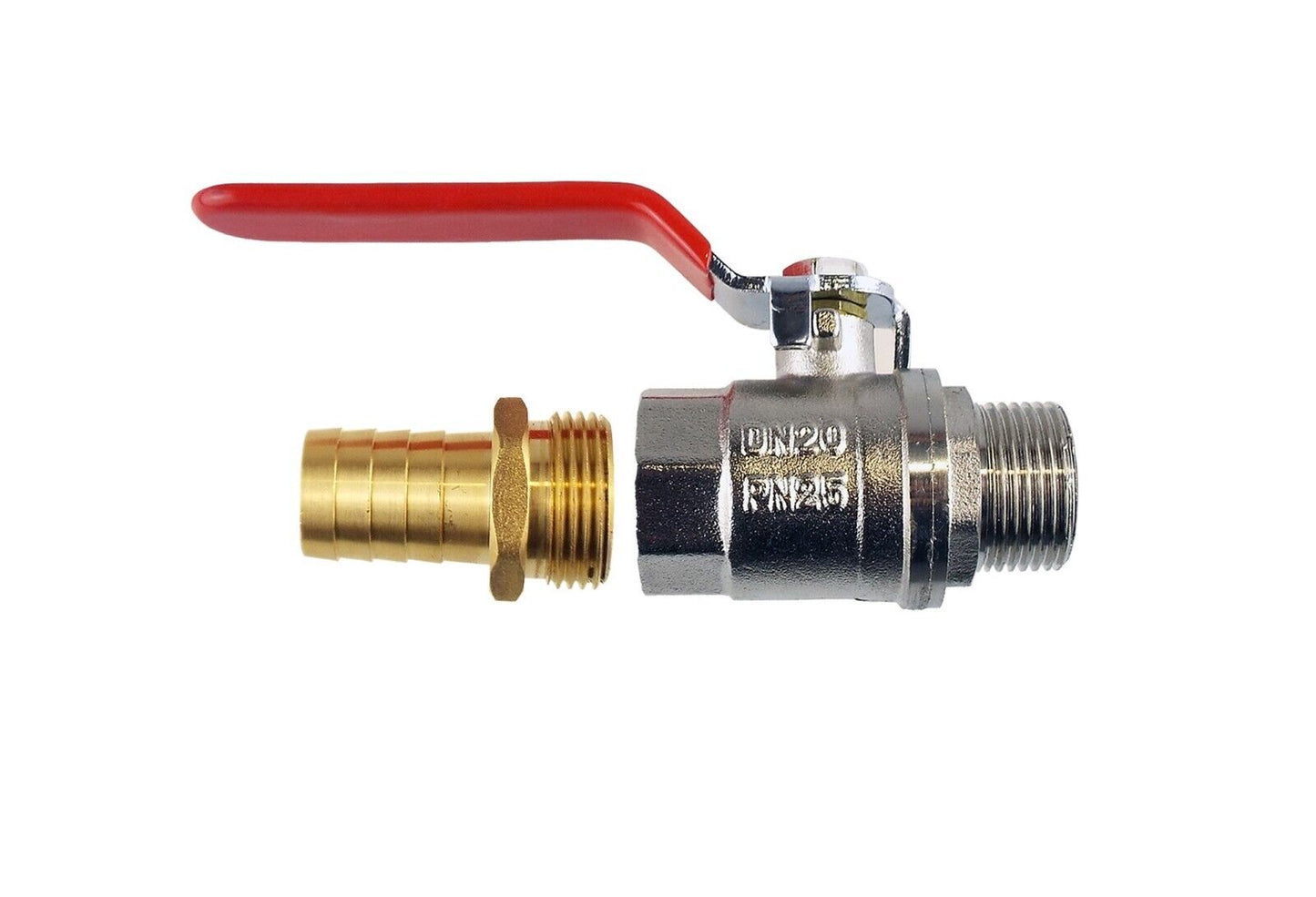

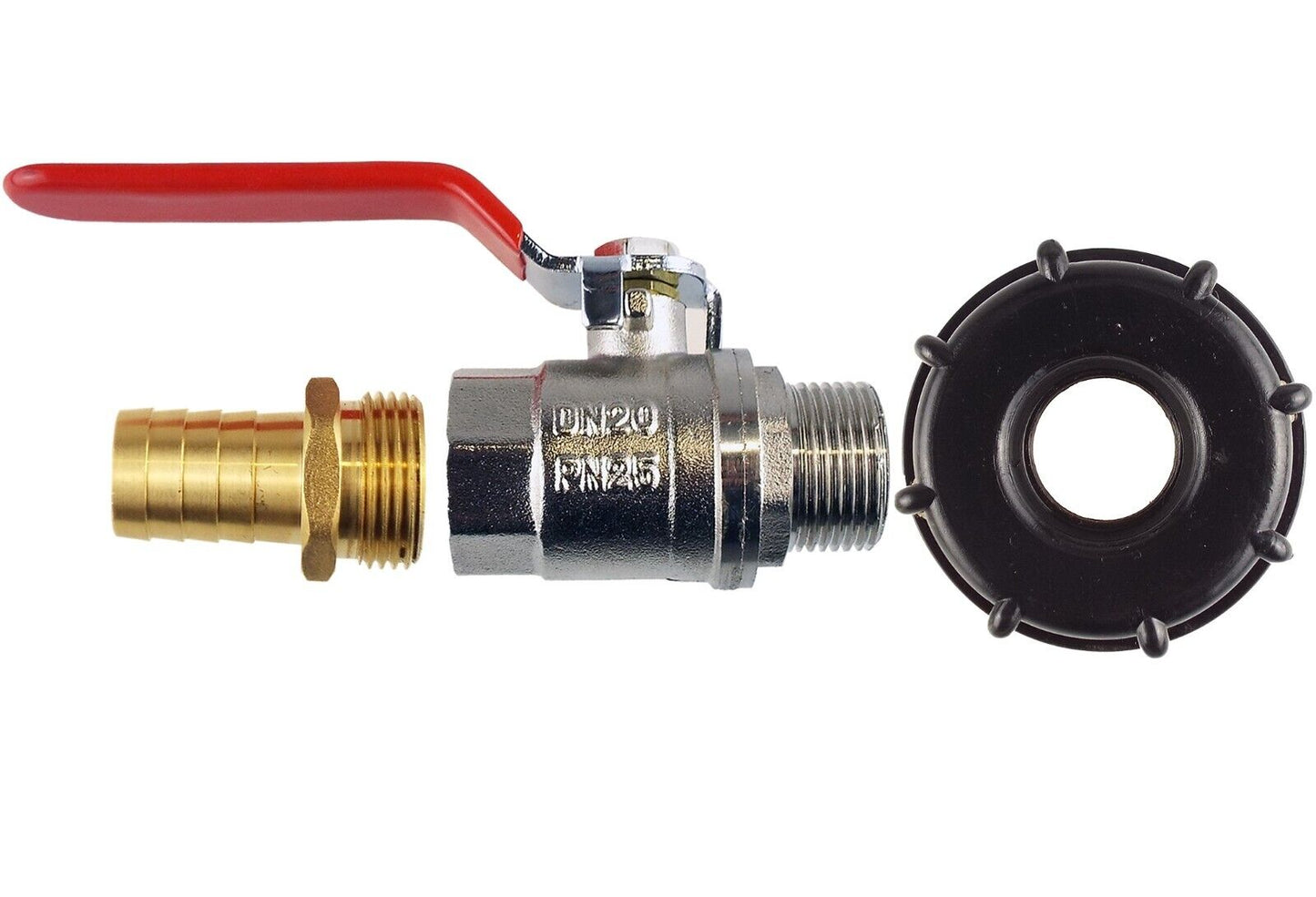

The black cap has a ¾-inch BSP female port. The lever valve's male inlet screws into that port, and the brass hosetail screws into the valve's female outlet. These are the three components included with IBC001A.
The outward-facing tail is for 19mm-bore hose, commonly called ¾-inch hose. Push suitable hose over the barbed section and secure it with a correctly sized hose clip. The required clip size follows the hose's outside diameter once fitted.
The hose tail is not a garden quick plug: bare hose attaches directly to it. The ¾-inch BSP assembly thread is a separate nominal pipe-thread measurement, not a measurement across the hose or its barbed tail.
Fit and support the assembly
Match the tank outlet

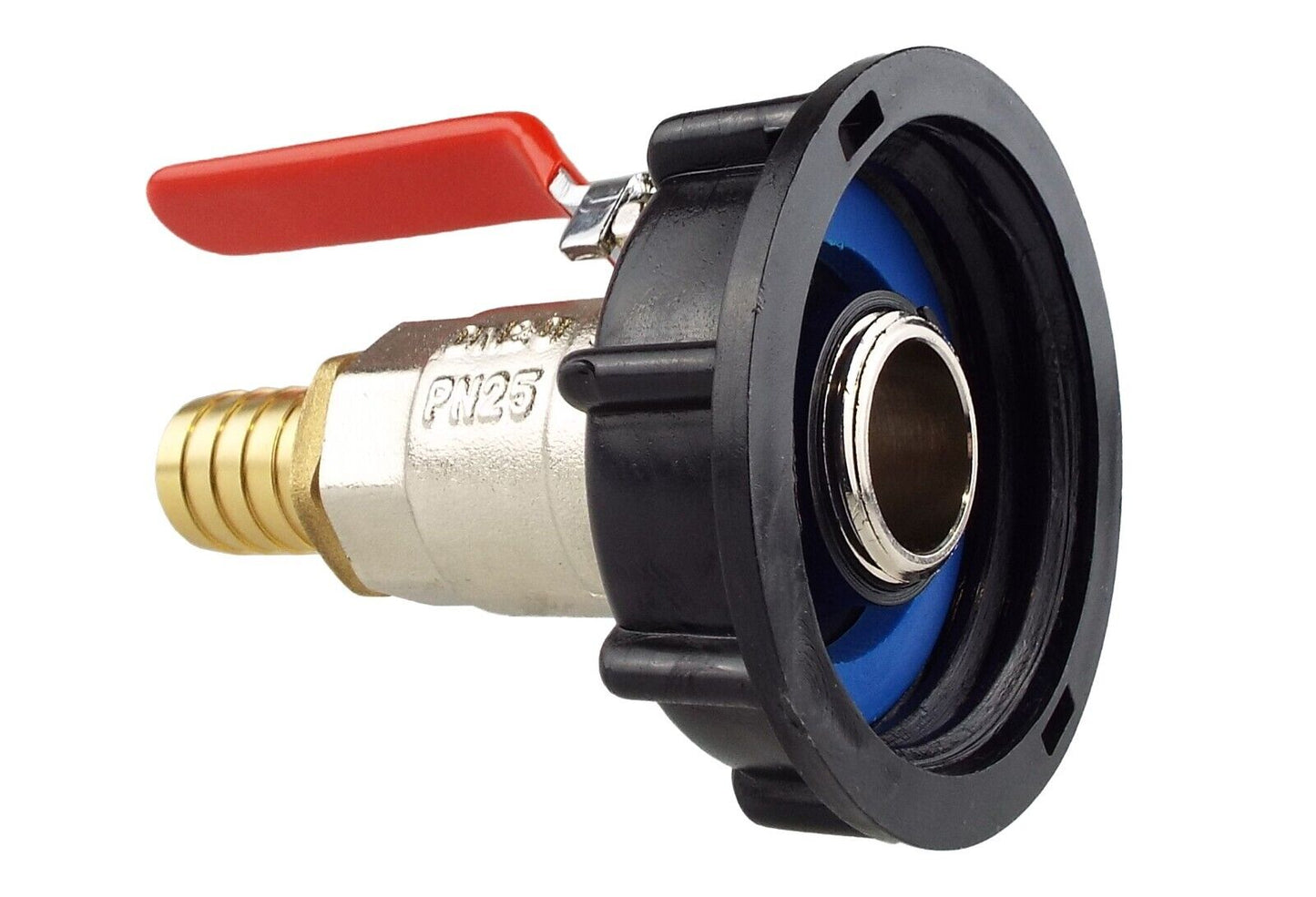

Check for a male S60x6 tank or existing valve outlet: nominally 60mm with a 6mm coarse pitch. Inspect the cap washer and allow space for the lever. This compact cap is not an extended swivel adapter.
Prepare the threaded joints
Close the tank supply before fitting. Start the valve and hosetail threads straight, using suitable thread sealing where required. PTFE sealing tape is sold separately; the cap washer seals a different joint.
Attach the hose securely
Fit the hose over the tail, secure it with a suitable clip and support its weight so it does not pull on the tank outlet. Open the supply gradually and inspect the joints. Close the valve and release trapped pressure before removing the hose.
Before choosing your hose
Is the 19mm size the hose bore or BSP thread?
It is the hose's internal diameter. The hosetail is for suitable 19mm-bore hose. The threaded parts use ¾-inch BSP; nominal hose sizes and pipe-thread sizes describe different connections.
Will this kit increase the pressure from my IBC?
No. The cap, valve and hose tail provide a connection and manual shut-off. Gravity-fed flow depends on the water level, height difference, hose and downstream equipment; this kit does not create pressure.
Product information & technical details
| SKU | IBC001A |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| IBC thread size | S60X6 (2") |
| Barb size | 19mm (3/4") |
| Kit parts | S60x6 tank cap with ¾-inch BSP female port, Plated brass ¾-inch BSP male-to-female lever valve, Brass 19mm hose barb with ¾-inch BSP male thread |
|---|---|
| Colour | Black, Silver, Brass |
| Material | Plastic, Brass |
| Valve body | Plated brass, silver finish |
| Hosetail material | Brass |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
