Description
Bring the tap forward from your IBC

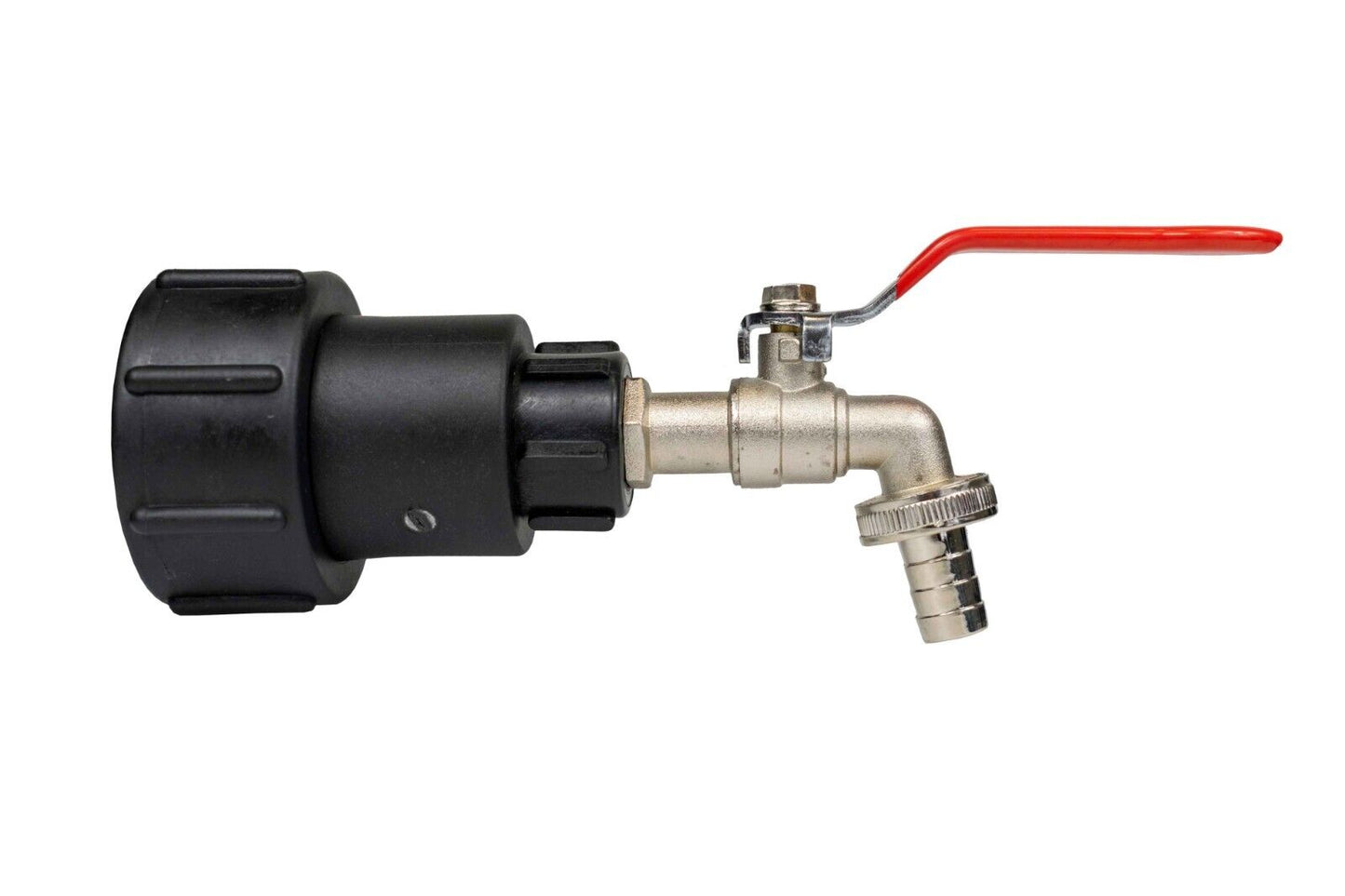

Fit a lever-operated hose outlet to a matching S60x6 tank connection. The extended black adapter brings the tap further out from the tank, giving you more room to reach the lever and attach your hose.
The nickel-plated zinc tap has a ½-inch hose barb. Push a suitable ½-inch internal-diameter hose over the ridges and secure it with a correctly sized hose clip. The lever lets you open or close the water supply at the tap.
Extended adapter and lever tap supplied. Tank, existing tank valve, hose, clip and sealing tape are separate.
Two connections, two different sizes
The large collar screws onto a male S60x6 IBC outlet: a nominal 60mm coarse thread with a 6mm pitch. Check the thread on your tank or existing valve, rather than choosing by the tank's capacity alone.
At the front of the adapter, a ½-inch BSP female port accepts the tap's matching male inlet. The adapter is 10cm long overall; this is not the complete kit length or a promise of 10cm of extra clearance.
Water leaves through the tap's hose barb. It is for hose pushed directly onto the tail, not a snap-on garden quick connector. The ½-inch hose size refers to the hose bore; the BSP thread size is a separate nominal pipe-thread measurement.
Set up your hose outlet
Check the fit and clearance
Close the existing tank valve before fitting. Check the S60x6 thread and the adapter's sealing washer, and allow room to move the red lever. The extension helps bring the tap forward, but the available space still depends on your tank and cage.
Prepare the threaded joint
Start the tap's BSP thread straight and use suitable thread sealing where needed. PTFE sealing tape is available separately. Do not assume the tank-end washer also seals the tap's BSP joint.
Attach and support the hose
Fit a suitable ½-inch-bore hose over the barb and select a clip for the hose's actual outside diameter. Our 12-20mm hose clips may suit this connection; check the fitted hose diameter first. Support the hose, open the supply gradually and inspect the joints for leaks.
Before you choose this kit
Will the S60x6 adapter fit every IBC?
No. It needs a matching male S60x6 outlet. Other IBC thread types exist, so check the actual thread and space around the outlet before ordering. The existing tank valve shown in the installation photo is not part of this kit.
Will this increase the pressure from my tank?
No. The extension and tap provide a connection and manual shut-off; they do not create pressure. With a gravity-fed tank, flow depends on the water level, height difference, hose and any equipment connected downstream.
Product information & technical details
| SKU | IBC021C |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| IBC thread size | S60X6 (2") |
| Barb size | 12.7mm (1/2") |
| Kit parts | S60x6 female extended adapter with ½-inch BSP female port, Nickel-plated zinc lever tap with ½-inch BSP male inlet and ½-inch hose barb |
| Colour | Black, Silver |
|---|---|
| Material | Plastic, Metal |
| Tap body | Nickel-plated zinc |
| Adapter length | 10cm overall; not the complete kit length |
| Hose connection | Barbed outlet for ½-inch internal-diameter hose |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
