Description
A familiar tap for your IBC hose

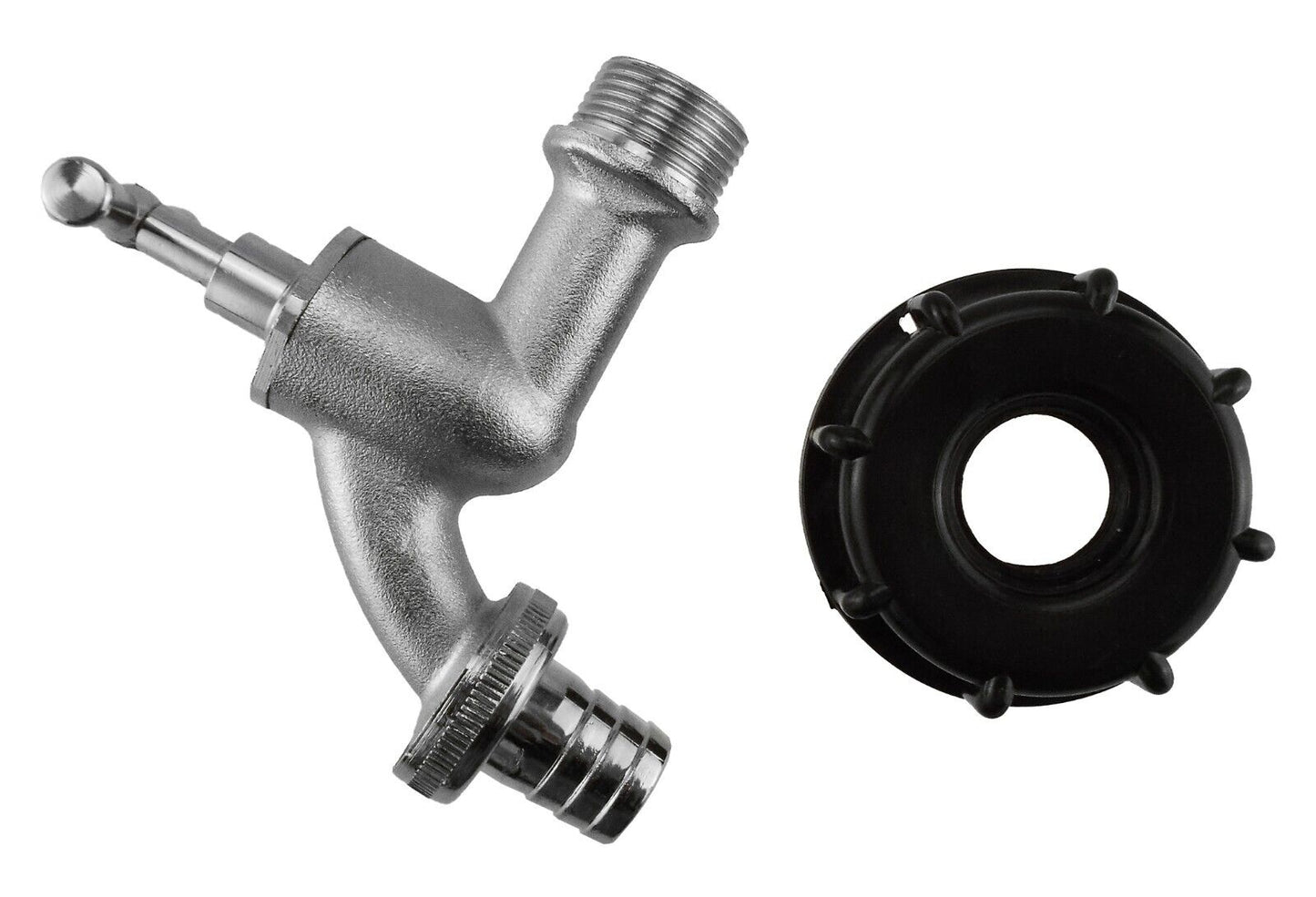

Run ½-inch hose directly from a matching S60x6 IBC outlet with this compact bib-tap kit. The black cap mounts on the tank or existing valve, while the silver tap gives you a T-shaped turn handle to control the water.
The hose pushes over the supplied hosetail. Secure it with a suitable hose clip: this is a barbed connection, rather than a garden click connector.
One S60x6 cap and one nickel-plated brass tap with its hosetail supplied. Tank, existing valve, hose, clip and sealing tape are not included.
The hose fits over the ribs
The ridges on the hosetail grip the inside of suitable ½-inch hose. Push the hose fully onto the tail, then secure it with a correctly sized clip. The knurled nut above the tail attaches the supplied outlet to the tap; it is not a hose-grip nut.
Choose this kit when you want a straightforward hose connection controlled by a traditional turn handle. To remove the hose, close the water supply, release any trapped pressure and loosen the clip first.
Clip sizing depends on the outside diameter of the hose once fitted over the barb. The linked 12-20mm hose clips are an option only if that fitted diameter falls within their range. Hose and clips are separate purchases.
Check the fit before filling the tank
Match the tank thread
The cap needs a male S60x6 outlet, nominally 60mm with a 6mm coarse pitch. Check the actual tank or existing valve thread and clearance around it. This compact cap is not an extension adapter.
Assemble the tap
The tap's ½-inch BSP male inlet screws into the cap's ½-inch BSP female port. Suitable thread sealing may be needed here; PTFE tape is sold separately. Inspect the tank-cap washer and start the threads straight.
Support and check
Fit and secure your hose without leaving its weight pulling on the outlet. Open the supply gradually and inspect all joints. The tap controls the water; flow still depends on the tank level, hose run and connected equipment.
Hose and fitting questions
Can I click a garden hose connector onto this tap?
The supplied outlet is a hosetail for bare ½-inch hose, not a male garden quick plug. Use hose directly over the barb and a suitable clip. If you want a detachable click connection, choose a kit supplied with matching quick fittings instead.
Does ½-inch BSP mean the same thing as ½-inch hose?
They describe different parts of this kit. The ½-inch BSP thread joins the tap to the cap; the ½-inch hosetail fits the inside of the hose. BSP is a nominal pipe-thread size, not the measured diameter of that thread or the hose's outside diameter.
Product information & technical details
| SKU | IBC005A |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| IBC thread size | S60X6 (2") |
| Barb size | 12.7mm (1/2") |
| Kit parts | S60x6 tank cap with ½-inch BSP female port, Nickel-plated brass ½-inch BSP male bib tap with supplied ½-inch hosetail |
| Colour | Black, Silver |
|---|---|
| Material | Plastic, Brass |
| Tap body | Nickel-plated brass |
| Control | T-shaped turn handle |
| Hose attachment | Push-on hosetail; secure hose with a suitable clip |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
