Description
A BSP connection for your S100x8 tank outlet

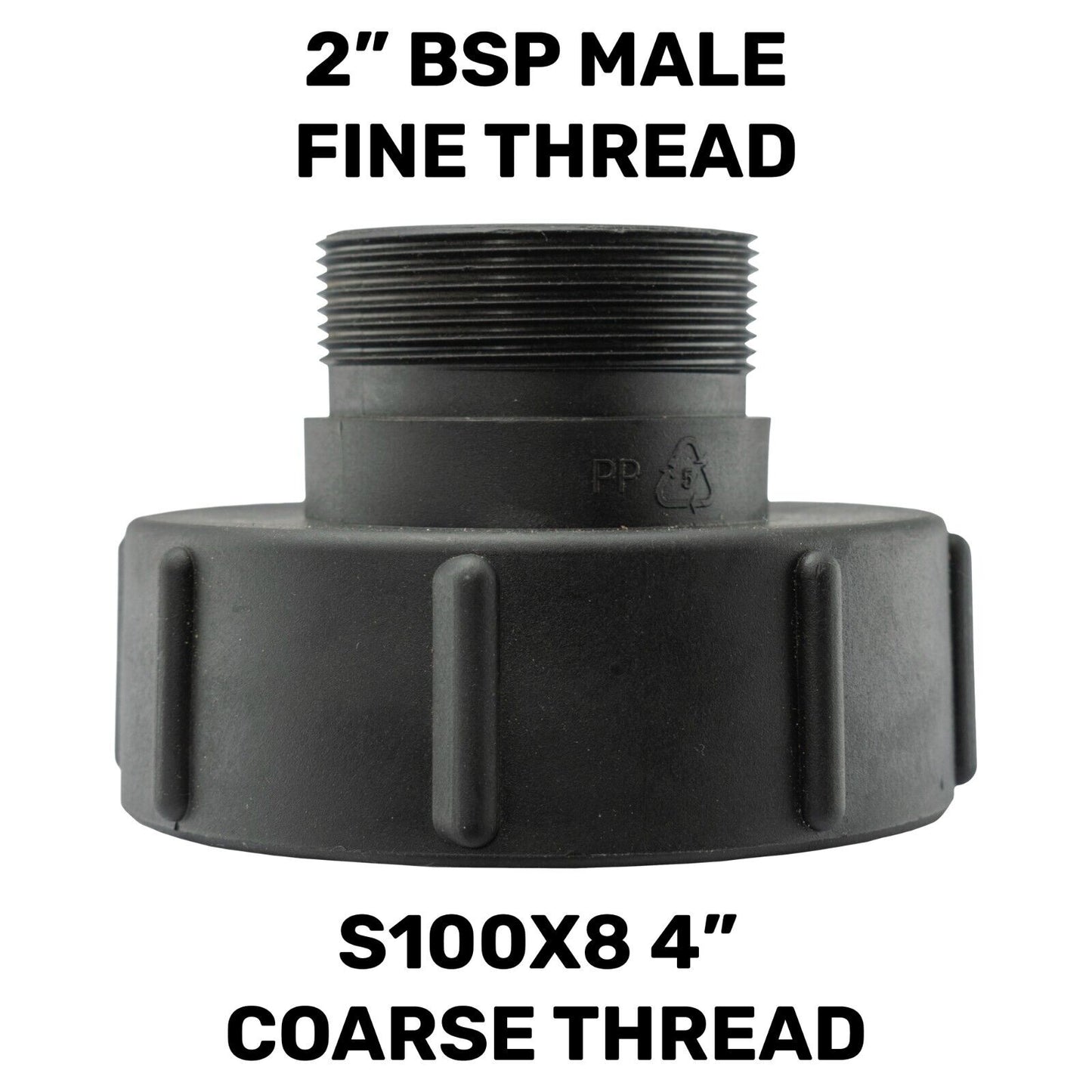

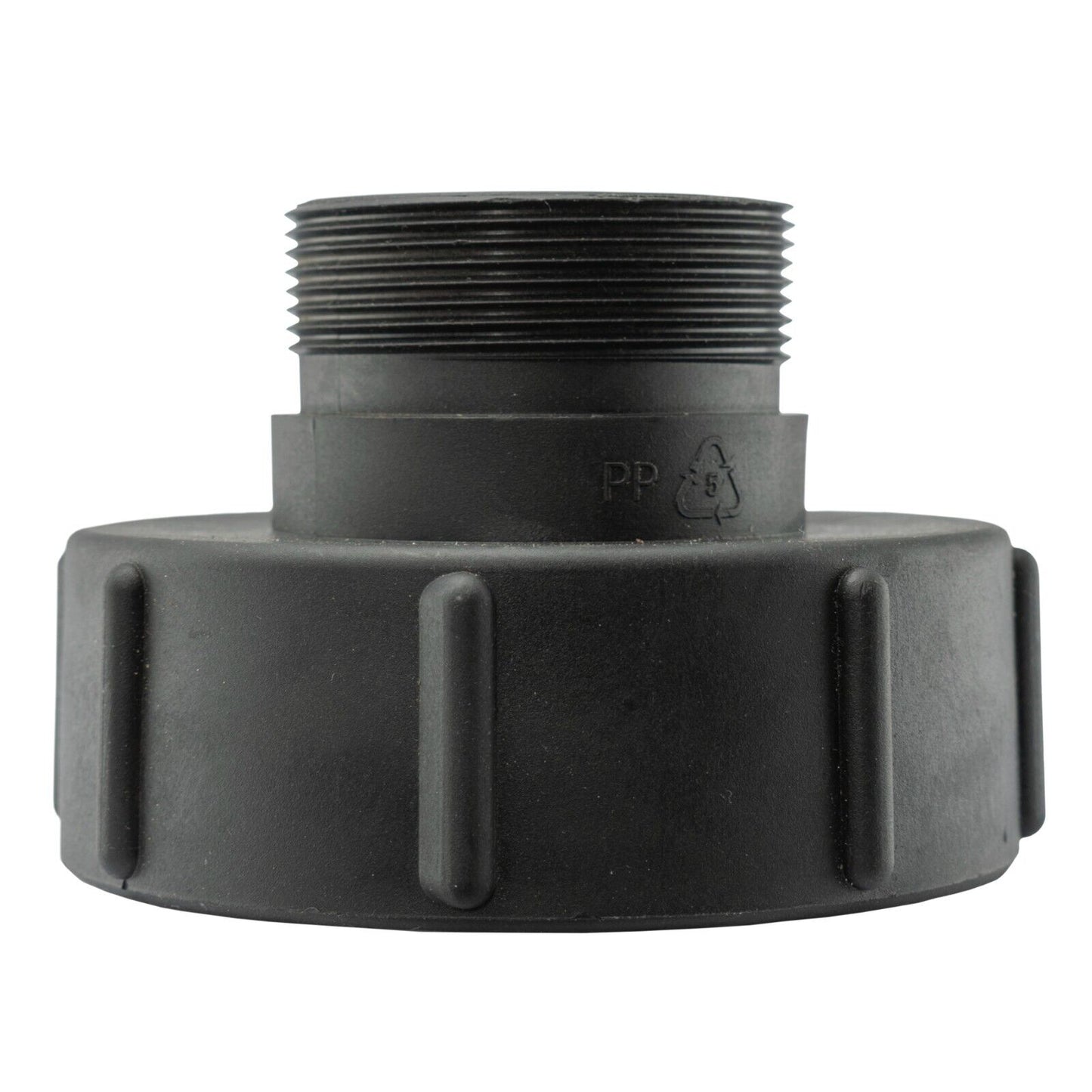

Give a matching IBC outlet a 2-inch BSP male connection for your next fitting. This black plastic reducer screws onto a male S100x8 coarse tank thread and presents a smaller, finer BSP thread on the outside.
It is the link between two different thread standards. Choose it when your tank has the larger S100x8 connection and your valve, pipe fitting or hose-tail adapter has a matching 2-inch BSP female inlet.
One adapter supplied. The guide shows two views of the same item. Tank, valve, pipework and hose fittings are separate.
Match the thread at each end
Start at the tank. The broad female end fits a matching male S100x8 outlet: a nominal 100mm coarse thread with an 8mm pitch. It is not the smaller S60x6 connection found on many IBCs. Check the exposed valve thread before ordering.
Then choose the outlet fitting. The projecting end is 2-inch BSP male and needs a matching female BSP fitting. A 2-inch S60x6 coarse IBC fitting is a different standard and will not substitute for it. BSP is a nominal pipe-thread size, not a direct measurement of the thread's outside diameter.
Plan the hose connection separately. This is a threaded reducer, not a hose barb or garden quick connector. Add the correct female-threaded hose tail or other fitting for your setup; do not push a bare hose over the threaded outlet.
Isolate the tank before fitting. Check the tank-side sealing ring is clean and correctly seated, start the threads squarely and avoid forcing mismatched parts. Use the sealing method appropriate to the separate BSP fitting, support attached pipework and check both joints for leaks before use.
Before you choose your adapter
Will it fit any IBC described as having a 4-inch outlet?
Check the actual thread standard, not the tank capacity or a general size description. This adapter requires a male S100x8 coarse thread. A different pitch or a smaller S60x6 valve outlet needs a different adapter.
Can I connect a hose straight to the outlet?
No. The outlet is a 2-inch BSP male thread. Fit a compatible 2-inch BSP female hose-tail adapter or other suitable connector, then match its hose connection to your hose. The reducer itself does not include a hose connector or shut-off valve.
Product information & technical details
| SKU | IBCS100X8-2BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 2" |
| Thread gender | Male, Female |
| IBC thread size | S100X8 (4") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Tank connection | S100x8 female coarse thread (8mm pitch) |
| Outlet connection | 2-inch BSP male thread |
| Supplied quantity | 1 adapter; valve and hose fittings separate |
