Description
A direct hose outlet, with lever control

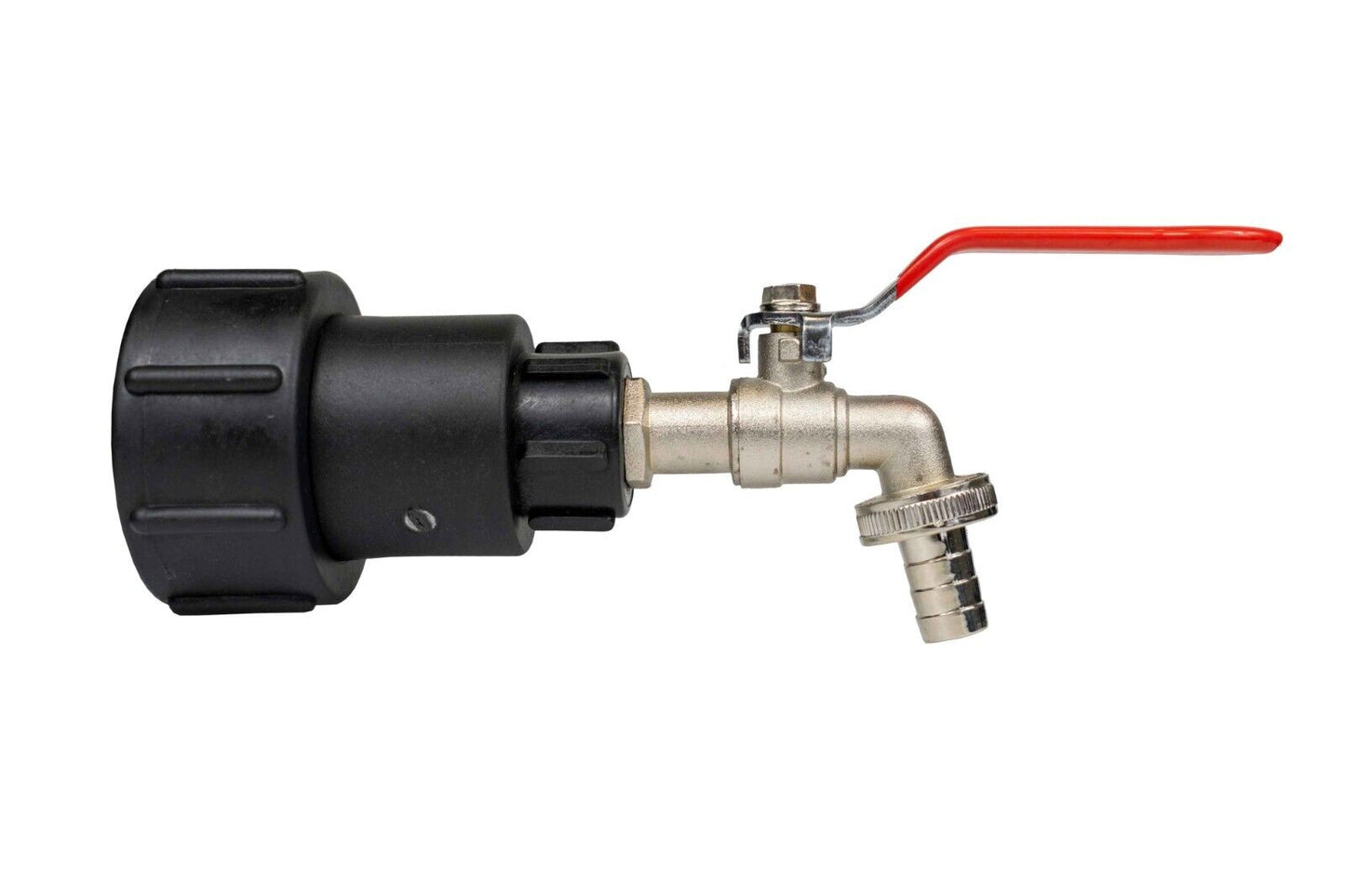

Run water from a matching IBC into a 19mm internal-diameter hose. This kit combines an extended S60x6 swivel adapter with a red-handled tap and a downward-facing barbed outlet.
Plastic adapter and nickel-plated zinc tap supplied. The adapter is 100mm long overall, helping bring the tap forward from the tank connection.
Tank, existing tank valve, hose, hose clip and sealing tape are separate.
Push the hose over the barbs
The ribbed tail fits inside a ¾-inch, approximately 19mm internal-diameter hose. Push a suitable flexible hose fully onto the tail and secure it with a correctly sized hose clip. Check the hose's bore for the fit and its outside diameter when choosing the clip.
This outlet is a direct hosetail connection, not a click connector for a ½-inch garden hose. The separate ¾-inch BSP male inlet screws into the black adapter; BSP thread size and hose bore describe different parts of the assembly.
Our 19mm clear braided hose is an optional hose to consider for a water run. Choose the length for your route and support the hose so its weight does not pull on the tap.
The red lever opens and closes the supply. Flow depends on the tank's water level, available head and connected hose; the tap does not boost pressure. Close the tap and release any trapped pressure before removing the hose.
Bring the tap forward from the tank
Check for a male S60x6 tank or valve outlet: nominally 60mm with a 6mm coarse pitch. The adapter has a female S60x6 tank connection and a ¾-inch BSP female port for the tap. Other tank threads need a different adapter.
The extended adapter is 100mm long overall. Its swivel arrangement helps set the tap's position without leaving a screw joint loose. This is the adapter's full length, not 100mm of extra installed projection. Check clearance around the tank frame, red lever and downward hose run.
Close the existing tank valve before fitting, inspect the adapter washer and start the threads square. Apply suitable sealing at the BSP joint where required; PTFE tape is sold separately. Open the supply gradually and check the connections before use.
Choosing and connecting your hose
Does a ½-inch garden click connector attach to this tap?
No. The supplied outlet is a hosetail for approximately 19mm internal-diameter hose. The hose fits directly over the barbs and needs a suitable clip. Choose a quick-connect version of the kit if that is the connection you require.
Is PTFE tape or a hose clip included?
No. IBC021D contains the extended adapter and nickel-plated zinc lever tap with its hosetail. Hose, clip and tape are sold separately.
Product information & technical details
| SKU | IBC021D |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| IBC thread size | S60X6 (2") |
| Barb size | 19mm (3/4") |
| Kit parts | 100mm S60x6 swivel adapter with ¾-inch BSP female port, Nickel-plated zinc lever tap with 19mm hosetail |
| Colour | Black, Silver |
|---|---|
| Material | Plastic, Metal |
| Adapter overall length | 100mm (10cm) |
| Tap body | Nickel-plated zinc |
| Hose attachment | Direct over hosetail; secure with a suitable clip |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
