Description
Control water at the GEKA outlet

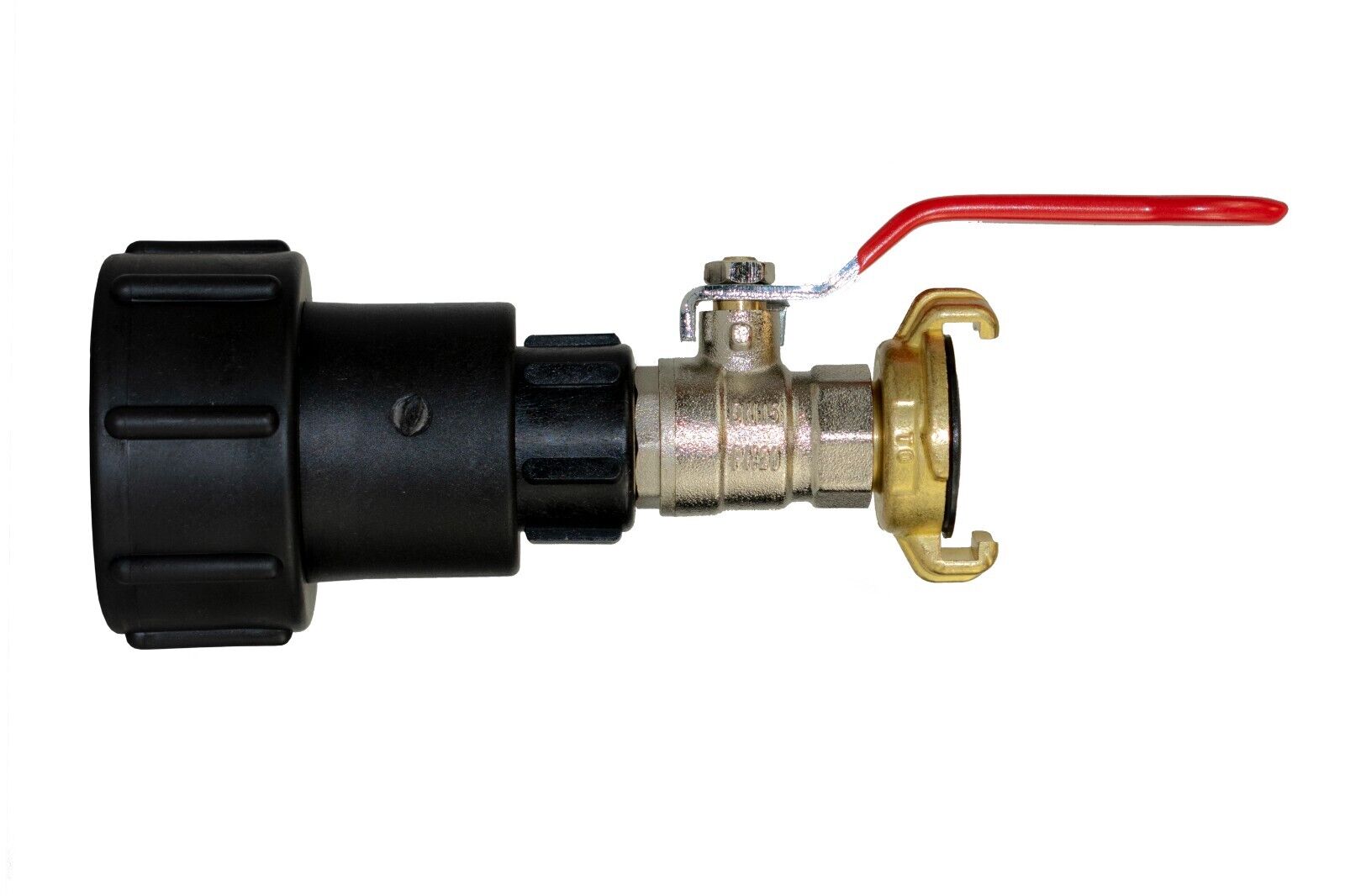

Fit a GEKA-style claw outlet to your matching IBC. The extended S60x6 swivel adapter brings the connection forward, while the red lever controls the water supply.
Supplied: 100mm plastic adapter, ¾-inch BSP nickel-plated brass valve and brass claw coupling.
Tank, existing tank valve, hose, mating hose-side coupling and sealing tape are separate.

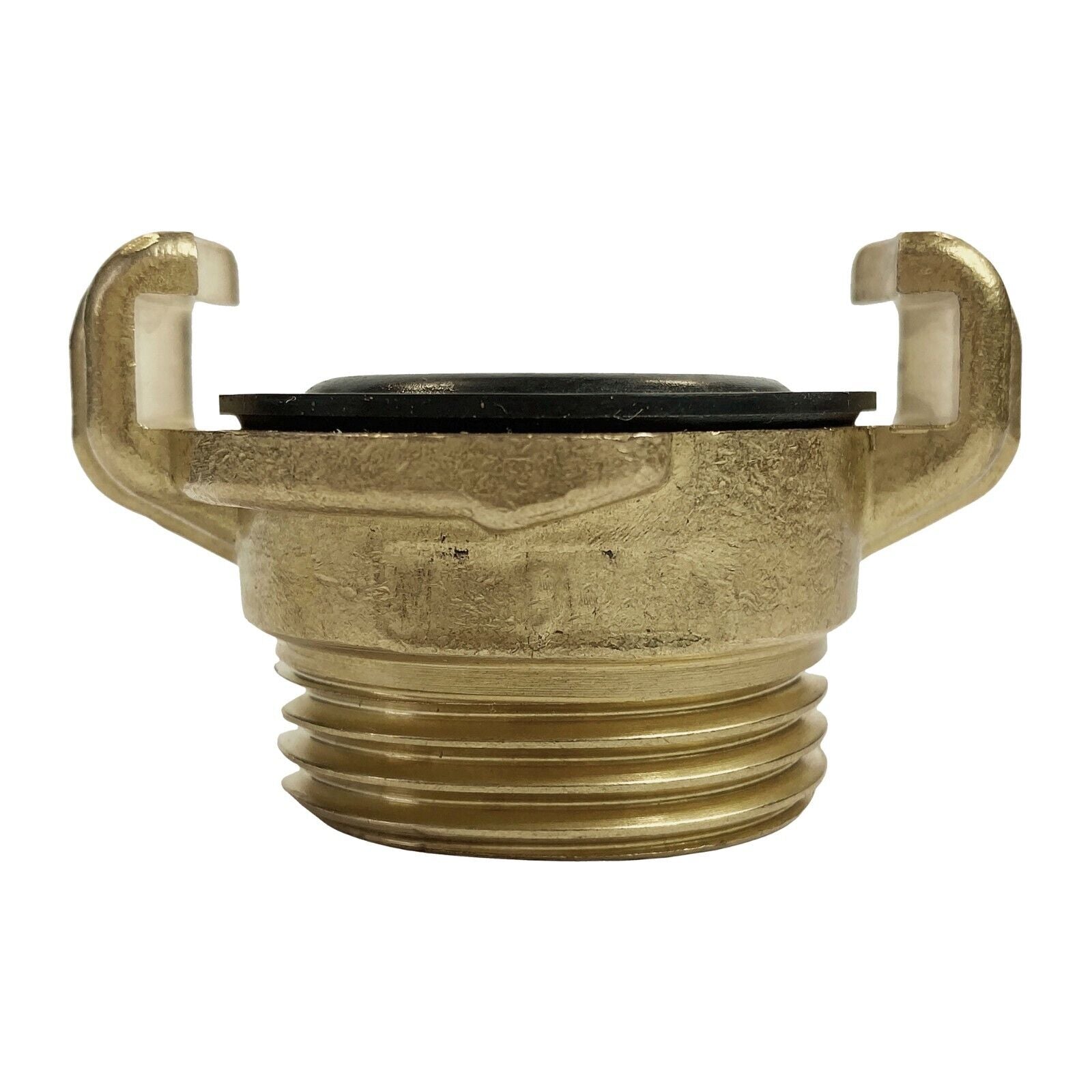

Claws that engage with a twist
The two opposing claws are the hose connection. Bring a matching GEKA-style coupling face to face with the outlet, engage the claws and twist to lock them together. The sealing faces need to be clean and in good condition.
This is a claw coupling rather than a garden click connector or a bare hosetail. The ¾-inch BSP thread joins the supplied coupling to the valve; it does not tell you which hose bore to buy.
For a ¾-inch internal-diameter hose, our 19mm GEKA-style hosetail connector is an optional hose-side fitting. Choose the tail to suit your actual hose bore, check that the claw profiles match and secure the hose appropriately.
Close the lever valve and release any trapped water pressure before separating the couplings. Disconnecting the claw joint does not close the valve automatically.
Check the tank thread and working space
The adapter fits a male S60x6 outlet on the tank or its existing valve: nominally 60mm with a 6mm coarse pitch. Confirm the thread profile as well as its size; other IBC outlets need a different adapter.

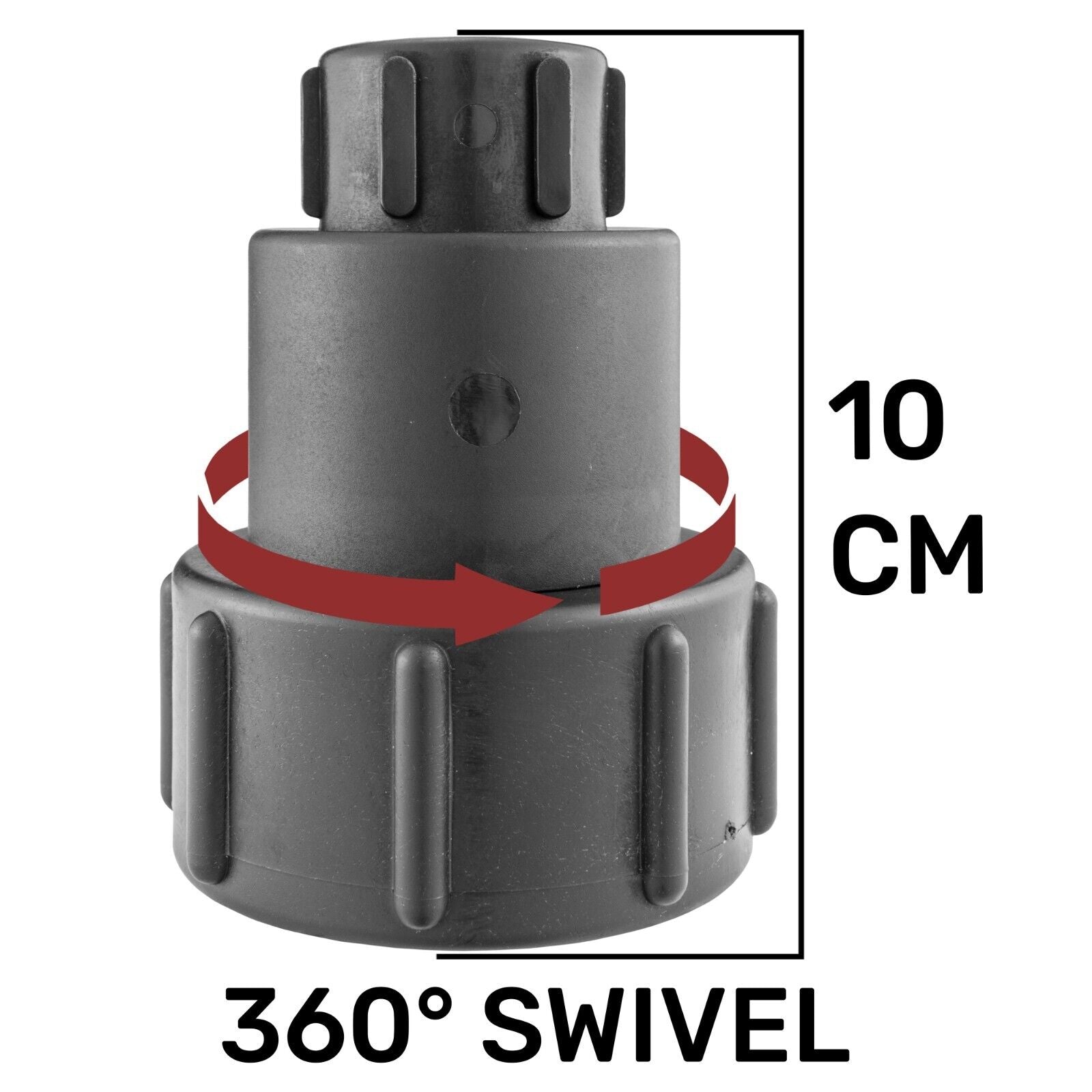

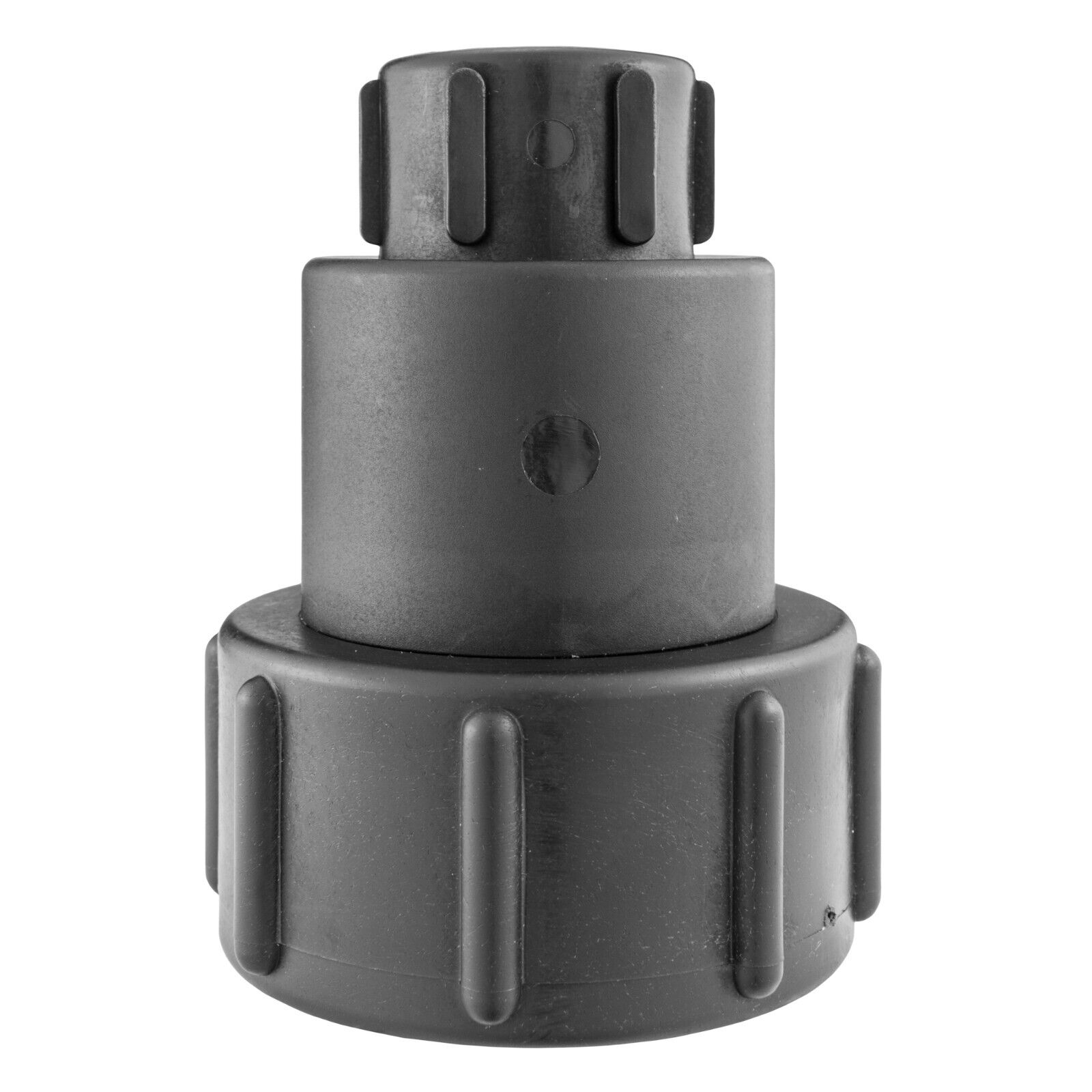

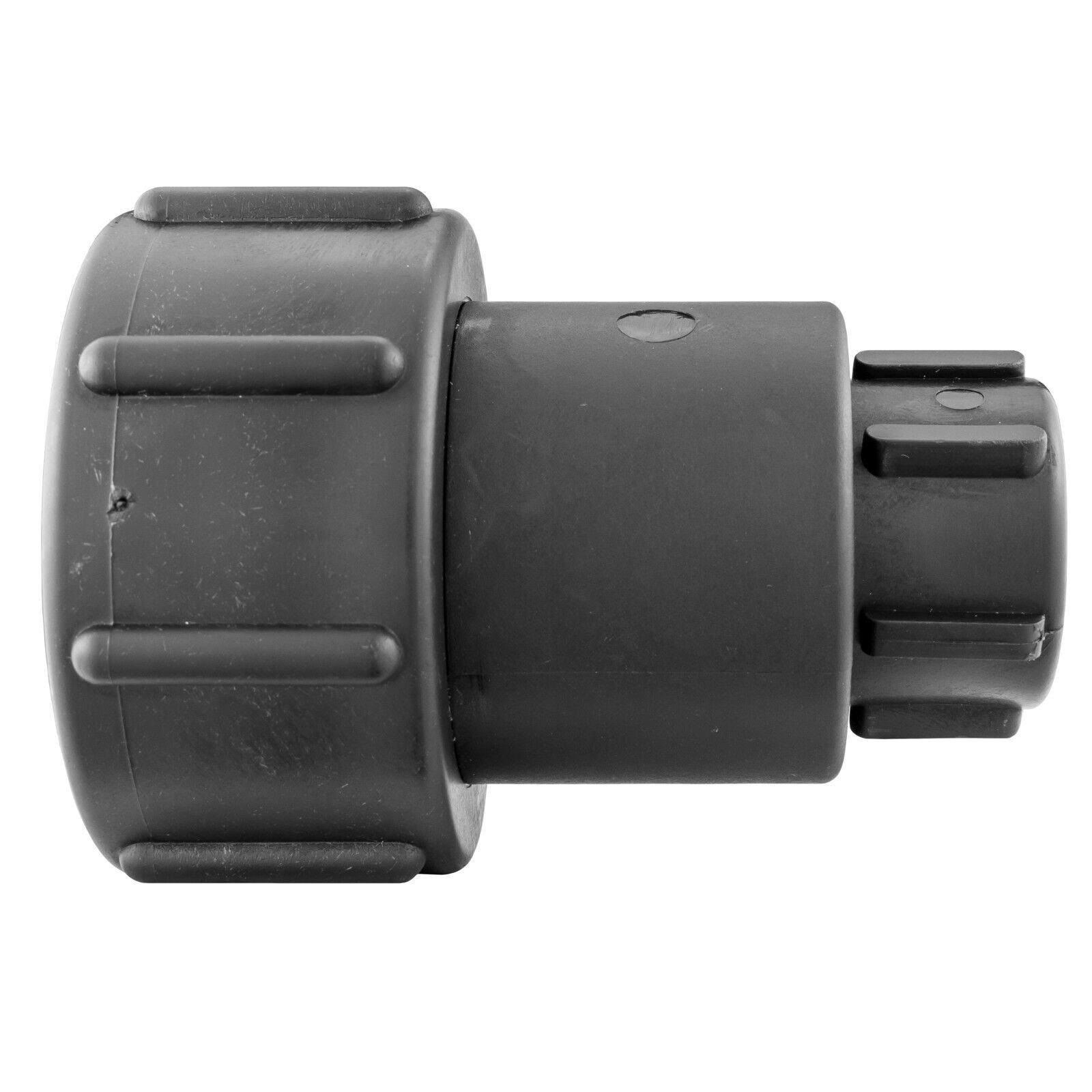

The black adapter is 100mm long overall. Its swivel arrangement helps position the assembly without leaving a screw joint loose. The measurement is the adapter's full length, not 100mm of extra projection once fitted. Allow room for the red handle to turn and the hose to run without pulling on the tank outlet.
The adapter's ¾-inch BSP female port takes the valve's male inlet. The valve's female outlet takes the male thread on the brass claw coupling. Close the tank supply before assembly, inspect the adapter washer and start each thread square.
Use suitable sealing on the BSP joints where required; PTFE tape is sold separately. Support connected pipework, then open the supply gradually and check the joints before use. The kit controls flow; it does not increase the pressure available from your tank.
Connection questions
Will a standard garden click connector fit this outlet?
No. The outlet uses a GEKA-style claw coupling. Fit a matching claw coupling to the hose; a standard push-on garden quick connector will not latch directly onto these claws.
What comes in the IBC021P kit?
One extended female S60x6 to ¾-inch BSP female adapter, one ¾-inch BSP male-to-female lever valve and one ¾-inch BSP male GEKA-style claw coupling. The tank, existing tank valve, hose, mating hose-side coupling and PTFE tape are separate.
Product information & technical details
| SKU | IBC021P |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| IBC thread size | S60X6 (2") |
| Kit parts | 100mm S60x6 swivel adapter with ¾-inch BSP female port, ¾-inch BSP male-to-female lever valve, Brass GEKA-style coupling with ¾-inch BSP male thread |
| Colour | Black, Silver, Brass |
|---|---|
| Material | Plastic, Brass |
| Adapter overall length | 100mm (10cm) |
| Valve body | Nickel-plated brass |
| Hose connection | GEKA-style claw coupling; mating coupling required |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
