Description
A claw-coupled outlet for your IBC

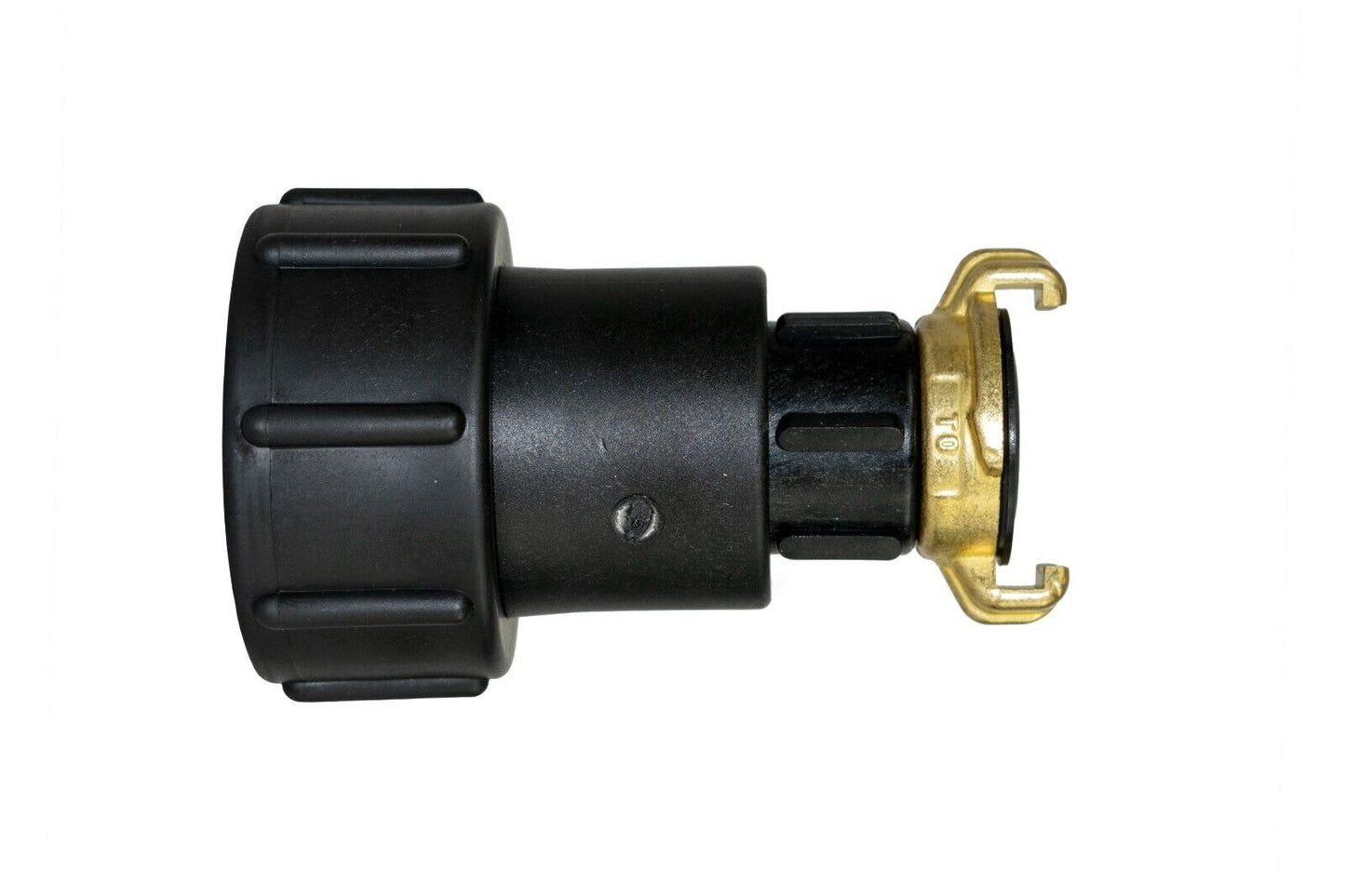

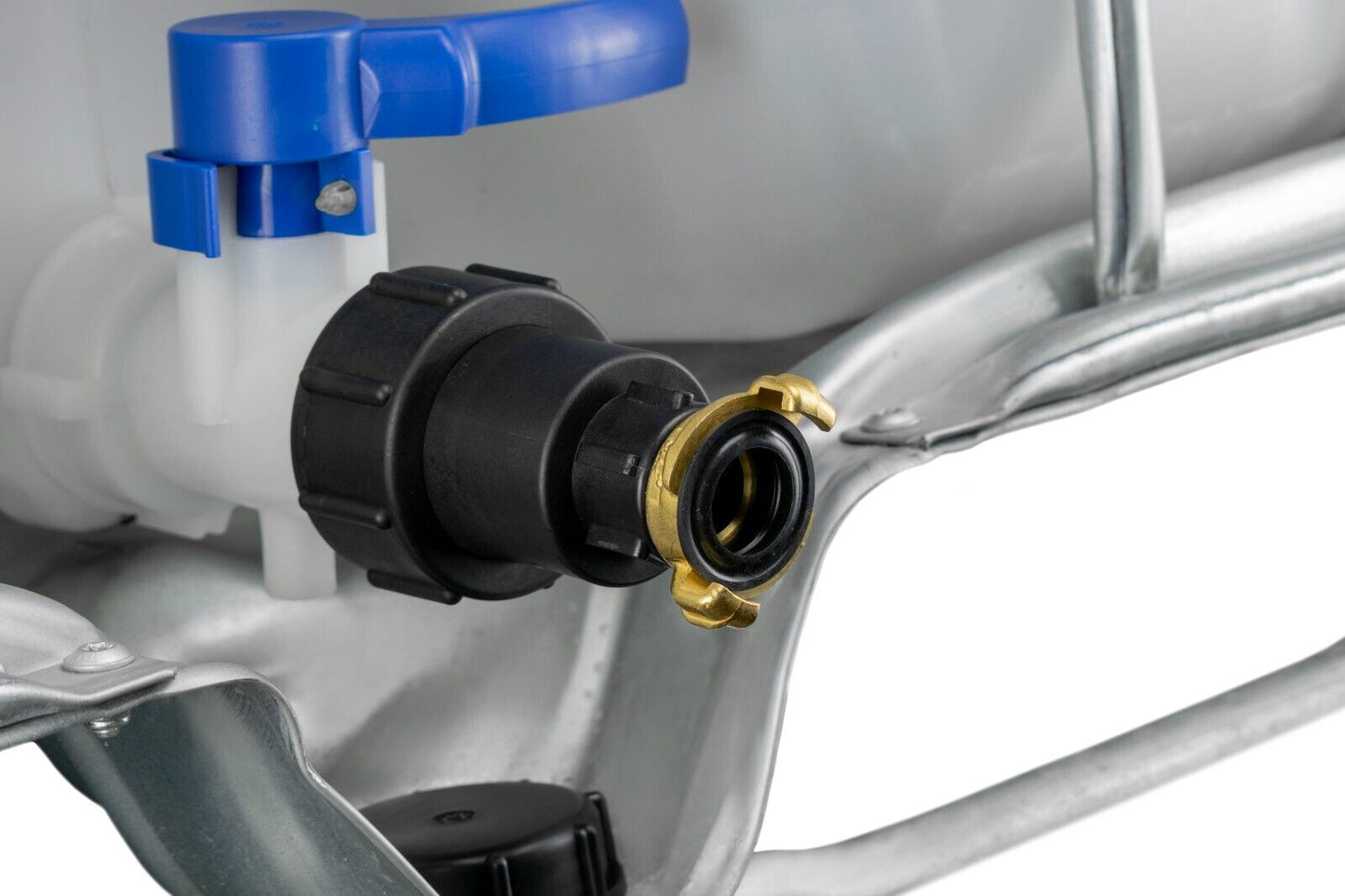

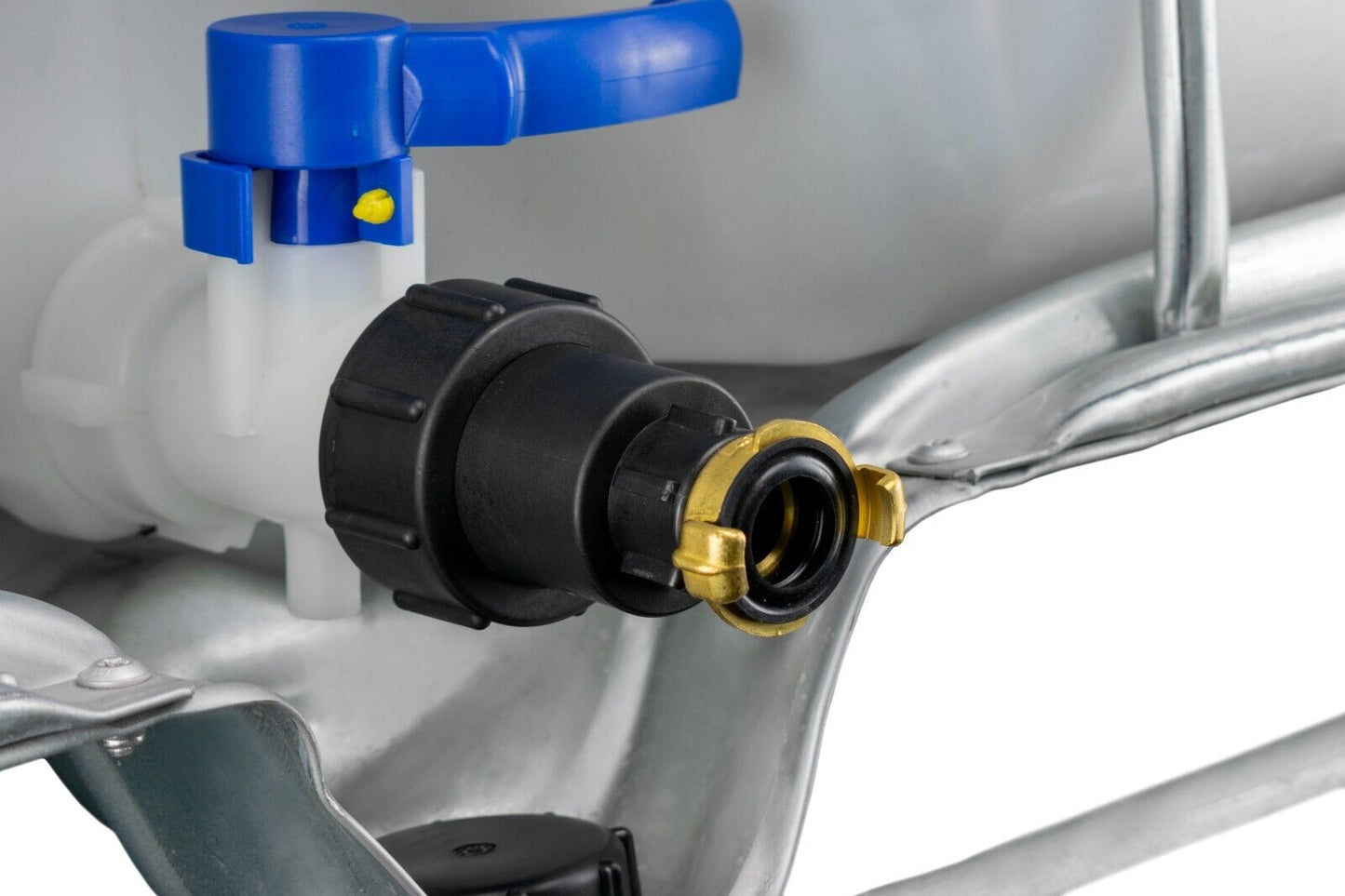

Set up a GEKA-type claw connection on a matching S60x6 IBC outlet. The extended black adapter brings the brass coupling forwards from the tank valve, giving you a connection point for a compatible claw-fitted hose.

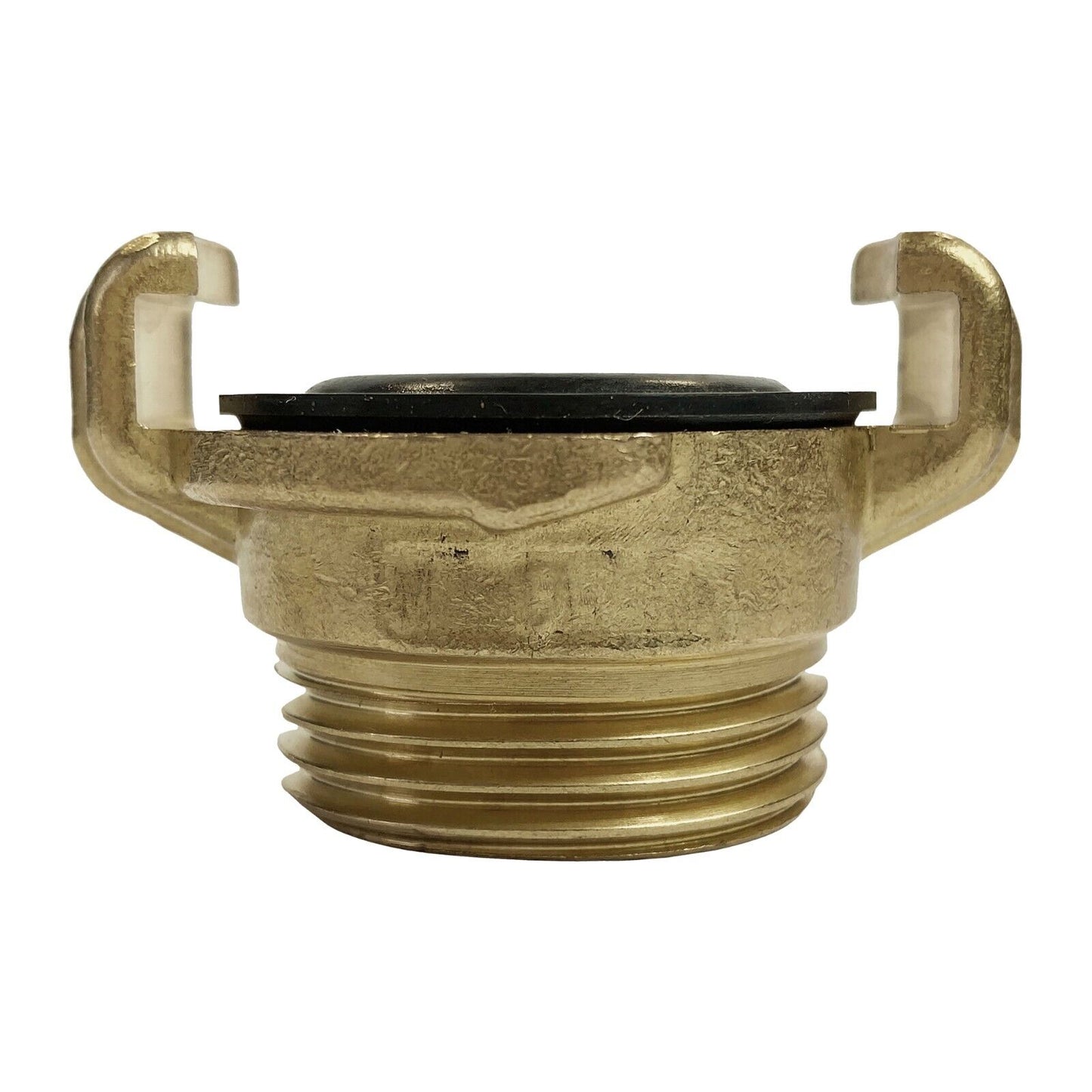

The fitting's two opposing claws and black face gasket form the external coupling. The ¾-inch BSP thread is inside the assembly, joining the brass fitting to the extender.
Two parts supplied: one extended adapter and one brass claw fitting. Use the tank's existing valve to control the water; this kit has no additional tap.
Three connections to understand
At the tank: the large female S60x6 coarse-thread collar fits a matching male tank outlet. IBC outlets vary, so check the actual thread before ordering rather than relying on tank capacity or appearance.
Between the kit parts: the brass fitting's ¾-inch BSP male thread screws into the extender's female socket. This describes the component joint, not a push-on hose diameter.
At the hose side: a compatible mating claw coupling meets the black sealing face and locks with a twist. Select the correct claw system and a hose connection suited to your hose; a bare hose or normal garden click connector will not attach directly.

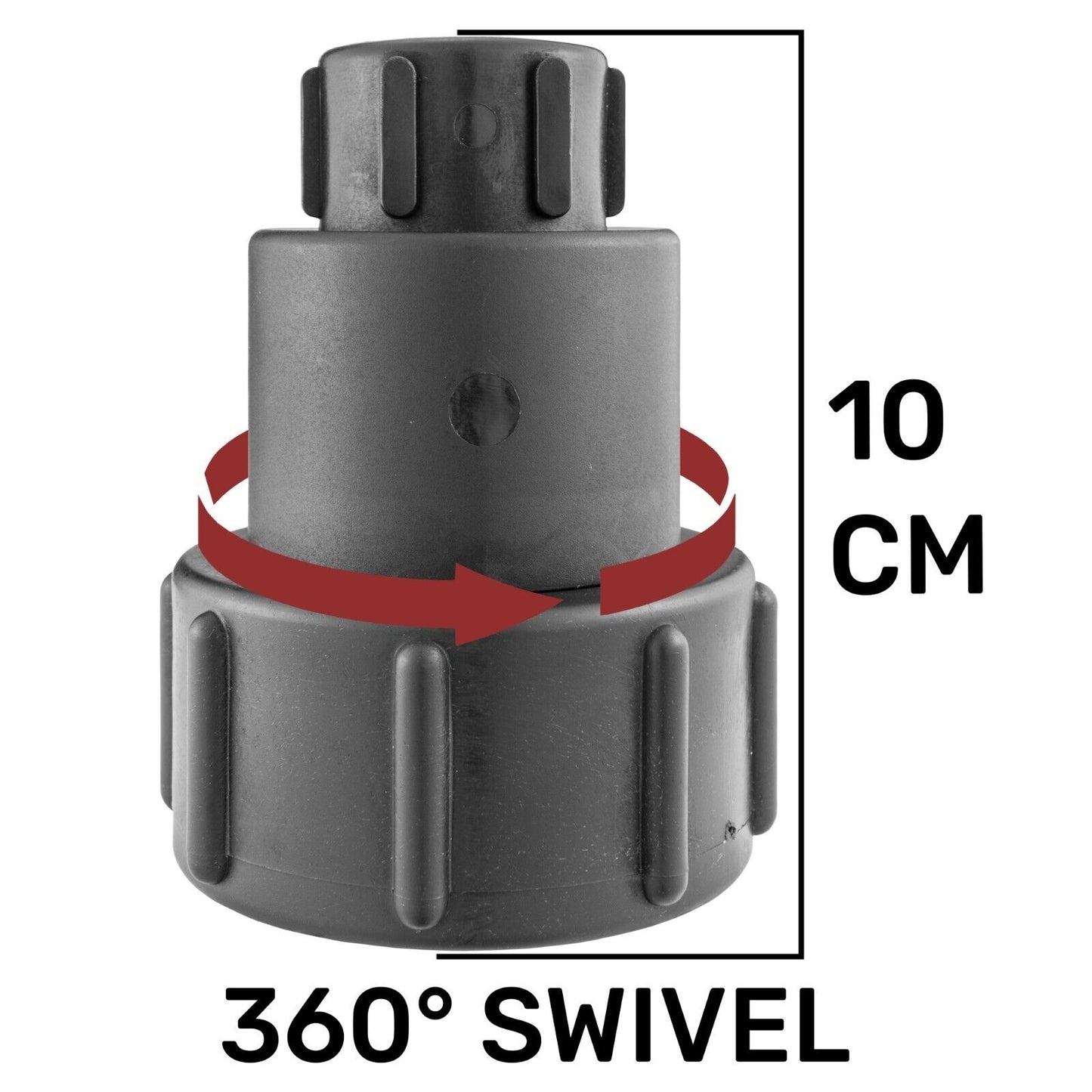

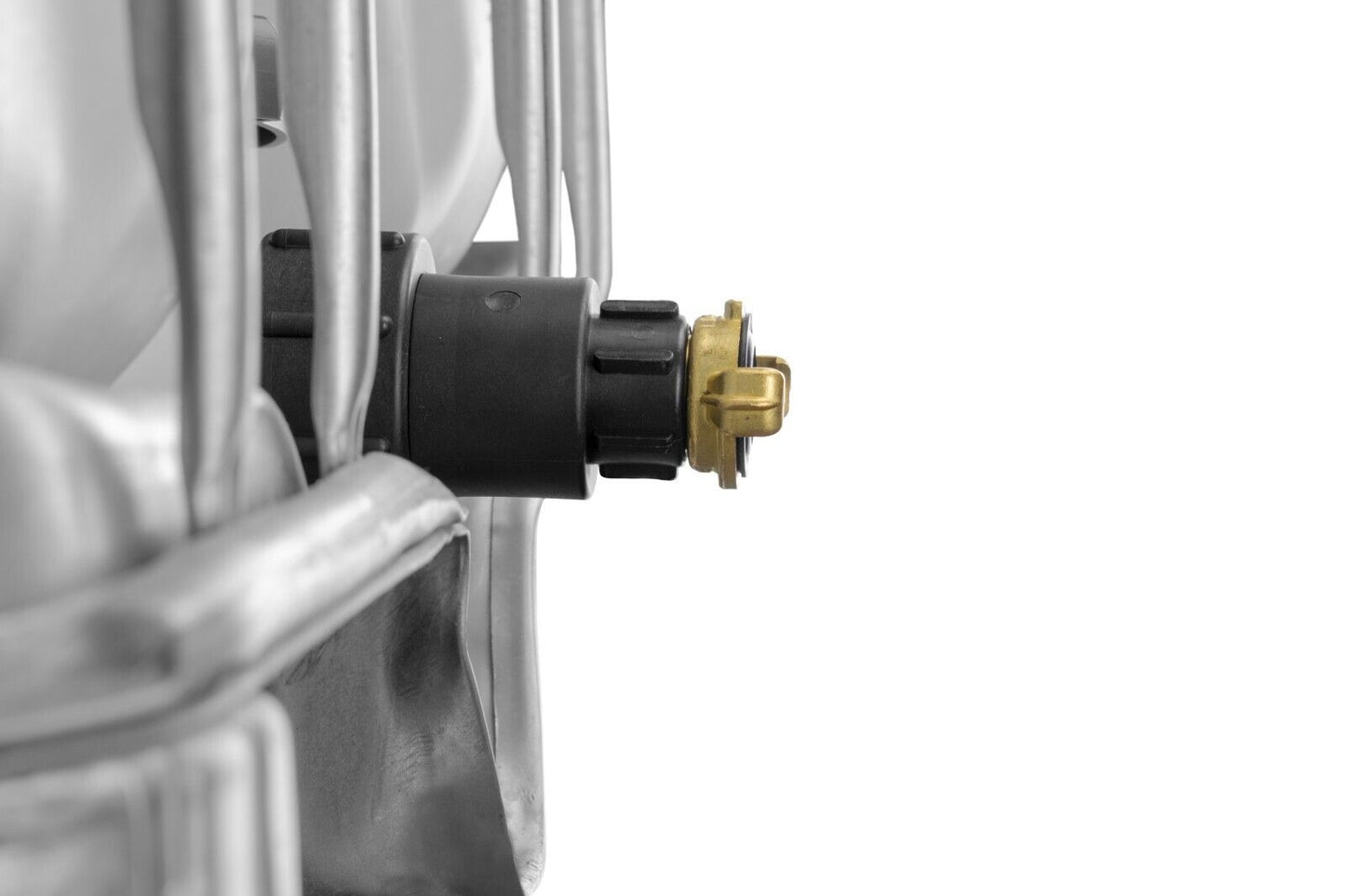

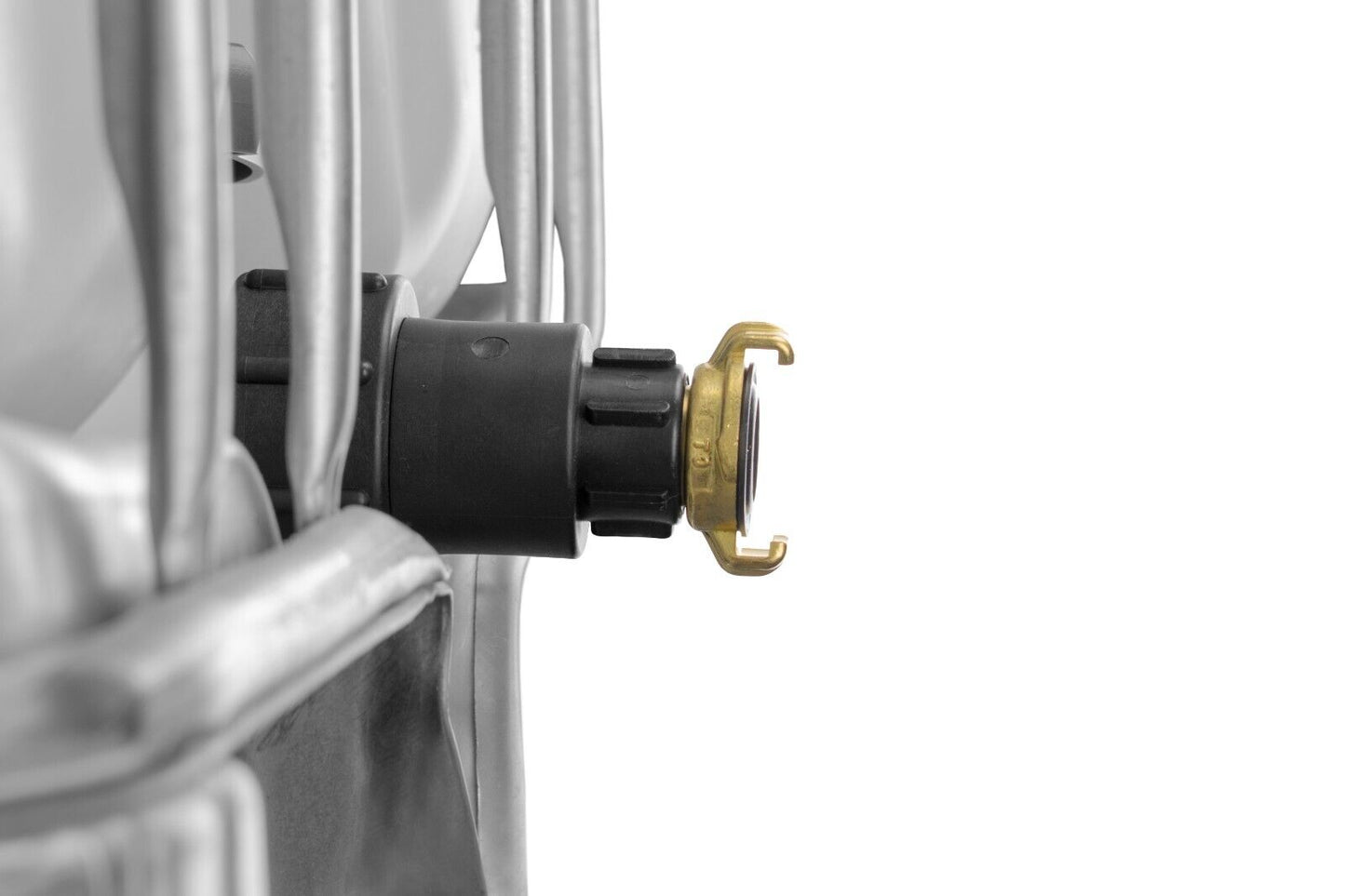

The extender body measures 10cm overall, excluding the brass fitting. Part overlaps the tank outlet when installed, so measure cage and pallet clearance before choosing the kit. Isolate the supply during assembly, support attached hoses and check the completed joints for leaks. PTFE tape may be required at the BSP joint and is sold separately.
Before you connect
Does ¾-inch mean this takes a ¾-inch hose?
No. Here, ¾-inch BSP identifies the thread joining the two kit components. The assembled outlet is a GEKA-type claw coupling. Your hose needs a compatible mating claw fitting with the appropriate hose connection; that fitting and the hose are separate.
What is supplied with this kit?
SKU IBC021Q contains one extended female S60x6 adapter with a ¾-inch BSP female socket and one brass claw fitting with a ¾-inch BSP male thread. It does not include PTFE tape, a separate valve, hose or mating coupling. Keep control of the water at your existing IBC valve or other suitable system control.
Product information & technical details
| SKU | IBC021Q |
|---|---|
| Product type | |
| IBC thread size | S60X6 (2") |
| Kit parts | 1 × extended S60x6 adapter with ¾-inch BSP female socket, 1 × brass GEKA-type claw fitting with ¾-inch BSP male thread |
| Colour | Black, Brass |
| Material | Plastic, Brass |
|---|---|
| Extender body length | 10cm overall, excluding the brass fitting |
| Internal component joint | ¾-inch BSP female adapter / male fitting |
| Outlet coupling | GEKA-type claw coupling with face seal |
