Description

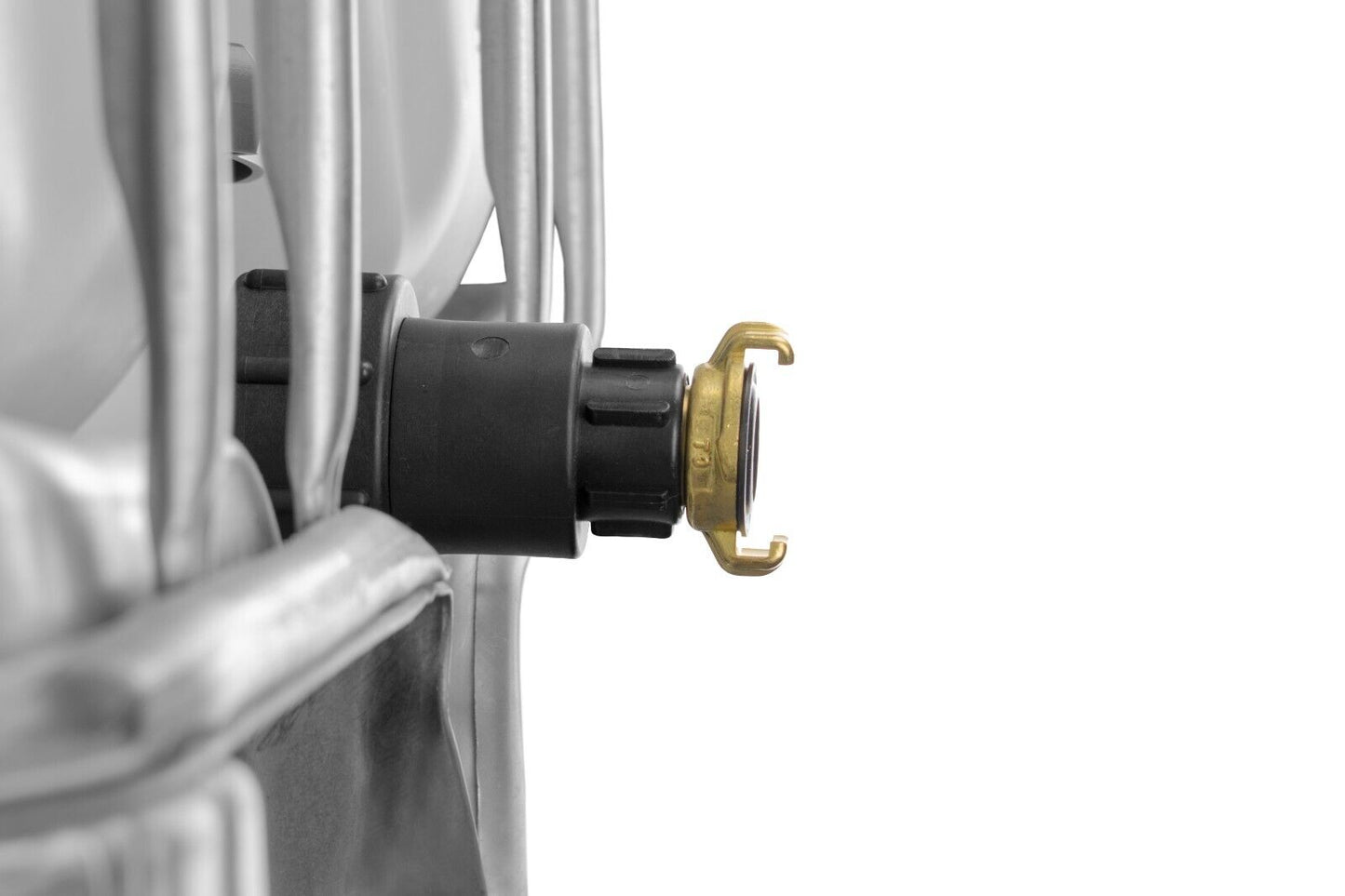

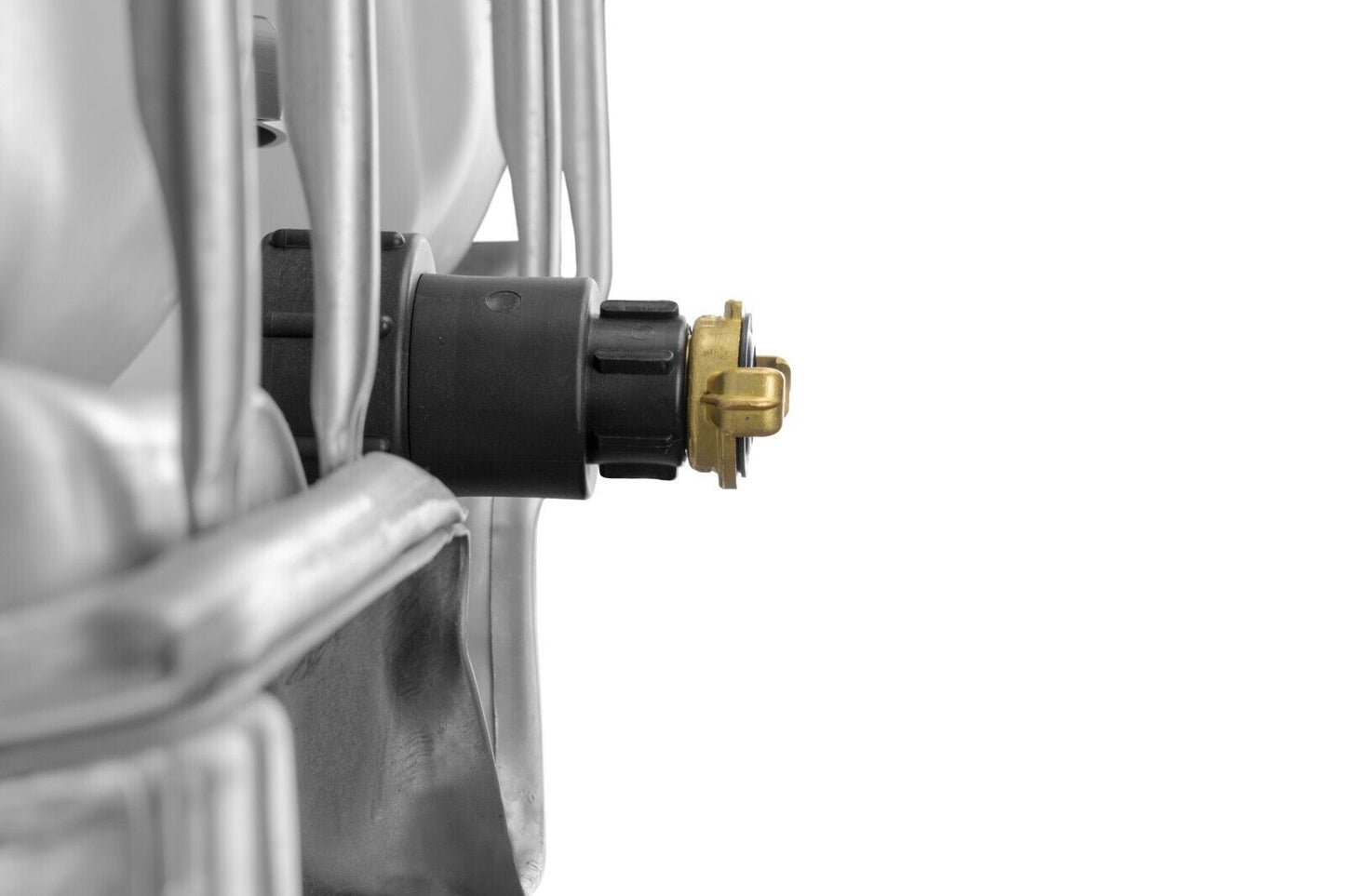

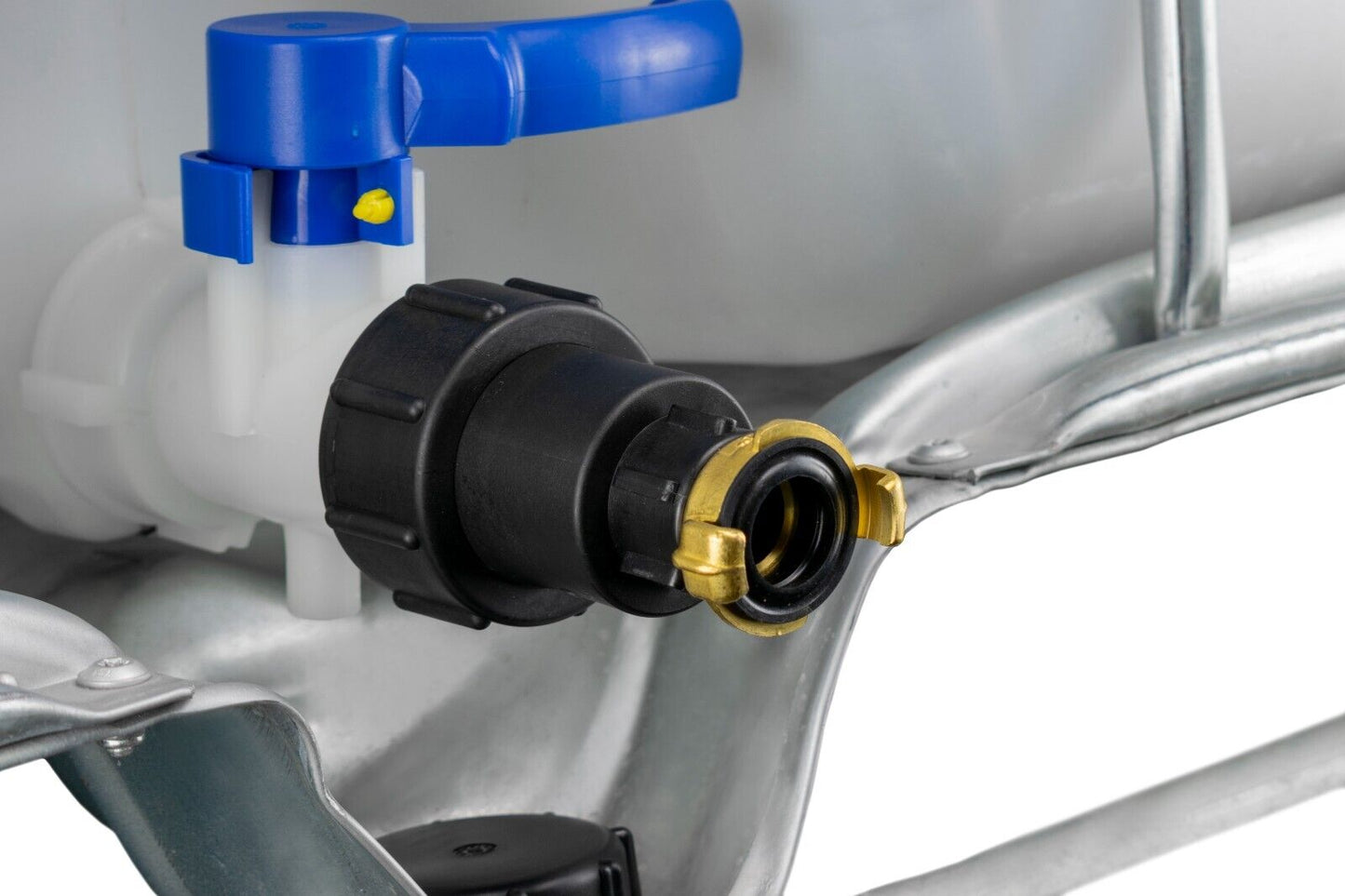

Bring a claw connection forwards from your IBC

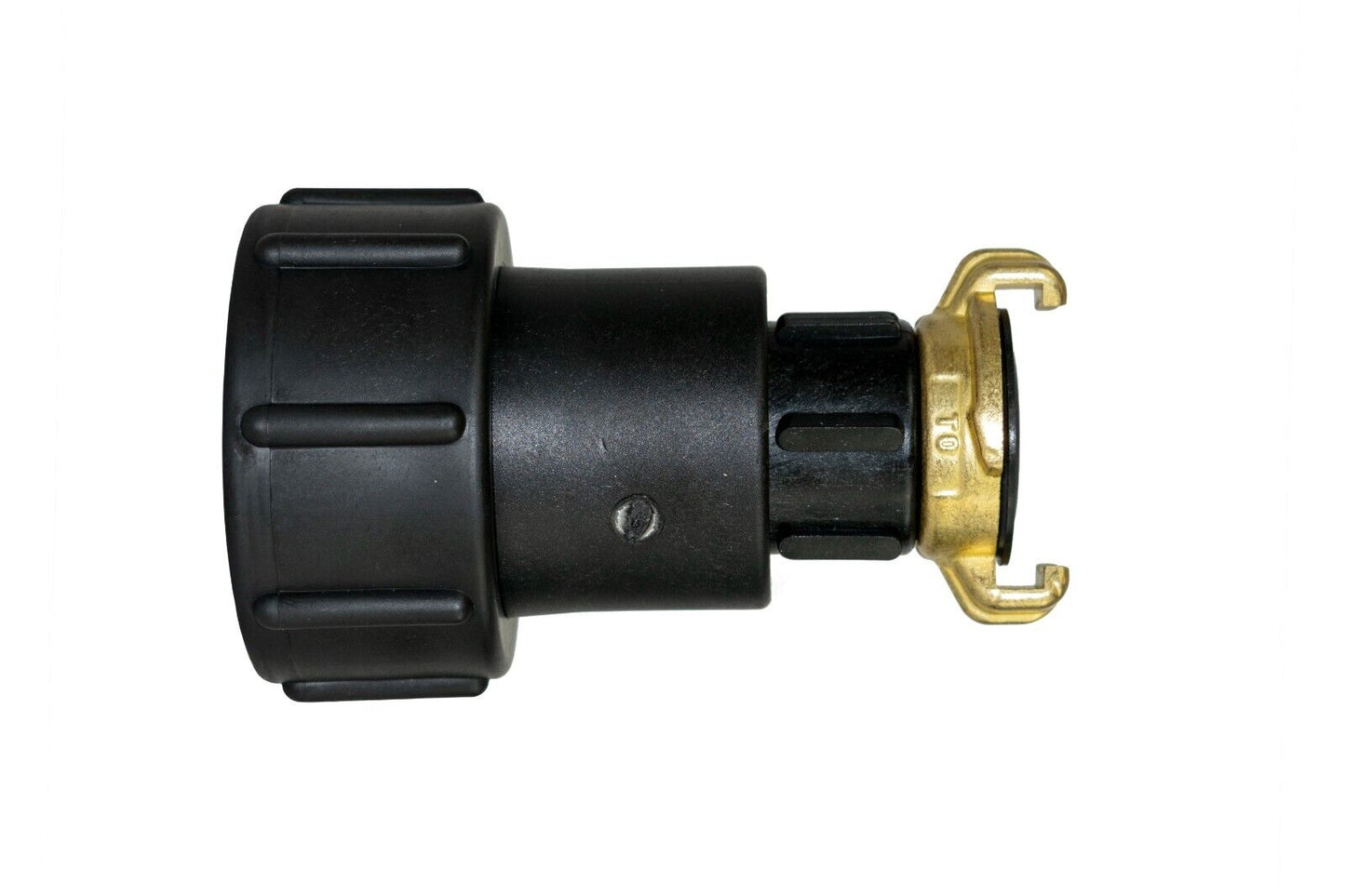

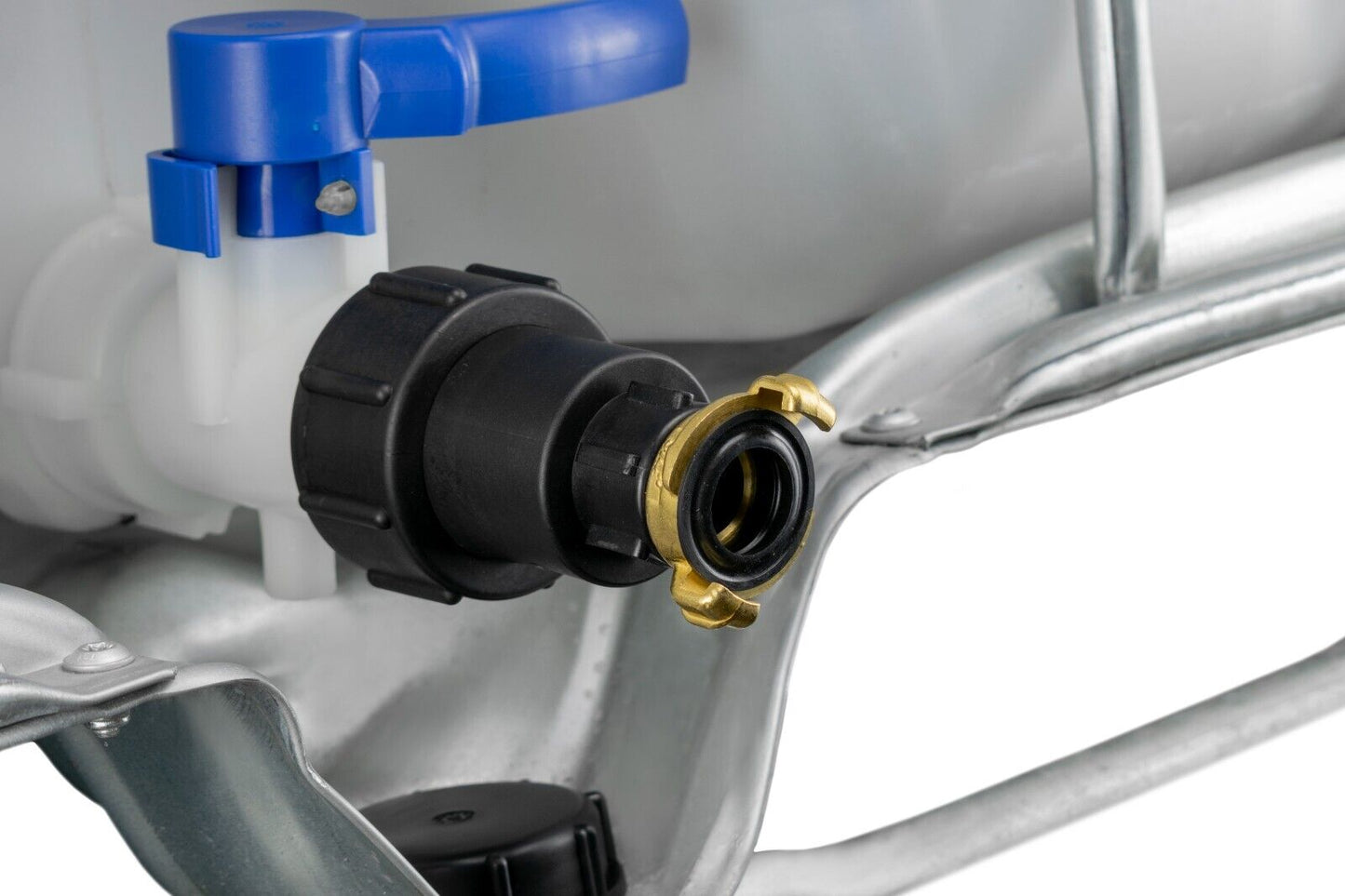

Connect a matching IBC outlet to a GEKA-type claw coupling, with an extended adapter body that brings the connection forwards. The brass fitting provides a twist-lock connection for a compatible mating claw coupling.

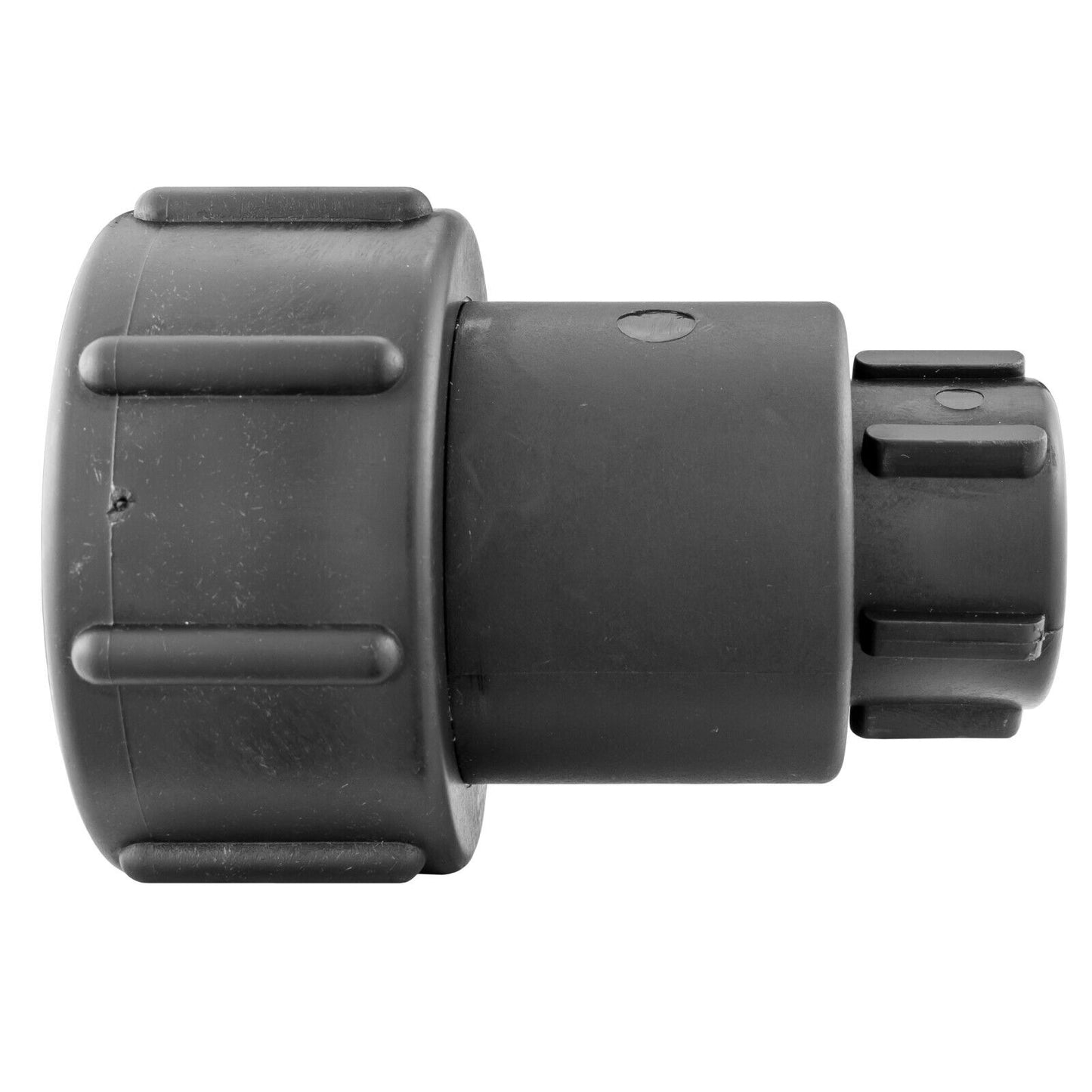

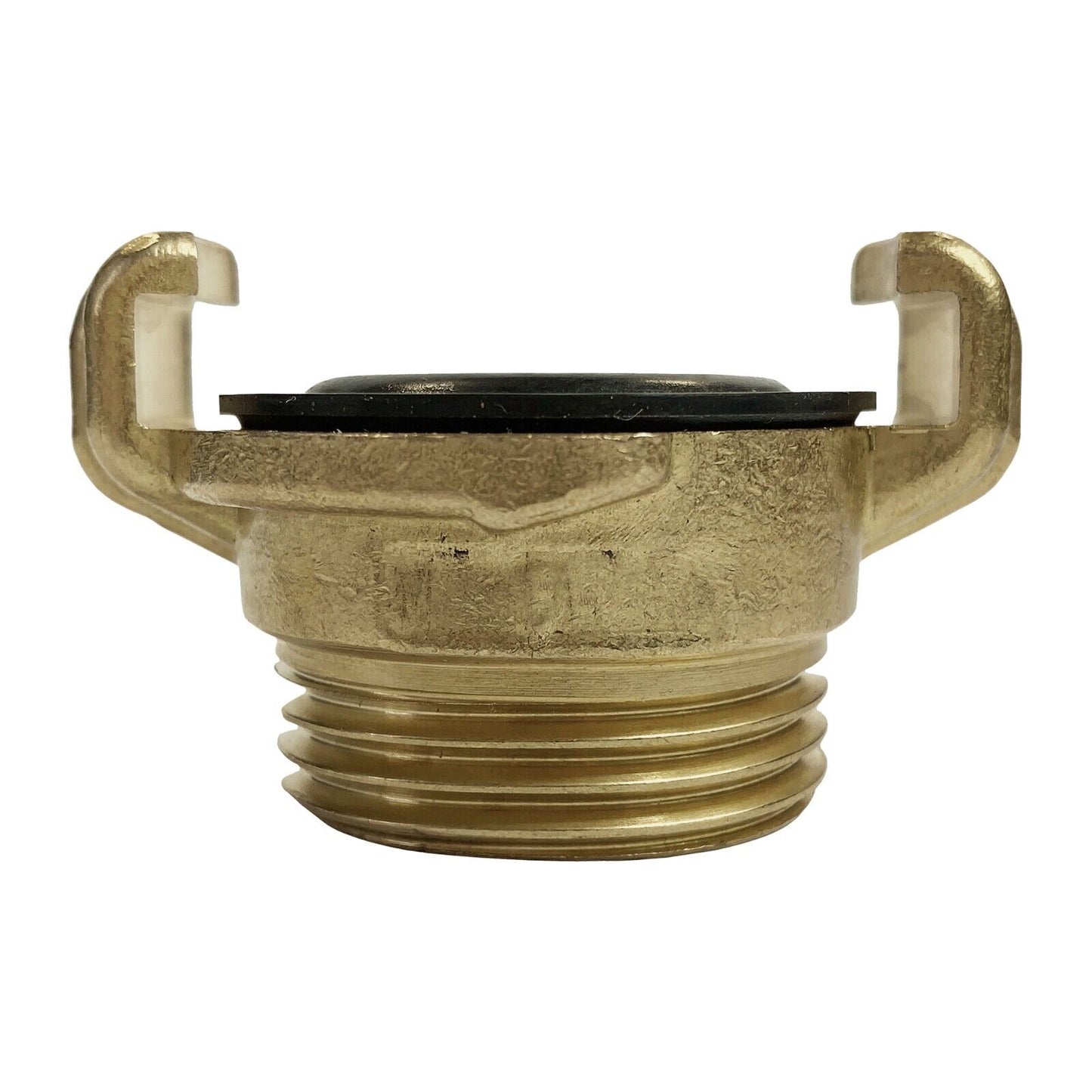

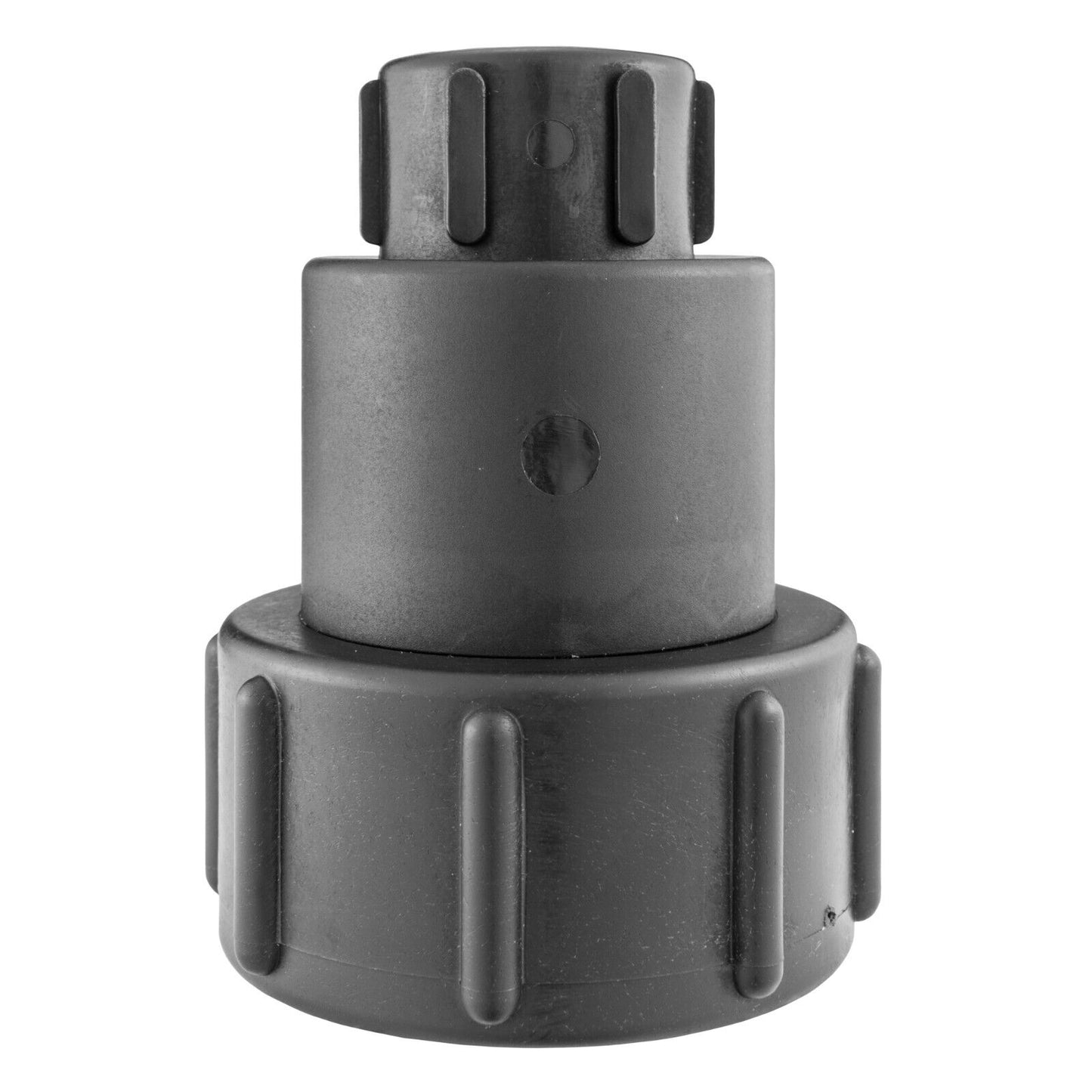

The tank end fits a male S60x6 coarse thread. At the front, the two brass claws and black face seal form the coupling interface; this is a different system from a standard garden-hose click connector.
One extender and one brass coupling supplied. The mating coupling, hose and PTFE tape are separate. This kit adds a connection, without an additional shut-off valve.
Match the coupling, not just the thread size
The claws make the hose-side connection. A compatible mating claw coupling brings its sealing face against this one and locks with a twist. Choose the matching claw system and a hose connection suited to your hose; a bare hose does not push onto this fitting.
The ½-inch BSP thread joins the kit parts. The brass fitting's male thread screws into the extender's female socket. It does not mean the finished outlet is a ½-inch hose barb, nor does it identify the tank thread.

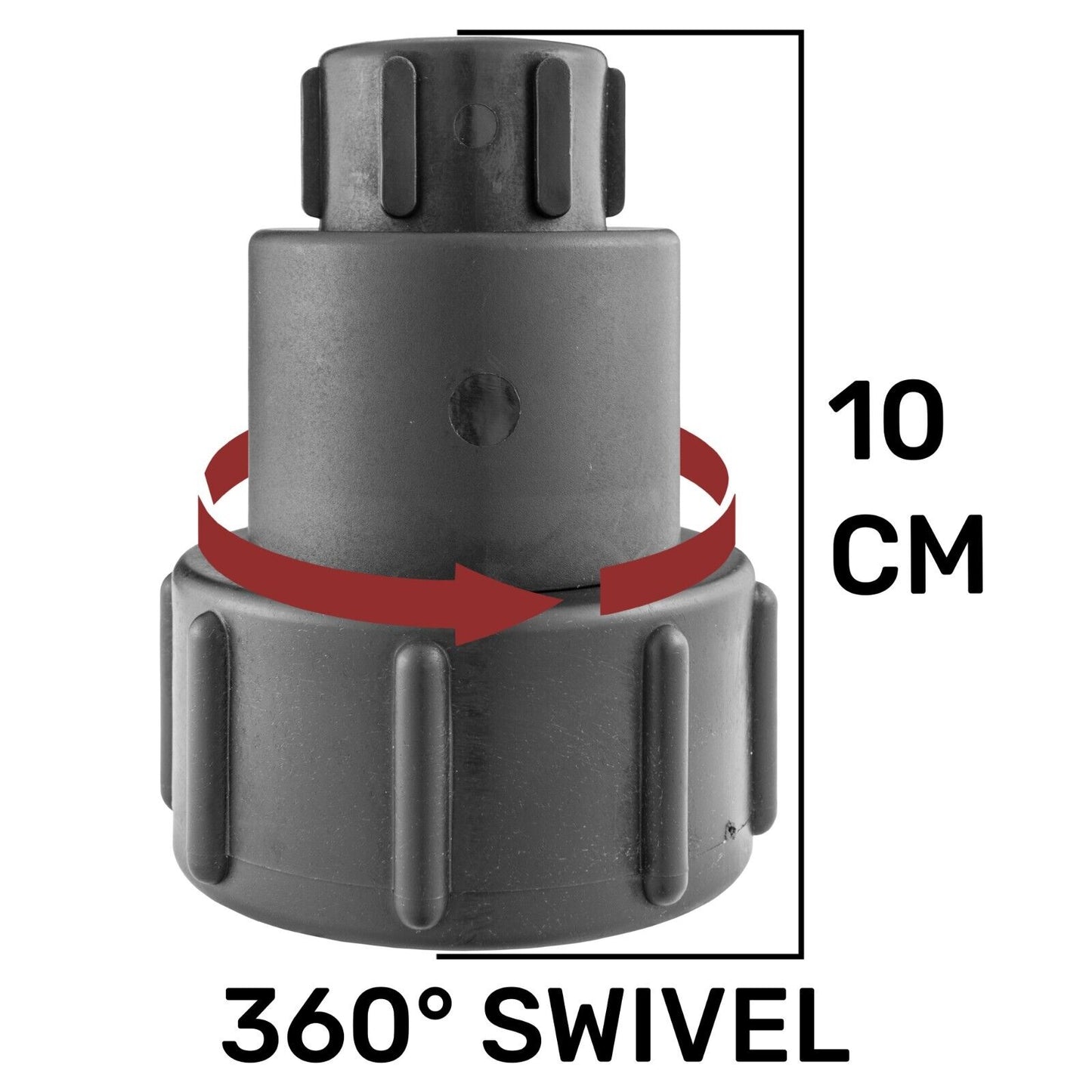

The plastic extender is 10cm long overall, excluding the brass fitting. Some of it overlaps the tank connection when fitted, so check the actual valve, cage and pallet clearance rather than assuming 10cm of extra installed reach.
PTFE tape may be required at the BSP threaded joint and is sold separately. Isolate the water supply before assembling or disconnecting the kit, support any attached hose and check the finished connections for leaks.
Check your existing connections
Will a normal garden-hose click connector fit?
No. The outlet is a GEKA-type claw coupling. It needs a compatible mating claw coupling, with the correct connection for your hose or pipework. Hozelock-style click connectors, camlocks and other claw standards are not interchangeable simply because they look similar.
Is a tap or PTFE tape included?
No. SKU IBC021L contains one extended S60x6 adapter and one brass claw fitting. It has no separate shut-off valve, hose, mating coupling or tape roll. Use the existing IBC valve or suitable control in your system, and arrange any sealing materials needed for the installation.
Product information & technical details
| SKU | IBC021L |
|---|---|
| Product type | |
| IBC thread size | S60X6 (2") |
| Kit parts | 1 × extended S60x6 adapter with ½-inch BSP female socket, 1 × brass GEKA-type claw fitting with ½-inch BSP male thread |
| Colour | Black, Brass |
| Material | Plastic, Brass |
|---|---|
| Extender body length | 10cm overall, excluding the brass fitting |
| Internal component joint | ½-inch BSP female adapter / male fitting |
| Outlet coupling | GEKA-type claw coupling with face seal |
