Description
A threaded outlet you can disconnect

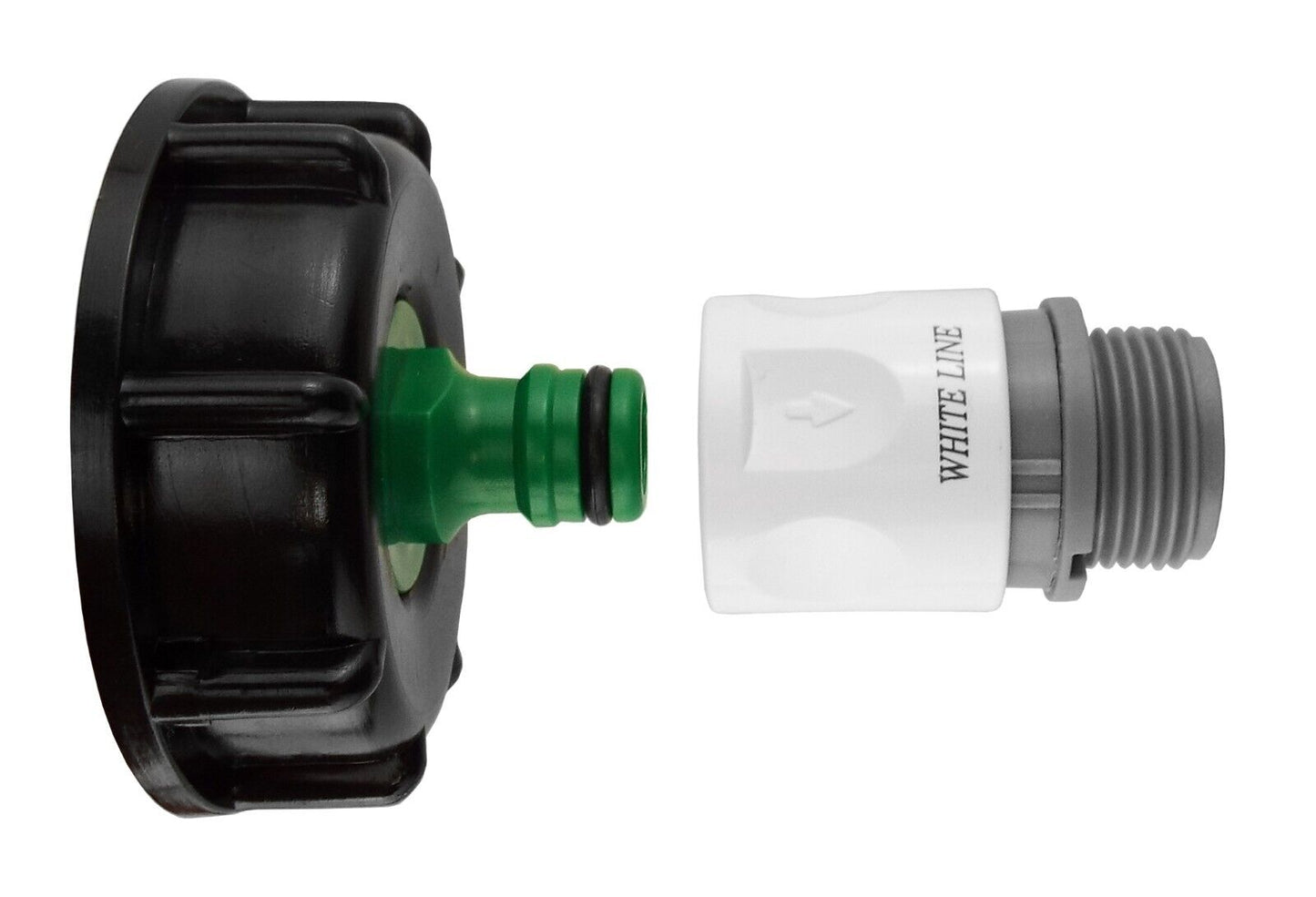

Keep a ¾-inch BSP female fitting attached to the white connector, then release the garden quick joint when you need to disconnect it from your IBC. This three-part kit combines a matching S60x6 tank cap with a male quick plug and a white female quick connector.
The grey screw thread at the outer end is ¾-inch BSP male. Your compatible female-threaded fitting screws onto it; the quick-release connection is behind the white sleeve.
Cap, male quick plug and white threaded quick connector supplied. Use your existing IBC valve to control the water. Tank, valve, hose, downstream fittings and sealing tape are not included.
Three parts. Two different connections.
The black plug screws into the cap's ¾-inch BSP female port. The white connector clicks onto that plug, leaving its own ¾-inch BSP male thread facing out for your separate female-threaded fitting.
This means you can leave that fitting screwed to the white connector while disconnecting the quick joint. To release it, close the tank valve first, relieve any pressure and pull back the white sleeve.
For a hose that already has a matching female garden quick connector, leave the white threaded connector off and connect to the black male plug instead. Bare hose needs its own suitable hose-end fitting: it does not push directly onto the BSP screw thread.
Check the tank and the outlet separately
- Match the tank thread. The cap fits a male S60x6 outlet: nominally 60mm with a 6mm coarse pitch. Check the actual tank or valve thread and surrounding clearance; not every IBC uses this connection.
- Match your downstream fitting. The grey outlet is ¾-inch BSP male and needs a compatible ¾-inch BSP female fitting. BSP is a nominal thread size, not a hose-bore measurement. Check the thread specification and intended use of both parts.
- Assemble and check. Shut the supply, inspect the cap washer and start screw threads straight. Use suitable sealing where required at BSP joints; PTFE tape is sold separately. Support attached pipework, open the valve gradually and inspect the connections.
Connection questions
Does a BSP fitting screw on or click in?
It screws onto the grey ¾-inch BSP male outlet. The click connection is a separate joint between the black male garden plug and the white female quick connector. A BSP female thread does not click directly onto a garden quick plug.
Will water stop when I disconnect it?
No tap or automatic water-stop function is specified for this kit. Close your existing tank valve and relieve pressure before releasing the connector. Keep the valve accessible after installation.
Product information & technical details
| SKU | IBC007H |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| IBC thread size | S60X6 (2") |
| Kit parts | S60x6 cap with ¾-inch BSP female port, Black ¾-inch BSP male-to-quick plug, White female quick connector with ¾-inch BSP male outlet |
| Colour | Black, White |
|---|---|
| Material | Plastic |
| Outlet connection | ¾-inch BSP male, with white connector fitted |
| Quick-release joint | Male garden plug to female quick socket |
| Flow control | No tap included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
