Description
Connect your 38mm hose at the tank

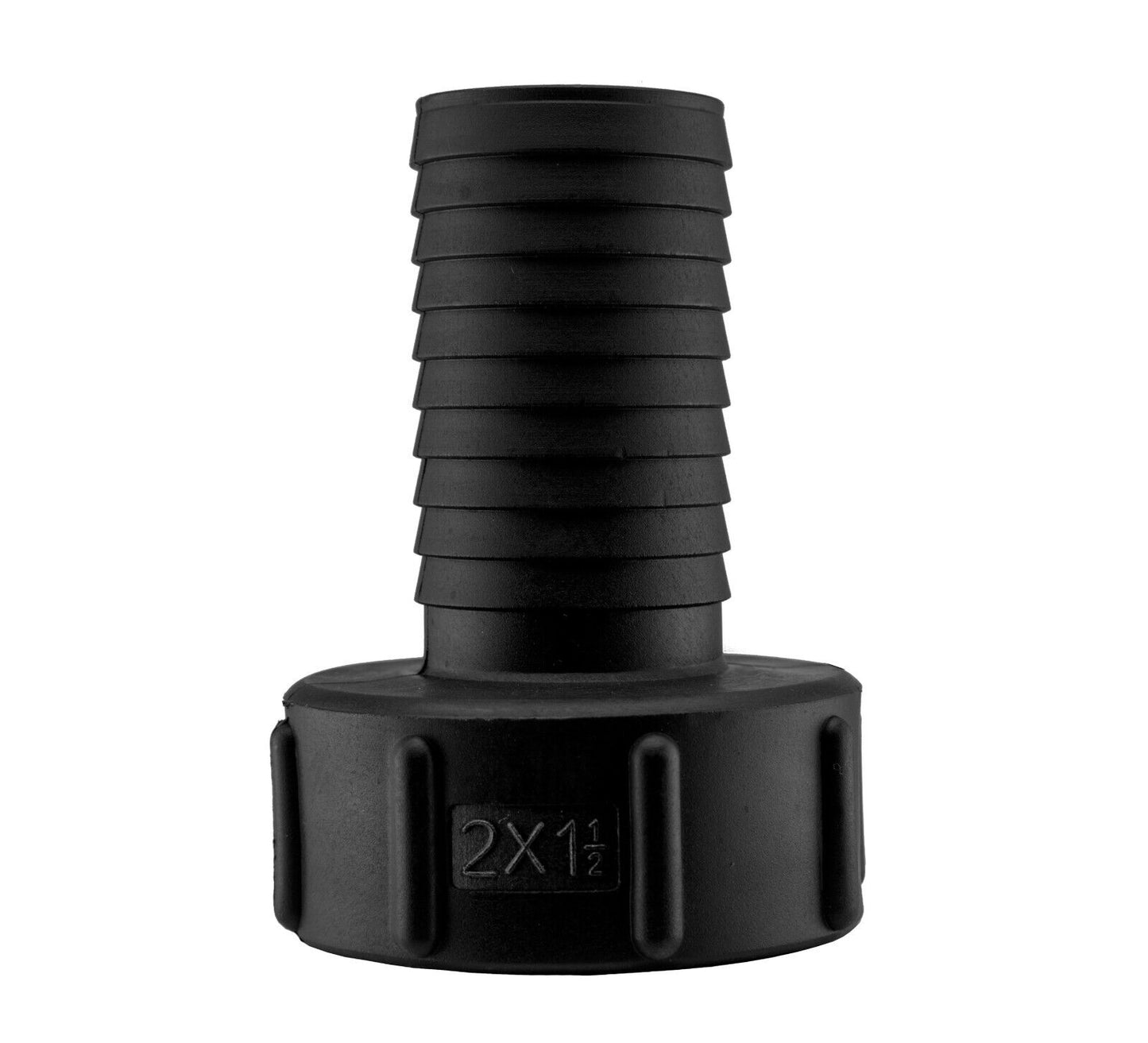

This black IBC adapter gives a matching S60x6 outlet a straight 38mm hose tail. The coarse-thread collar attaches to the tank or existing valve, and your hose slides over the broad barbed section.
It is a useful connection for a rainwater hose run when the hose has a 38mm internal bore, commonly called 1½-inch. The ribbed collar gives you a hand grip, while the barbed outlet sits inside the hose and is secured with a suitable clip.
One adapter supplied. The tank, valve, hose and clip shown in the installation illustration are not included.
Check the hose before choosing the adapter
The 38mm measurement is the hose's inside diameter. Check the bore at a clean, round end of the hose. A hose with a 38mm outside diameter is smaller inside, so that measurement alone does not establish a fit.
The tank side is a separate check: you need a matching male S60x6 coarse thread and suitable sealing face on the IBC or its valve. Confirm the actual thread before fitting; another IBC thread or a fine BSP connection is not interchangeable.

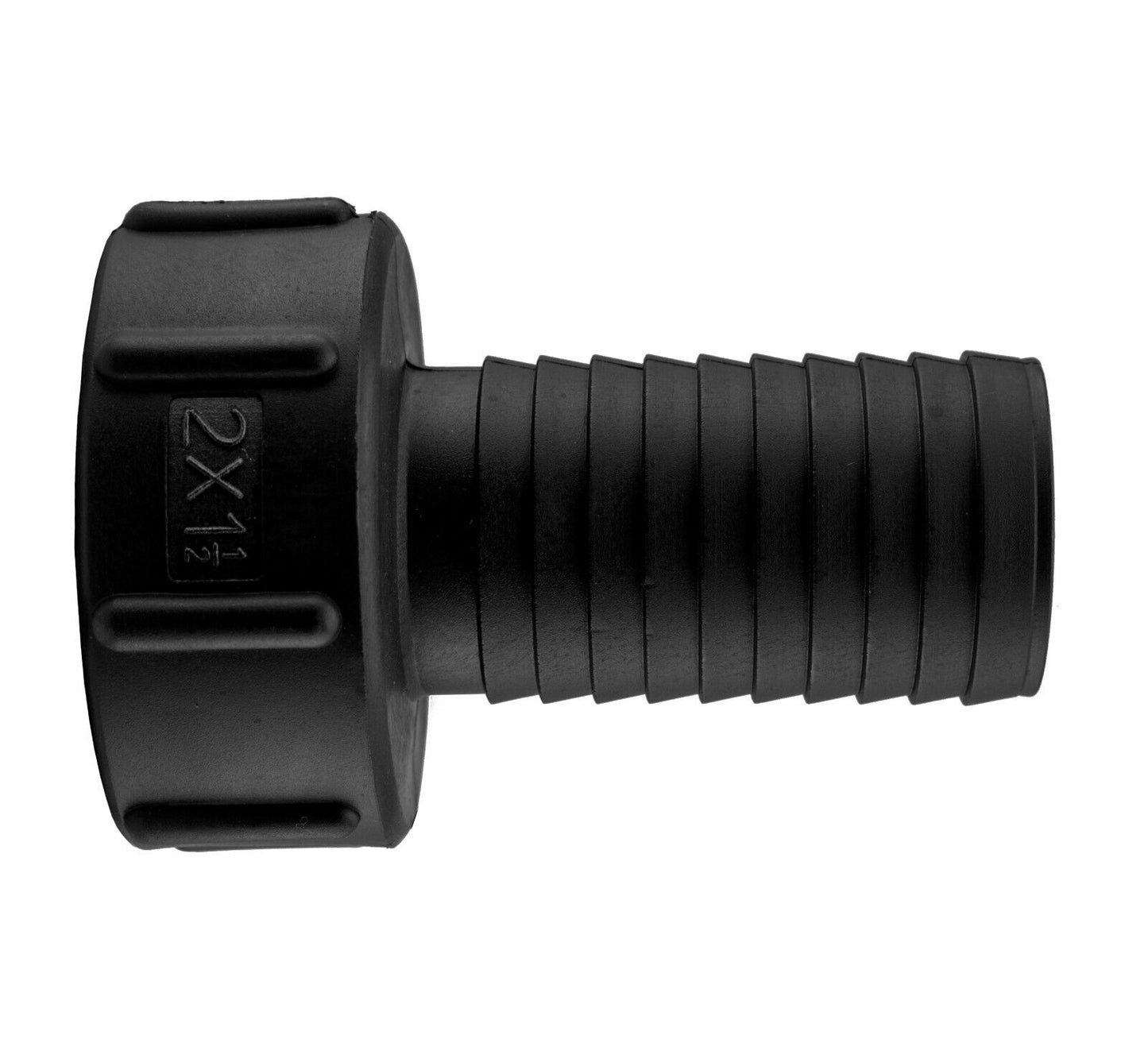

The genuine side-profile photograph shows the long, broad barbed tail and ribbed collar, including the 1½-inch model marking. It lets you compare the bare fitting with your existing outlet and hose.
Give the hose a supported connection
Close the supply before fitting. Start the collar squarely by hand, checking that the tank-side seal sits correctly. Put a suitable hose clip onto the hose first, push the hose fully over the barbed section, then secure the clip over the inserted tail.
Choose the clip from the outside diameter of the hose once fitted, rather than from the 38mm bore. Support the hose near the tank, allow a gentle bend and avoid leaving its weight hanging from the adapter. Check the finished connection before use.
Hose and outlet questions
Is this a 1½-inch threaded connection?
No. The 1½-inch size describes the hose bore for the barbed tail. The threaded tank connection is S60x6 female coarse thread. The hose pushes over the outlet; it does not screw onto it.
Where do I turn the water off?
Use the existing tank valve or a suitable separate valve. The adapter has an open passage and no shut-off mechanism of its own. Close the supply before loosening the collar or removing the hose.
Product information & technical details
| SKU | IBCS60X6-15B001 |
|---|---|
| Product type | |
| Thread gender | Female |

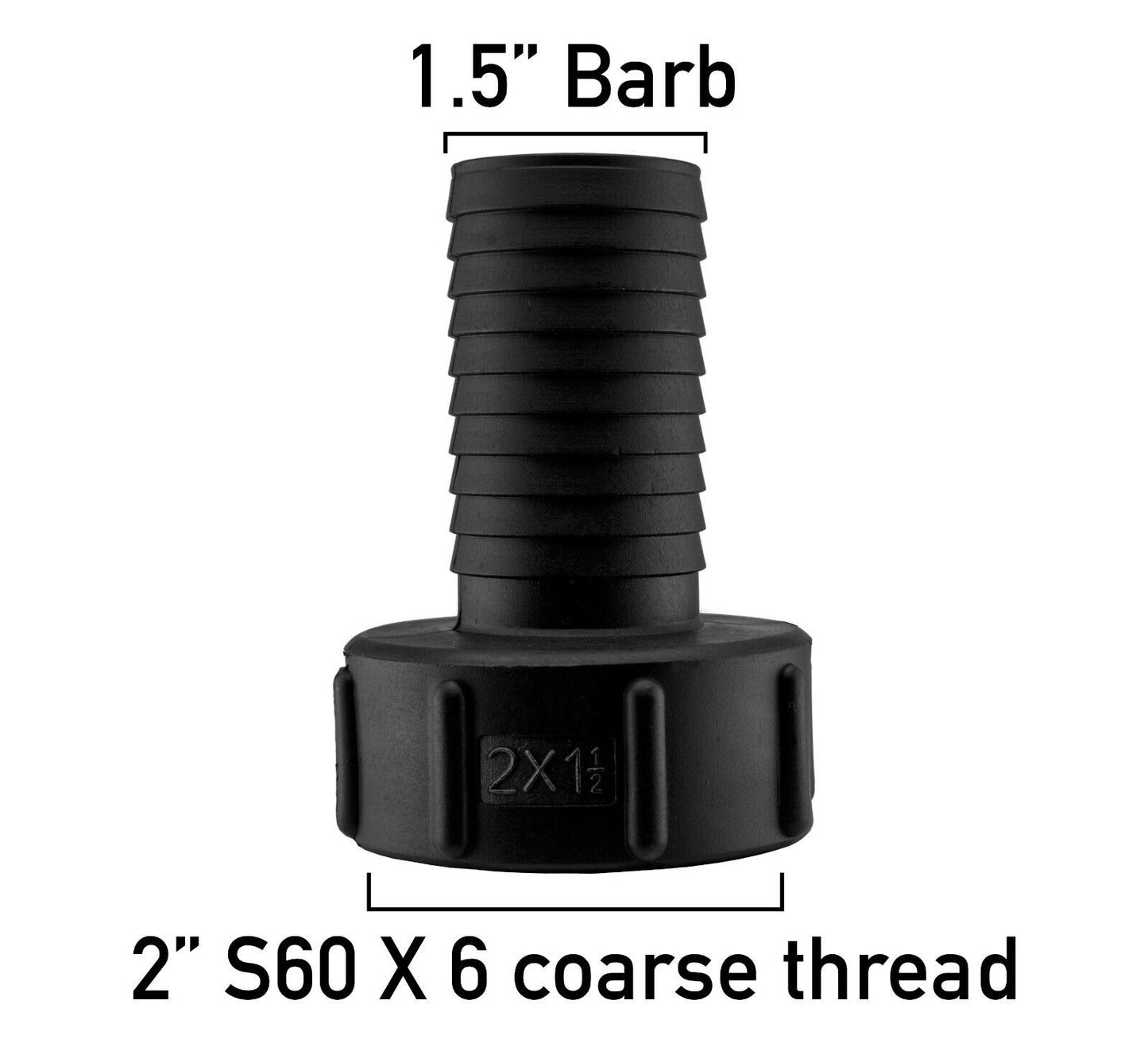

| IBC thread size | S60X6 (2") |
| Barb size | 38mm (1.5") |
| Colour | Black |
|---|---|
| Material | Plastic |
| Outlet arrangement | Straight 38mm barbed hose tail; no shut-off valve. |
| Supplied item | 1 adapter only. Tank, valve, hose and hose clip excluded. |
