Description
Connect your IBC hose

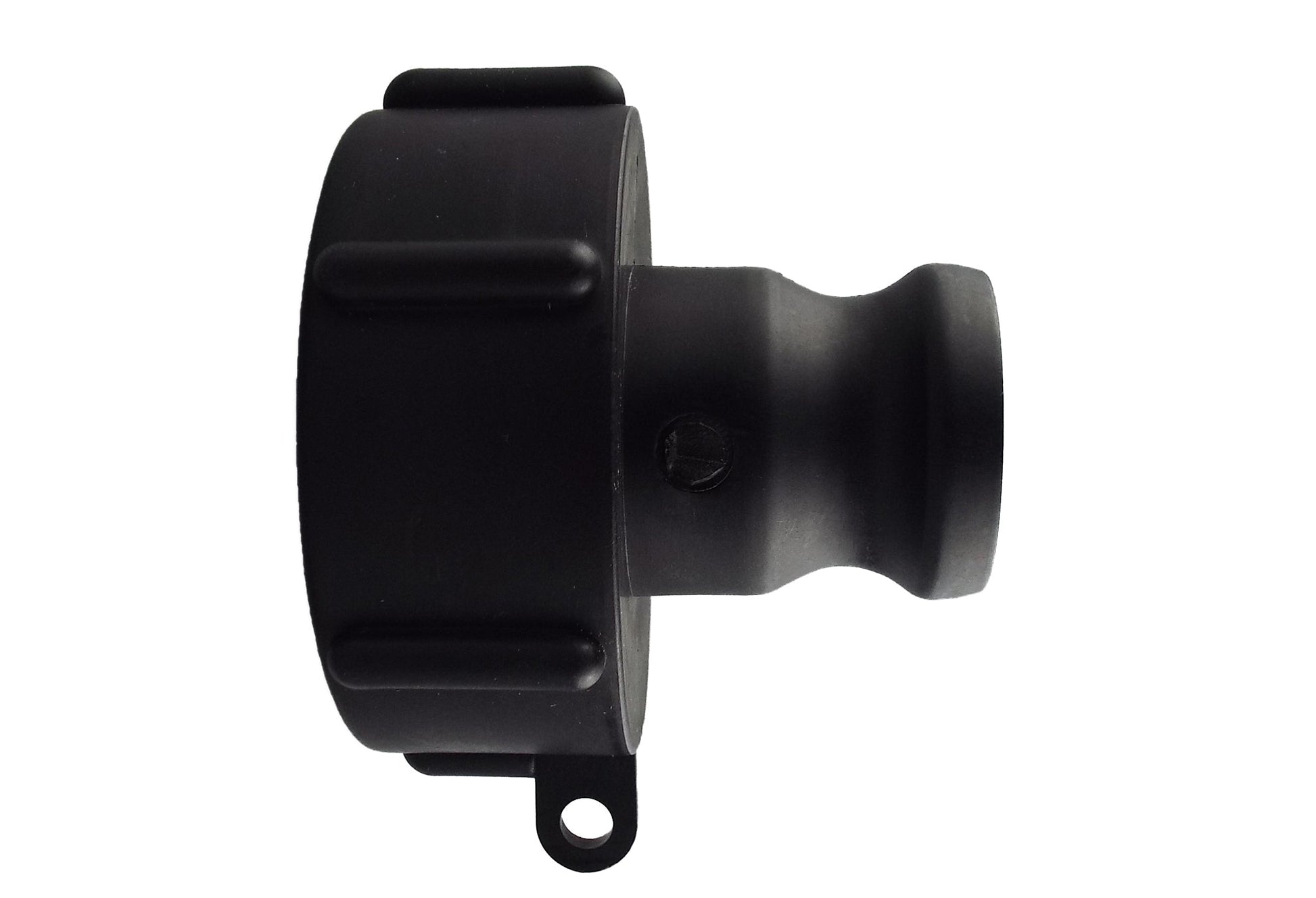

Convert a matching S60x6 IBC outlet to a ¾-inch male camlock. Screw the black plastic adapter onto the valve's male coarse thread, then connect your hose assembly using a separate matching female camlock coupler.
Leave this adapter on the tank when you put the hose away. The female coupler releases at the grooved front connection, keeping the tank-side thread undisturbed between uses.
One adapter with a tank-side sealing washer supplied. The IBC, original valve, female coupler, hose and clips are separate items.
Two connections to match

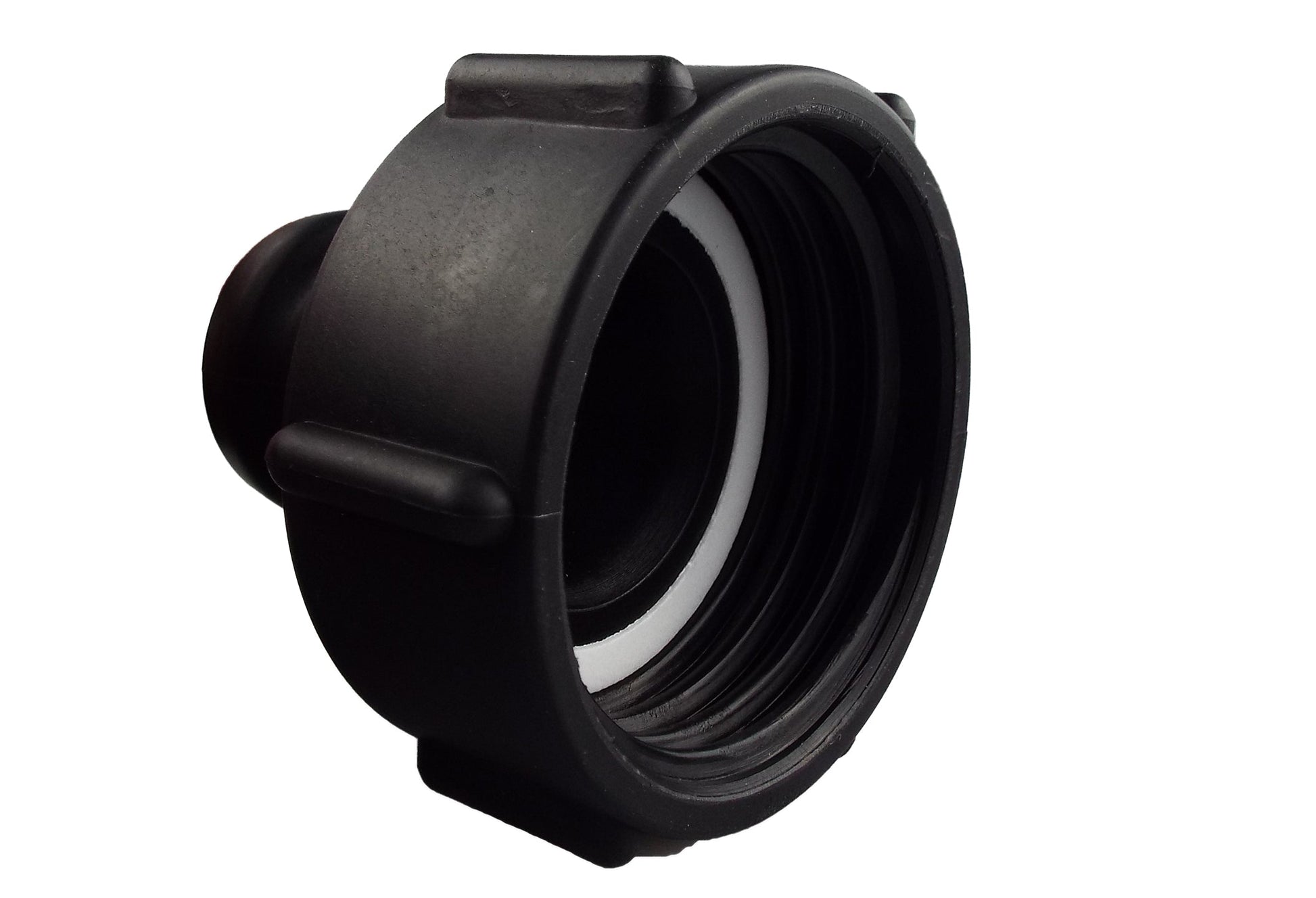

Start with the tank outlet. The wide female connection and washer shown here fit a matching male S60x6 thread: nominally 60mm with a 6mm pitch. Check your valve's exposed thread; S60x6 is not BSP.
Then check your hose assembly. The front is a nominal ¾-inch male camlock. Its raised lip and groove are held by the arms on a matching female coupler. It has no hose barb: do not push a bare hose onto the nose.
For a hose connection, the separate ¾-inch Type C female coupler provides a matching camlock socket and hose tail. Choose the hose and its fastening to suit that tail, and support the hose so it does not pull on the tank outlet.
Before connecting, close the supply and release pressure. Check the female coupler's gasket, open its arms, insert the male nose fully against the gasket and close both arms completely by hand. Check any locking feature before use. Close and depressurise again before releasing the coupler; the adapter itself has no shut-off function.
Check before ordering
Is this a ¾-inch BSP or garden quick connector?
No. The ¾-inch size describes the nominal camlock connection, not a BSP thread or garden hose quick connector. Choose a compatible ¾-inch female camlock. The S60x6 connection at the back is the separate tank thread.
Can this adapter turn the water off?
No. It is an open adapter, not a tap or valve. Keep a suitable shut-off valve on the tank, and close and depressurise the supply before releasing a connected hose. One adapter and its tank-side washer are supplied; the female coupler, hose and clips are separate.
Product information & technical details
| SKU | CAM-IBCS60X6-34-001 |
|---|---|
| Product type | |
| Thread gender | Female |
| IBC thread size | S60X6 (2") |
| Camlock type | Type A |
| Camlock size | 3/4" |
| Camlock gender | Male |
|---|---|
| Colour | Black |
| Material | Plastic |
| Tank thread pitch | 6mm (S60x6) |
| Supplied quantity | 1 adapter with tank-side sealing washer |
